Looking for Xbee Module 63mw? XBee Pro S2C 63mW 802.15.4 Module without Antenna is available at Zbotic with fast shipping across India.

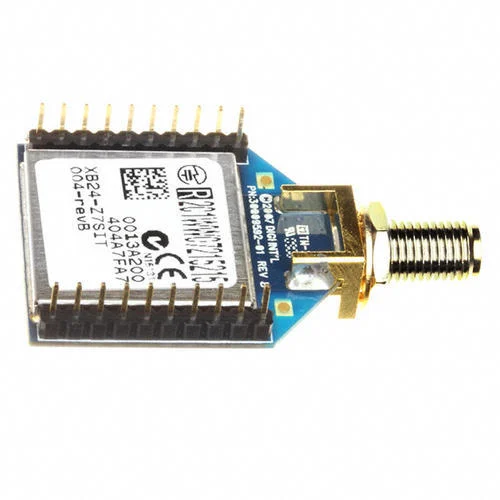

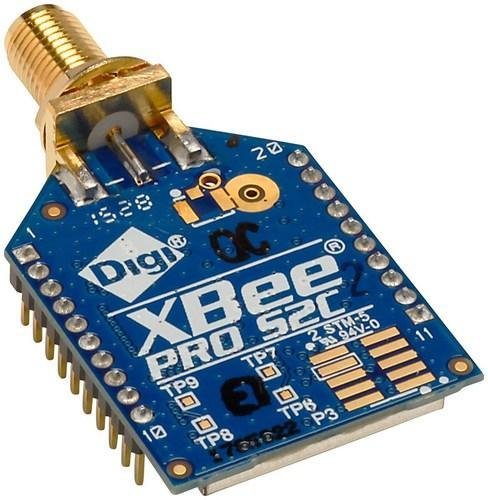

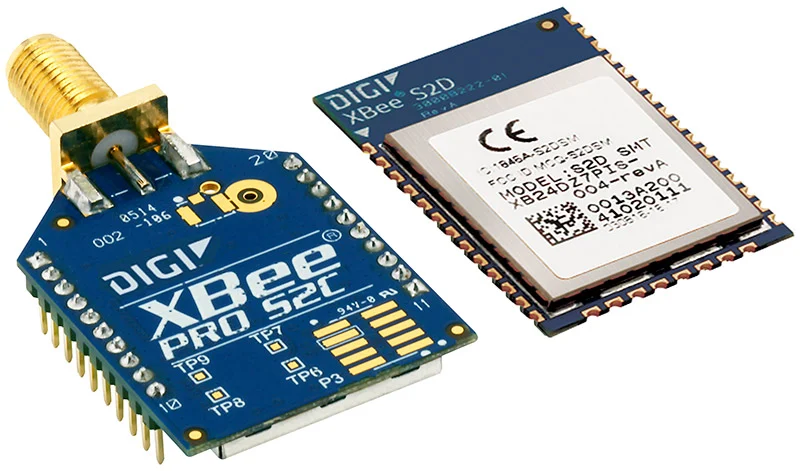

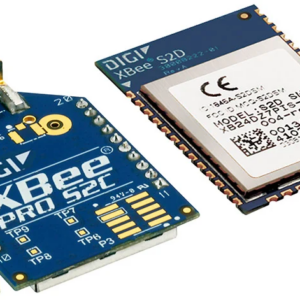

XBee Pro S2C 63mW 802.15.4 Module without Antenna
This is the Zigbee XBee Pro S2C 802.15.4 Module 63mW 3Km. It is a cost-effective wireless connectivity solution for electronic devices. It can work with other devices that use the ZigBee PRO feature set, even from different vendors.
The XBee 802.15.4 products offer reliable end-point connectivity with ease. They can be used as a simple serial cable replacement for XBEE S2C 802.15.4 RF MODULES communication, or as part of a more complex network of sensors. They optimize performance and development simplicity.
XBee and XBee-PRO ZigBee modules are suitable for hobbyists and educational research, as well as applications in the energy and controls markets that require manufacturing efficiency. The Serial Peripheral Interface (SPI) enables a high-speed connection and facilitates the integration with embedded microcontrollers, reducing development costs and time to market.
Digi’s ZigBee compatible module uses the Ember EM35x (EM357 and EM3587) system on chip (SoC) radio ICs from Silicon Labs, which have a 32-bit ARM CortexTM M3 processor.
IMPORTANT!!!
Because XBee modules have 2 mm pin spacing, we recommend one of the adapter boards for each module. The XBee adapter boards provide several advantages to the XBee modules such as breadboard-friendly standard 0.1-inch pin spacing, mounting holes, and easy-to-solder connections. Even if you are communicating point-to-point without a PC, we still recommend that you always have at least one XBee USB Adapter Board, so you can easily configure and test each XBee module prior to putting it in a point-to-point application.
Application :
- Remote industrial control and monitoring
- Long-range remote control
- Wireless data acquisition
- Wireless networking
Note: This Module does not come with an antenna.
Features
- Supports binding and multicasting for home automation
- Mesh-network topology
- 2.4 GHz for worldwide deployment
- Common XBee footprint fits Parallax XBee Adapters and the Propeller Activity Board
- Industry-leading sleep current of sub 1 µA
- Firmware upgrades via UART, SPI or over the air
Package Includes
- 1 x Zigbee XBee Pro S2C Module

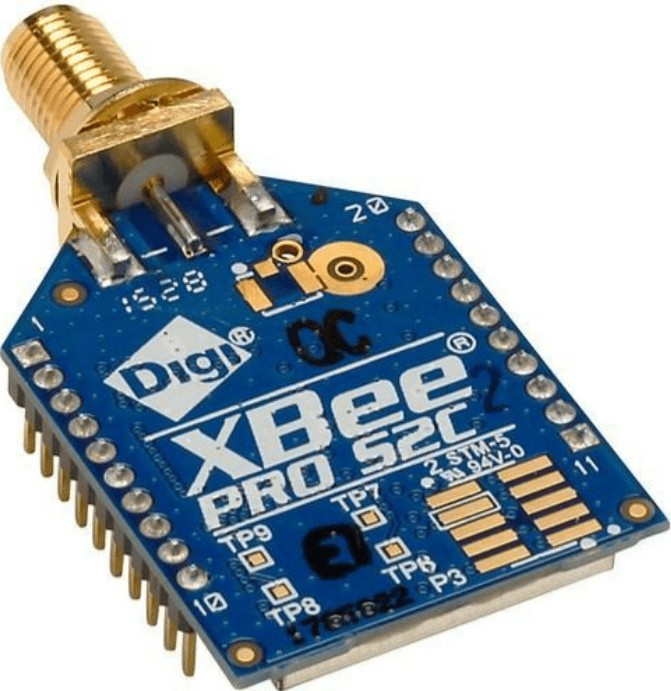

XBee Pro S2C 63mW 802.15.4 Module without Antenna Overview
The XBee Pro S2C 63mW 802.15.4 Module without Antenna is a high-power Zigbee radio transceiver designed for reliable wireless data links in point-to-point or mesh topologies. Operating at 2.4 GHz with up to 250 kbps data rate and a 63 mW RF output, it extends line-of-sight range to nearly 3 km for home automation, sensor networks, and industrial monitoring.
Key Features of XBee Pro S2C 63mW 802.15.4 Module without Antenna
- 63 mW RF transmit power (S2C) for up to 3 km outdoor/radio line-of-sight range
- IEEE 802.15.4 at 2.4 GHz for worldwide deployment and mesh-network topology
- Supports binding, multicasting and Zigbee PRO feature set for scalable home and industrial networks
- Silicon Labs EM357 SoC transceiver chipset with up to 250 kbps data rate
- Common XBee footprint compatible with Parallax XBee adapters and Propeller Activity Board
- Firmware upgrades via UART, SPI or over-the-air for in-field updates
- Fast shipping across India from Zbotic for quick project deployment
Applications and Use Cases
- Wireless sensor networks for temperature, humidity and environmental monitoring
- Home automation systems with remote lighting, security and appliance control
- Industrial machine-to-machine communication in factories and warehouses
- Robotics projects requiring low-latency, long-range RF links without an antenna
- Research and development platforms for academic and hobbyist IoT prototypes
- Remote data loggers and telemetry in agriculture or pipeline monitoring
How to Use XBee Pro S2C 63mW 802.15.4 Module without Antenna
Insert the module into a standard XBee socket or adapter, attach a suitable 2.4 GHz antenna, and connect power along with UART or SPI pins to your microcontroller. Configure PAN ID, channel and transmit power via AT or API commands over serial. Place modules in desired nodes, bind them for peer-to-peer or mesh networks, and monitor link status using XCTU or your own host application.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Does the XBee Pro S2C 63mW module include an antenna?
No, this module is sold without an antenna. You must attach a compatible 2.4 GHz antenna via the u.FL connector to achieve the specified range and performance.
Can I perform firmware updates over the air?
Yes. The EM357 chipset supports over-the-air firmware upgrades. You can also update via UART or SPI using Digi’s XCTU software when the module is connected to your host device.
Is this module compatible with standard XBee sockets?
Absolutely. The module uses the common XBee footprint and pinout, making it plug-and-play with Parallax XBee adapters, Propeller Activity Board, and other XBee-compatible carrier boards.
Technical Specifications
| Model | S2C |
|---|---|
| SKU | AI1032 |
| Weight | 0.05 kg |
| Availability | Out of Stock |
Applications & Use Cases
The XBee Pro S2C 63mW 802.15.4 Module without Antenna is a versatile xbee zigbee modules used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
