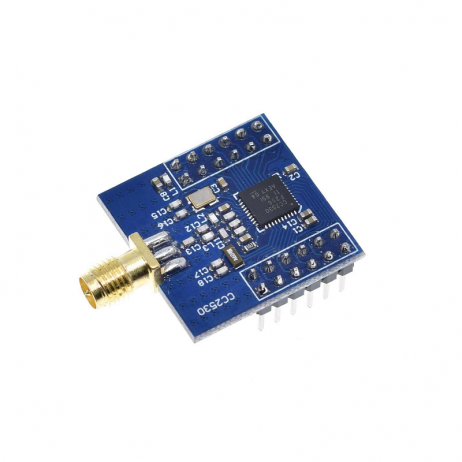

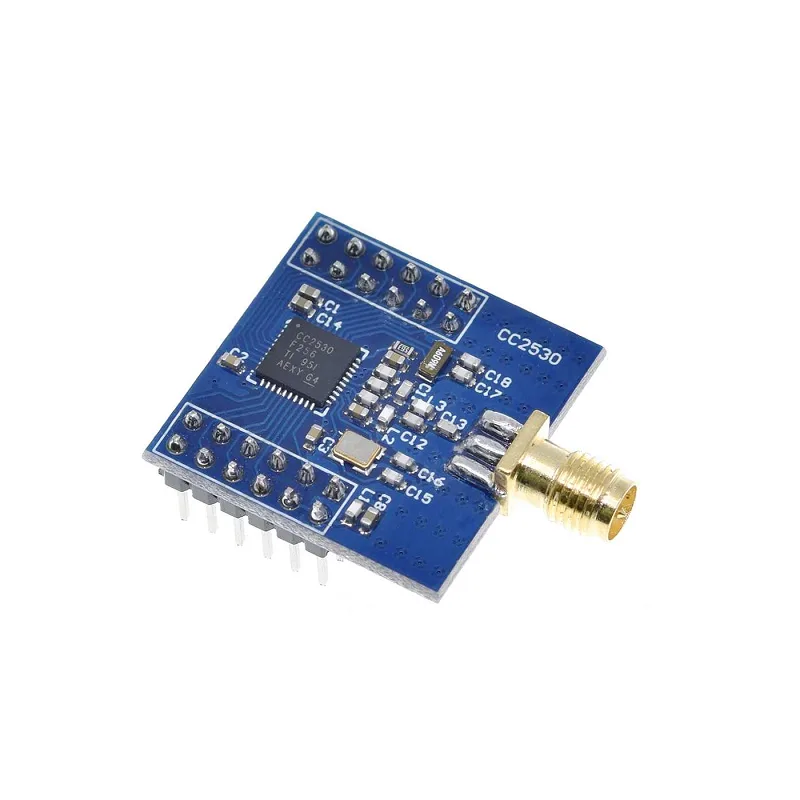

CC2530F256 Zigbee UART Wireless Core Development Board with Serial Port

This is a Wireless Core Development Board based on CC2530, which supports Zigbee Protocol. The Module has a 2.4-GHz IEEE 802.15.4 Compliant RF Transceiver, with Excellent Receiver Sensitivity and Robustness to Interference this module has programmable output power up to 4.5 dBm. Made with very few external components, this module supports 2.4-GHz IEEE 802.15.4 systems.

The pin configuration is given below:

Useful link:

To flash this module, Follow the instructions given on this link .

Applications:

1. Home/Building Automation.
2. Lighting Systems.
3. Industrial Control and Monitoring.
4. Low-Power Wireless Sensor Networks.
5. Consumer Electronics.
6. Health Care.

Features:

1. 2.4-GHz IEEE 802.15.4 Compliant RF Transceiver.
2. Excellent Receiver Sensitivity and Robustness to Interference.
3. Programmable Output Power Up to 4.5 dBm.
4. Very Few External Components
5. 2.4-GHz IEEE 802.15.4 Systems.

Package Includes:

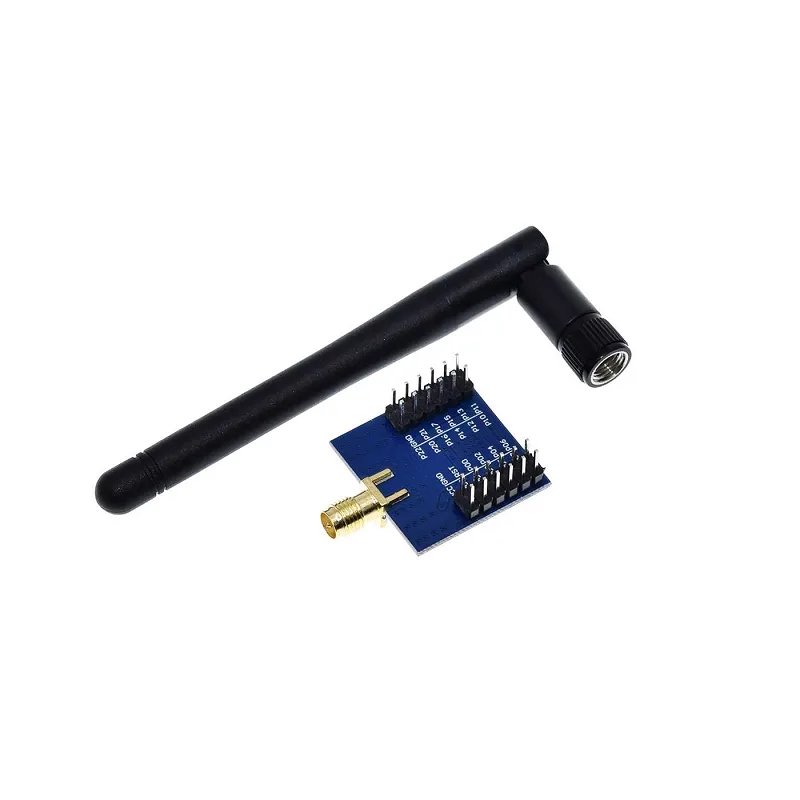

1 x CC2530 Zigbee Module UART Wireless Core Board Development Board CC2530F256 Serial Port Wireless Module 2.4GHz Zigbee
