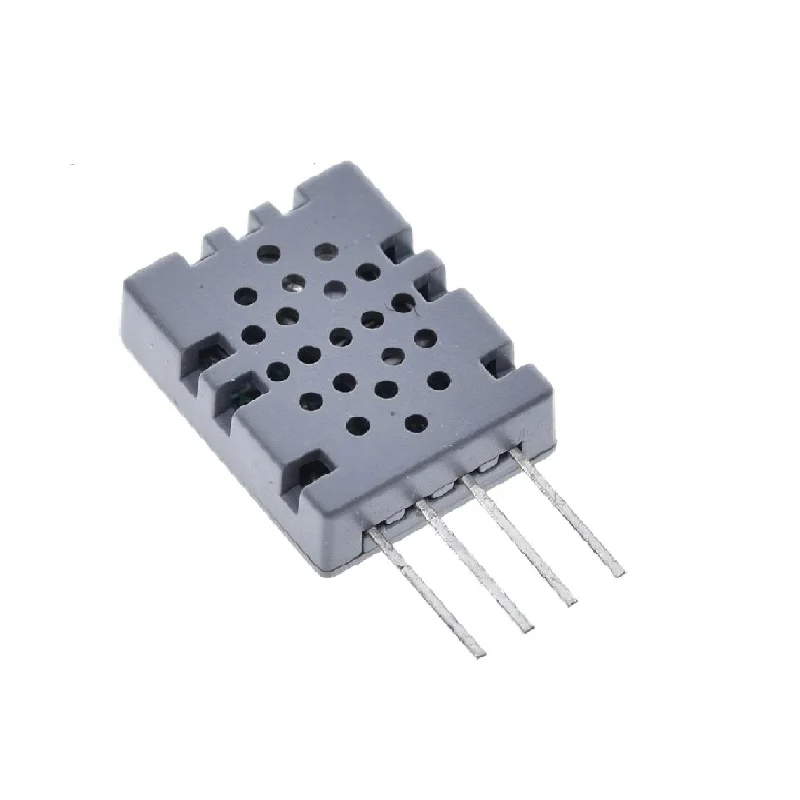

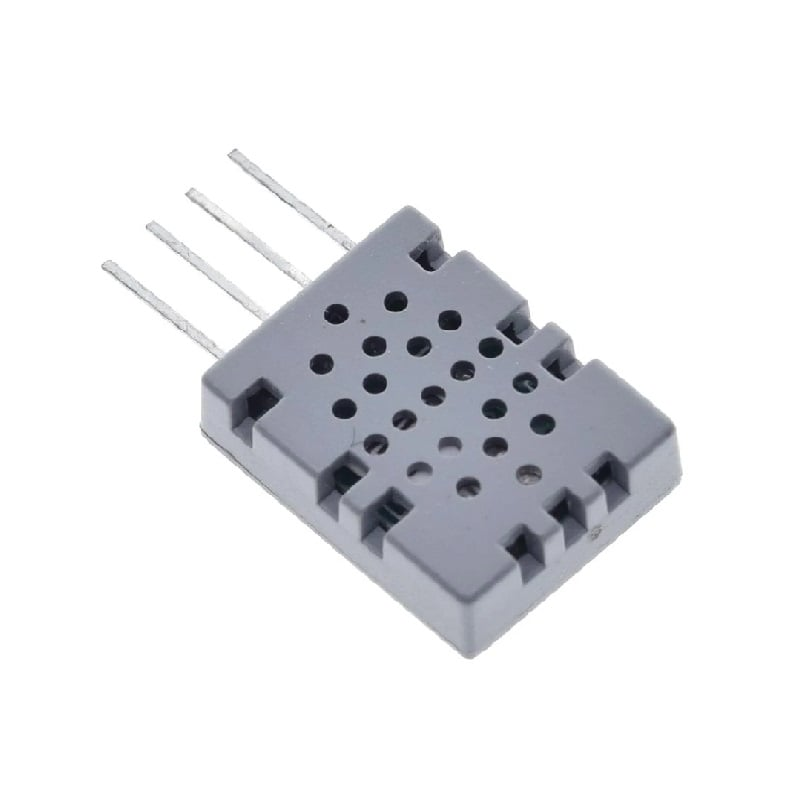

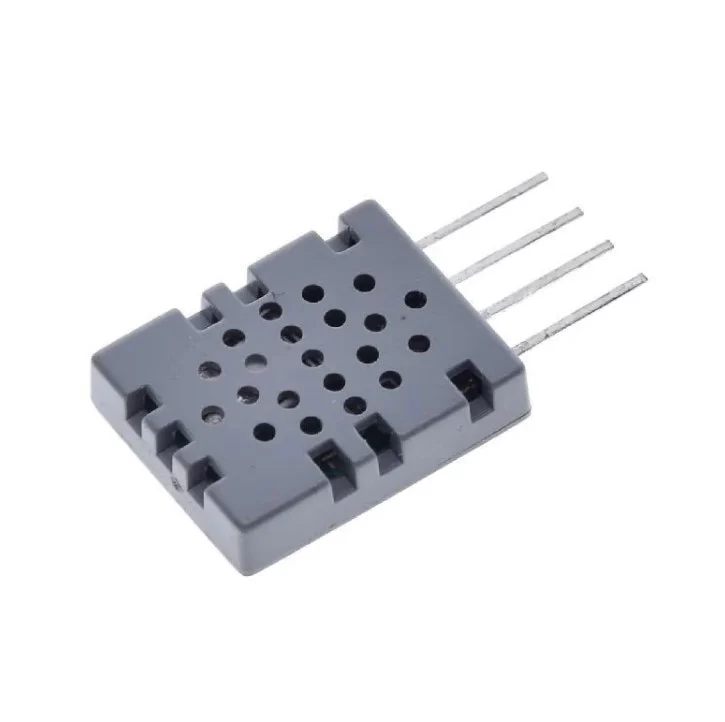

Winsen ZS05 Temperature and Humidity Module
The ZS05 is a digital sensor module for temperature and humidity. It is an improved version of the ZS03. It uses a special digital module acquisition technology to ensure high reliability and stability. The ZS05 supports both single bus and standard IIC communication modes. The single bus communication mode is fully compatible with the ZS03. Users can choose any communication mode according to their needs. The ZS05 has the same package format as the ZS03.
Applications:
Storage
industrial production
process controlling
environment monitoring
household appliance
meteorological field
Features
Detection Object: Relative humidity, temperature
Operation Voltage:2.7～5.5V DC
Detection Range:20～90%RH
Specifications
Part No: ZS05
Detection Object: Relative humidity, temperature
Operation Voltage: 2.7～5.5V DC
Detection Range: 20～90%RH
Accuracy for humidity detection: ±5%RH (at25℃，60%RH，Vin=2.7V)
Winsen ZS05 Temperature and Humidity Module Overview
The Winsen ZS05 Temperature and Humidity Module is a digital sensor board that precisely measures relative humidity and ambient temperature. As an upgraded version of the ZS03, it delivers enhanced stability and reliability while offering both single-wire and I²C communication in a compact form factor.
Key Features of Winsen ZS05 Temperature and Humidity Module
Dual measurement capability for both relative humidity and temperature
Special digital acquisition technology ensures high stability and reliability
Supports single-wire bus (compatible with ZS03) and standard I²C communication modes
Operating voltage range from 2.7 V to 5.5 V DC for 3.3 V and 5 V systems
Compact package identical to ZS03 for easy integration
Fast shipping from Zbotic across India
Applications and Use Cases
Warehouse and cold-storage environment monitoring
Industrial process control and sterilization chambers
HVAC and smart home appliance humidity regulation
Meteorological stations and weather monitoring kits
Agricultural greenhouse climate control
Portable data-logging and environmental sensing projects
How to Use Winsen ZS05 Temperature and Humidity Module
To get started, connect VCC to a 3.3 V–5 V supply and GND to ground, then wire the data pin for single-wire mode or SCL/SDA for I²C mode to your microcontroller. Install a compatible library or write simple routines to poll the sensor at desired intervals, then read and convert the raw digital values into relative humidity (%) and temperature (°C).
Why Buy from Zbotic?
Genuine Products: All items sourced from authorized distributors
Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
Free Shipping: Free delivery on qualifying orders
COD Available: Cash on Delivery, UPI, cards, net banking
Technical Support: Expert help for setup and troubleshooting
Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What power supply voltage does the ZS05 require?
The ZS05 operates from a DC supply of 2.7 V to 5.5 V, making it compatible with both 3.3 V and 5 V microcontroller systems.
Which communication modes are supported by the ZS05?
It supports single-wire (one-wire) communication fully compatible with the ZS03, and also offers standard I²C for multi-device bus applications.
Can I use ZS05 in the same PCB footprint as ZS03?
Yes, the ZS05 shares the same package format as the ZS03, allowing a drop-in replacement without redesigning your PCB layout.
The Winsen ZS05 Temperature and Humidity Module is a versatile temperature & humidity sensor used across a wide range of applications including weather stations, greenhouse monitoring, HVAC systems, cold chain logistics, and server room monitoring.
Common use cases:
Building a home weather station with Arduino
Monitoring greenhouse conditions via IoT
Alerting when server room temperature exceeds threshold
This product is ideal for IoT developers, agricultural engineers, and home automation enthusiasts.
Technical Tip: DHT22 offers better accuracy than DHT11. For precision applications, use SHT31 or BME280. Ensure adequate ventilation around the sensor.
