This is the PL2303 USB UART converter Board. This is a great little tool for embedded systems that require a serial connection to a computer. The board can simply attach to a USB-C bus and will appear as a standard COM port

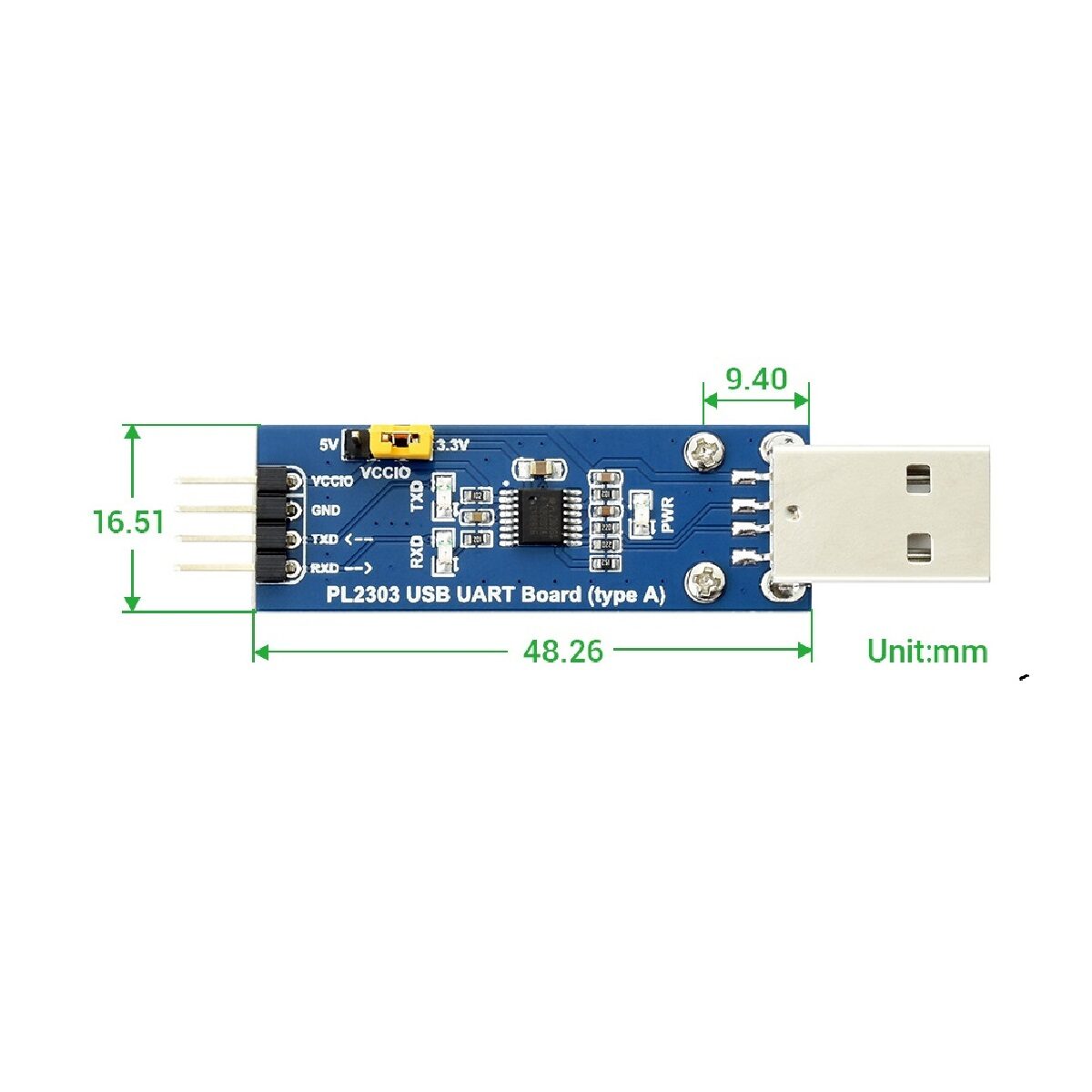

Pinout:
- VCCIO ↔ 3.3V or 5V output (the module is powered from USB, and the onboard jumper should be shorted to 3.3V or 5V)
- GND ↔ GND
- TXD ↔ MCU.RX (signal direction: MCU.RX << PL2303 << PC.TX)
- RXD ↔ MCU.TX (signal direction: MCU.TX >> PL2303 >> PC.RX)
Features:
-
Adopts PL2303GS new version device
-
Supports windows XP/7/8/10/11/…
-
3x VCCIO power mode via jumper setting:
- VCCIO – 5V: 5V output
- VCCIO – 3.3V: 3.3V output
- open the jumper: powered from target board (1.8V/2.5V/3.3V/5V)
-
3x LED indicators: TXD, RXD, PWR
Package Includes:
1 x PL2303 USB UART Board (type A) V2

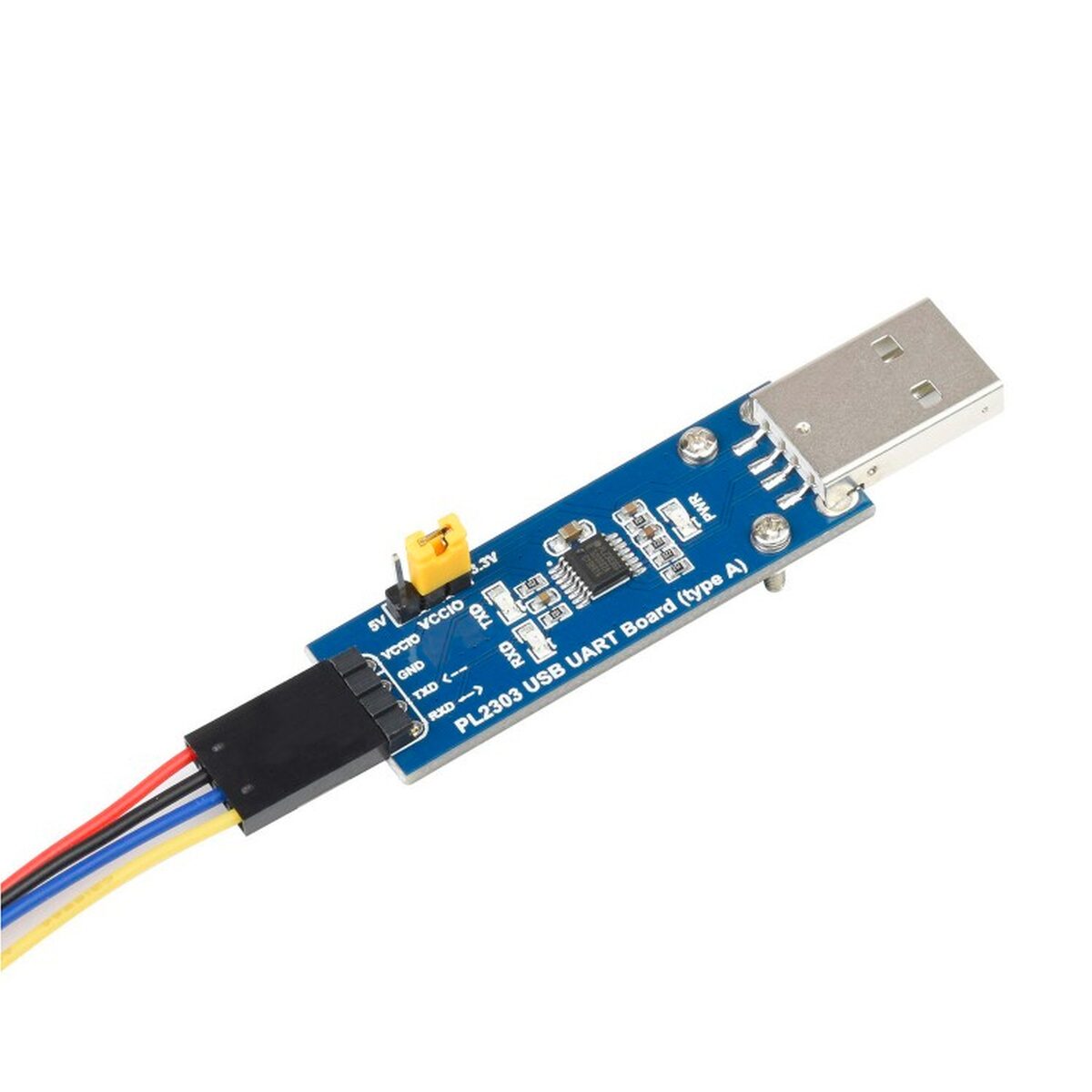

1 x 4-pin custom connector jumper wire x1
Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Model | PL2303 |
| Interface / Protocol | UART, USB, TTL |
| SKU | AI2043 |
| Weight | 0.020001 kg |
| Availability | In Stock |
Applications & Use Cases
The Waveshare PL2303 USB To UART (TTL) Communication Module V2, USB-A Connector is a versatile usb interface module used across a wide range of applications including serial communication, industrial automation, data logging, PLC interfacing, and IoT gateway.
Common use cases:
- Converting USB to RS485 for industrial equipment
- Building a data logger for factory sensors
- Debugging embedded systems via UART
This product is ideal for embedded system developers and industrial automation engineers.
Technical Tip: Industrial-grade modules with isolation protect against ground loops and voltage spikes in noisy environments.
