The RS232 TO RS485 (B) is an industrial-grade, rail-type active opto-isolated RS232 to RS485 converter designed for reliable communication in demanding environments. It can be widely used for point-to-point, point-to-multipoint, and long-distance cascaded communication networks—either between two hosts or between a host and an MCU/peripheral.
It is ideal for application scenarios that require RS232 to RS485 conversion, such as Industrial Automation and IoT systems.
Applications:
- Industrial Automation
- Access control
- Self-service banking
- Parking services
- Highway toll stations
- Attendance systems
Features:
- Compatible with RS232/RS485 standards, converting RS232 signals into balanced differential RS485 signals
- Stable transmission at 300~115200bps

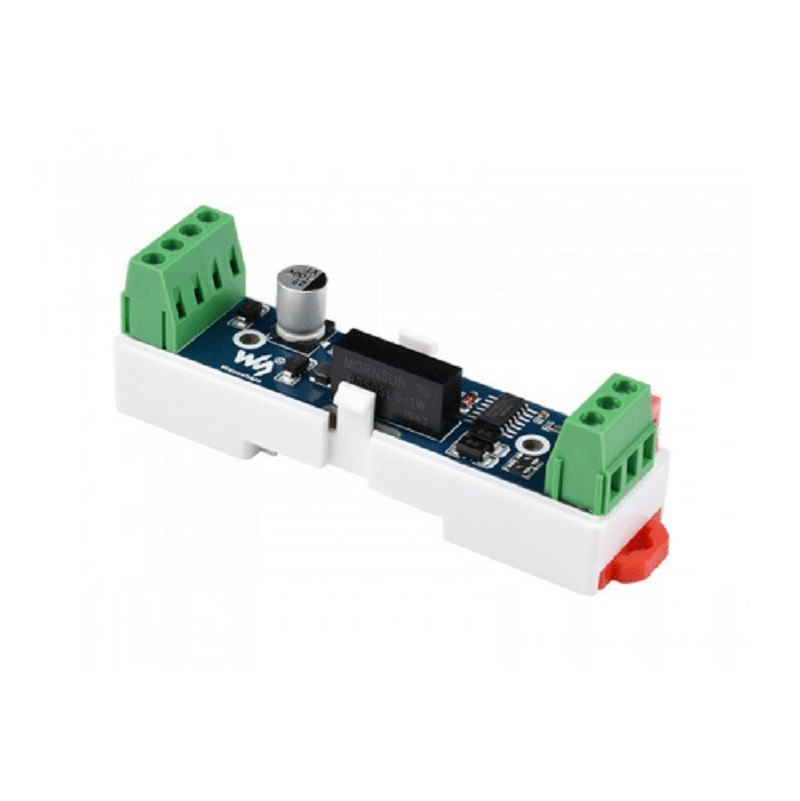

- Onboard unibody power supply isolation providing stable isolated voltage; no extra power supply required for the isolated terminal
- Onboard unibody digital isolation for high reliability, strong anti-interference, and low power consumption
- Onboard TVS (Transient Voltage Suppressor) for surge and spike protection; lightning-proof and anti-electrostatic
- Onboard resettable fuse and protection diodes for stable current/voltage output and improved shock resistance
- Optional 120Ω RS485 terminal resistor, enabled/disabled via switch
- 6V~36V DC wide-range power input via onboard screw terminal

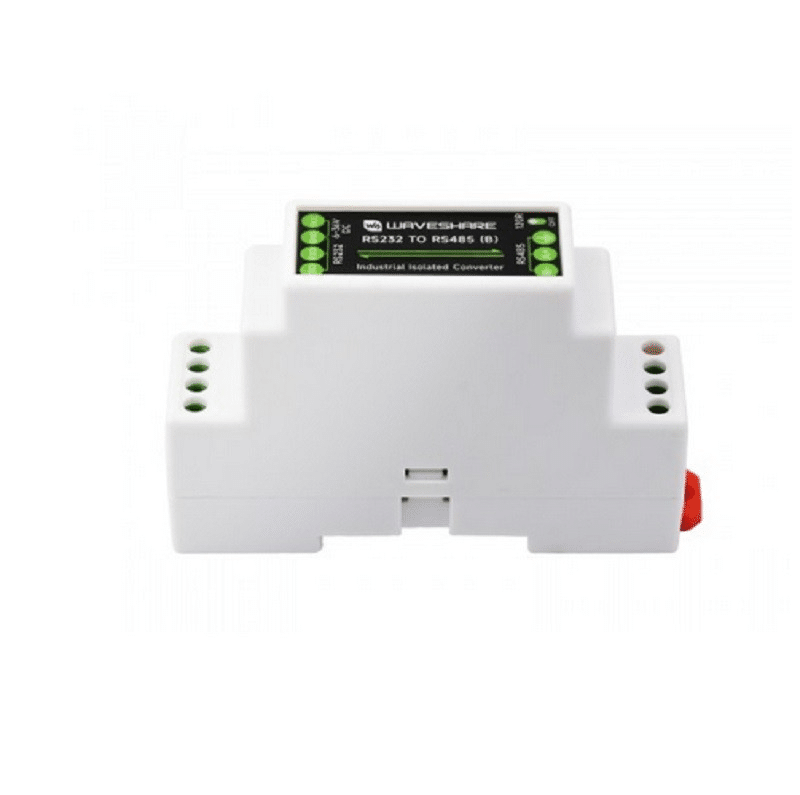

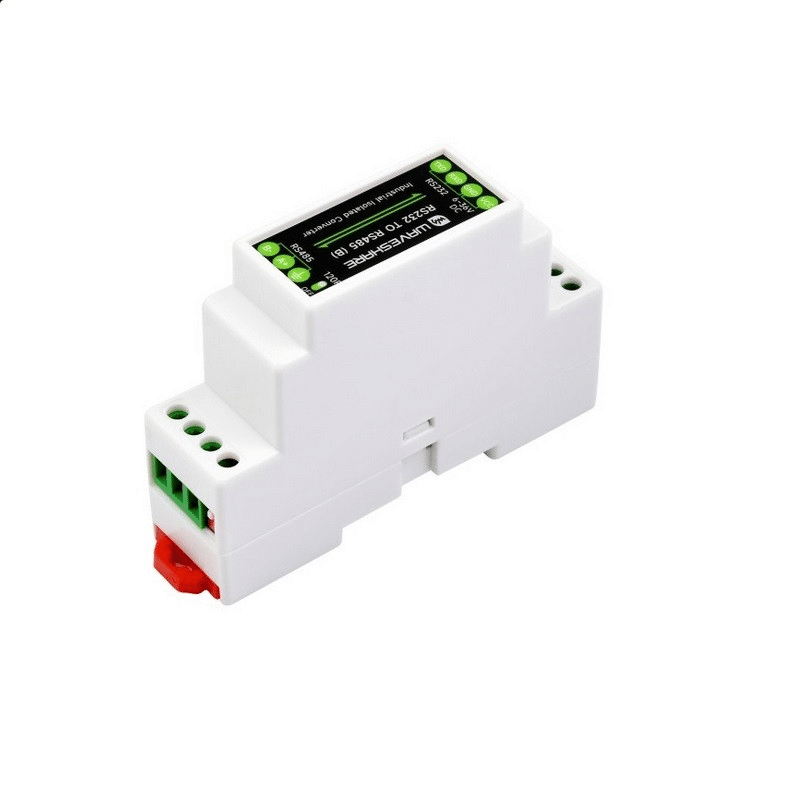

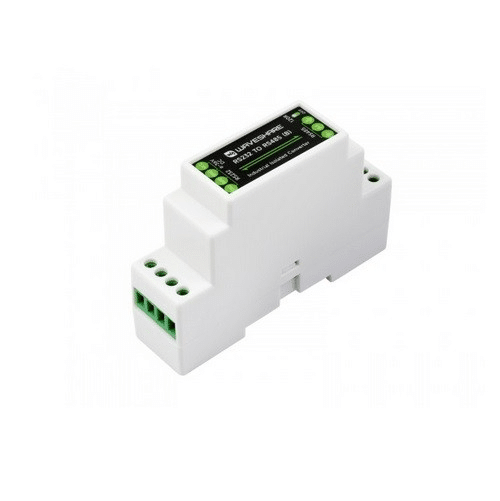

- Industrial rail-mount ABS case, compact, easy to install, and cost-effective
Specifications:
| Model | Converter |
|---|---|
| Power Supply (V) | 6~36V DC |
| Baud Rate (bps) | 300 ~ 115200bps |
| Device Port | RS232/RS485 standard compatible |
RS232:
- Connector: Screw terminal
- Transmission distance: About 15m
- Transmission mode: Point-to-point
RS485:
- Connector: Screw terminal
- Direction control: Hardware automatic control
- Protection: 600W lightning-proof, surge-suppression, 15KV ESD protection
- Terminal resistor: 120Ω, switch-controlled
- Transmission distance: About 1.2km
- Transmission mode: Point-to-multipoint (up to 32 nodes, repeaters recommended for 16+ nodes)
Appearance:

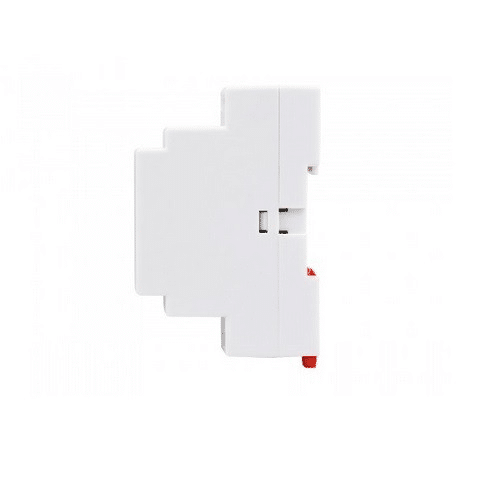

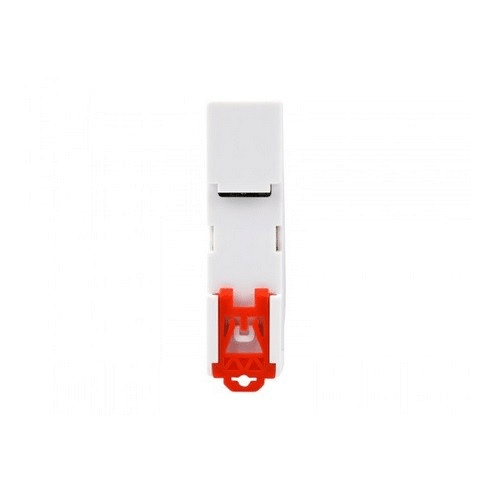

- Case: Rail-mount ABS
- Dimensions: 91.6 × 23.3 × 58.7mm
Package Includes:
-
1 × Waveshare RS232 to RS485 Converter (B), Active Digital Isolator, Rail-Mount Support, 600W Lightning-Proof & Anti-Surge
Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Model | RS232 |
| Interface / Protocol | RS485, RS232 |
| SKU | AI7540 |
| Weight | 0.07 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Waveshare RS232 To RS485 Converter (B), Active Digital Isolator is a versatile usb interface module used across a wide range of applications including serial communication, industrial automation, data logging, PLC interfacing, and IoT gateway.
Common use cases:
- Converting USB to RS485 for industrial equipment
- Building a data logger for factory sensors
- Debugging embedded systems via UART
This product is ideal for embedded system developers and industrial automation engineers.
Technical Tip: Industrial-grade modules with isolation protect against ground loops and voltage spikes in noisy environments.
