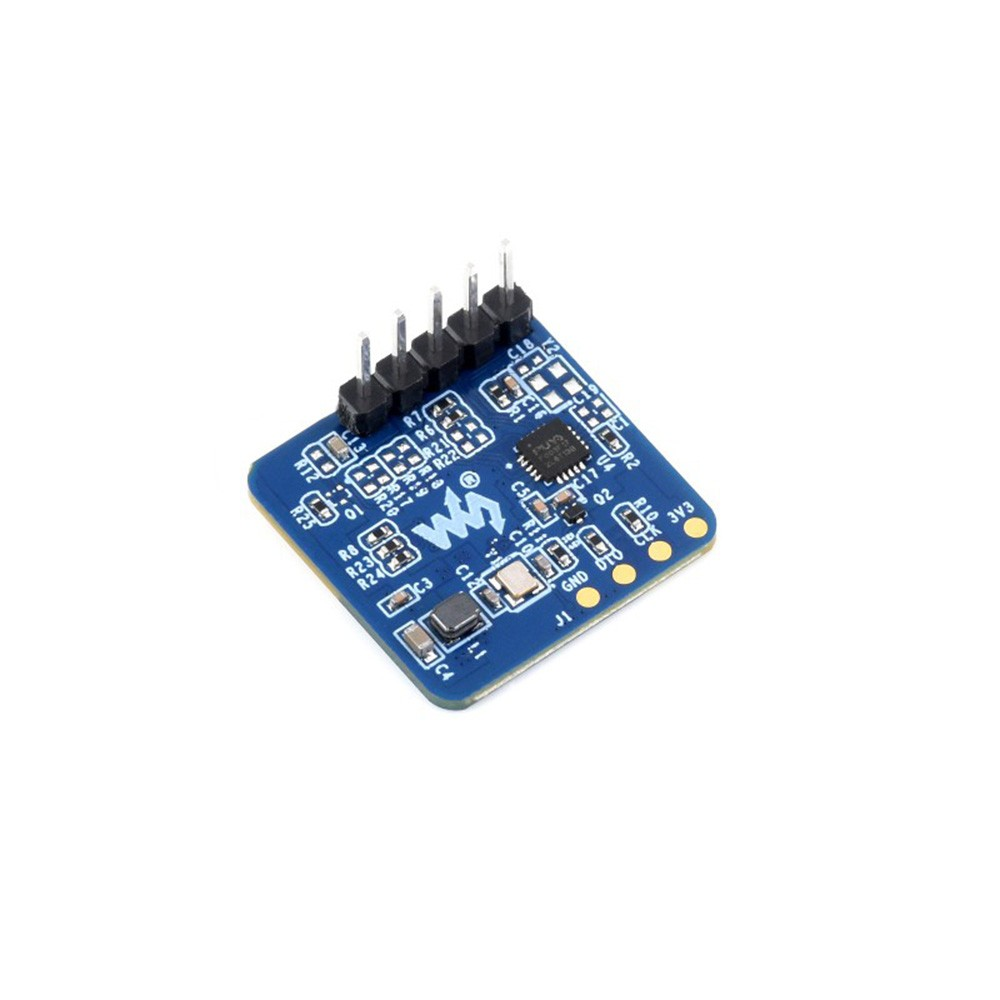

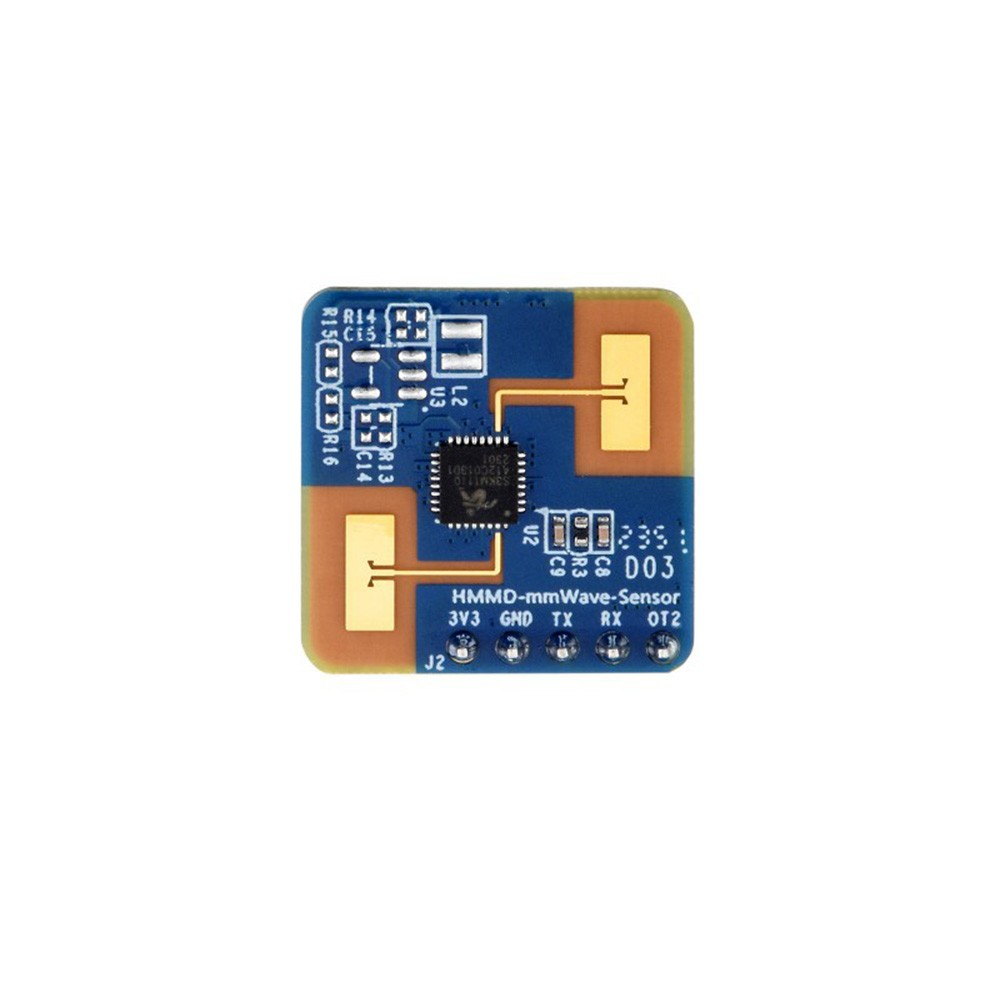

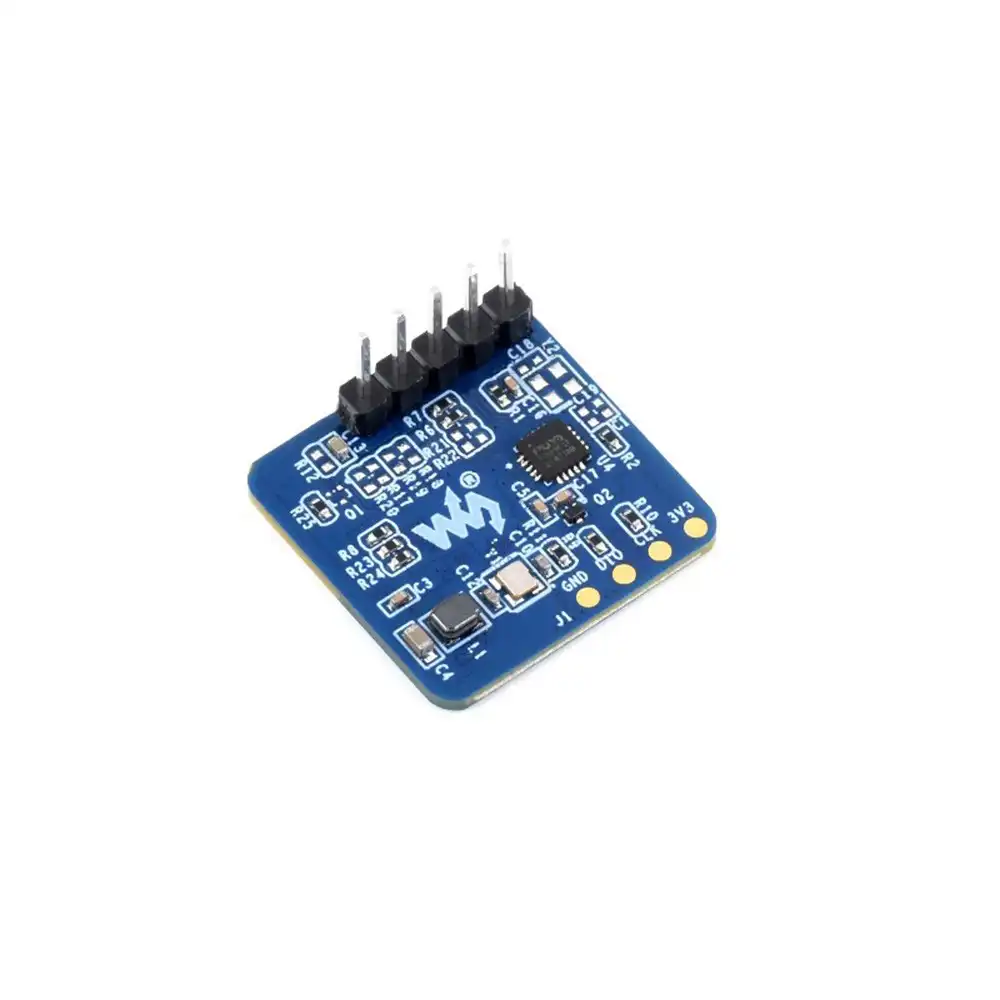

HMMD mmWave Sensor is a human micro-motion sensor that can detect and recognize moving, standing, and stationary human body. It is widely used in various AIoT scenarios, covering smart homes, smart security, smart businesses, and smart lighting, etc.
Features:
- Comes with the Silicon Micro AIoT Millimeter-Wave Sensor SoC S3KM1110.
- Onboard high-performance 24GHz one-transmit-one-receive antenna and peripheral circuits.

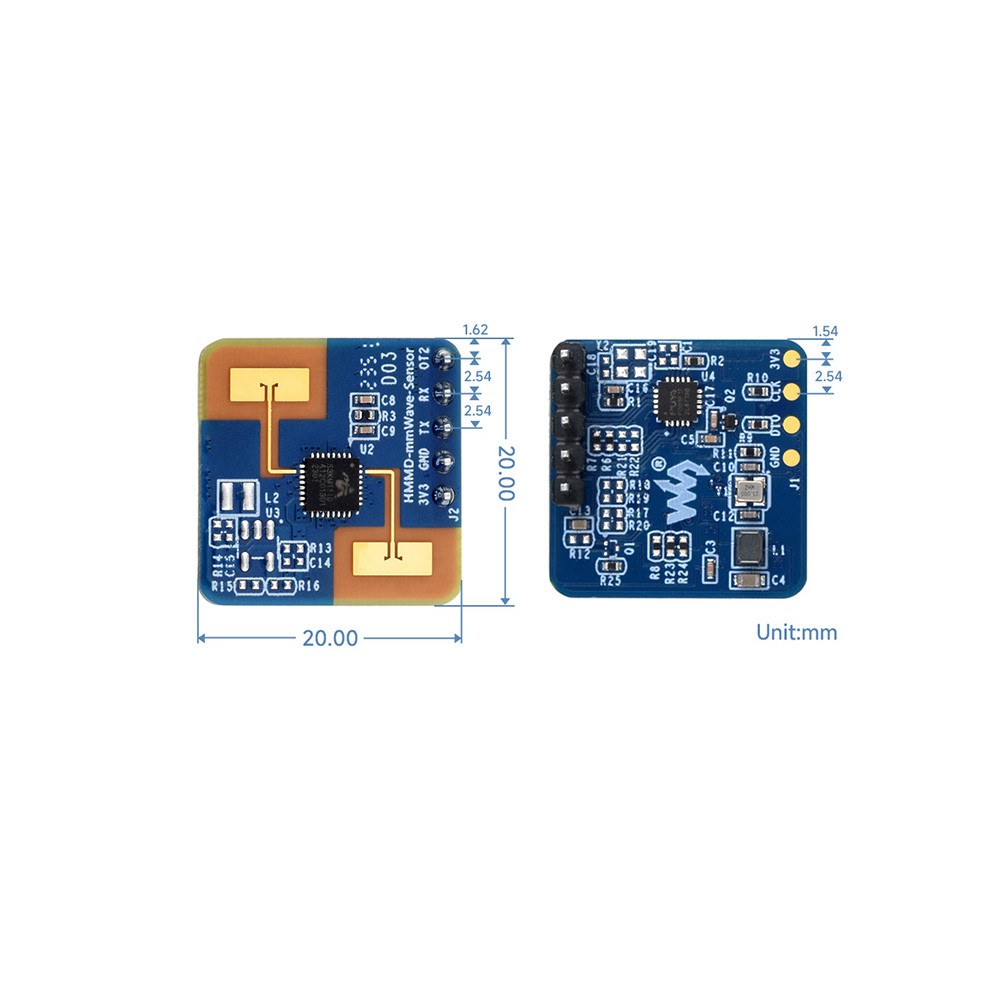

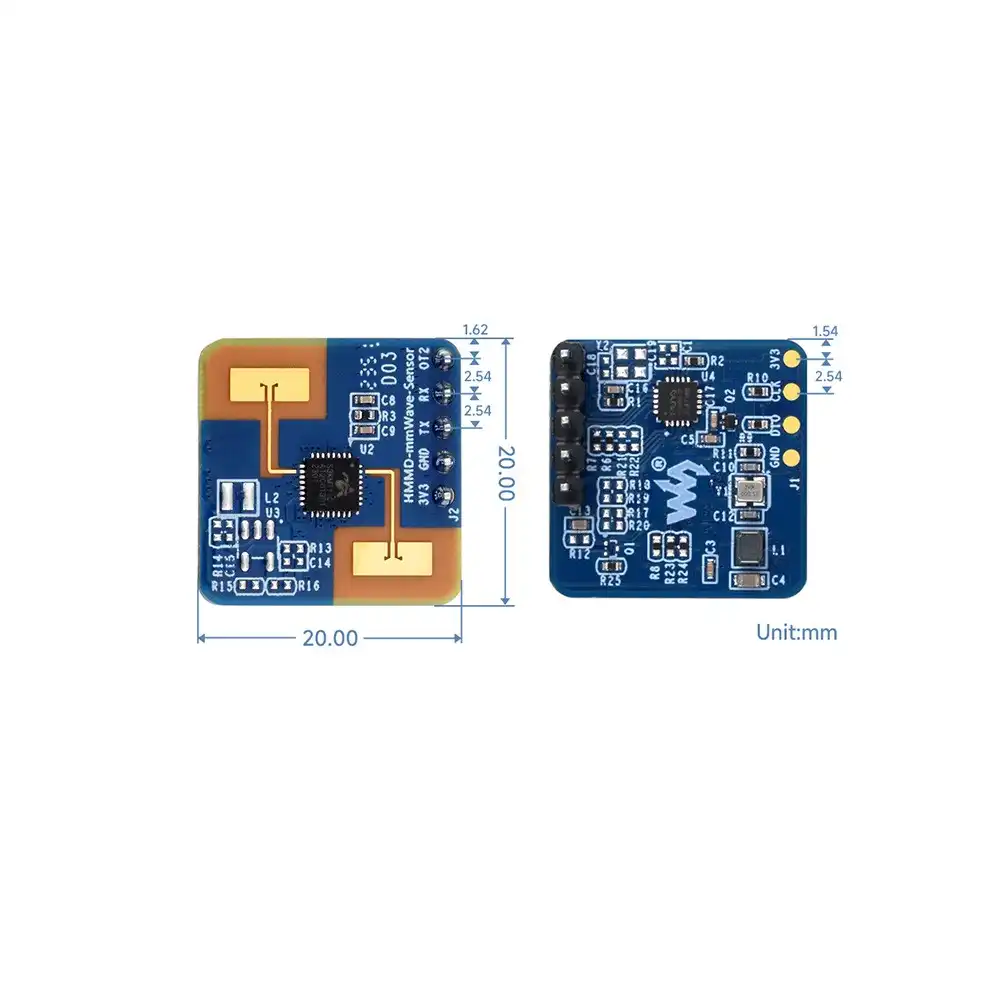

- Mini module size: 20mm x 20mm.
- Pre-loaded with default human body sensing configuration, plug-and-play.
- Longest detection distance for motion human body sensing: 8.5m.

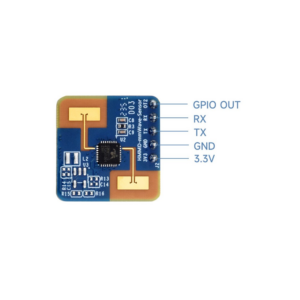

- Driven by the PY32F003F17U6TR microcontroller, with UART pins exposed for easy integration with Arduino/ESP32/JetsonNano and other main control boards.
- Utilizes human micro-motion sensing algorithms, millimeter-wave radar distance measurement technology, and advanced proprietary signal processing technology of the S3KM1110 chip.
- Provide online comprehensive supporting documentation (Raspberry/JetsonNano/Arduino/ESP32/sample demos).
Accurate perception of motion, micro-movement, and stationary human bodies achieved.
Specification:
| Item Type: | Sensor |
|---|---|
| Model Type: | mmWave Sensor |
| Frequency (GHz): | 24~24.25 |
| Bandwidth (KHz) | 250000 |
| Modulation frequency | FMCW |
| Power Supply (V) | 3.3 |

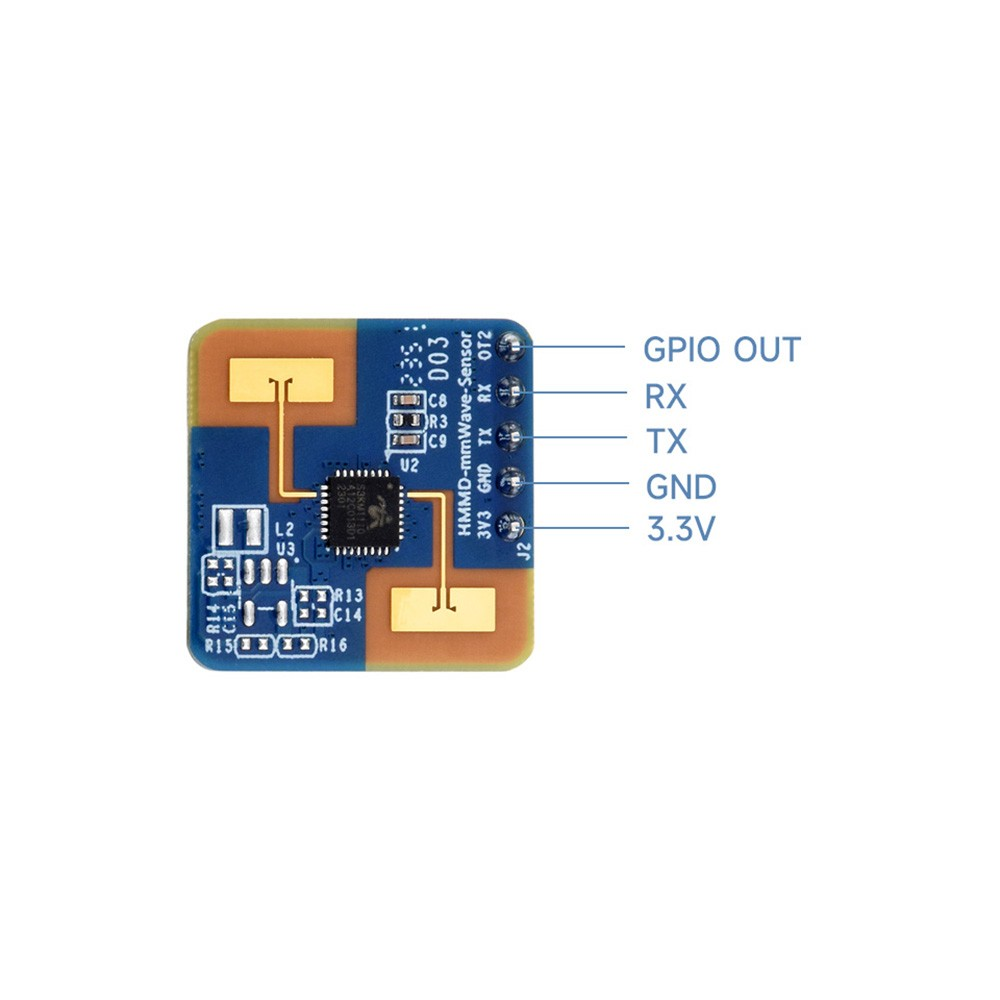

| Output Interface | UART & GPIO |
| UART Baud Rate | 115200bps (default) |
| Operating Temperature (°C) | -40~85 |
Package Includes:
1 x Waveshare Human Micro-Motion Detection mmWave Sensor, 24GHz mmWave Radar, Based On S3KM1110, Adopts FMCW Technology
Load Cell and HX711 Advanced: Multi-Channel Weighing Systems
Building a precise multi-channel weighing system using load cells and the HX711 24-bit ADC amplifier is one of...
Read More →
pH Electrode Calibration: Two and Three Point Buffer Method
pH measurement is one of the most critical analytical parameters in agriculture, aquaculture, hydroponics, water treatment, food processing,...
Read More →
Reed Switch vs Hall Effect Sensor: Magnetic Detection Compared
Table of ContentsIntroduction: Two Ways to Detect MagnetismHow Reed Switches WorkHow Hall Effect Sensors WorkKey Differences at a...
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Model | S3KM1110 |
| Interface / Protocol | 4G |
| Frequency | 24GHz |
| SKU | AI6654 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The Waveshare Human Micro-Motion Detection mmWave Sensor, 24GHz mmWave Radar, Based On S3KM1110, Adopts FMCW Technology is a versatile pir / ir and optical sensor used across a wide range of applications including motion detection, security systems, automatic lighting, people counting, and gesture recognition.
Common use cases:
- Building an automatic porch light
- Creating a people counter for a room
- Adding motion detection to a security system
This product is ideal for home automation builders and security system designers.
Technical Tip: PIR sensors detect heat-emitting movement. Adjust sensitivity and delay potentiometers for your environment. False triggers can be reduced with proper shielding.
