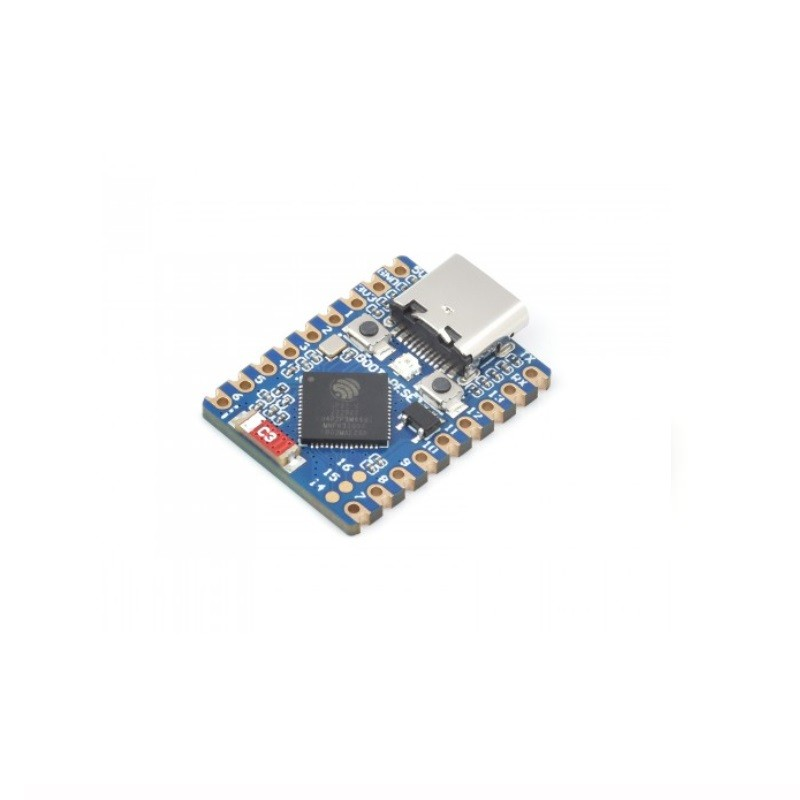

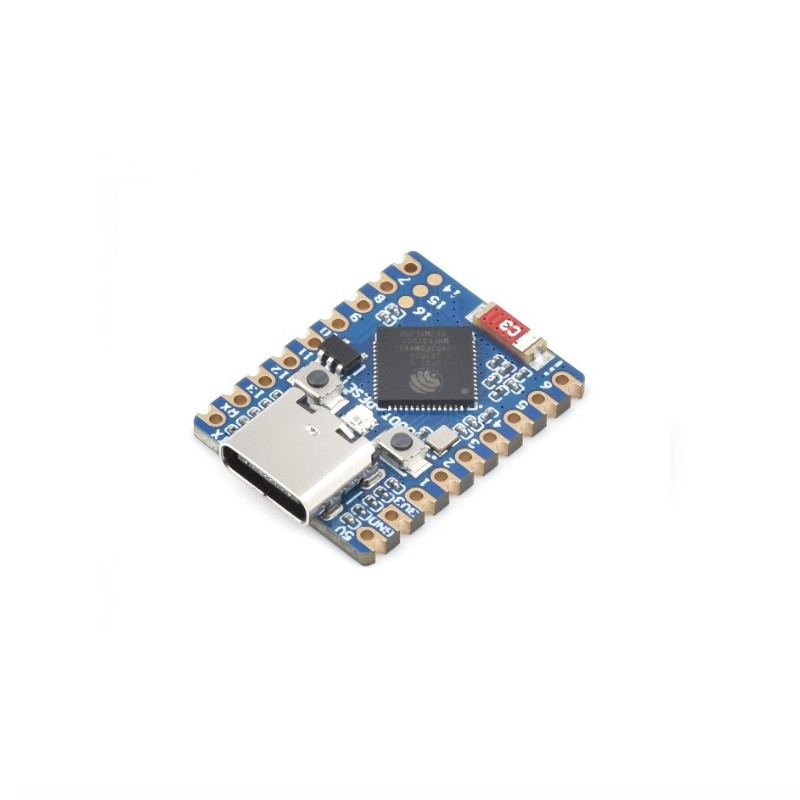

The Waveshare ESP32-S3 Mini Development Board is powered by the ESP32-S3FH4R2 dual-core processor, boasting a 240MHz running frequency. This compact board supports both 2.4GHz Wi-Fi and Bluetooth 5 connectivity. It’s an excellent choice for IoT and wireless communication projects, offering a robust development platform with extensive capabilities, making it suitable for a wide range of applications requiring wireless connectivity, data processing, and control.
Useful link:
Features:
- Equipped with Xtensa® 32-bit LX7 dual-core processor, up to 240MHz main frequency
- Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (LE)
- Built-in 512KB of SRAM and 384KB ROM, onboard 4MB Flash memory and 2MB PSRAM
- Castellated module and onboard ceramic antenna, allows soldering direct to carrier boards
- Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
- Integrated with USB serial port full-speed controller, 34 × GPIO pins allows flexibly configuring pin functions
- 4 × SPI, 2 × I2C, 3 × UART, 2 × I2S, 2 × ADC, etc.
Specification:
| Item Type: | ESP32 Based |
|---|---|
| Flash Memory: | 4MB |
| Processor Type: | Xtensa® 32-bit LX7 dual-core |
| WiFi Mode | 2.4GHz Wi-Fi (802.11 b/g/n) |
| Bluetooth Version: | Bluetooth® 5 (LE) |
| SRAM | 512KB |
| PSRAM | 2MB |
| GPIO | 34 pins |
| ROM | 384KB |
| Frequency (MHz): | up to 240 |
Package Includes:
1 x Waveshare ESP32-S3 Mini Development Board, Based on ESP32-S3FH4R2 Dual-Core Processor, 240MHz Running Frequency, 2.4GHz Wi-Fi & Bluetooth 5
IoT Electricity Meter: Smart Grid Integration
Table of Contents Smart Metering in India Current and Voltage Sensing Building the Energy Monitor Data Logging and...
Read More →
Machine Learning for IoT: Anomaly Detection on ESP32
Table of Contents ML for IoT Overview Anomaly Detection Algorithms Training Data Collection Building the ML Pipeline Deploying...
Read More →
ESP32 GPS Tracker: NMEA Parsing with NEO-6M Module
Building an ESP32 GPS tracker with NMEA parsing using the NEO-6M module is one of the most exciting...
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Model | ESP32-S3 |
| Interface / Protocol | Wi-Fi, Bluetooth, 4G |
| Frequency | 240MHz |
| Color | Blue |
| SKU | AI6636 |
| Weight | 0.08 kg |
| Availability | In Stock |
Applications & Use Cases
The Waveshare ESP32-S3 Mini Development Board, Based on ESP32-S3FH4R2 Dual-Core Processor, 240MHz Running Frequency, 2.4GHz Wi-Fi & Bluetooth 5 is a versatile iot development boards used across a wide range of applications including rapid IoT prototyping, connected sensor platforms, edge computing, wearable devices, and home automation.
Common use cases:
- Prototyping a smart environmental monitor
- Building a BLE-connected fitness tracker
- Creating an edge AI inference device
This product is ideal for IoT engineers, embedded developers, and electronics students.
Technical Tip: Development boards with built-in displays and sensors accelerate prototyping. Check GPIO count and peripheral support for your project needs.
