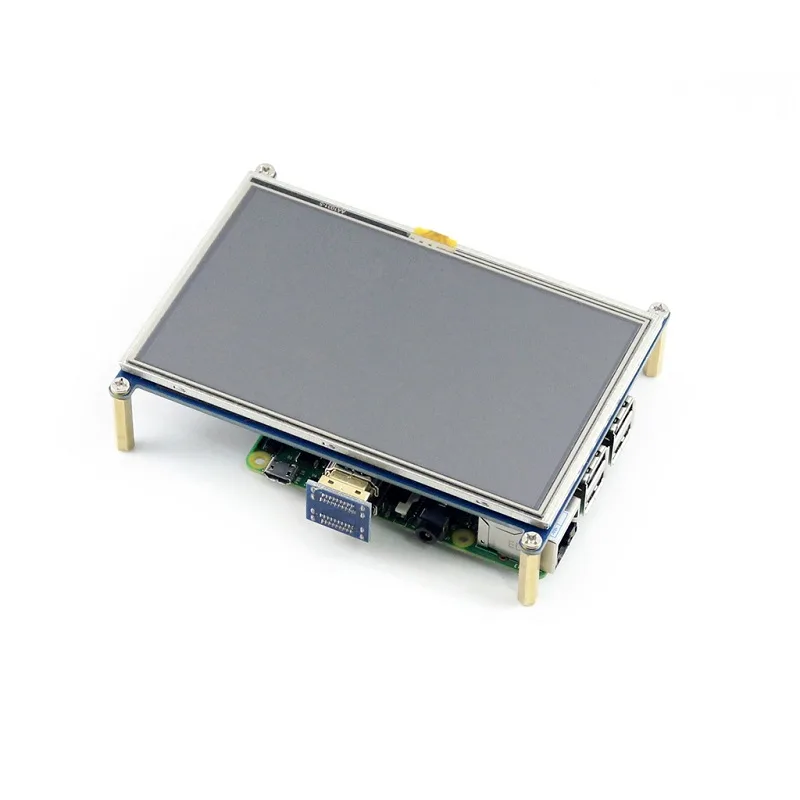

To operate this display with Raspberry Pi, refer to the given Software setting and touchscreen calibration
Features:
-
- 800×480 hardware resolution.
- Resistive touch control.
- It is compatible and can be directly inserted into any version of Raspberry Pi.
- Provide driver. (support RaspbianUbuntuKali and Retropie system).
- When only used for display, does not occupy any I/O resources.
- Only the touch function will occupy I/O resources.
- Support backlight control, more power saving.
New features of the latest version of V2:
- Improve the backlight drive scheme, lower power consumption. (The power consumption of the V1 version is larger)
- Improve the screw locking method, which is more scientific and reliable.

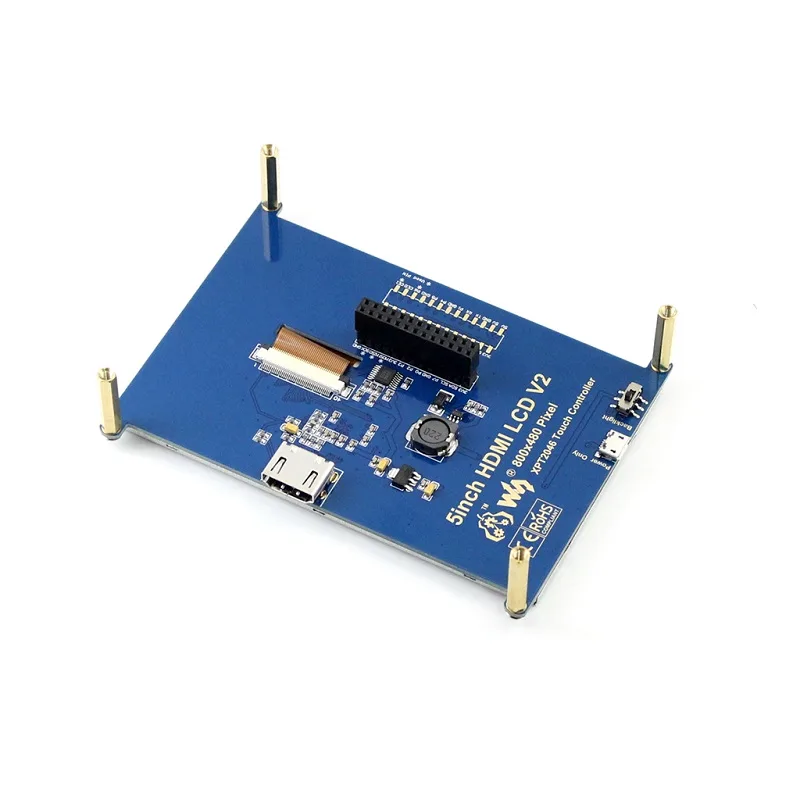

- Improve PCB silkscreen, mark LCD occupied pins. (V1 version is not intuitive enough)
Package Includes:

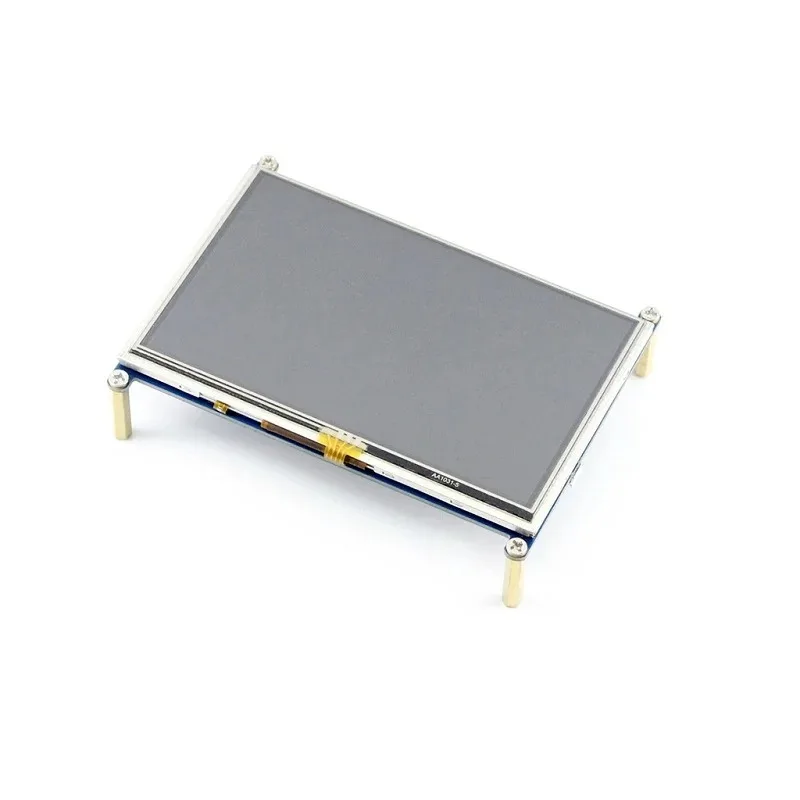

- 1 x 5 inch HDMI LCD

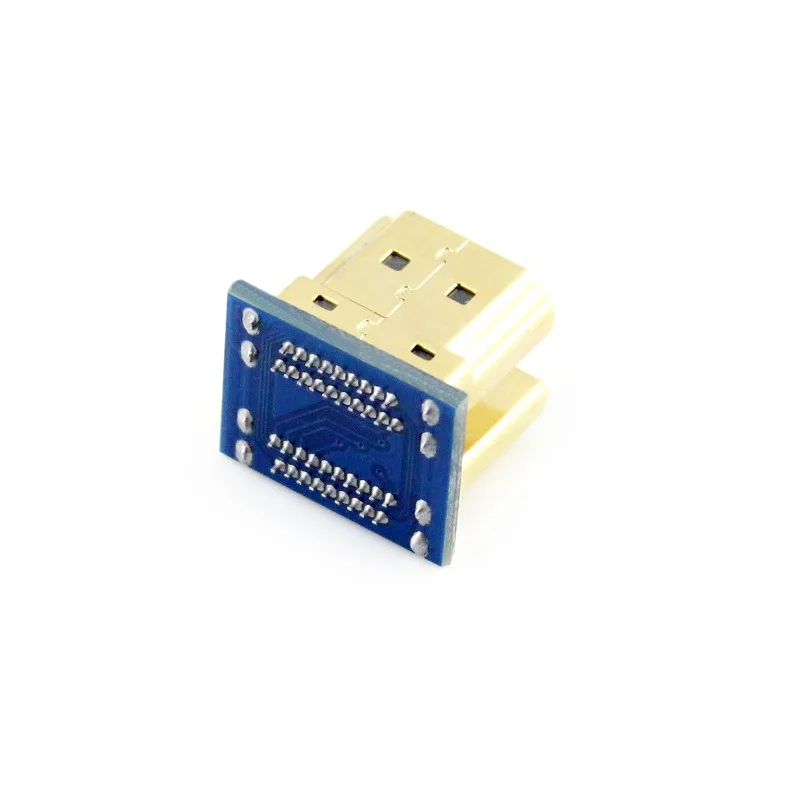

- 1 x HDMI connector
- 1 x HDMI to micro HDMI connector

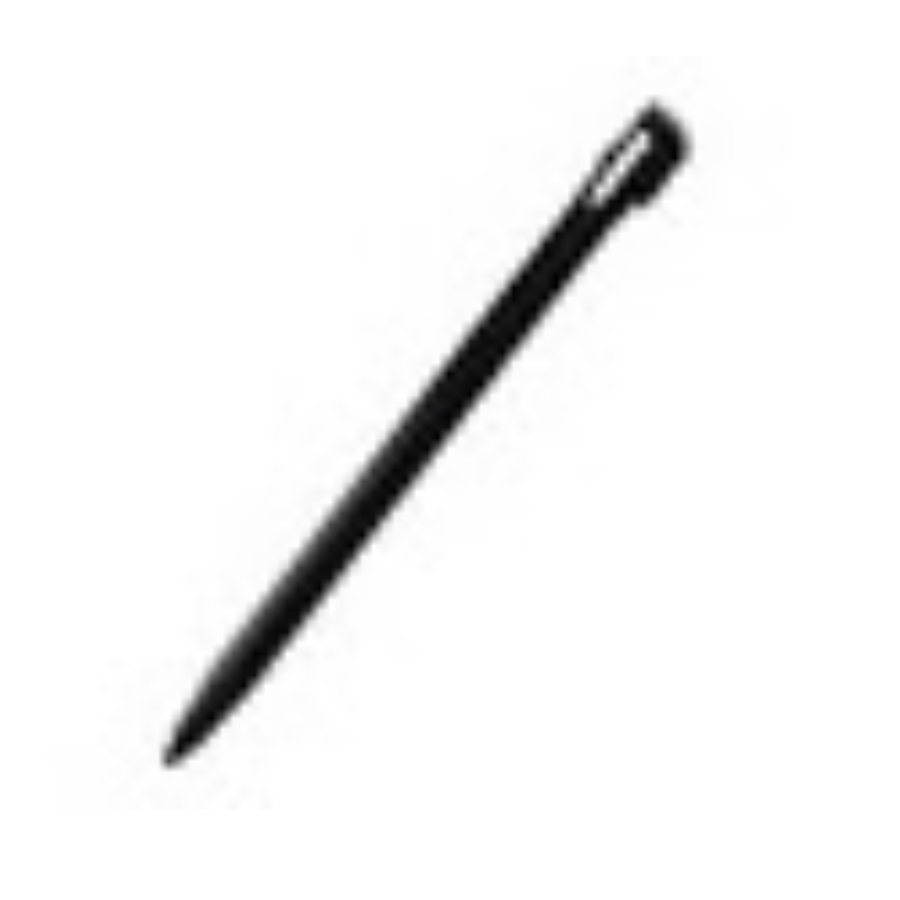

- 1 x Touch pen

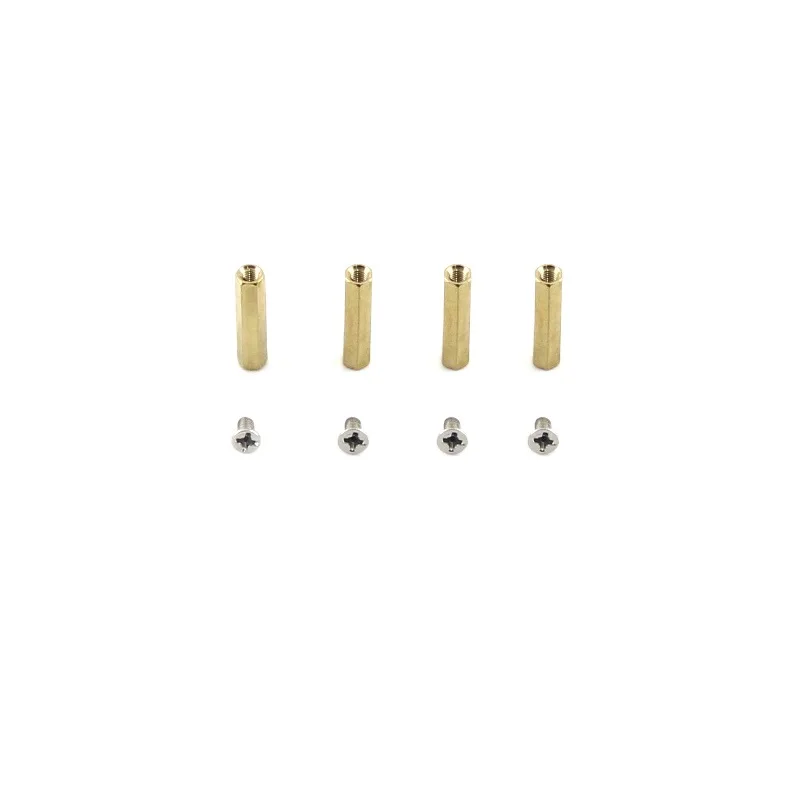

- 1 x RPi screws pack (4pcs)
- 1 x Quick start sheet
Useful Link :
FreeRTOS on Arduino: Multitasking for Embedded Projects
One of the most common frustrations in Arduino development is managing multiple tasks simultaneously — reading a sensor...
Read More →
Arduino Sensor Shield: All-in-One Expansion Board Guide
Every Arduino beginner eventually faces the same frustration: you want to connect three sensors and an actuator, but...
Read More →
Fading LED with Arduino: PWM analogWrite Complete Guide
Fading an LED with Arduino is one of the first projects that teaches a crucial concept beyond simple...
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Display Size | 5" |
| Interface / Protocol | HDMI |
| Resolution | 800x480 |
| Package Quantity | 480 pcs |
| SKU | AI1561 |
| Weight | 0.21 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Waveshare 5 Inch Resistive HDMI LCD Display 800×480 is a versatile tft lcd displays used across a wide range of applications including embedded HMI interfaces, Raspberry Pi touchscreen projects, Arduino display projects, industrial control panels, and information kiosks.
Common use cases:

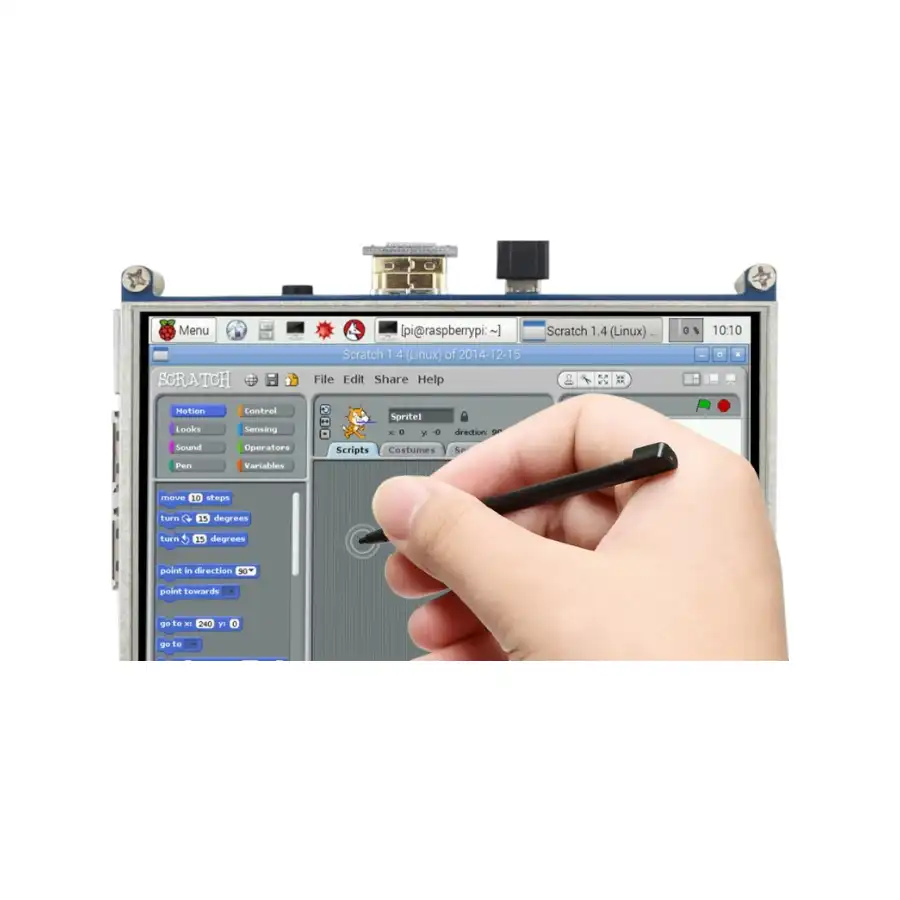

- Adding a touch display to a Raspberry Pi project
- Building a portable game console
- Creating a dashboard for sensor data
This product is ideal for embedded developers, IoT makers, and industrial engineers.
Technical Tip: Check interface type (SPI, I2C, HDMI, RGB) and driver IC compatibility with your development board. IPS panels offer better viewing angles than TN.
