This is the Blue variant of the 5V LCD2002 Display With Blue Backlight in TFT LCD Displays. Available at ₹323.32 (₹274.00 + GST) with free shipping across India.
Looking for Lcd2002 Display 5v? 5V LCD2002 Display With Blue Backlight is available at Zbotic with fast shipping across India.

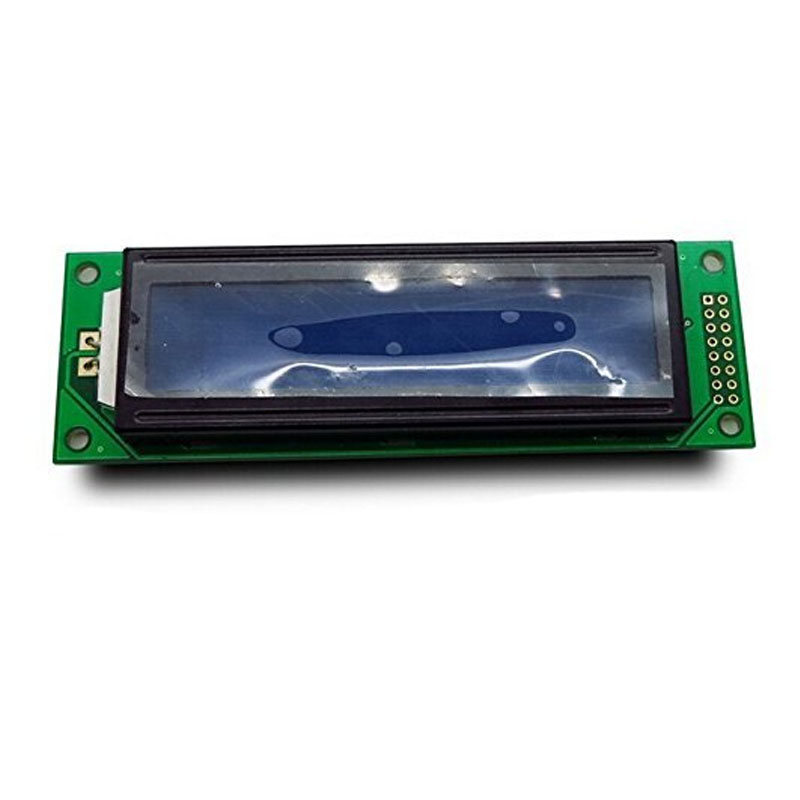

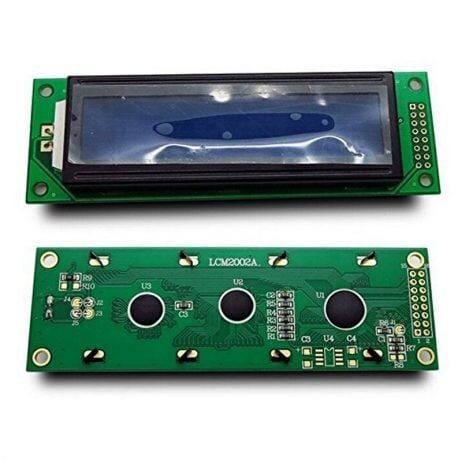

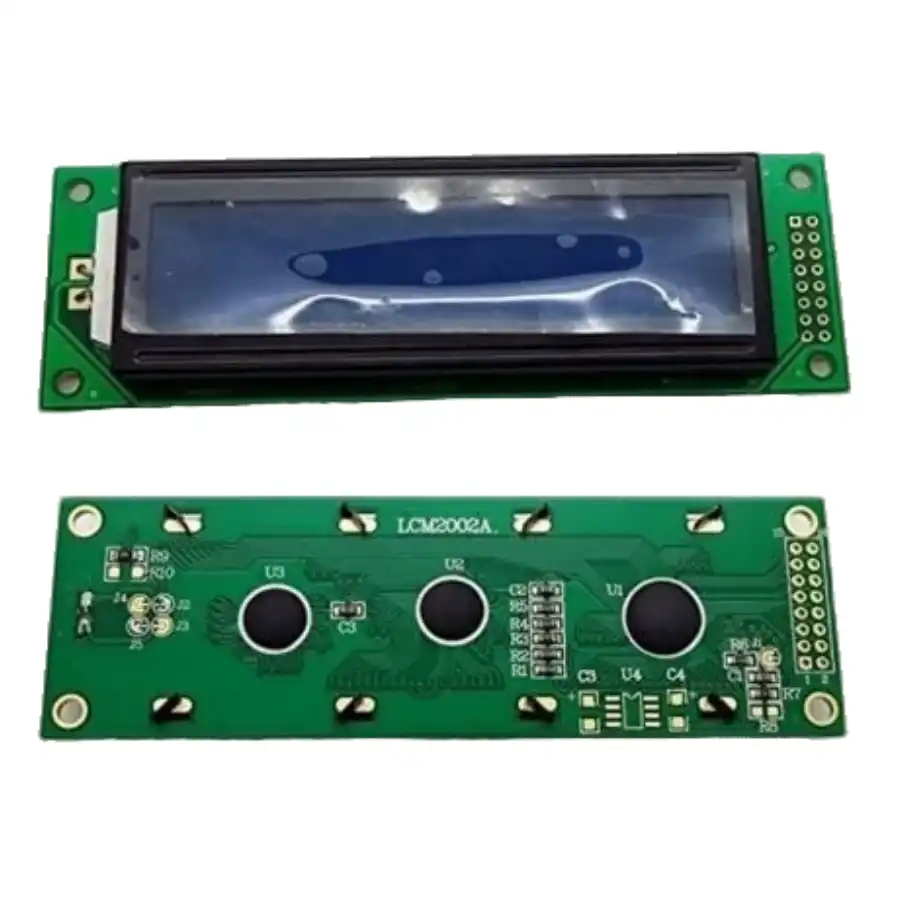

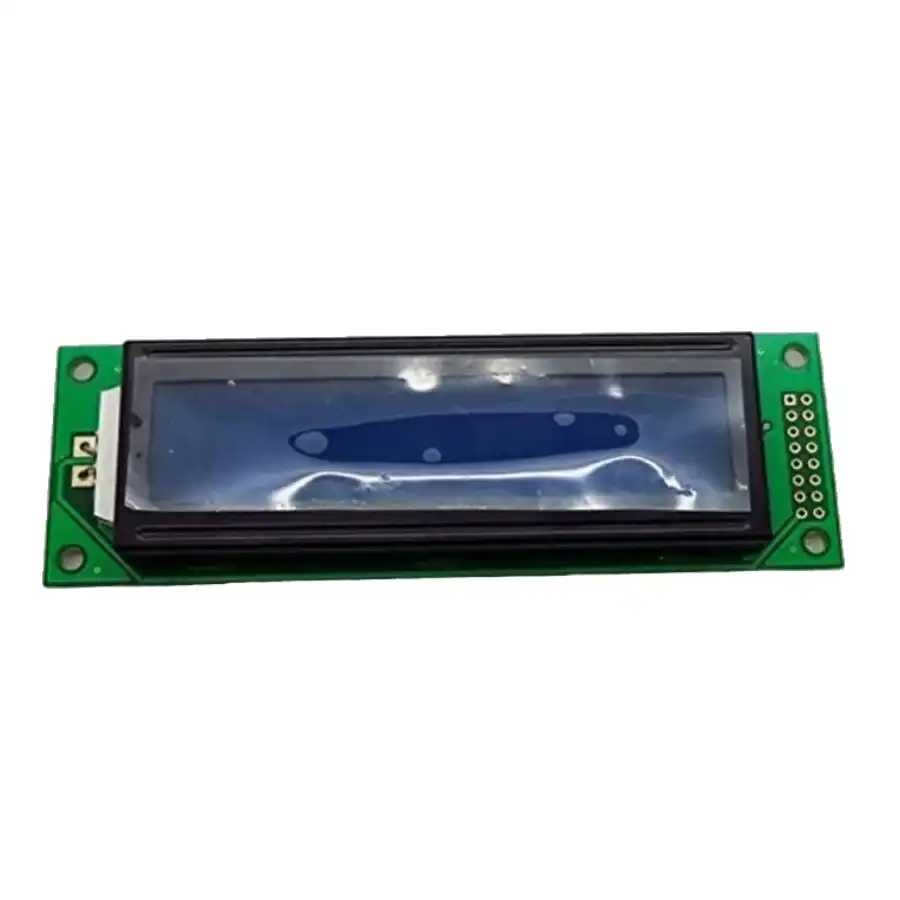

5V LCD2002 Display With Blue Backlight
If you want to add some visual output to your projects, you’ll need a display. If you need moderate data on display, the LCD2002 LCD Display is a quite good solution.5V LCD2002 LCD display module having blue backlight is a high-quality LCD display with Viewing Area 83.0 X 18.60.
Features:
- 20 characters wide, 2 rows
- Black text on the blue background
- The module can easily interface with an MCU.
- The module is a low-power consumption character.
- Single LED backlight included can be dimmed easily with a resistor.
Specification:
| Specification | Details |
|---|---|
| Operating Voltage | 5V |
| Display Type | LCD (Liquid Crystal Display) |
| Display Size | 16 characters x 2 lines |
| Backlight Color | Blue |
| Contrast Adjustment | Potentiometer on the back of the module |
| Interface | Parallel |
| Viewing Angle | Wide |
| Controller Chip | HD44780 compatible |
| Dimensions | Standard 2002 module size (approx. 80 x 36 mm) |
| Pin Configuration | 16 pins (standard parallel LCD pinout) |
| Compatibility | Arduino, Raspberry Pi, and other microcontrollers |
| Application | Various electronic projects and prototyping |
Package Includes:
1 x 5V LCD2002 Display with Blue Backlight
5V LCD2002 Display With Blue Backlight Overview
The LCD2002 is a 20-character by 2-row character display featuring black text on a bright blue LED backlight. Designed for 5V operation and measuring 116×37×13.5 mm (viewing area 83×18.6 mm), it provides a clear, low-power output solution for microcontroller-based projects.
Key Features of 5V LCD2002 Display With Blue Backlight
- 20×2 character layout for concise data display
- Black text on blue backlight for excellent contrast
- Standard 5V operating voltage compatible with MCUs
- Compact dimensions: 116×37×13.5 mm; viewing area: 83×18.6 mm
- Low power consumption with dimmable LED backlight
- HD44780-compatible interface for easy MCU integration
- Genuine product with fast shipping across India from Zbotic
Applications and Use Cases
- Arduino and Raspberry Pi status and menu displays
- Embedded system control panels in DIY projects
- Home automation dashboards showing sensor data
- Robotics telemetry and error message output
- Industrial process monitoring screens
- Data logger readouts for temperature, humidity, etc.
How to Use 5V LCD2002 Display With Blue Backlight
Connect the LCD2002’s VCC and GND to a 5V power source, wire RS, RW, E and D4–D7 pins to your microcontroller’s I/O lines (4-bit mode is recommended), and use a potentiometer on V0 for contrast adjustment. Add a series resistor to the backlight LED pin or employ PWM to dim the blue backlight as needed. Finally, initialize the display using an HD44780-compatible library and send text commands to begin showing your data.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What interface does the LCD2002 use?
The LCD2002 uses the HD44780-compatible parallel interface (4-bit or 8-bit), allowing straightforward wiring to microcontrollers via RS, RW, E, and data pins D4–D7.
How do I adjust the backlight brightness?
You can dim the blue LED backlight by inserting a suitable series resistor between the backlight pin and 5V or by applying a PWM signal from your microcontroller to control brightness dynamically.
Can I power the LCD2002 from a 3.3V MCU?
No, this module requires a stable 5V supply for both logic and backlight. To use with a 3.3V system, incorporate a level shifter or boost regulator to meet the 5V requirement.
