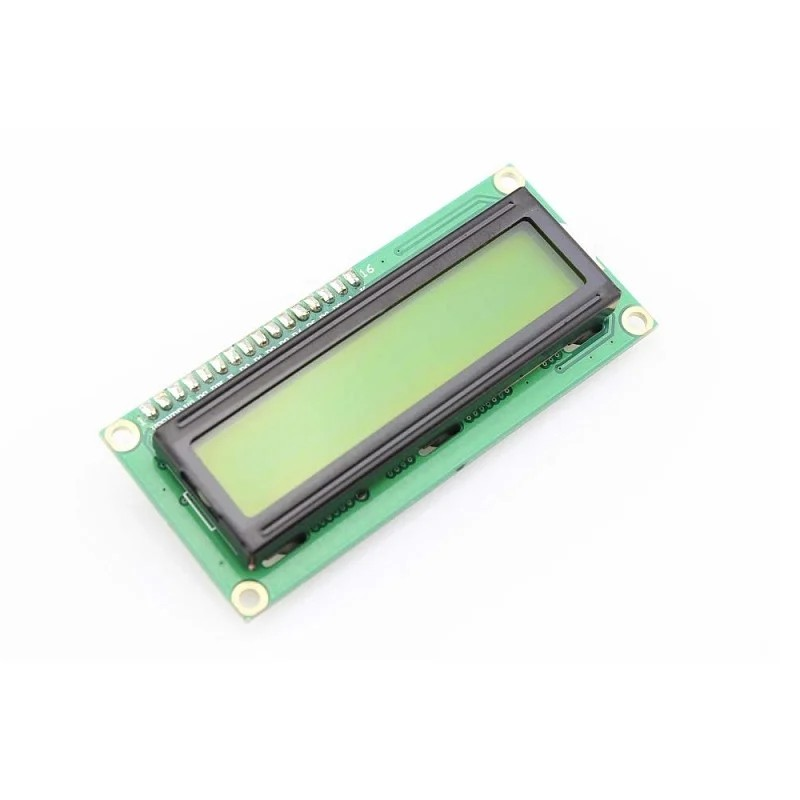

This is the Yellow variant of the LCD1602 Parallel LCD Display Yellow Backlight in 16 x 2 LCD Display. Available at ₹110.92 (₹94.00 + GST) with free shipping across India.
Description:

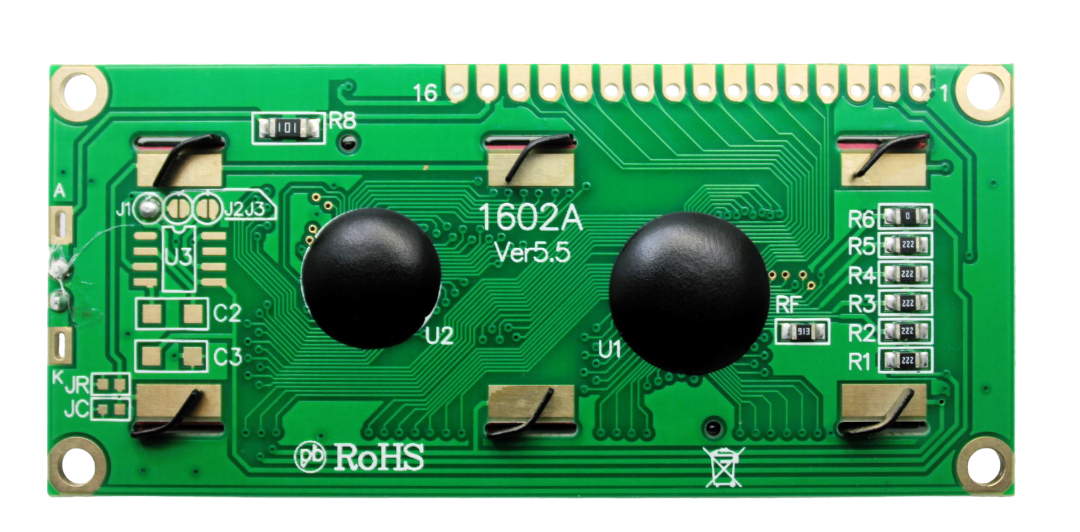

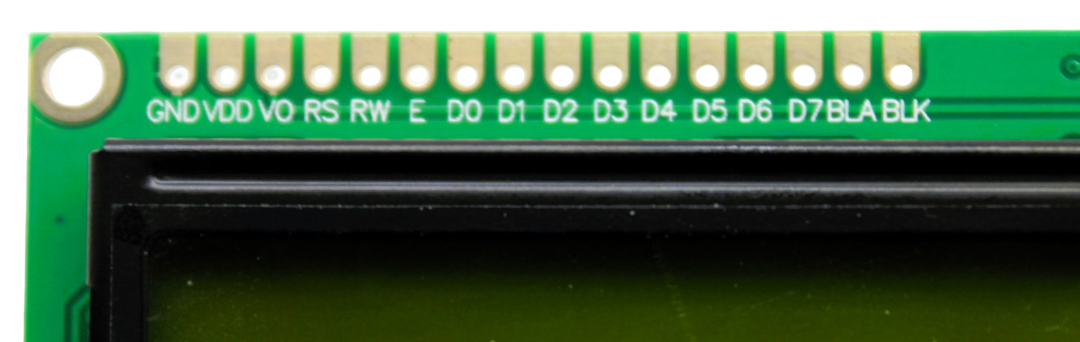

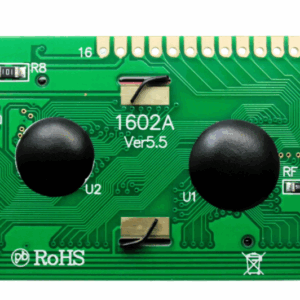

This is a basic alphanumeric display featuring 16 characters across 2 lines, with white text on a blue background. It utilizes the well-known HD44780 parallel interface chipset, and the interface code is easily available. To connect to this LCD screen, a minimum of 6 general I/O pins are needed. It includes an LED backlight and supports both 4-bit and 8-bit operating modes.
Features:
- Display Mode: STN
- Display Format: 16 Character x 2 Line
- Viewing Direction: 6 o’clock
- Display Font: 5 x 8 Dots
- Power Supply: Single Power Supply (5V±10%)
- Driving Scheme: 1/16 Duty, 1/5 Bias
Specification:
| Model | LCD1602 |
|---|---|
| Characters | 16 |
| Character Color | Black |
| Backlight | Yellow |
| Input Voltage (V) | 5 |
| Length (mm): | 36 |
| Width (mm): | 80 |
| Height (mm): | 10 |
Package Includes:
1 x LCD1602 Display Yellow Backlight
Datasheets:
Arduino Debouncing: Clean Button Input Techniques
Table of ContentsIntroductionComponents and Hardware SetupWiring Diagram and ConnectionsComplete Code with ExplanationCustomization and ImprovementsTroubleshooting Common IssuesAdvanced Features and...
Read More →
Custom Arduino PCB: Design Your Own Minimal Board
Every electronics hobbyist reaches a point where the Arduino Uno feels too large, too expensive, or just too...
Read More →
Dual Core Programming: Arduino vs ESP32 Concurrency Guide
One of the biggest limitations of the classic Arduino Uno is that it runs everything sequentially on a...
Read More →Technical Specifications
| Model | LCD1602 |
|---|---|
| Color | Yellow |
| SKU | AI0006 |
| Weight | 0.03 kg |
| Availability | In Stock |
Applications & Use Cases
The LCD1602 Parallel LCD Display Yellow Backlight is a versatile 16 x 2 lcd display used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
