This is the 96inch variant of the Waveshare 0.96inch OLED Display Module, 128×64 Resolution, SPI / I2C Communication version C (upper yellow & lower blue) in OLED Display. Available at ₹523.92 (₹444.00 + GST) with free shipping across India.
Description:

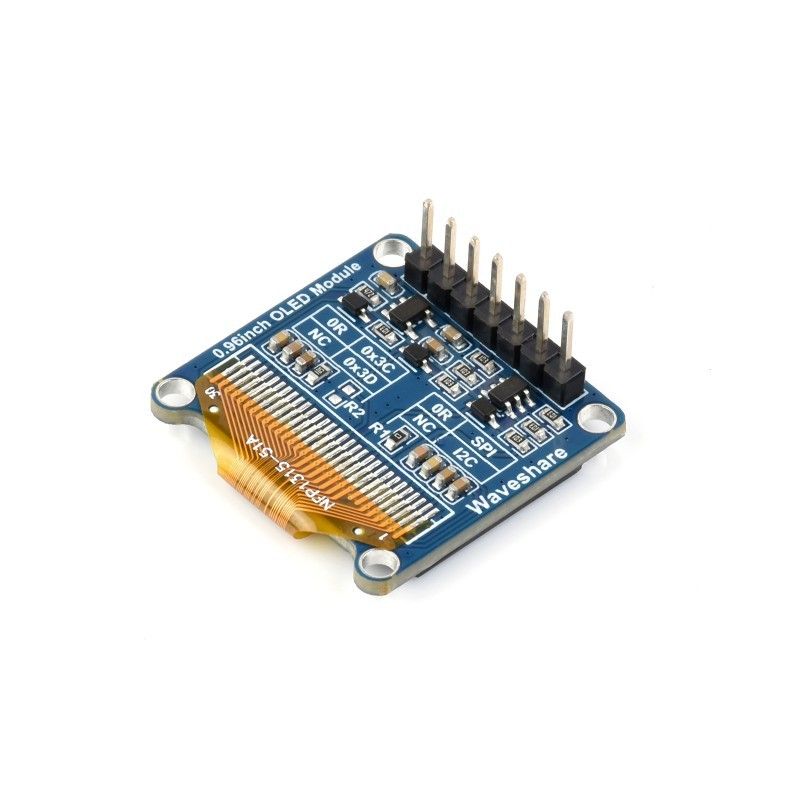

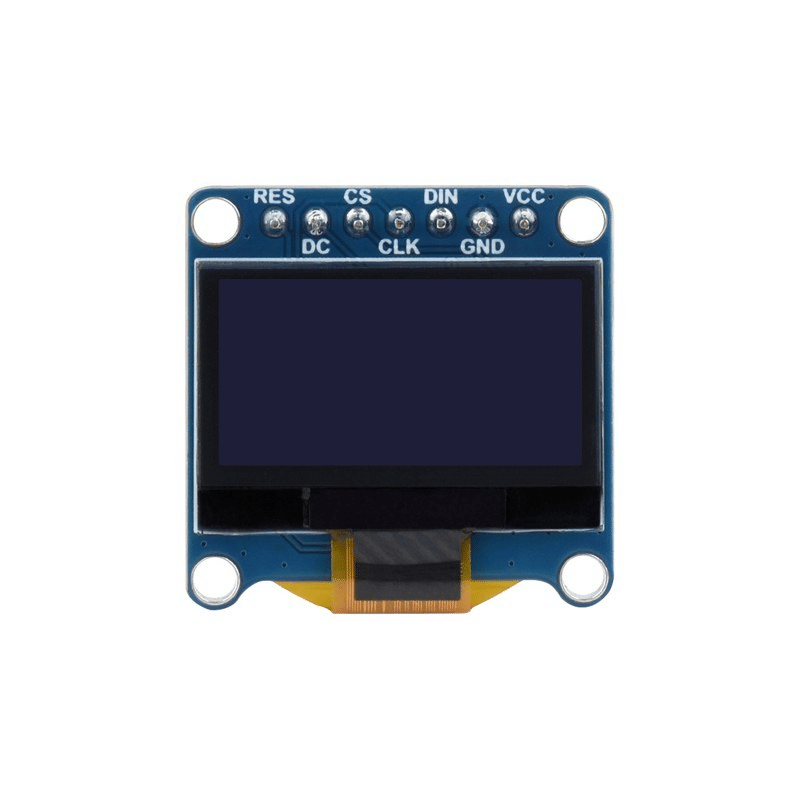

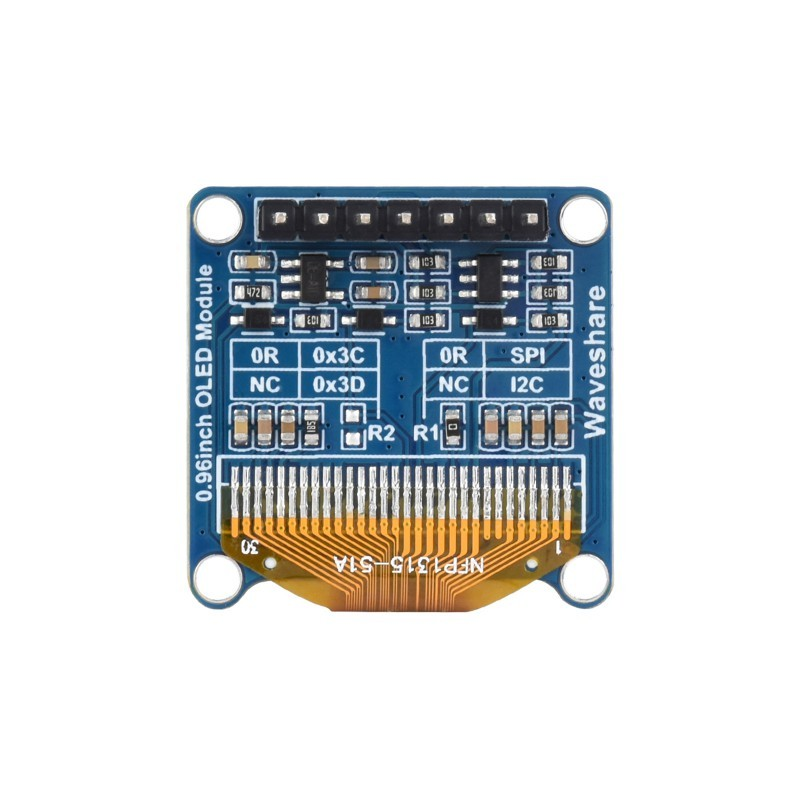

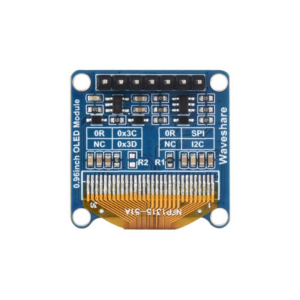

Waveshare 0.96inch OLED Display Module, 128×64 Resolution, SPI / I2C Communication version C (upper yellow & lower blue) is a compact and versatile display solution designed for embedded systems and small electronic projects. It features a high-contrast 128×64 resolution OLED display, which provides clear and sharp images even in low-light conditions.

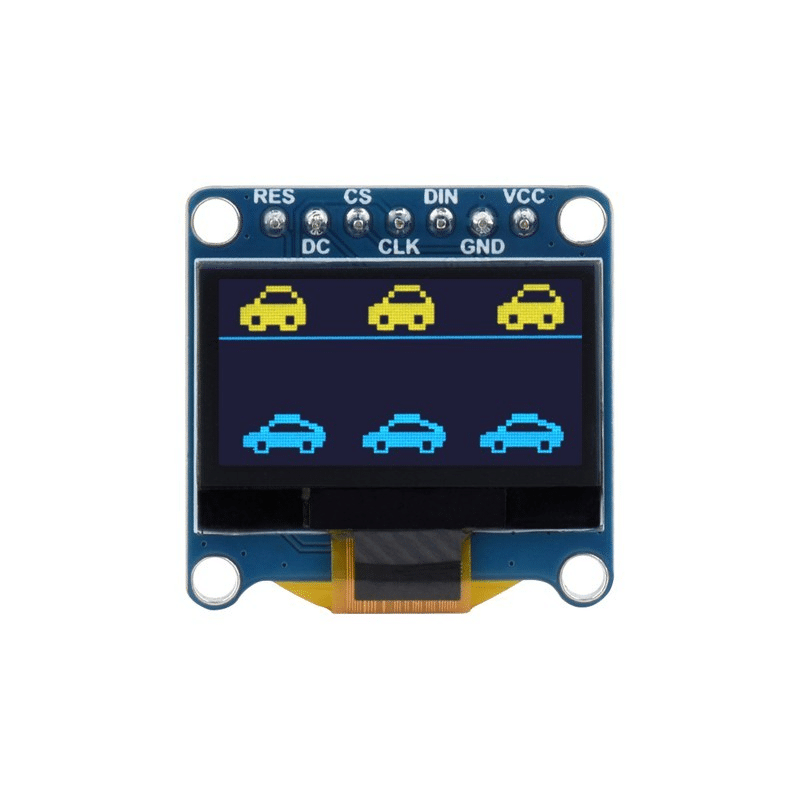

This version of the module, known as version C, has a dual-color design with an upper yellow section and a lower blue section. This makes it ideal for displaying graphical data, such as charts and graphs, as well as text-based information.
Features:
- Ultra-narrow bezel, compact size, with onboard voltage translator
- Adopts 4-wire SPI and I2C interfaces, better compatibility, fast data rate
- Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)
Useful link:
For Software setup, please follow this tutorial.
Specification:
| Model: | OLED Display Module |
|---|---|
| Display Size (Inch): | 0.96 |
| Display Resolution: | 128 × 64 |
| Operating Voltage (V): | 3.3V/5V (IO high-level voltage is as same as the power supply.) |
| Communication Interface | 4-wire SPI / I2C |
| Screen Type: | OLED |
| Main Control Chip | SSD1315 |
| Outline Dimensions | 26.0mm × 26.0mm |
| Display Color | upper yellow & lower blue |
| Operating Temperature (°C): | -20°C ~ 70°C |
| Storage Temperature (°C): | -30°C ~ 80°C |
| View angle | > 160° |
Package Includes:
1 x Waveshare 0.96inch OLED Display Module, 128×64 Resolution, SPI / I2C Communication version C (upper yellow & lower blue)
Crystal Oscillator vs Ceramic Resonator: Which to Choose
Every microcontroller, UART, USB interface, and real-time clock needs a stable timing reference. That timing source is almost...
Read More →
Skin Effect in Conductors: High Frequency Design Impact
Skin Effect in Conductors: High Frequency Design Impact If you're working with high frequency circuits, understanding skin effect...
Read More →
Capacitor in AC Circuits: Reactance and Impedance Explained
Capacitor in AC Circuits: Reactance and Impedance Explained Every electronics student reaches the point where DC circuit analysis...
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Display Size | 0.96" |
| Interface / Protocol | I2C, SPI |
| Color | Blue |
| SKU | AI7587 |
| Weight | 0.02 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Waveshare 0.96inch OLED Display Module, 128×64 Resolution, SPI / I2C Communication version C (upper yellow & lower blue) is a versatile oled display used across a wide range of applications including wearable electronics, IoT sensor readouts, small embedded displays, DIY clocks and meters, and battery-powered gadgets.
Common use cases:
- Displaying temperature/humidity on an Arduino project
- Building a DIY smartwatch
- Adding a status display to a custom PCB
This product is ideal for makers, Arduino/ESP32 developers, and electronics hobbyists.
Technical Tip: OLED displays consume power per-pixel — black pixels use zero power, making them ideal for battery-powered projects with sparse displays.
