0.96 Inch I2C IIC OLED LCD Module 4pin (with GND VCC) White SSD1306 Chip

0.96 Inch I2C IIC OLED LCD Module

OLED (Organic Light-Emitting Diode) technology represents a self-emitting display innovation comprising a thin, multi-layered organic film situated between an anode and cathode. Unlike LCD technology, OLED doesn’t rely on a backlight. Recognized for its versatility, OLED holds significant promise across diverse display applications and is considered the pinnacle technology for next-generation flat-panel displays.

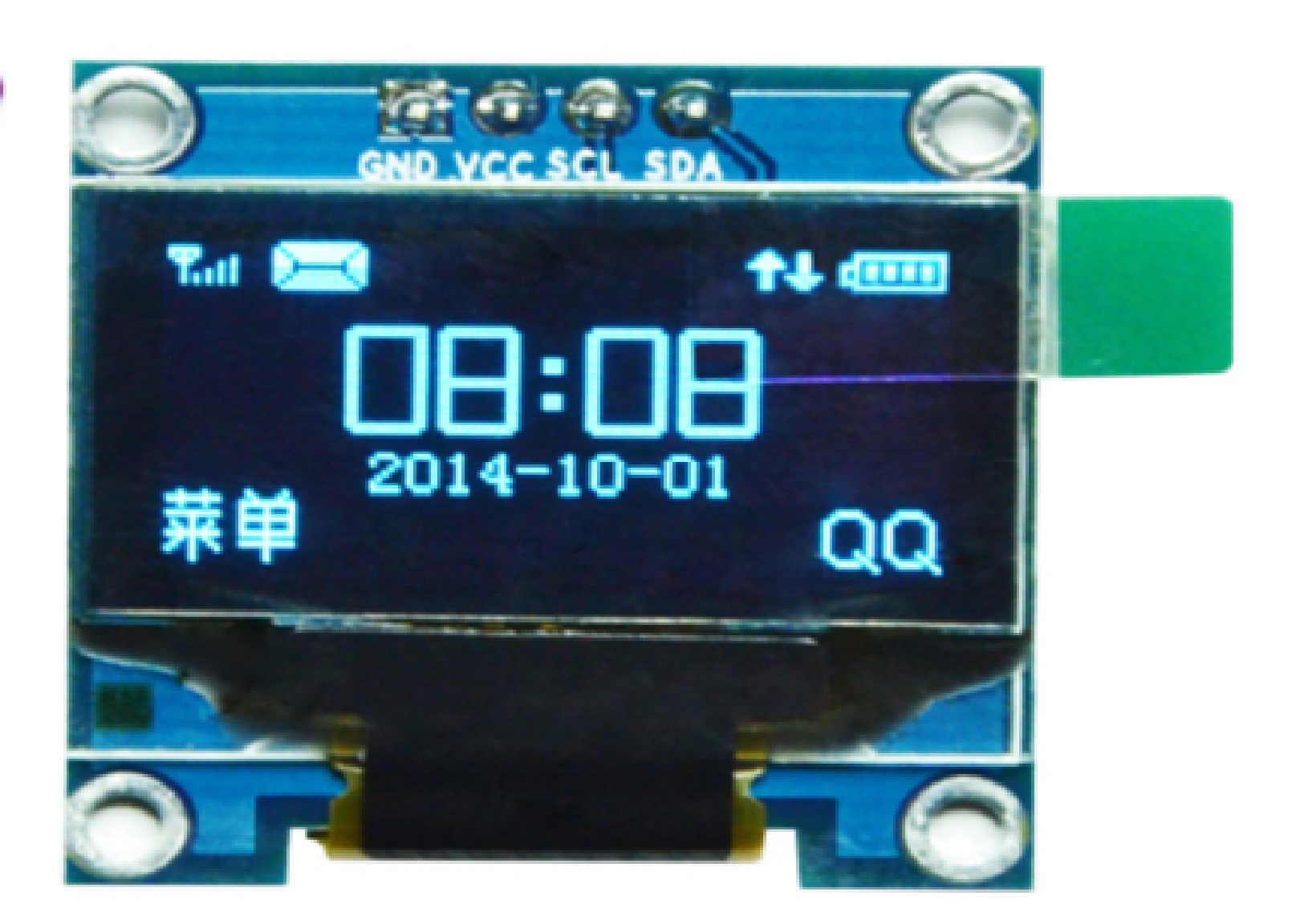

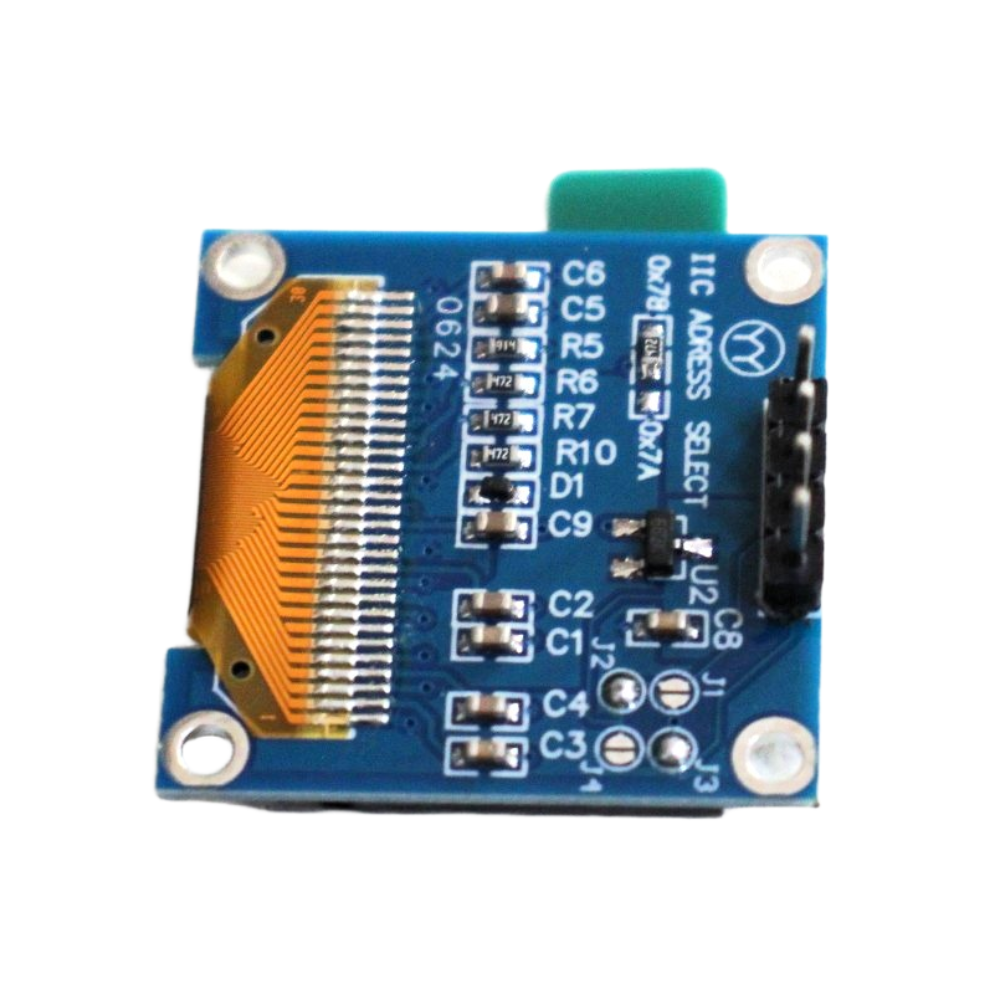

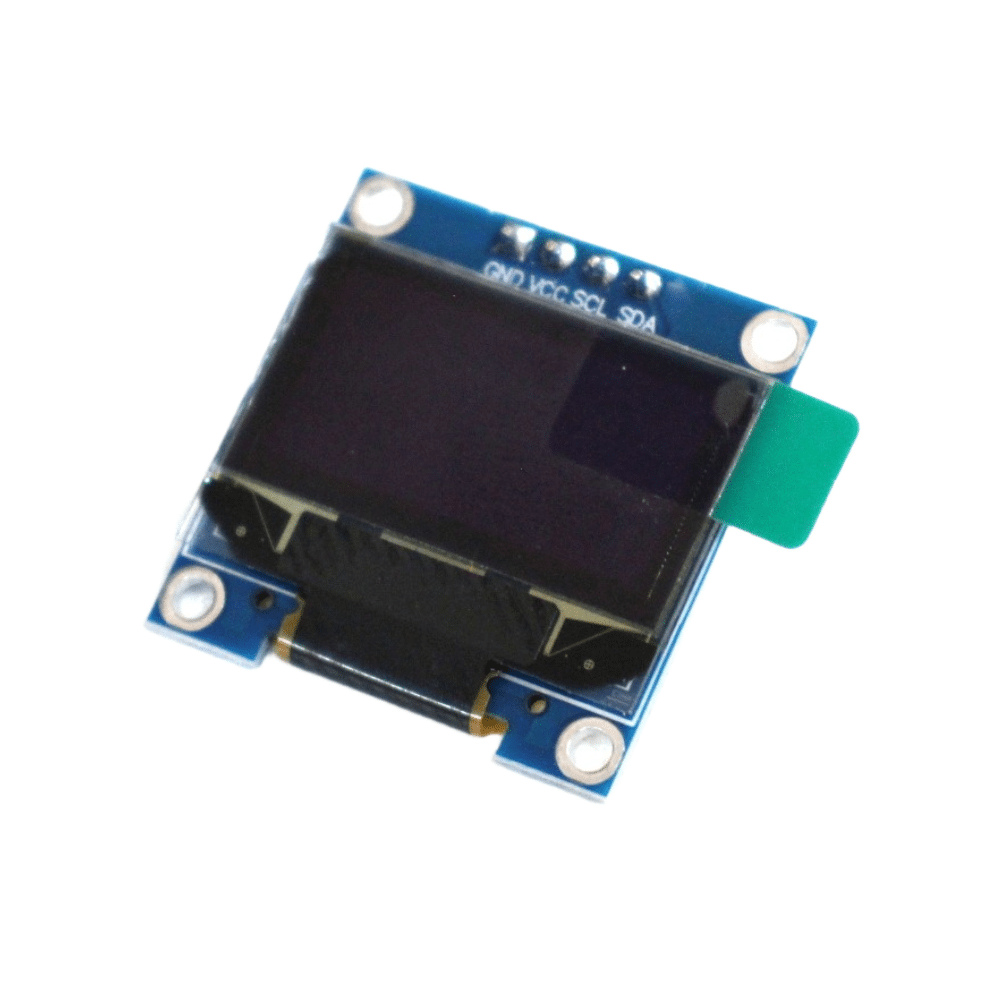

The 0.96 Inch I2C/IIC 4pin OLED Display Module offers seamless interfacing with any microcontroller utilizing SPI/IIC/I2C protocols. Featuring a resolution of 128×64, the package includes a display board, display unit, and a pre-soldered 4-pin male header.

This monochrome OLED display module boasts characteristics such as high brightness, self-emission, high contrast ratio, slim profile, wide viewing angle, broad temperature range, and low power consumption. These attributes collectively contribute to its appeal and suitability for various display applications, ensuring optimal performance and energy efficiency.

Interface pin for 4 PIN 128×64 OLED

1. VCC: 3.3 volts – 5 Volts
2. GND: Ground
3. SCL: Serial Clock
4. SDA: Serial Data

Features of 4 pin 128 x 64 OLED Display

1.     Super High Brightness (Adjustable)
2.     Super High Contrast (Adjustable)
3.     Embedded Driver/Controller
4.     Display size: 0.96″
5.     Resolution radio:128 x 64
6.     Interface modes: I2C/IIC
7.     working voltage: 3.3V
8.     Control Chip: SSD1306

Package Includes:

1 x 0.96 Inch I2C IIC 4pin OLED Display Module WHITE
