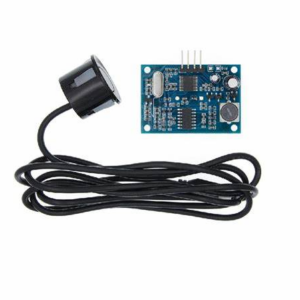

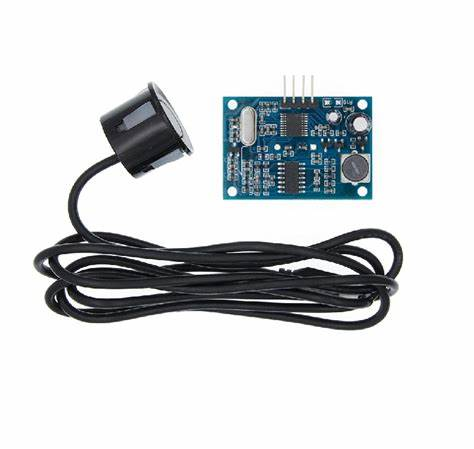

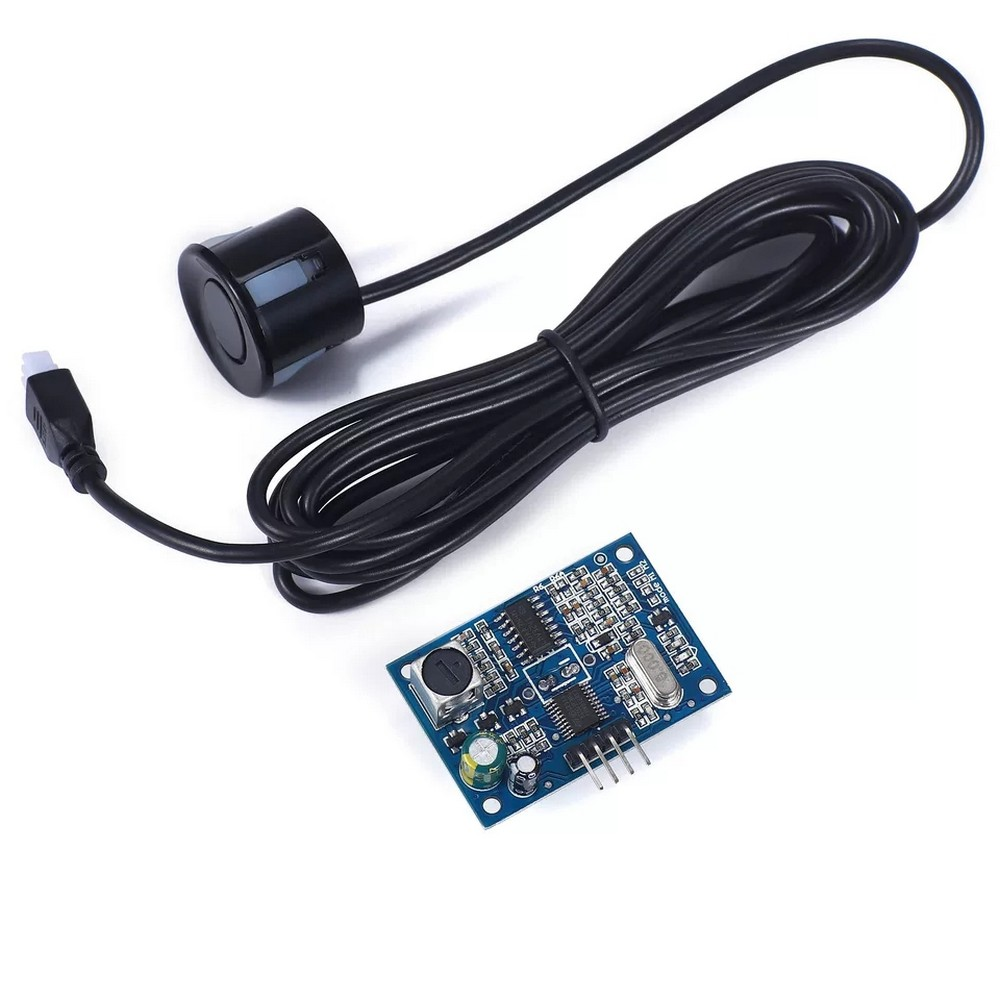

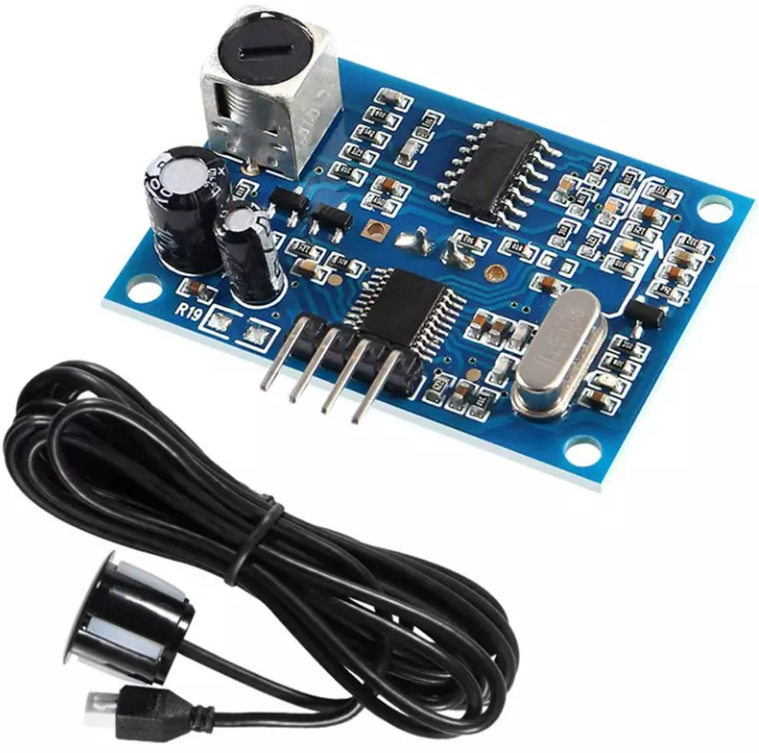

Waterproof Ultrasonic Module AJ-SR04M-18.5MM Probe
The product uses a waterproof strip line probe that integrates transceiver and receiver with non-contact ultrasonic detection technology. It can measure the distance between plane objects accurately from 25cm to 450cm.The great advantage of using this Waterproof Ultrasonic Obstacle Sensor is you can put the sensing element far away from all the control circuitry.
Specifications
- Working Voltage : 3 – 5.5V.
- The maximum Current : 30mA 5V.
- Standby current : < 2mA 5V.
- Low power consumption : <20uA.
- The fastest range is : 8 meter
- Dead zone : 20cm.
- Resolution: 1mm
- Mileage angle: 70 degrees
- Range : 25cm to 450cm
- Range per objects :
- Distance from wall : 8 Meter,
- Distance from People : 4 Meter
Package Includes
- Waterproof Ultrasonic Module AJ-SR04M-18.5MM Probe
Waterproof Ultrasonic Module AJ-SR04M-18.5MM Probe Overview
The Waterproof Ultrasonic Module AJ-SR04M-18.5MM Probe is a compact distance sensor featuring an 18.5 mm strip-line probe with integrated transmitter and receiver. Designed for non-contact measurement of planar objects, it offers reliable readings in wet or harsh environments up to 8 meters.
Key Features of Waterproof Ultrasonic Module AJ-SR04M-18.5MM Probe
- Waterproof strip-line probe with IP-rated housing for outdoor and submerged use
- Wide detection range: 20 cm to 8 m with 1 mm resolution
- Low-power operation: working voltage 3–5.5 V, max current 30 mA @5 V, standby <2 mA, sleep <20 µA
- Dead zone clearance from 20 cm for reliable close-range sensing
- Separate probe and control circuitry allow remote placement of sensing head
- Fast shipping from Zbotic across India; genuine modules sourced from authorized distributors
Applications and Use Cases
- Liquid level monitoring in tanks, reservoirs and sewage systems
- Obstacle detection and collision avoidance in outdoor robotics
- Distance measurement for conveyor control and packaging lines
- Security perimeter sensing and intruder alert systems
- Smart irrigation systems for precise plant spacing detection
How to Use Waterproof Ultrasonic Module AJ-SR04M-18.5MM Probe
Connect the module’s VCC (3–5.5 V) and GND to your microcontroller, wire the Trigger and Echo pins to GPIOs, then upload a simple timing sketch. Place the waterproof probe at the measurement point, trigger a 10 µs pulse on the Trigger line, and measure the Echo pulse width to calculate distance. Allow a 60 ms interval between readings.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the minimum and maximum detection distance?
This module reliably measures distances from 20 cm up to 8 m, with a close-range dead zone of 20 cm where echoes are not detected.
Can the AJ-SR04M-18.5MM Probe be used underwater?
Yes, the waterproof probe and IP-rated housing allow short-term immersion and continuous operation in high-humidity or splashing environments.
How do I interface the ultrasonic module with a microcontroller?
Supply 3–5.5 V to VCC/GND, connect Trigger to a digital output, Echo to a digital input, then measure the echo pulse width in your firmware to compute distance.
