This is the 400cm variant of the VL53L1X Laser Ranging Flight Time Sensor Module Distance 400cm Measurement Extension Board in Other Proximity Sensor & Modules, Distance Sensor, Proximity Sensor, Sensor Modules. Available at ₹164.02 (₹139.00 + GST) with free shipping across India.
Looking for Vl53l1x Module? VL53L1X Laser Ranging Flight Time Sensor Module Distance 400cm Measurement Extension Board is available at Zbotic with fast shipping across India.
PRODUCT DESCRIPTION
The VL53L1X 400cm Laser Distance Sensor is a high-precision module ideal for advanced projects. It utilizes Time of Flight (TOF) technology, providing stable and accurate measurements with ease of use. Capable of measuring distances up to 4 meters, the sensor uses invisible light, making it immune to ambient lighting, surface color, texture, and external reflections, ensuring reliable performance in various environments..
Features:
- Fully integrated miniature module
- Fast, accurate distance ranging
- Eye safe
- Easy integration
Specifications:
- Operating Voltage: 2.6V-3.5V
- Power Consumption: 20 mW @10Hz
- Measurement Range: 40 mm ~ 4,000mm
- Resolution: ±1 mm
- Light Source Class 1 940nm VCSEL
- Interface Type: I2C
- I2C Address: 0x29
- Field of View: 15° – 27°
- Max Read Rate: 50Hz
- Length: 10 mm
- Width: 25 mm
- Height: 4 mm
- Approx Weight: 2 gm
Application:
- User detection for personal computers/ laptops/tablets and IoT (energy saving)
- Robotics (obstacle detection)
- White goods (hand detection in automatic faucets, soap dispensers etc.)
- 1D gesture recognition.
- Laser assisted autofocus. Enhances and speeds up camera autofocus system performance, especially in difficult scenes (low light levels.
Datasheets:
PACKAGE INCLUDES
- 1 X VL53L1X Laser Ranging Flight Time Sensor Module Distance 400cm Measurement Extension Board
Tutorial:
https://www.youtube.com/watch?v=NcG62lmV4Ec
VL53L1X Laser Ranging Flight Time Sensor Module Distance Overview

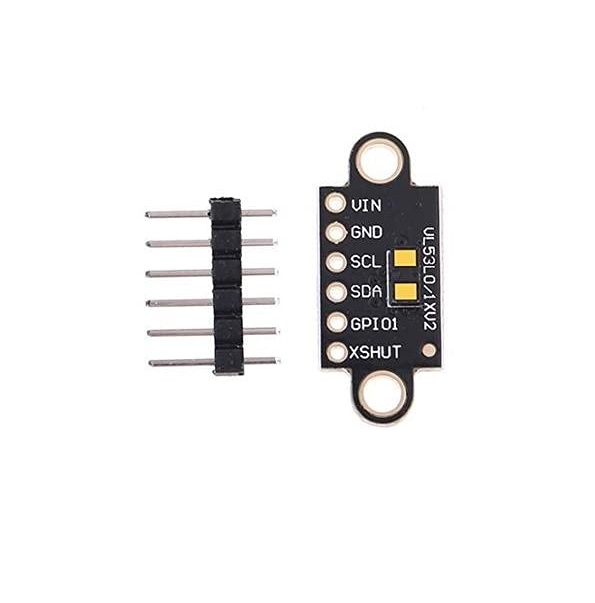

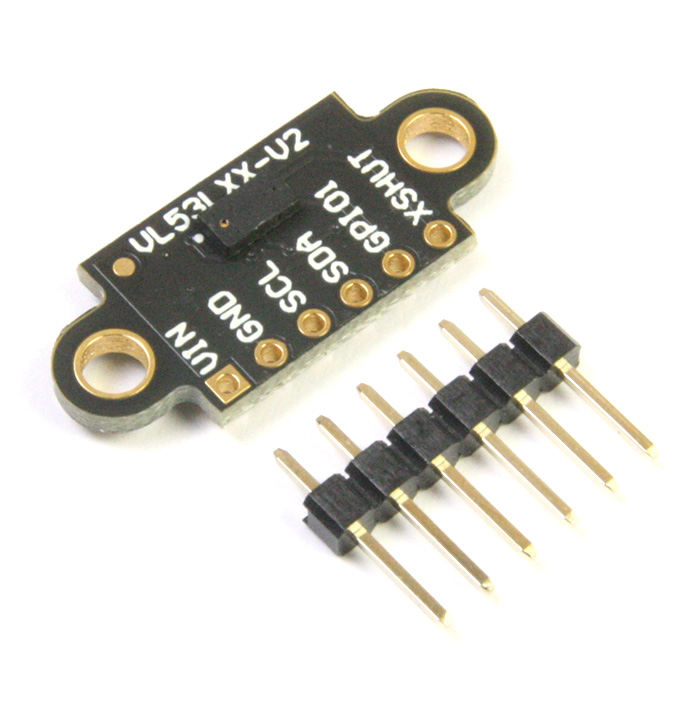

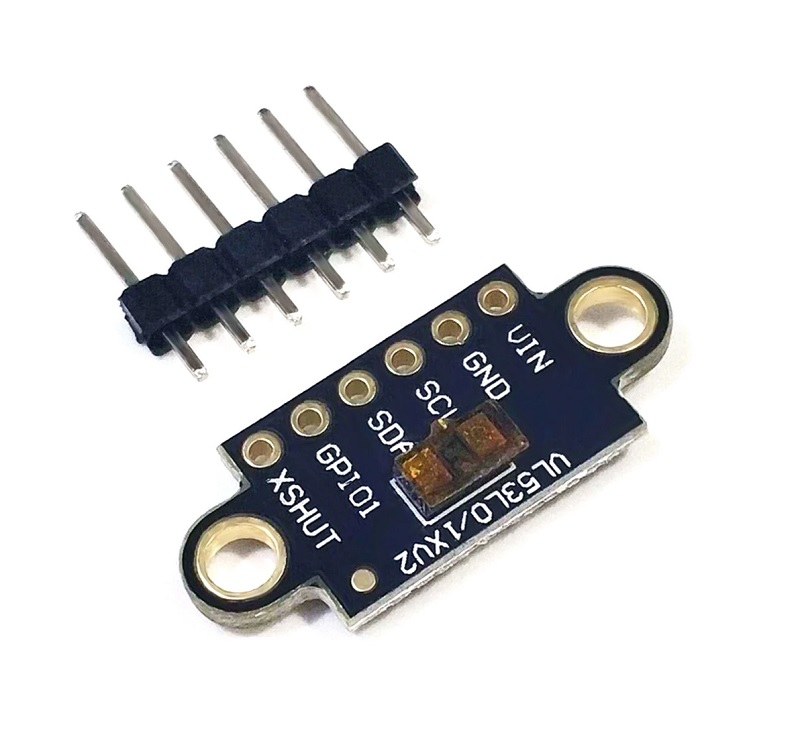

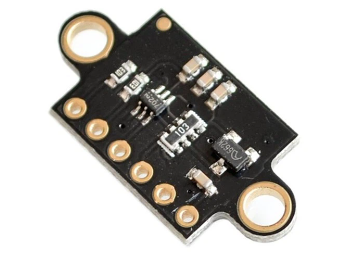

The VL53L1X Laser Ranging Flight Time Sensor Module is a compact extension board designed for precise distance measurements up to 400 cm. It employs Time of Flight (TOF) technology with an eye-safe 940 nm VCSEL emitter, making it ideal for robotics, drones, and proximity sensing applications.
Key Features of VL53L1X Laser Ranging Flight Time Sensor Module Distance
- High-precision TOF ranging from 4 cm to 400 cm with 16-bit resolution (mm)
- Eye-safe 940 nm VCSEL laser source (Invisible Class)
- 16×16 SPAD receiver array with integrated lens for stable readings
- I2C interface compatible with 2.6 V–5.5 V systems
- Compact footprint: 25 mm × 12 mm × 4 mm for easy integration
- Immune to ambient light, surface color and reflections
- Genuine product, fast shipping across India from Zbotic
Applications and Use Cases
- Obstacle detection and avoidance in mobile robots and AGVs
- Altitude hold and ground sensing in drones and UAVs
- Proximity monitoring in automated doors and smart appliances
- Liquid level sensing in transparent or reflective containers
- Interactive installations and gesture detection systems
- Distance feedback in 3D printers and CNC machines
How to Use VL53L1X Laser Ranging Flight Time Sensor Module Distance
Connect the module’s VIN (2.6–5.5 V) and GND to your power supply, then wire SDA and SCL to your microcontroller’s I2C pins. Install the VL53L1X driver library, initialize the sensor in your code, and read the 16-bit distance value over I2C. Mount the module on a stable surface with a clear line of sight to the target for optimal performance.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the maximum measurement range of the VL53L1X module?
The module can accurately measure distances from 4 cm up to 400 cm with a 16-bit resolution in millimeters.
Which interface does this sensor use?
It communicates over the I2C bus, supporting 2.6 V to 5.5 V logic levels for easy integration with most microcontrollers.
Is the laser output eye-safe?
Yes, the sensor uses a 940 nm VCSEL emitter classified as eye-safe (Class 1, invisible laser).
Optical Encoder vs Magnetic Encoder: Choosing for CNC
Encoders are the eyes of a CNC machine. Every servo loop, every stepper verification, every closed-loop motion system...
Read More →
Analog vs Digital Sensor Output: ADC Resolution Explained
Table of Contents Why Sensor Output Type Matters Analog Sensor Output Fundamentals Digital Sensor Output Fundamentals ADC Resolution:...
Read More →
DS18B20 Waterproof Sensor: Liquid Temperature Measurement
The DS18B20 waterproof temperature sensor is one of the most popular and widely used components in the Arduino...
Read More →Technical Specifications
| Model | VL53L1X |
|---|---|
| SKU | AI2996 |
| Weight | 0.0026 kg |
| Availability | Out of Stock |
Applications & Use Cases
The VL53L1X Laser Ranging Flight Time Sensor Module Distance 400cm Measurement Extension Board is a versatile other proximity sensor & modules used across a wide range of applications including obstacle detection, level measurement, robotics navigation, parking sensors, and industrial gauging.
Common use cases:
- Adding obstacle avoidance to a robot
- Measuring water tank level
- Building a parking distance indicator
This product is ideal for robotics developers and measurement system builders.
Technical Tip: Ultrasonic sensors (HC-SR04) are affordable but angle-limited. IR sensors are faster but range-limited. ToF sensors offer the best accuracy and speed.
