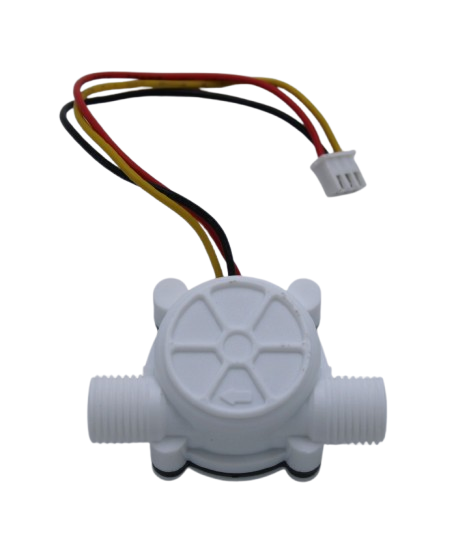

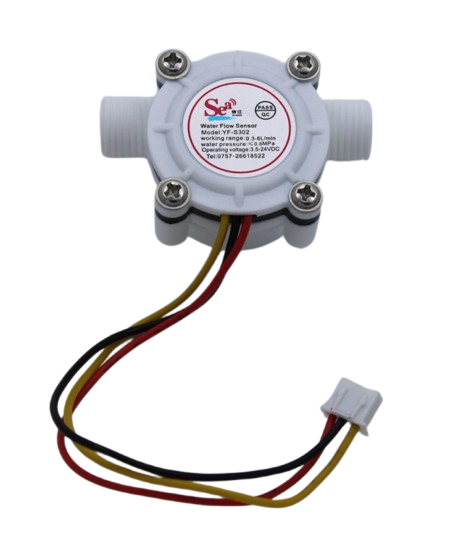

Water Flow Sensor (Sea) YF-S302 Flowmeter G1/4 0.3-6L/min 5-24V
YF-S302 Hall Water Flow Sensor 0.3-6L/min G1/4″ PE Pipe XH2.54 Plug Electronic Turbine Meter Zhongjiang Sea Dijiang
The Water Flow Sensor (Sea) YF-S302 Flowmeter is a versatile device designed for accurately measuring water flow rates in a variety of applications. With a connection size of G1/4 (standard 1/4 inch), it can seamlessly integrate into existing systems. Its flow rate range of 0.3-6 liters per minute (L/min) makes it suitable for a wide range of flow rate monitoring needs. Operating on a voltage range of 5-24V DC, it offers flexibility in power supply options. Its compact design facilitates easy installation, while its durability ensures reliable performance even in harsh conditions. Whether used in household appliances like water heaters and dispensers or industrial equipment, this flow sensor provides precise measurement and control of water flow, contributing to improved efficiency and productivity.
Application:
Water heater, washing machine, boiler, electromagnetic water heater, water dispenser, water purifier, R.O. machine, U.F. machine, coffee machine, water machine, water machine control, water control machine, beer machine, beauty equipment, shower equipment, electrolytic water machine, energy engineering, heat pump,IC meter, steam equipment, irrigation equipment, water system, campus card self-service sale (sell) water machine, washing machine, automatic washing equipment, water treatment equipment, water dispensing equipment, cooling system, circulation system, intelligent toilet (toilet), bidet, mechanical equipment, heating equipment, Pharmaceutical (agents) equipment etc.
Calculation Formula:F(Hz)=22*Q(L/min)
Specification:
1. Material: body: POM; turbine: POM; shaft(axis):SUS304
2. Intubation design of inlet and outlet pipe, easy connection and operation;
3. Imported Hall IC from Japan, stable and reliable;
4. Range: 0.3-6L/min;
5. working voltage: DC4.5-12V DC
6. rated voltage: DC5V
7. Output voltage(rated: DC 5V); High level 4.5V and above; low level 0.5V and below
8. Pulse output duty cycle: 50+-10%
9. Insulation resistance: 100M Ohm and above;
10. Tightness: Seal up all the holes, and inflate with 0.8MPa water, after 1 minute, no leakage and deformation;
11. -20-60 centigrade;
12. Working Pressure: under 0.8Mpa;
13. Electrical Strength: AC500V 50Hz.
14. Warranty: 1 year for clean water usage.
Note:
1. When magnetic material is close with the sensor,its characteristics may vary.
2. In order to avoid particle debris, the sensor must be installed after a filter.
3. The flow sensor installation has to avoid strong vibration and shaking of the environment, so as not to affect the sensor’s measurement accuracy.
PACKAGE INCLUDES
1 X Water Flow Sensor (Sea) YF-S302 Flowmeter G1/4 0.3-6L/min 5-24V
