PRODUCT DESCRIPTION

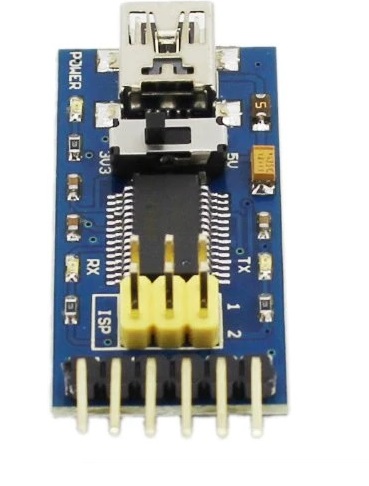

A FT232 USB to TTL converter can provide USB capability to your own breadboard for booting or downloading sketches. Parallel and serial ports have gradually disappeared from PCs as computer technology advanced, and now even desktop computers rarely have a parallel port. However, for engineers, parallel and serial ports are essential interfaces, especially serial ports.
The FT232 series is the most reliable in terms of stability, and you can use it to debug with ease, without worrying about the blue screen. The FT232R chip is a single-chip solution that does not require any peripherals, not even a crystal. The USB matching resistors and the EEPROM that stores product information are integrated into the chip. The FT232 FTDI Basic Program Downloader also has some useful features that can be found in the FT232R databook.
Technical Details
- This product uses the FT232RL chipset and supports both 3.3V and 5.5V.
- It is not a genuine FTDI chip.
- It is compatible with Win95/98/98se/ME/2000/XP/win7 32bit 64bit /Vista/ Win8 operating systems.
- It has a 500MA self-recovery fuse and RXD/TXD communication indicators.
Features
- This is a standard interface that works with various official Arduino controllers. It uses the original FT232RL chip for reliable performance. It has power supply, send and receive indicator lights, and a clear working state. It can function as a regular USB serial port, a TTL module, or a STC microcontroller downloader. All signal ports of the FT232RL chip are TTL/CMOS level compatible. It has RDX/TXD transceiver communication indicators. It can use USB power supply with either 5V or 3.3V interface level (or any other level by directly supplying the target voltage on the VCC and GND pins).
Package Includes
- 1 x USB to TTL converter FT232 FTDI Basic Program Downloader
