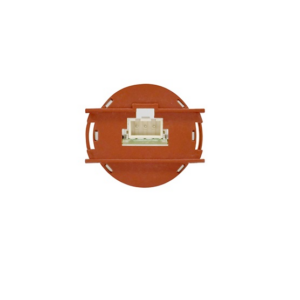

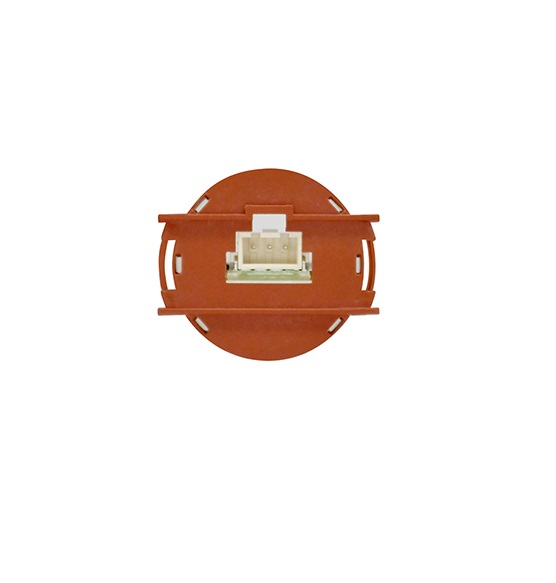

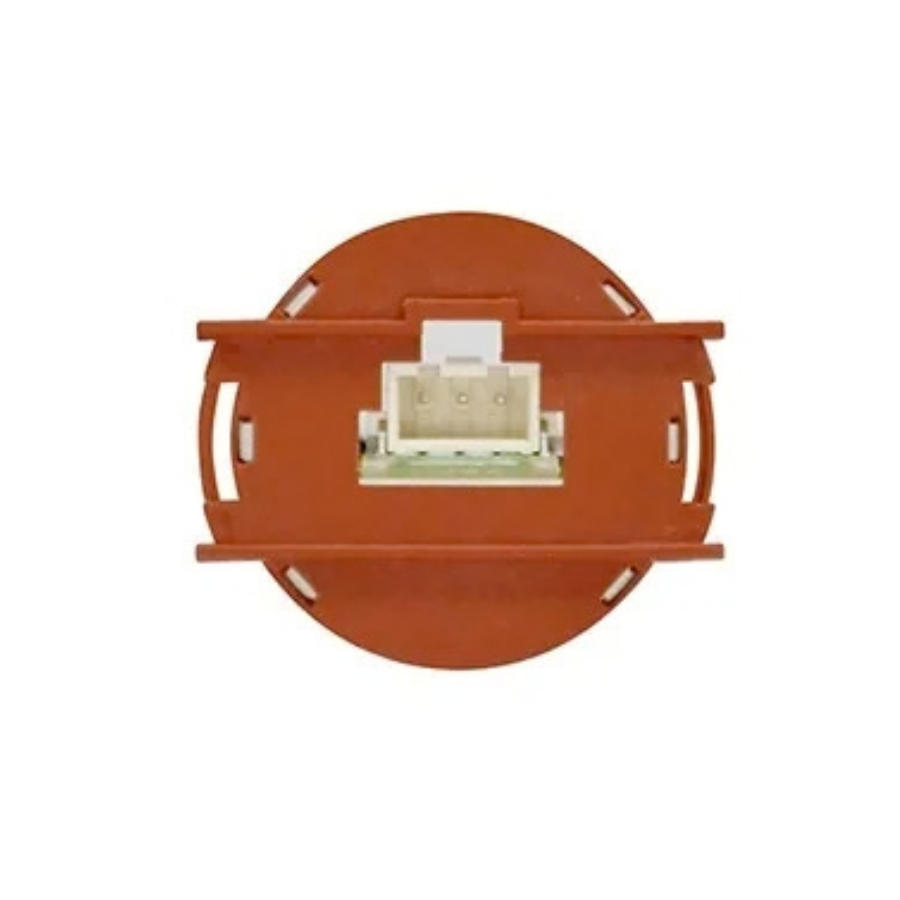

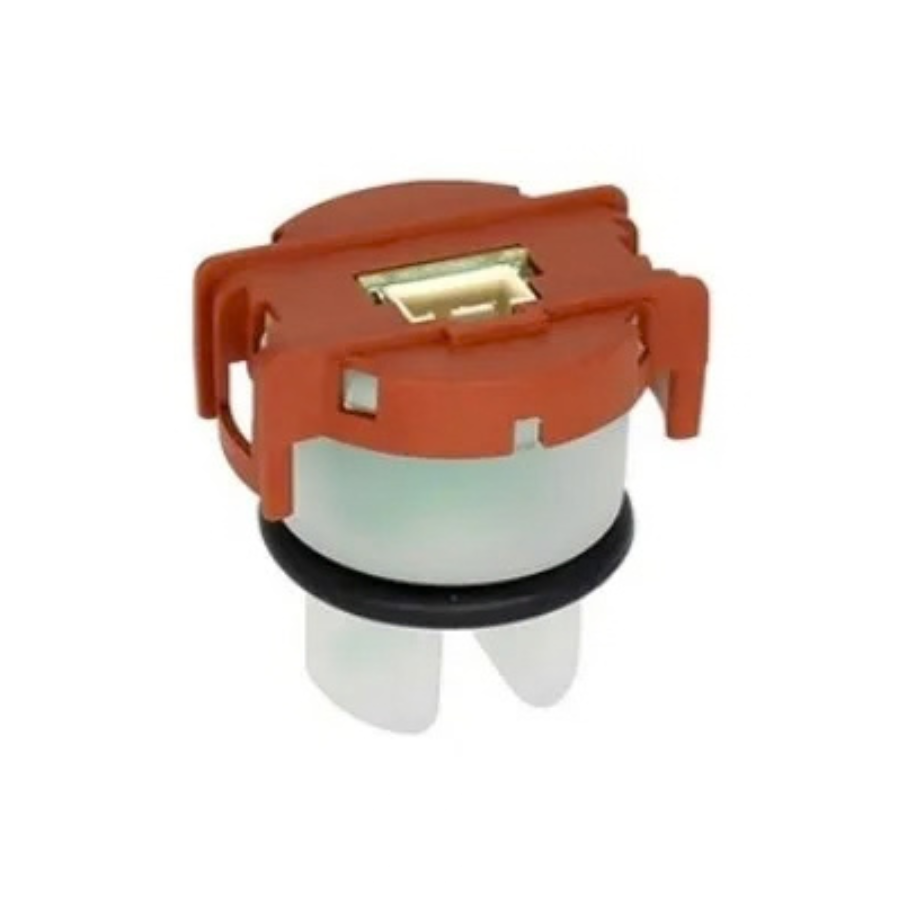

AZDM01 is a device that has a photoelectric sensor inside. It emits an infrared light that goes through a transparent plastic case and a measuring tank. The light is blocked by the liquid in the tank, depending on how turbid it is. The less light that reaches the photosensitive element, the lower the voltage signal it produces. By measuring the voltage signal at the output terminal, the device can calculate the turbidity of the liquid.
The Turbidity Sensor Model AEDM01 is an infrared-based device designed to measure the cloudiness or turbidity of liquids by detecting variations in light transmission. Ideal for continuous monitoring, it outputs an analog voltage proportional to the turbidity level, allowing integration with microcontrollers and data acquisition systems.
Key Features of Turbidity Sensor Model AEDM01
Wide supply range: 5.0 V DC (4.8–5.5 V) with typical current draw of 25 mA
Fast response and sampling period ≥100 ms for near real-time readings
High reliability and long operational life (>10 years at 25 °C)
Waterproof design for submerged or splash-proof installations
Stable analog voltage output proportional to turbidity level
Genuine product, fast shipping from Zbotic.in
Applications and Use Cases
Aquaculture systems: Monitor water clarity for fish and shrimp health
Environmental monitoring: Measure river, lake or reservoir water quality
Industrial process control: Ensure clarity in beverage and chemical production
Laboratory research: Precise turbidity measurements in sample analysis
How to Use Turbidity Sensor Model AEDM01
Connect the AEDM01 sensor’s power pins to a stable 5 V DC supply (4.8–5.5 V), and wire the analog output to an ADC input on your microcontroller or data logger. Immerse the sensor in a clean measurement cell or directly in the fluid, allowing at least 100 ms between readings. Perform calibration using standard turbidity solutions, and periodically clean the transparent window to maintain accuracy.
Why Buy from Zbotic?
Genuine Products: All items sourced from authorized distributors
Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
Free Shipping: Free delivery on qualifying orders
COD Available: Cash on Delivery, UPI, cards, net banking
Technical Support: Expert help for setup and troubleshooting
Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What type of output signal does AEDM01 provide?
The sensor provides an analog voltage signal proportional to the turbidity of the liquid, suitable for direct connection to most ADC inputs.
How often can I sample turbidity with this sensor?
With a sampling period of ≥100 ms, you can perform up to 10 measurements per second for near real-time monitoring.
Is the sensor waterproof for submerged applications?
Yes, the AEDM01 features a waterproof design that allows safe immersion in liquids for continuous turbidity measurement.
The Turbidity Sensor Model AEDM01 is a versatile water tds used across a wide range of applications including water quality monitoring, hydroponics, aquariums, industrial water treatment, and smart irrigation.
Common use cases:
Measuring TDS in a hydroponic nutrient solution
Monitoring pH in an aquarium
Tracking water flow in an irrigation system
This product is ideal for aquaculture professionals, hydroponic growers, and environmental engineers.
Technical Tip: Calibrate pH and TDS sensors regularly with standard solutions. Keep probe tips clean and submerged when not in use.
