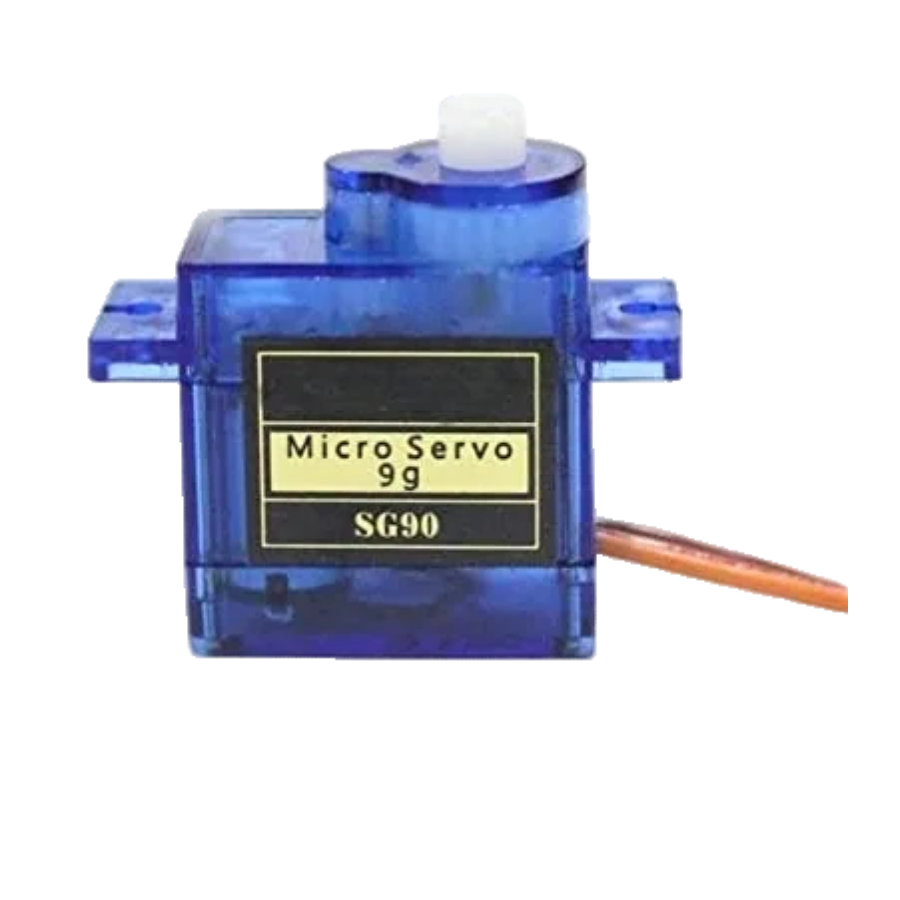

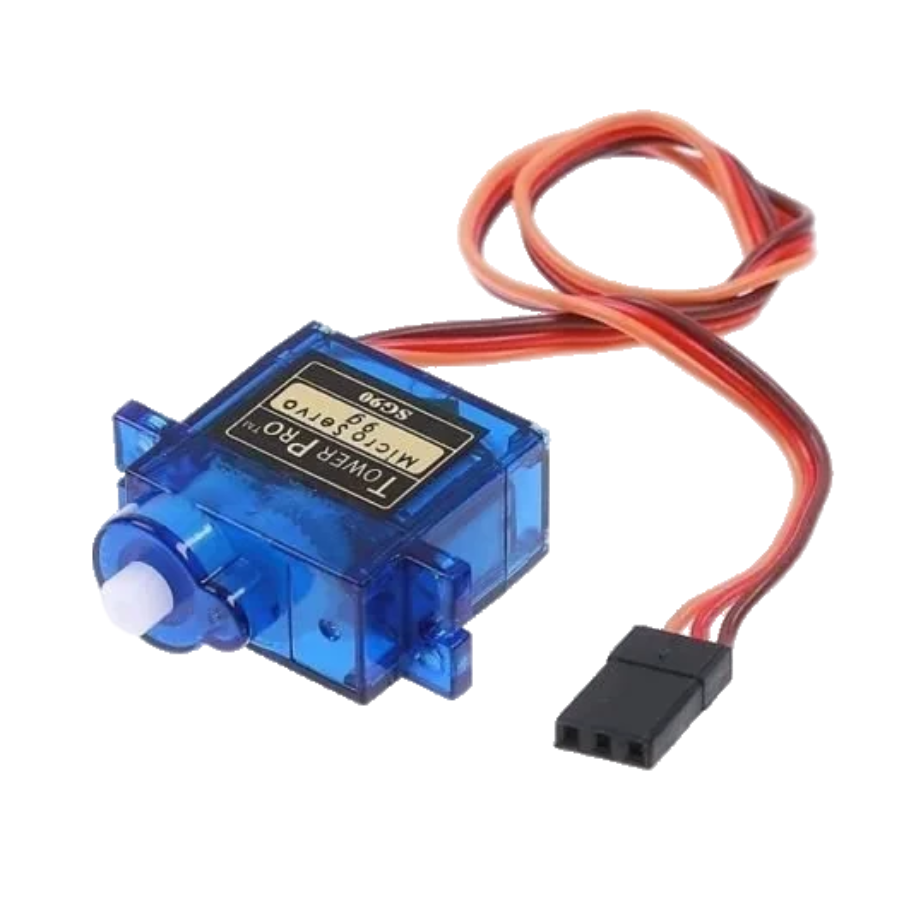

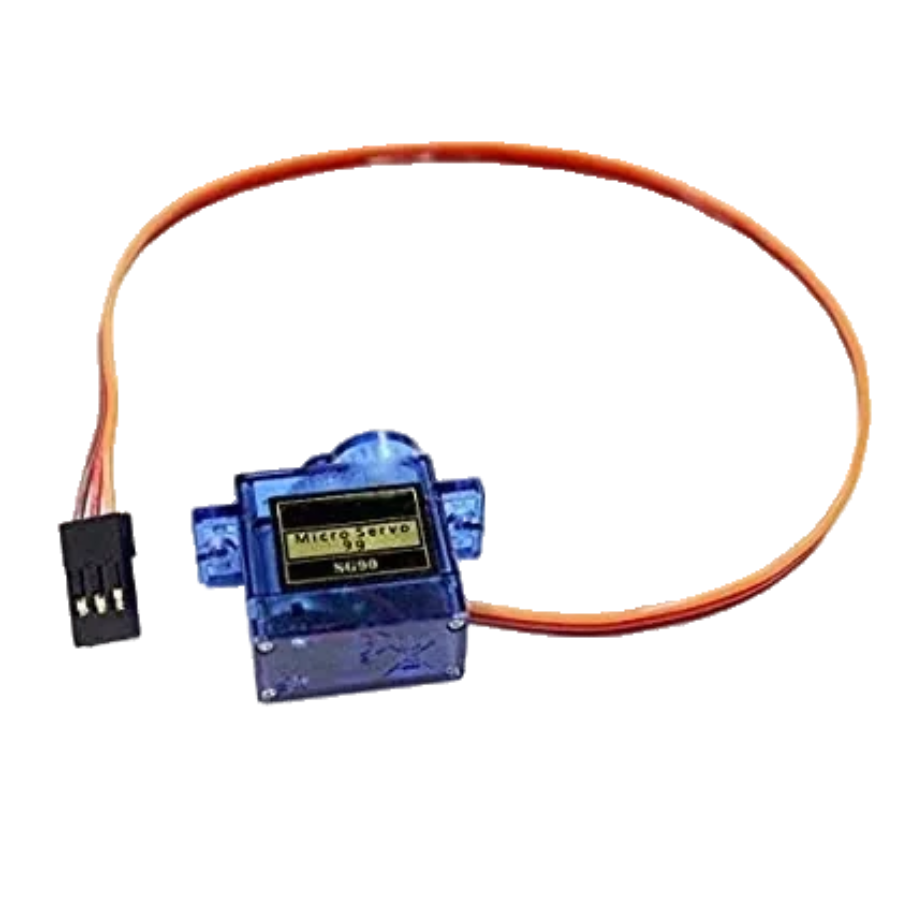

TowerPro SG90 Continuous Rotation 360 Degree Servo Motor
Introducing the TowerPro SG90 Continuous Rotation 360 Degree Servo Motor, a versatile servo motor with unique features that distinguish it from standard servo motors. Unlike traditional servos that move to a specific angle, this servo stays static at a 1.5ms pulse, with longer pulses resulting in forward rotation and shorter pulses causing backward rotation.
This servo motor is equipped with carbon fiber gears, making it significantly lighter than metal gear motors with similar specifications. Its lightweight design is perfect for small load applications where minimizing weight is crucial for optimal performance.
Utilizing advanced digital technology, this servo motor processes PWM signals more quickly and efficiently. Its sophisticated internal circuitry ensures precise torque, holding power, and rapid response to external forces.
Housed in a durable plastic casing, this servo motor is both water and dust resistant, making it suitable for various environments, including RC planes, boats, and RC monster trucks. The 3-wire JR servo plug ensures compatibility with Futaba connectors, providing versatility in connectivity options.
Wire Description:
RED: VCC (Positive)
Brown: GND (Negative)
Orange: PWM (Signal)
Features:
High resolution
Accurate positioning
Fast control response
Constant torque throughout the servo travel range
Excellent holding power
Specifications:
Model
SG90
Weight (g):
9
Operating Voltage (VDC)
3.0 ~ 7.2
Operating Speed @4.8V
0.12sec/60°
Operating Speed @6.6V
0.1sec/60°
Stall Torque @ 4.8V (Kg-Cm)
1.2
Operating Temperature (°C)
-30 to 60
Dead Band Width ( μs)
5
Gear Type
Glass Fiber
Rotational Degree
360º
Servo Plug
JR
Cable Length (cm)
25

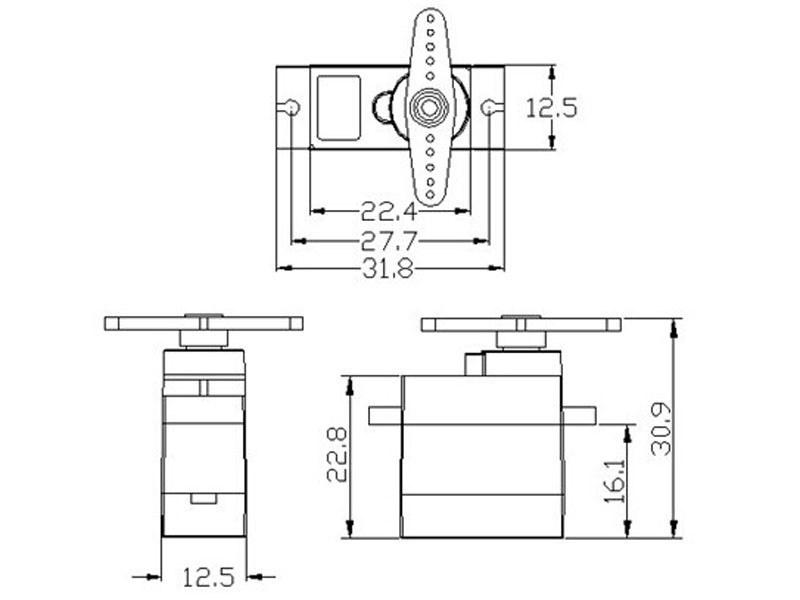

Length (mm):
23
Width (mm):
12.6
Height (mm):
30
Experience the precision and reliability of the TowerPro SG90 Continuous Rotation 360 Degree Servo Motor, perfect for a wide range of hobbyist and DIY projects.
Package Includes

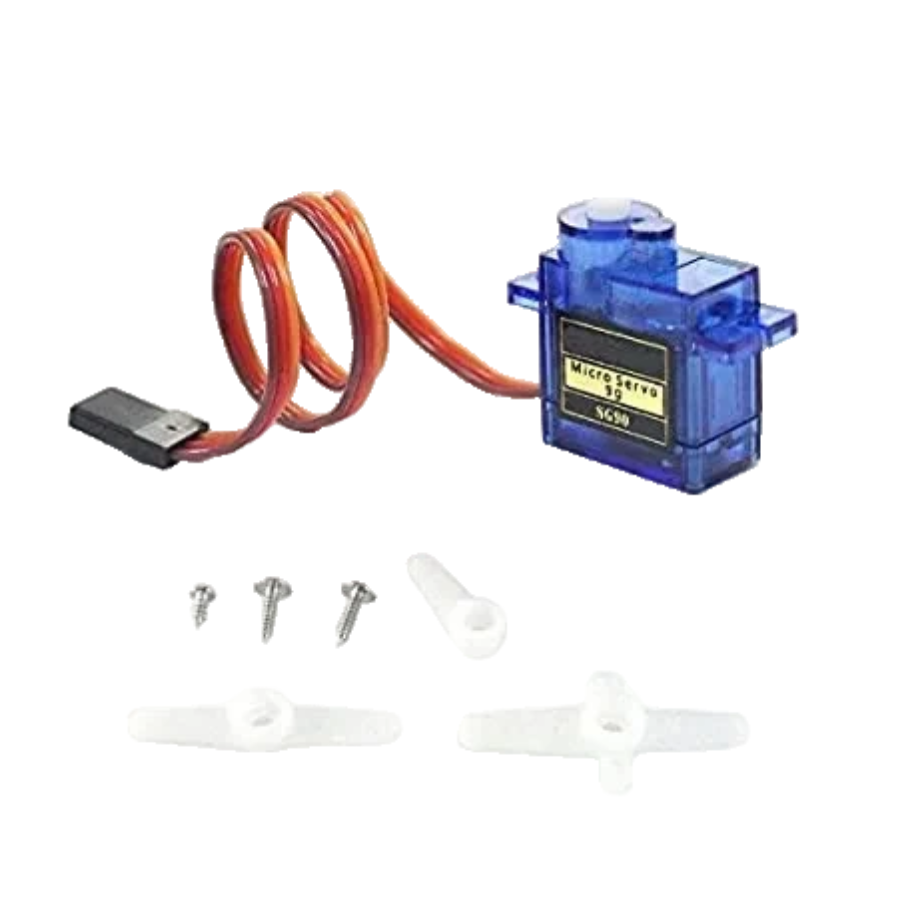

1 x TowerPro SG90 Servo Motor 360° rotation with Cable
The TowerPro SG90 Continuous Rotation 360 Degree Servo Motor is a versatile towerpro and other servo motors used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
Integrating into a custom electronics project
Learning and experimenting with circuits
Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
