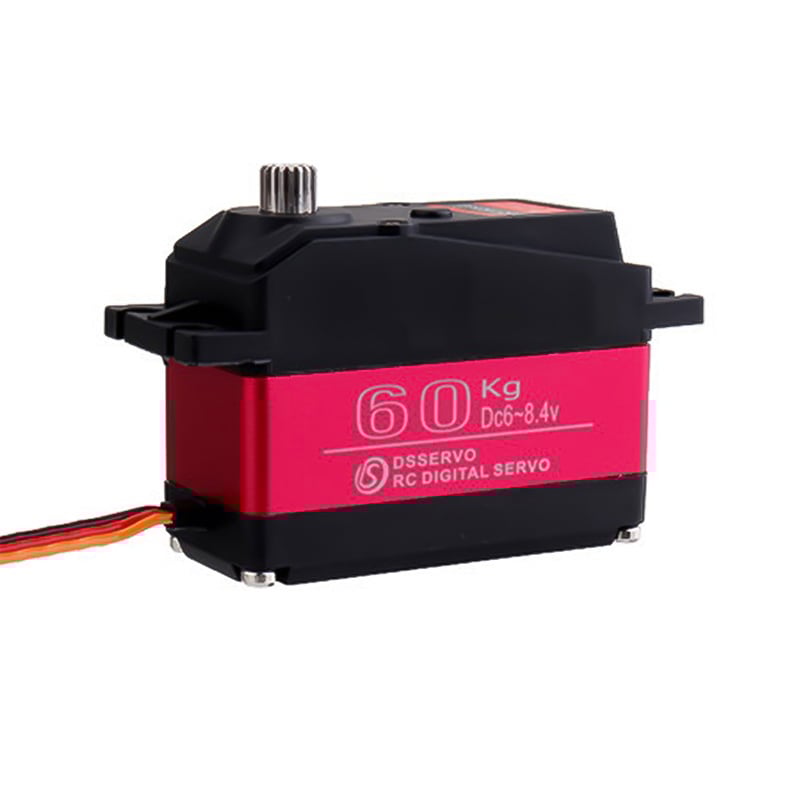

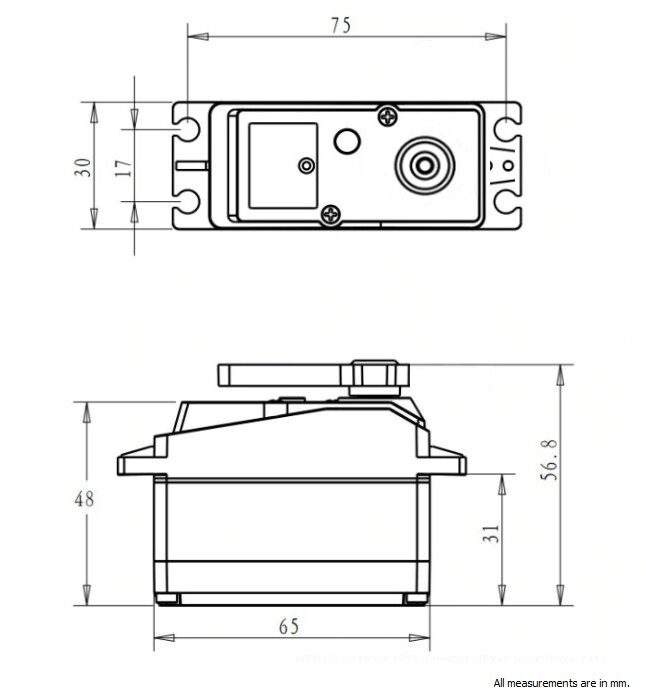

The Ultra Torque Quarter Scale 60kgcm Metal Gear Servo Motor is an ideal option for those in need of SSG metal-geared servo motors. It is waterproof and delivers outstanding performance for various RC models, including airplanes, helicopters, BAJA cars, and RC cars. With a torque of 58kg/cm at 6V and 65kg/cm at 7.4V, it ensures reliable operation. For detailed information on the product’s dimensions, please refer to the configuration table provided in the attachments.
Note:
1. The best use voltage is 7.4v. It is recommended to use 2s battery for power supply (6v-8.4v).
2. The working angle of the servo is 180 degree (PWM: 500us-2500us).
Specification
Item Type:
Generic Servo Motor
Torque Rating (kg-cm):
58 to 70
Operating Voltage (VDC)
6 ~ 8.4
Operating Speed @6V
0.17sec/60 degree
Operating Speed @7.4V
0.15sec/60 degree
Operating Speed @8.4V
0.13sec/60 degree
Stall Torque @6V (Kg-Cm)
58kg.cm
Stall Torque @7.4V (Kg-Cm)
65kg.cm
Stall Torque @8.4V (Kg-Cm)
70kg.cm
Operating Temperature (°C)
-15ºC to 70ºC
Storage Temperature (°C)
-30ºC to 80ºC
Cable Length (cm):
32 cm
Dead zone setting
3 uS
Gear Type
Metal
Required pulse
500us-2500us
Features:
Durable Metal Gear
Dual Ball Bearing
Programmable Digital Amplifier with Mosft Drive
Bottom Side Axial Mount Hole
Original factory product
Less Noise
Plug/Output wheel/Radio control system compatible with Futaba JR Hitec
Gear Type: All Metal Gears
Stable and shock proof double ball bearing design
Operating Angle: 180 degree
Orientation Angle: Maximum 180 or 270 degrees
Package Includes:
1 x Ultra Torque Quarter Scale 60kgcm Metal Gear Servo Motor
The Ultra Torque Quarter Scale 60kgcm Metal Gear Servo Motor is a versatile towerpro and other servo motors used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
Integrating into a custom electronics project
Learning and experimenting with circuits
Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
Shipping & Delivery
Free shipping on orders above ₹999 across India
Dispatched within 1-3 business days
Expected delivery: 3-7 business days depending on location
Secure packaging to ensure safe transit of electronic components
Weight
0.03 kg
Country Of Origin: China
