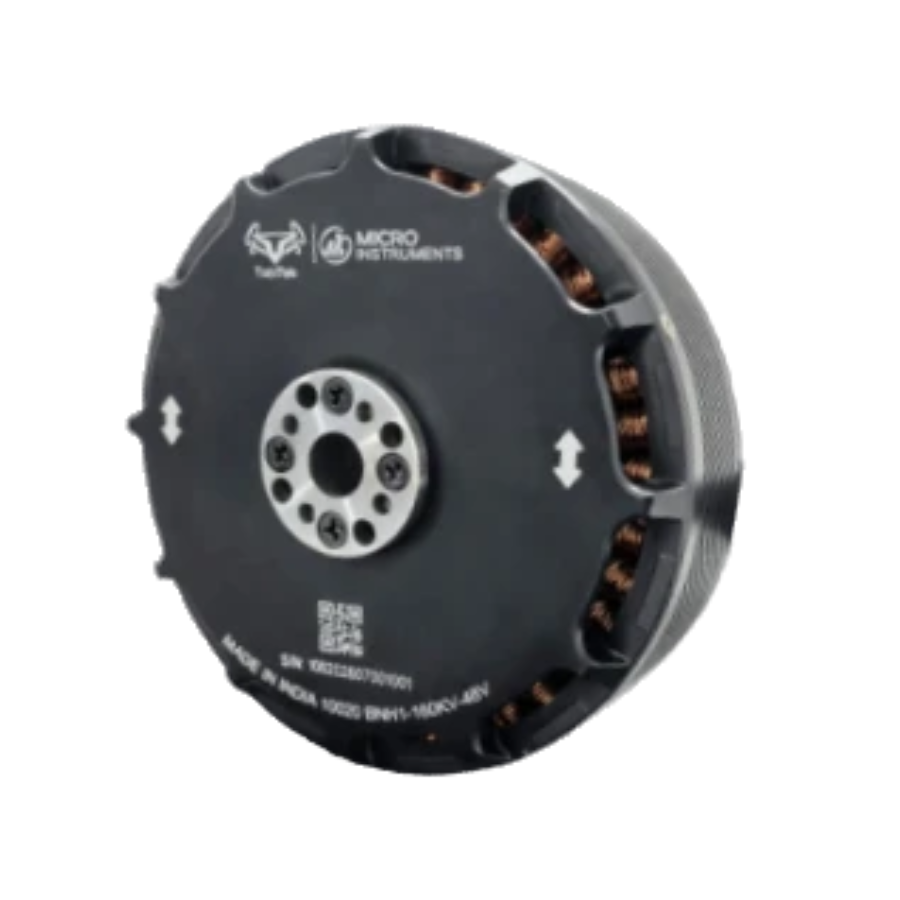

TOBITEK BNH1(10020) BLDC Motor
Description:
The TOBITEK 160KV Drone Motor is designed for heavy-lift UAV and multirotor propulsion applications. It delivers up to 27 kgf of maximum thrust with a maximum power rating of 6300W. Designed for a recommended 12S battery system, it features a 36N42P configuration, a 15 mm shaft, and imported 6202ZZ bearings. It is recommended for use with the APD 240A HVC ESC and G30 × 10.5-inch carbon propeller.
Specifications:
| Parameter | Specification |
|---|---|
| Brand | TOBITEK |
| KV Rating | 160 KV |
| Maximum Thrust | 27 kgf |
| Recommended Battery | 12S |
| Maximum Power | 6300 W |
| Peak Current | 140 A |
| Motor Weight | 850 g |
| Stator Dimensions | Ø100 × 20 mm |

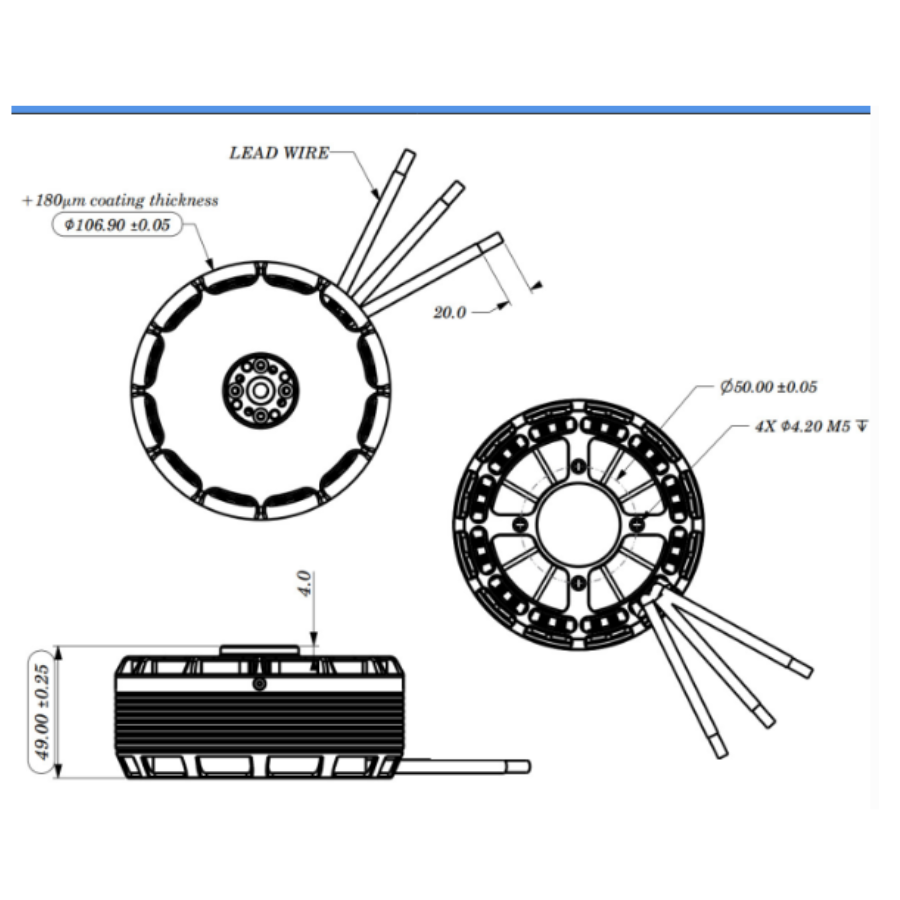

| Motor Dimensions | Ø106.90 × 49.00 mm |
| Shaft Diameter | 15 mm |
| Configuration | 36N42P |
| Bearing Type | Imported 6202ZZ |
| Lead Wire Length | 150 mm |
| Coil Insulation Test Voltage | 500 V |
| Copper Wire Temperature Class | 220 |
| Magnet Temperature Rating | 120°C |
| Recommended ESC | APD 240A HVC |
| Recommended Propeller | G30 × 10.5-inch C |
Features:
-
160KV Rating: Designed for compatible heavy-lift drone propulsion systems.
-
High Thrust Output: Delivers up to 27 kgf of maximum thrust.
-
High Power Capacity: Supports up to 6300W maximum power.
-
12S Battery Compatibility: Recommended for 12S battery systems.
-
Robust Construction: Features a 36N42P motor configuration.
-
Durable Bearings: Equipped with imported 6202ZZ bearings.
-
Heavy-Lift Applications: Suitable for compatible UAV and multirotor builds.
-
Recommended Components: APD 240A HVC ESC and G30 × 10.5-inch propeller.
Model: BNH1 160KV (10020)
Ultra-powerful motor for large drones and VTOL applications, supporting extreme payloads with high efficiency.
- Supports extreme payloads
- Optimized for VTOL and cargo operations
- Ultra-high power rating
Datasheet:
Package Includes:
1x TOBITEK BNH1(10020) BLDC Motor
Hover Games and FPV Racing Clubs India: Getting Started
Hover Games and FPV Racing Clubs India: Getting Started India's FPV drone racing scene has exploded over the...
Read More →
Companion Computer on Drone: Using Raspberry Pi for Vision Tasks
Modern drones have evolved far beyond simple remote-controlled flying machines. With the integration of a companion computer —...
Read More →
Geared Motor with Encoder: Buy vs DIY for Robot Wheels India
If you are building a wheeled robot in India — whether a line follower, autonomous delivery bot, or...
Read More →Technical Specifications
| Brand | TOBITEK |
|---|---|
| SKU | AI5171 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The TOBITEK BNH1(10020) BLDC Motor is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
