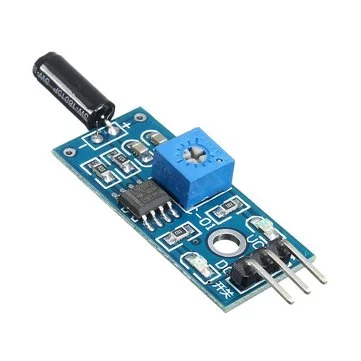

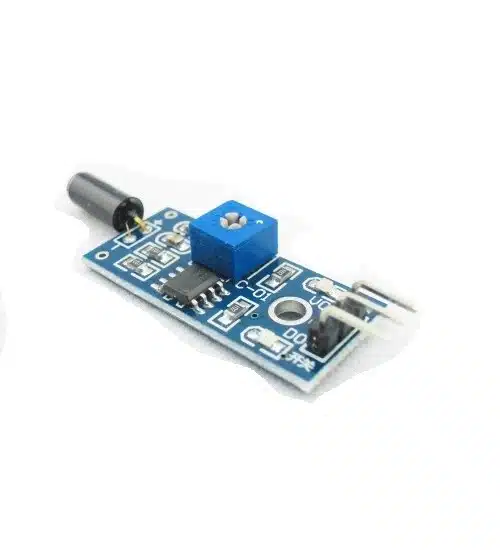

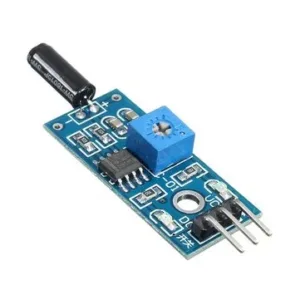

Tilt Sensor Vibration Alarm Vibration Switch Module for Arduino (3 PIN)
The Tilt Sensor Vibration Alarm Vibration Switch Module for Arduino is a simple yet effective module designed to detect the tilt of an object. Once powered, it’s ready to use — just attach it to an object, and it will monitor for any tilt. With digital output, you can easily check the status of the object by reading the output signal, which indicates whether the object is tilted or not.
The module uses an SW-460D or SW-520D tilt sensor, which operates on a ball rolling mechanism (NOT the mercury type). It features an M3 mounting hole for easy attachment to objects and includes a tilt switch with high sensitivity, making it ideal for tilt detection applications. The onboard power LED and status LED provide clear visual indicators of the module’s operation.
The module outputs a logic LOW when the object is not tilted, and it switches to logic HIGH once the tilt exceeds a certain threshold angle. The typical tilt range is from 45 to 130 degrees, although this can vary depending on the angular velocity. In addition to tilt detection, the module can also function as a vibration sensor.
This module can be easily interfaced with any microcontroller with a digital input, such as 8051, PIC, SK40C, SK28A, SKds40A, or any Arduino board for tilt detection functionality. It can also be used with a relay module to act as a tilt switch for various applications.
Pin Connection:
-
VCC = 5V
-
GND = 0V.
-
DO = digital output from module
Note: If the DO is not working, you might need to turn the on-board potentiometer to center.
Features
- Multiple axes measurement
- High resolution and precision
- Easy to use and mount on any object.
- Low power consumption
- Cost-effective and compact size
- Digital output
Application
- Tilt sensing for remote control devices.
- An automatic rotating display like in phone and tablet.
- Aircraft to indicate the position of aircraft with respect to the earth.
- Gaming devices
- Digital cameras and other consumer electronics
Package Includes
1 x Tilt Sensor Vibration Alarm Vibration Switch Module for Arduino
Tutorial
https://osoyoo.com/2017/07/31/tilt-sensor-module/
Tilt Sensor Vibration Alarm Vibration Switch Module for Overview
The Tilt Sensor Vibration Alarm Vibration Switch Module for Arduino (3 PIN) is a compact detection unit that senses tilt or vibration using a ball-rolling mechanism. With a simple digital output, this module signals whenever the mounted object shifts orientation or experiences movement.
Key Features of Tilt Sensor Vibration Alarm Vibration Switch Module for
- Operating Voltage: 3.3 – 5 VDC compatible with Arduino and other microcontrollers
- Ball Rolling Tilt Sensor (SW-460D or SW-520D) – mercury-free and reliable
- Digital Output Pin indicates HIGH when tilted or shaken
- M3 mounting hole for secure installation on panels or enclosures
- 3-pin interface (VCC, GND, DO) for quick wiring
- Genuine product with fast shipping from Zbotic across India
Applications and Use Cases
- Anti-theft tilt alarms for display cabinets or portable equipment
- Orientation detection in robotics and automation projects
- Vibration monitoring for industrial machinery and conveyor systems
- Safety switches in DIY drones or remote-controlled vehicles
- Motion-activated notifications in smart home security setups
How to Use Tilt Sensor Vibration Alarm Vibration Switch Module for
Connect the module’s VCC pin to 3.3–5 V on your Arduino, GND to ground, and DO to a digital input pin. Mount the sensor securely via its M3 hole, then read the digital pin in your code—LOW indicates stable position, HIGH indicates tilt or vibration.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Which tilt sensor does this module use?
This module employs an SW-460D or SW-520D ball-rolling tilt sensor, offering reliable, mercury-free operation.
What voltage range is supported?
The sensor operates between 3.3 V and 5 V DC, making it fully compatible with standard Arduino boards and most microcontrollers.
How do I interpret the output signal?
The digital output stays LOW when the module is level and switches HIGH upon tilt or vibration, allowing simple threshold-based detection in your code.
