DC 3-5V X9C103S Digital Potentiometer Board Module for Arduino

This is the 5V variant of the DC 3-5V X9C103S Digital Potentiometer Board Module for Arduino in Potentiometer Module. Available at ₹193.52 (₹164.00 + GST) with free shipping across India.

Looking for X9c103s Module? DC 3-5V X9C103S Digital Potentiometer Board Module for Arduino is available at Zbotic with fast shipping across India.

DC 3-5V X9C103S Digital Potentiometer Board Module for Arduino

This text describes the DC 3-5V X9C103S Digital Potentiometer Board Module for Arduino. A digital potentiometer (XDCP) is a device that can adjust the resistance between two points electronically. The X9C103S has four main components: a resistor array, wiper switches, a control section, and non-volatile memory. The resistor array has 99 resistors connected in series, with tap points between each resistor and at both ends. The wiper switches can connect any tap point to the wiper terminal, which is the output of the device. The control section uses a three-wire interface (CS, U/D, and INC) to move the wiper position up or down along the resistor array. The non-volatile memory can store the wiper position when the device is powered off and recall it when the device is powered on again.

The DC 3-5V X9C103S Digital Potentiometer has three sections: the input control, counter and decode section; the non-volatile memory; and the resistor array. The input control section works like an up/down counter that counts the pulses from the INC input and determines the direction of the count from the U/D input. The counter output is decoded to select one of the 100 electronic switches that connect a tap point to the wiper terminal. The counter value can be saved in the non-volatile memory under certain conditions and used for future reference.

The resistor array consists of 99 resistors of equal value connected in series. The electronic switches can connect any tap point to the wiper terminal, which changes the resistance between the wiper and the fixed terminals. The wiper does not move beyond the first or last position of the resistor array, so there is no wrap-around effect. The electronic switches operate in a “make-before-break” mode, which means that more than one tap point can be connected to the wiper terminal for a short time when the wiper changes position. This can temporarily reduce the total resistance of the device if the wiper moves several positions at once.

Features

1. 10K span potentiometer.
2. Potentiometer centers tap between the 0-10k slide in total 100 (potentiometer wiper typical impedance 40 ohms)

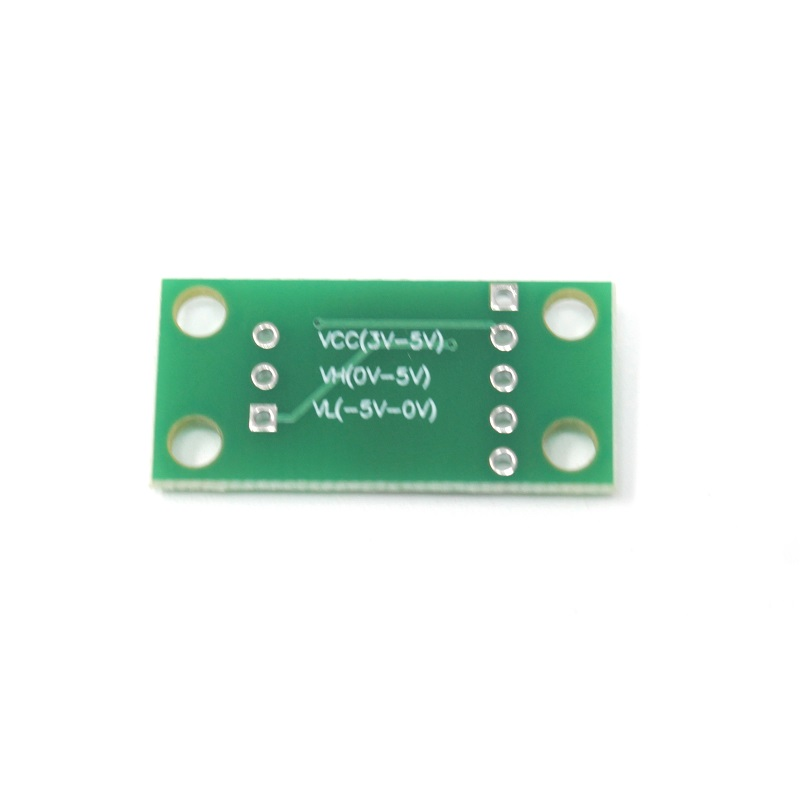

3. VL and VH digital potentiometer sliding rheostat port corresponding to the low-end and high-end, allowing the input voltage range -5V to + 5V.

Package Includes

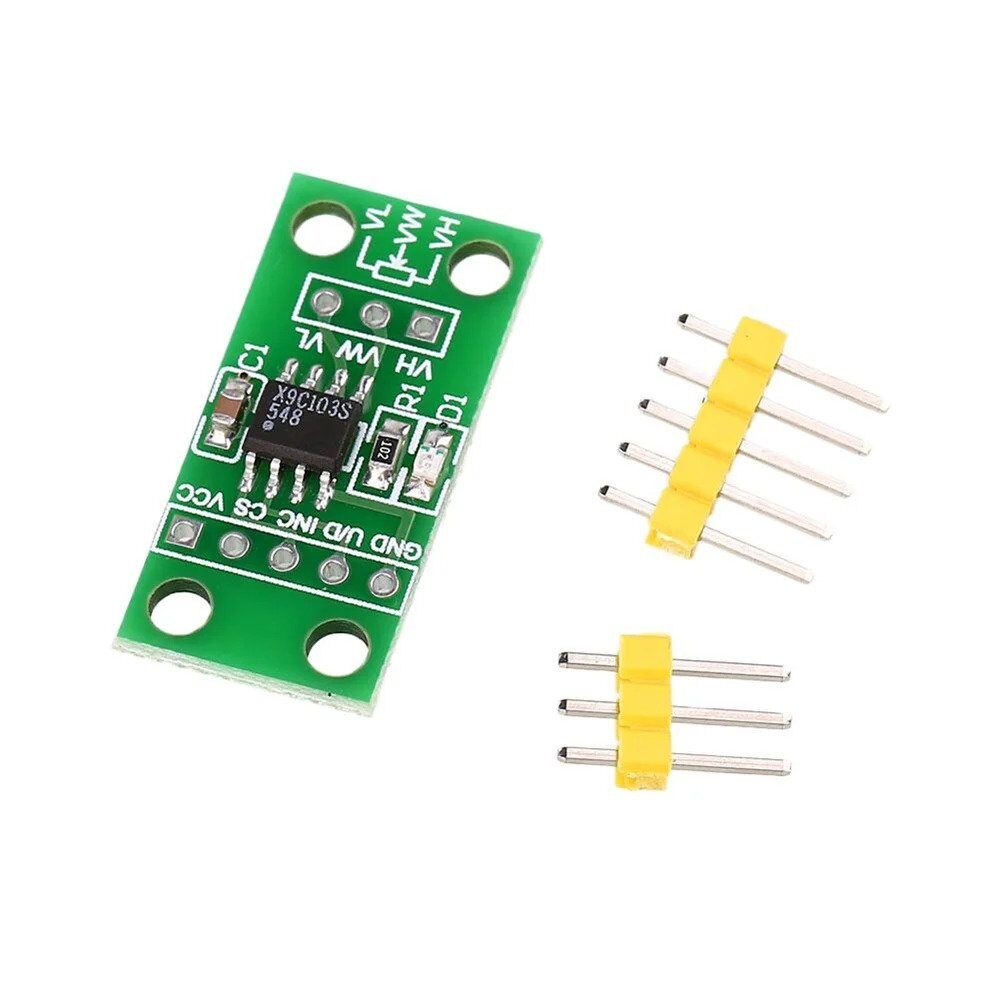

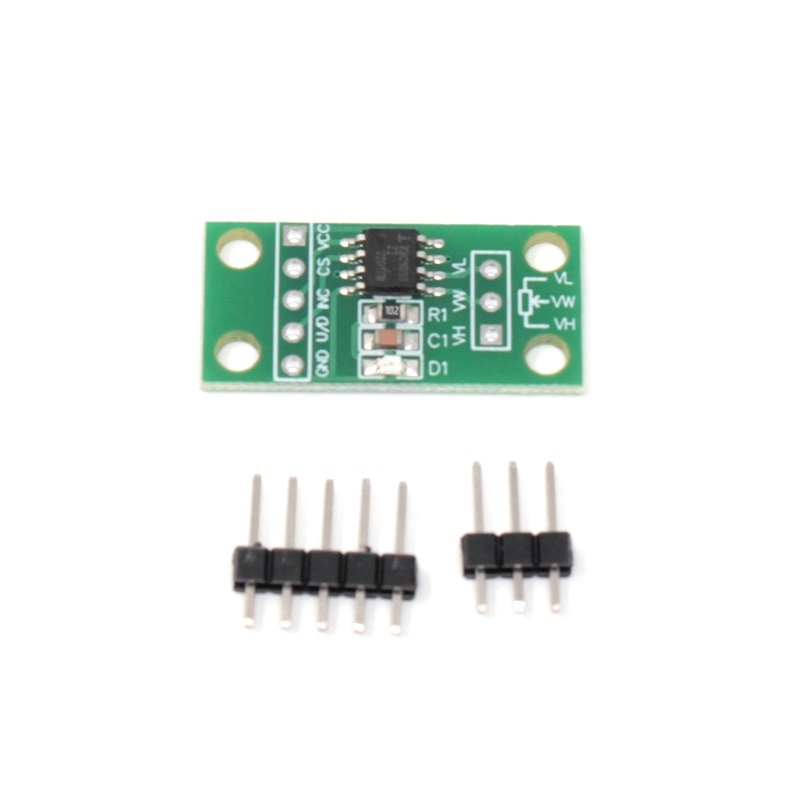

• 1 x Dc3v-5v X9c103s Digital Potentiometer Module for Arduino
• 1 x Set of Berg Strip Male Connectors

DC 3-5V X9C103S Digital Potentiometer Board Module for Overview

The DC 3-5V X9C103S Digital Potentiometer Board Module for Arduino is a compact electronic variable resistor based on the X9C103S chip. It lets you adjust resistance values digitally via a three-wire interface, eliminating the need for mechanical potentiometer knobs.

Key Features of DC 3-5V X9C103S Digital Potentiometer Board Module for

• Supply voltage 3–5 V DC compatible with Arduino and other 5V/3.3V logic
• X9C103S chip offers a 10 kΩ resistive array with 100 discrete tap points
• Three-wire interface (CS, U/D, INC) for microcontroller-driven resistance adjustment
• Compact dimensions (28 × 14 × 4 mm) fit breadboards and small enclosures
• Non-volatile memory stores last wiper position after power-off
• Genuine module stocked at Zbotic with fast shipping across India

Applications and Use Cases

• Electronic volume control in low-power audio amplifiers
• Adjustable voltage divider for sensor calibration in data acquisition
• LED brightness modulation in lighting and display circuits
• Fine-tuning gain or offset in analog signal processing
• Servo or motor trim adjustment in robotics applications
• Prototyping variable resistance loads for testing power supplies

How to Use DC 3-5V X9C103S Digital Potentiometer Board Module for

Connect VCC and GND to your 3.3 V or 5 V power rails, then wire CS, U/D and INC to three digital outputs on your Arduino. Pull CS low to enable the chip, set U/D high or low to select increment or decrement, and pulse INC to step the wiper. Route the module’s A, B and W terminals into your circuit to replace a conventional potentiometer with precise digital control.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

Q: How many resistance steps does this digital potentiometer provide?

The X9C103S offers 100 discrete tap points across a 10 kΩ span, allowing precise 100-step resistance adjustment in 100 Ω increments.

Q: Can the wiper position be retained after power loss?

Yes, the X9C103S includes non-volatile memory that automatically saves the last wiper setting and restores it on power-up.

Q: Is this module compatible with 3.3 V logic levels?

Absolutely. The module accepts supply voltages from 3 V to 5 V and can be driven directly by both 3.3 V and 5 V microcontroller I/O pins.
