Looking for Tl50m06 Brushless Motor? Tarot Martin Brushless Motor/Multi Rotor High Efficiency Long Endurance Motor 6S/5006/290KV TL50M06 is available at Zbotic with fast shipping across India.

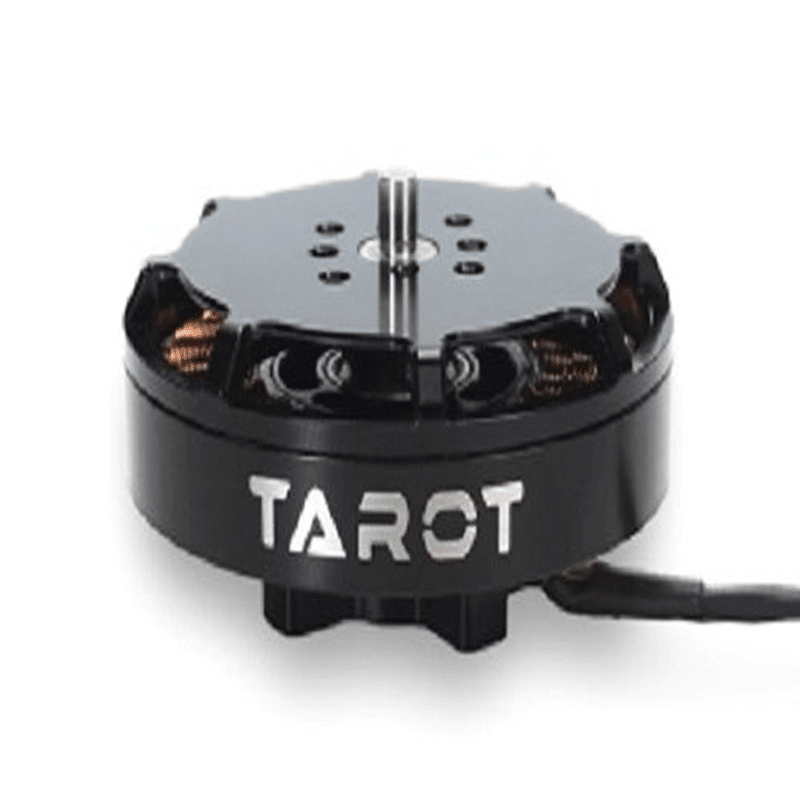

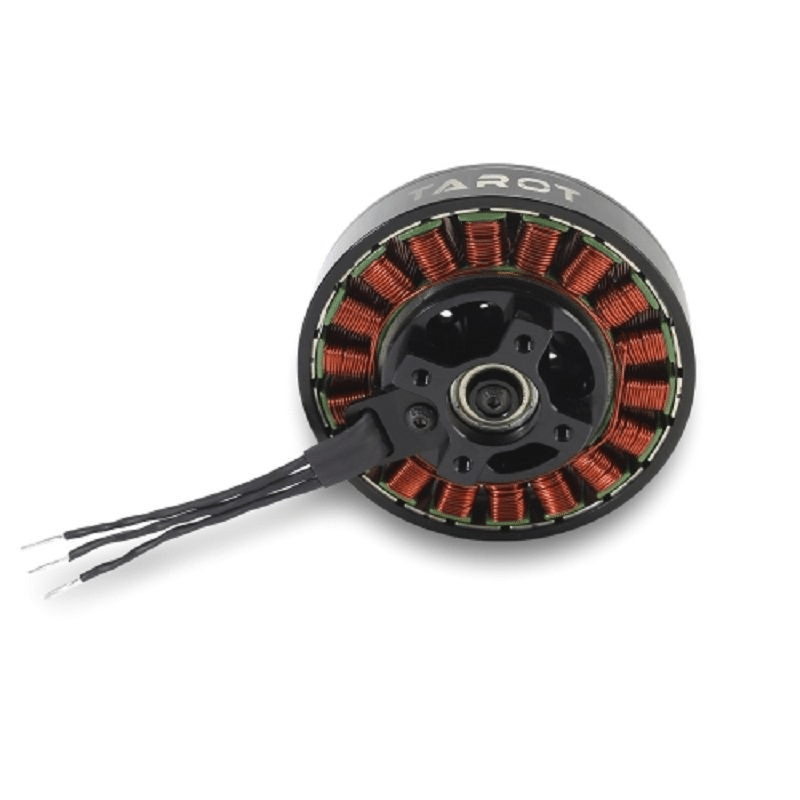

The Tarot Martin Brushless Motor 6S/5006/290KV (TL50M06) is a high-performance motor engineered for demanding multirotor applications. Designed for 6S battery compatibility, it provides a powerful yet efficient output, ideal for drones requiring a balance of agility, endurance, and stability.
With a 5006 stator size and 290KV rating, this motor delivers an excellent power-to-weight ratio, making it suitable for professional-grade aerial platforms that demand smooth, responsive flight dynamics and consistent performance. Built with precision CNC machining and premium components, it embodies Tarot’s reliability and engineering excellence.
Tl50m06 Brushless Motor – Features:
- Long Endurance Design: Optimized for extended flight duration in multirotor applications.
- CNC Machined: Precision-crafted with a smooth, non-marking surface for durability.
- Excellent Balance: Minimizes vibration for enhanced flight stability.
- NdFeB Rotor: Uses high-grade magnetic material for superior power delivery.
- Reinforced Stator: Features high-temperature resistant epoxy resin for longevity.
- High Flux Outrunner: Ensures consistent and strong power output.
- Balanced Calibration: Reduces vibration caused by imbalance.
- High-Speed Steel Shaft: Provides robust and reliable performance.
- Precision Bearings: Offer low friction, minimal energy loss, and strong radial support.
- Rigorous Testing: Undergoes strict performance and reliability evaluations.
- Tarot Reliability: Guarantees long life, high efficiency, low power consumption, low noise, and stable control.
Specifications:
| Motor KV (RPM/V) | 290 |
|---|---|
| Motor Type | Brushless Motor |
| Compatible LiPO Batteries | 6S |
| Shaft Diameter (mm) | 4 |
| Motor Shaft Length (mm) | 23.9 |
Package Includes:
- 1 x Martin 5006/290KV Motor
- 1 x Props Clamp
- 4 x Cup Head Screws (M3×8mm)
- 2 x Half-Round Head Screws (M3×8mm)
Tarot Martin Brushless Motor/Multi Rotor High Efficiency Overview
The Tarot Martin TL50M06 is a precision-engineered brushless motor optimized for 6S multirotor drones, delivering exceptional efficiency and extended flight endurance. Its 5006 stator size and 290KV rating ensure smooth, stable performance for professional aerial platforms.
Key Features of Tarot Martin Brushless Motor/Multi Rotor High Efficiency
- 290KV rating ideal for 6S LiPo setups, balancing thrust and efficiency
- 5006 stator size provides a high power-to-weight ratio for heavy-lift applications
- CNC-machined housing and rotor for tight tolerances and long-term durability
- NdFeB (Neodymium Iron Boron) magnet rotor delivers strong magnetic output
- Heat-resistant stator windings maintain reliability under sustained high loads
- Balanced flight dynamics reduce vibration and improve flight stability
- Fast shipping from Zbotic ensures you receive genuine stock promptly
Applications and Use Cases
- Professional aerial photography and videography platforms requiring smooth control
- Industrial inspection drones for infrastructure, powerlines, and pipelines
- Surveying and mapping UAVs that demand long endurance and stable hover
- Heavy-lift multirotors transporting sensors or small payloads
- Search and rescue drones operating in challenging environments
- Agricultural drones for crop monitoring and light spraying tasks
How to Use Tarot Martin Brushless Motor/Multi Rotor High Efficiency
Mount the TL50M06 securely to your drone frame using M5 screws, solder its three-phase wires to a compatible 6S-capable ESC, and calibrate the ESC following manufacturer guidelines. Install a recommended 14–17″ propeller, verify correct spin direction, and perform a low-throttle test before full-power flights to ensure optimal performance and cooling.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What battery voltage and KV rating does the TL50M06 support?
The TL50M06 is optimized for 6S LiPo battery packs and features a 290KV winding, offering a balanced blend of thrust and efficiency for medium to large multirotor frames.
Which propeller sizes work best with this motor?
For peak performance and efficiency, use propellers in the 14–17″ range. Sizes like 15×5.5 or 16×5 are common choices for heavy-lift and endurance-focused drones.
How does the motor handle heat and vibration?
Featuring a heat-resistant stator and precision balancing during CNC manufacturing, the TL50M06 maintains stable temperatures and minimal vibration even under prolonged high-load operation.
Peristaltic Pump Motor: DIY Liquid Dosing System with Arduino
Table of Contents What Is a Peristaltic Pump and How Does It Work? Applications: Where Peristaltic Dosing Is...
Read More →
Stepper Motor Datasheet Reading: Understanding Phase, Current & Steps
Table of Contents Why Reading the Datasheet Matters Step 1: Identify the Motor Type Step 2: Step Angle...
Read More →
L293D Motor Driver IC: Pinout, Circuit & H-Bridge Explained
The L293D motor driver IC is one of the most taught, most used, and most misunderstood components in...
Read More →Technical Specifications
| Brand | Tarot |
|---|---|
| Model | TL50M06 |
| Cell Configuration | 6S |
| KV Rating | 290KV |
| SKU | AI7365 |
| Weight | 0.3 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Tarot Martin Brushless Motor/Multi Rotor High Efficiency Long Endurance Motor 6S/5006/290KV TL50M06 is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
