Looking for Gr2004 Motor? GEPRC-GR2004 2150KV Motor is available at Zbotic with fast shipping across India.
GEPRC-GR2004 2150KV Motor:

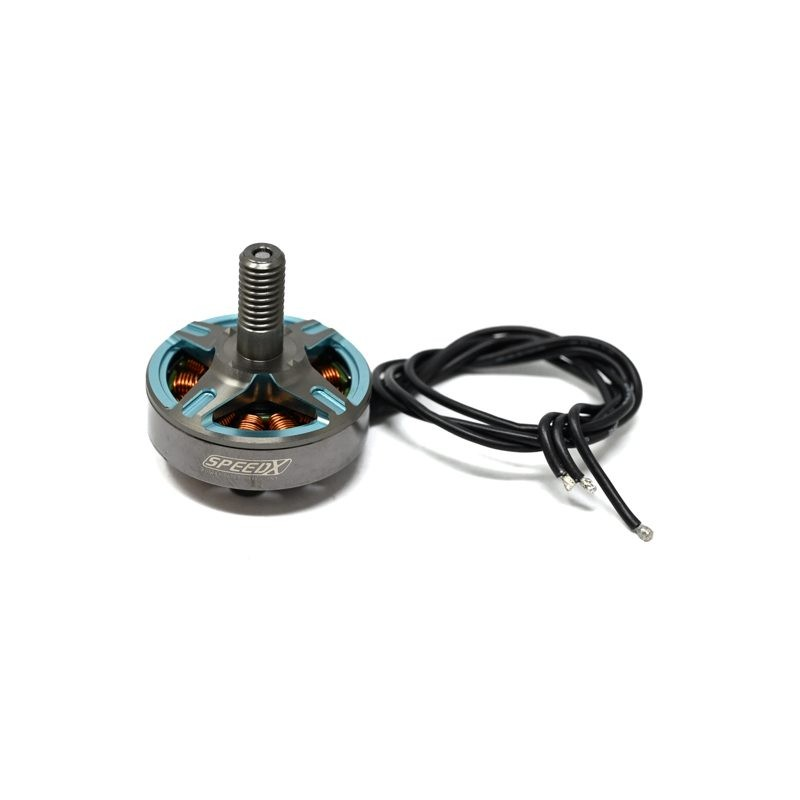

The GEPRC GR2004 2150KV motor is a lightweight, high-performance brushless motor engineered for Toothpick and Long Range FPV drones. It delivers smooth, stable thrust with excellent heat dissipation and robust materials. With a compact design and dynamic balance, it’s perfect for 5-inch propellers. Built with high-grade N52H magnets and a dual bearing structure, this motor ensures durability, responsiveness, and a fluid flying experience across 2S to 6S LiPo setups.
Features:
- Optimized for Toothpick and Long Range FPV applications.
- Precision dynamic balancing with dual-bearing design.
- Lightweight build for agile flight, only 16.8g.
- Strong N52H magnets for superior magnetic force.
- Supports 5-inch propellers.
Specification
| Motor KV (RPM/V): | 2150 |
|---|---|
| Model No.: | GR2004 |
| Compatible LiPO Batteries: | 2-6S |
| Shaft Diameter (mm): | 5 |
| Stator Height | 4mm |
| Stator Diameter | 20mm |
| Shipping Weight | 0.7 kg |

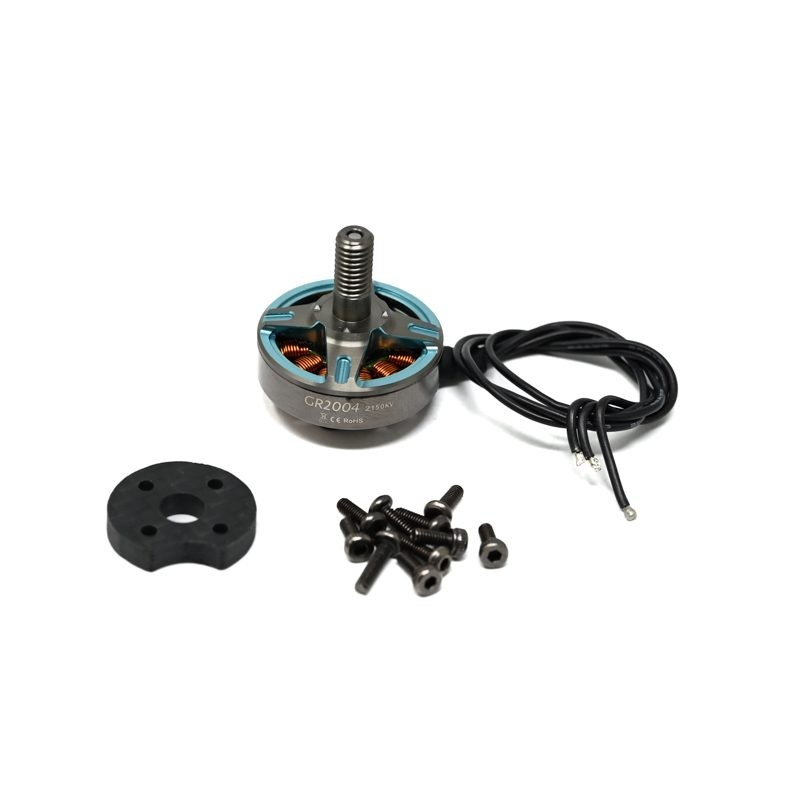

Package Includes:
- 1 x GR2004 Motor
- 4 x M2x4 Button head screws
- 4 x M2x5 Button head screws
- 4 x M2x6 Button head screws
GEPRC-GR2004 2150KV Motor Overview
The GEPRC-GR2004 2150KV Motor is a high-performance brushless motor designed specifically for Toothpick and Long Range FPV drones. Its compact, lightweight frame and optimized power output make it ideal for 5-inch prop setups, delivering smooth thrust and reliable heat dissipation for extended flights.
Key Features of GEPRC-GR2004 2150KV Motor
- 2150KV winding optimized for 2S–6S LiPo configurations
- High-grade N52H magnets for superior power density and responsiveness
- Dual-bearing structure with precision dynamic balancing for low vibration
- Ultra-lightweight design at just 16.8 g, perfect for agile builds
- Compact dimensions tailored for 5-inch propeller use
- Fast shipping from Zbotic across India
Applications and Use Cases
- Toothpick-style FPV drones seeking high efficiency and low weight
- Long-range FPV rigs requiring stable, sustained thrust
- 5-inch racing quads demanding rapid throttle response
- Micro freestyle builds focused on agility and heat management
- Aerial videography platforms benefiting from reduced vibration
How to Use GEPRC-GR2004 2150KV Motor
Mount the GR2004 2150KV motor onto a 20×20 mm motor plate using the included screws, then solder the stator leads to your ESC according to polarity. Attach a well-balanced 5-inch propeller, configure your ESC’s timing and motor direction, and perform a static thrust test before your first flight to ensure smooth operation.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What LiPo voltage range does the GR2004 support?
This motor is designed to run efficiently on 2S to 6S LiPo batteries, allowing you to choose a balance between runtime and power for your FPV setup.
Which propeller size is recommended for this motor?
The GEPRC-GR2004 2150KV is optimized for 5-inch propellers, delivering the best balance of thrust, efficiency, and heat dissipation in that size class.
How durable is the GR2004 motor under heavy use?
Built with robust materials, high-grade N52H magnets, and a dual-bearing design, this motor offers excellent durability and consistent performance, even during extended long-range flights.
