Looking for Tl2996 Board? Tarot 12S distribution board TL2996 is available at Zbotic with fast shipping across India.
Tl2996 Board – Description:

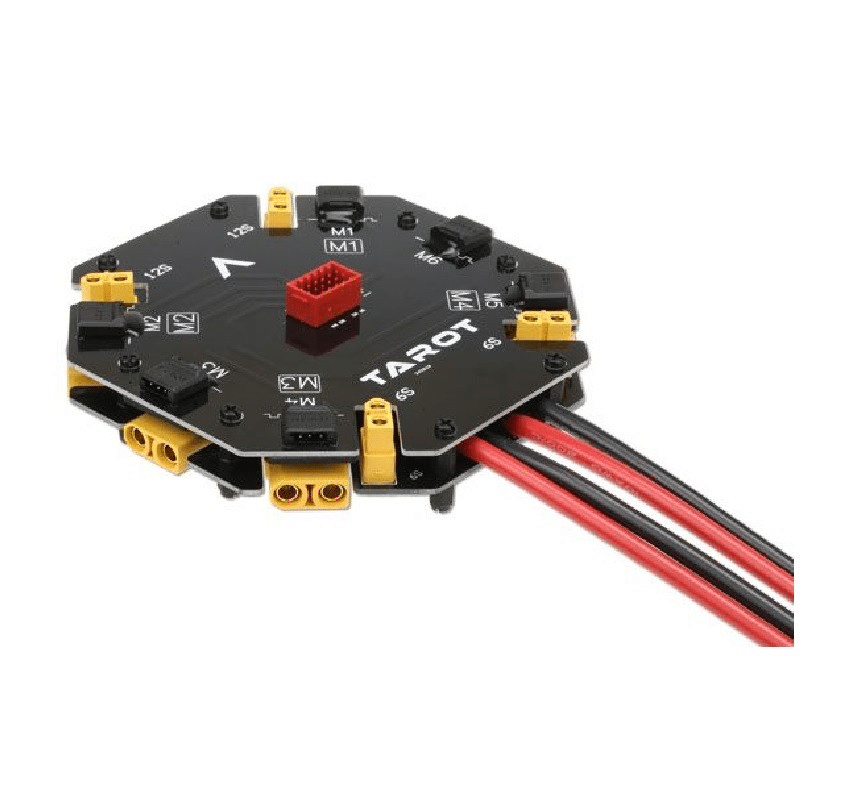

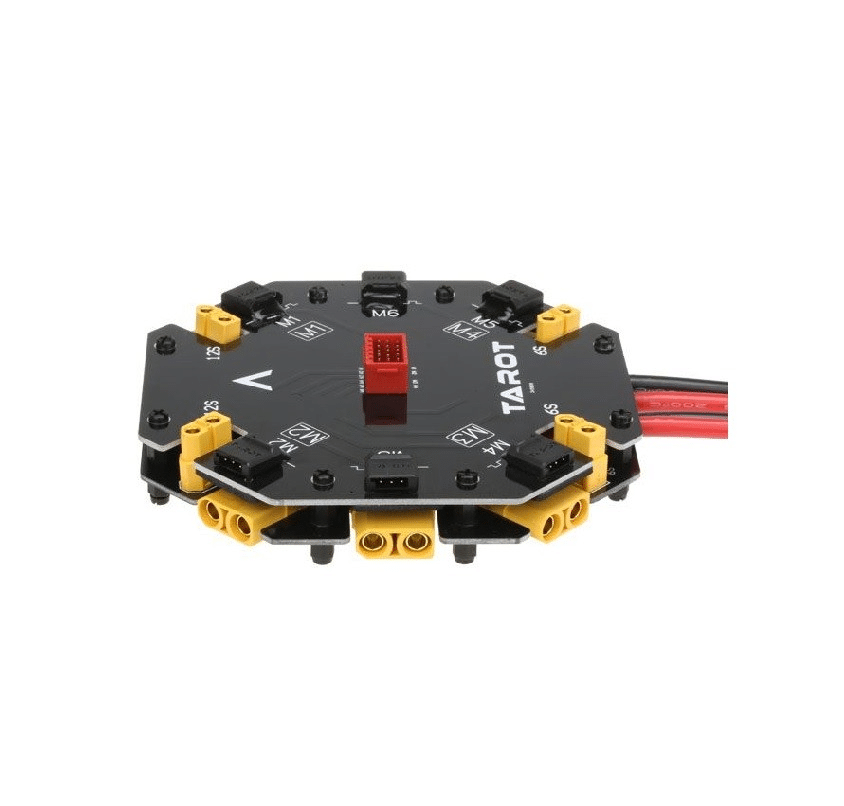

The Tarot 12S Distribution Board TL2996 is designed to efficiently manage power for high-performance UAV systems. It utilizes a new XT90 plug to support two 6S batteries in series, creating a 12S voltage input, and includes a 10AWG power cord for stable and high-current delivery. The board reserves two 6S and two 12S power supply interfaces, ensuring flexible connection options.
The brushless ESC signal socket and the customized ESC red signal hub feature an anti-mis-insertion design, which enhances safety and prevents incorrect wiring. These features ensure accurate signal transmission and reliable contact even under UAV vibration, demonstrating Tarot’s commitment to quality and precision engineering.
Perfect for remote control peripherals/devices (12S 480A) and high-current UAV applications, this board serves as an ideal upgrade accessory for professional drone systems.
Features:
- Power Input Line: 10AWG silicone wire, 185mm length.
- Battery Support: Supports two 6S batteries in series for 12S voltage input, or single 6S direct input.

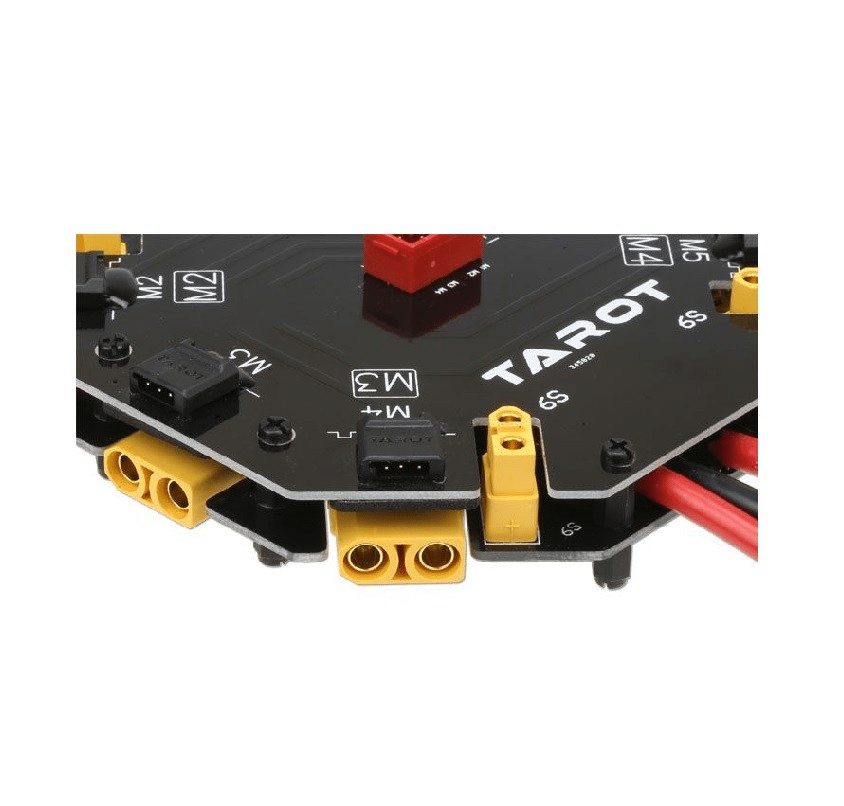

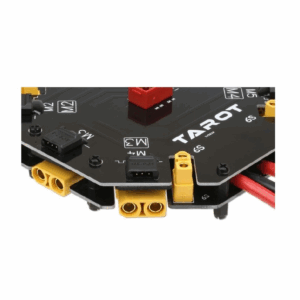

- Signal Socket: Brushless ESC signal socket with customized red ESC hub and anti-misplug design for secure connections.
- Output Interface:
- Two 6S (XT60) output interfaces (inactive if single 6S battery input is used).
- Two 12S (XT60) output interfaces.
- Power Connector: New XT90 plug for improved current handling and durability.
- Application: Remote Control Devices / 12S 480A systems.
Specification:
| Item Type | Power Distribution Board |
|---|---|
| Model Name | TL2996 |
| Dimensions (L x W x H) mm | 130 × 128.5 × 27.1 MM |
Package Includes:
-
1 x Tarot 12S Distribution Board TL2996
Tarot 12S distribution board TL2996 Overview
The Tarot 12S distribution board TL2996 is a power management module designed for high-performance multirotor UAVs. It accepts two 6S batteries in series via an XT90 plug to deliver up to 12S voltage input and routes power and ESC signals reliably under vibration. This board fits both four-axis and six-axis drone frames for flexible installation.
Key Features of Tarot 12S distribution board TL2996
- Supports 6S single-battery input or dual 6S in series for full 12S voltage
- New XT90 plug interface plus heavy-gauge 10AWG power cord for stable, high-current delivery
- Two 6S and two 12S power output ports for flexible battery and peripheral connections
- Brushless ESC signal sockets with anti-mis-insertion design to prevent incorrect wiring
- Customized red signal hub ensures secure contact and accurate signal transmission under UAV vibration
- Compact footprint (130 × 128.5 × 27.1 mm) fits both quadcopter and hexacopter layouts
- Fast shipping from Zbotic across India for immediate project deployment
Applications and Use Cases
- Power distribution for high-thrust racing drones running 12S setups
- Cinematography UAVs requiring stable, high-current supply for camera gimbals
- Agricultural and mapping platforms with dual-battery backup for extended flight times
- Prototyping and testing custom quadcopter or hexacopter designs
- Industrial inspection drones operating in vibration-intense environments
- Educational UAV kits demonstrating advanced power system architecture
How to Use Tarot 12S distribution board TL2996
Mount the TL2996 board onto your drone’s power pod or frame plates, then connect two 6S batteries in series via the XT90 plug. Route the 10AWG power cord to your electronic speed controllers and peripherals using the reserved 6S/12S output ports. Plug each ESC signal cable into the dedicated socket, aligning the anti-mis-insertion keys. Secure all connections, power on, and verify voltage distribution before flight.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I use a single 6S battery with the TL2996 board?
Yes. The TL2996 supports a single 6S battery via its XT90 plug, or you can connect two 6S batteries in series to achieve a 12S input voltage.
How do I prevent incorrect ESC wiring?
Each ESC signal socket and the red signal hub on the TL2996 feature keyed connectors. Align the anti-mis-insertion guide on the plug with the socket to ensure correct and secure signal connection.
Will the board fit on both quadcopter and hexacopter frames?
Absolutely. At 130 × 128.5 × 27.1 mm, the TL2996 includes mounting holes positioned for four-axis and six-axis installations, offering compatibility with most standard multirotor frames.
