VK V9-AG Flight Controller for Agriculture

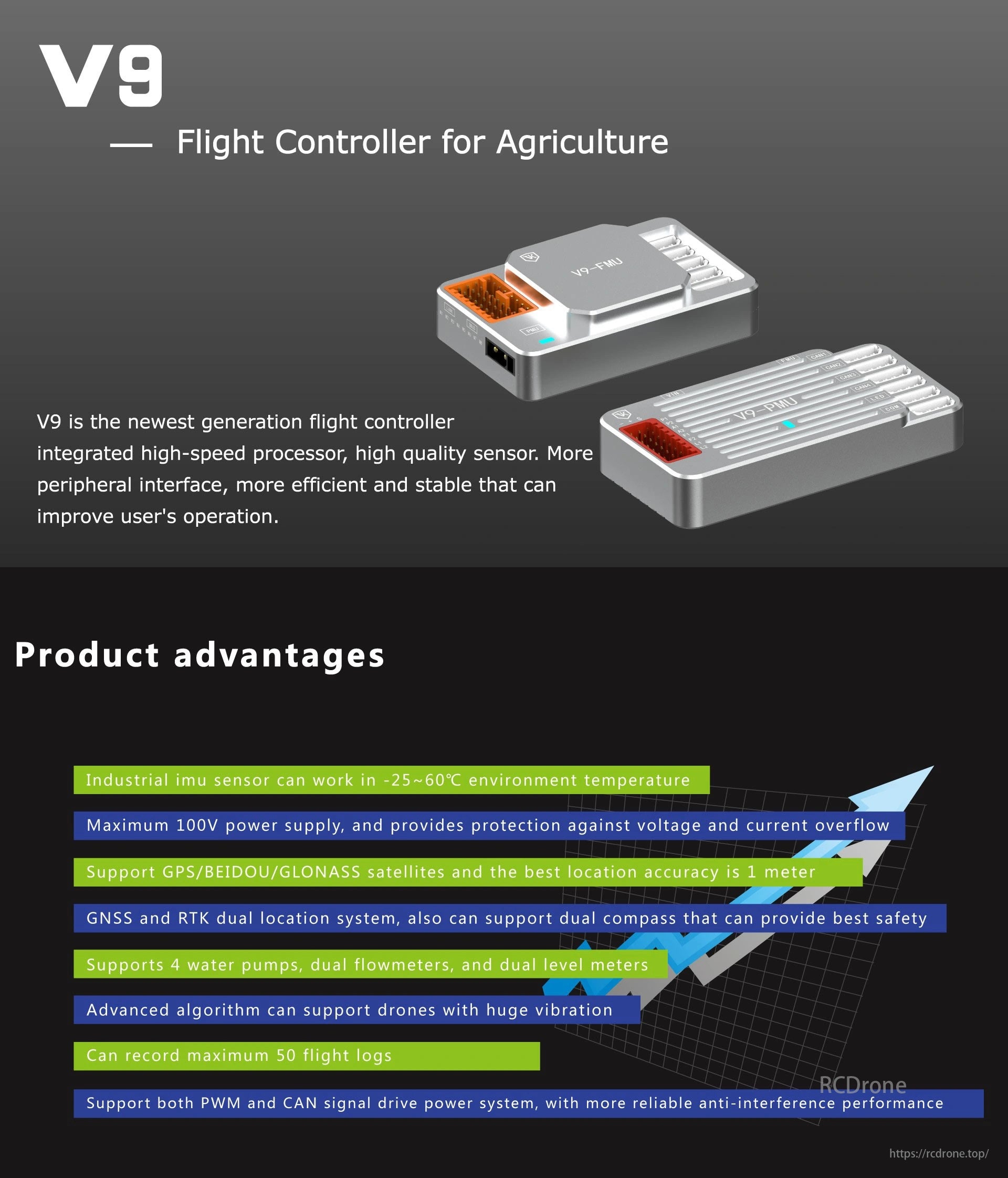

VK V9-AG Flight Controller is the newest generation flight controller integrated high-speed processor, high quality sensor. More peripheral interface, more efficient and stable that can improve user’s operation.
Description
Industrial IMU sensor can work in -25~60℃ environment temperature
Maximum 100V power supply, and provides protection against voltage and current overflow
Support GPS/BEIDOU/GLONASS satellites and the best location accuracy is 1 meter

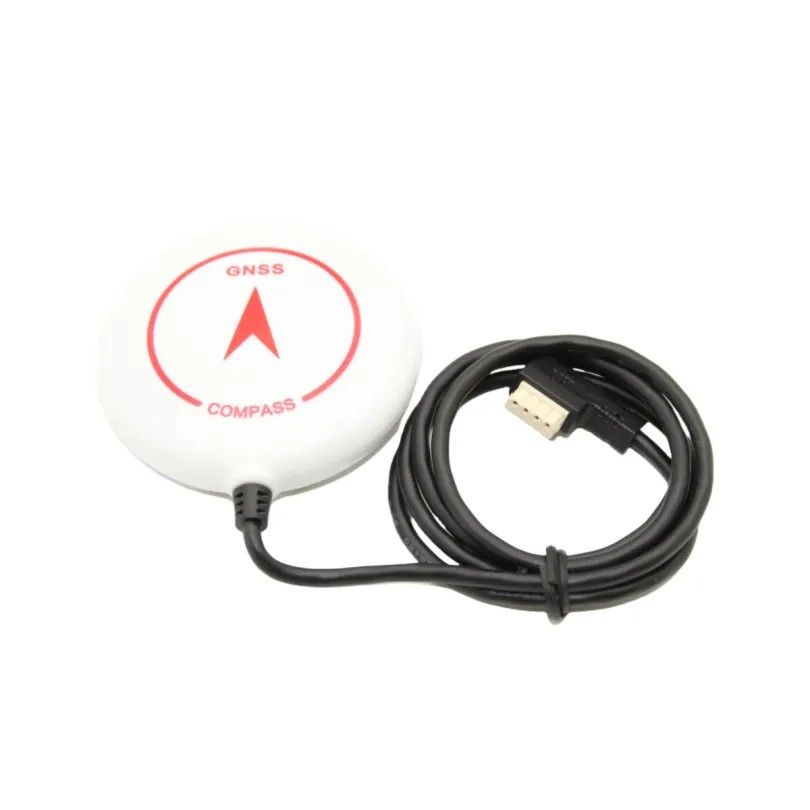

GNSS and RTK dual location system, also can support dual compass that can provide best safety
Supports 4 water pumps, dual flowmeters, and dual level meters
Advanced algorithm can support drones with huge vibration
Can record maximum 50 flight logs
Support both PWM and CAN signal drive power system, with more reliable anti-interference performance
Details
V9 is a flight controller for agriculture with an integrated high-speed processor and high-quality sensor. It offers more peripheral interfaces, improved efficiency, stability, and user operation. Key features include support for GPS/BEIDOU/GLONASS satellites, dual compass, 4 water pumps, and advanced algorithms for drones with significant vibration.

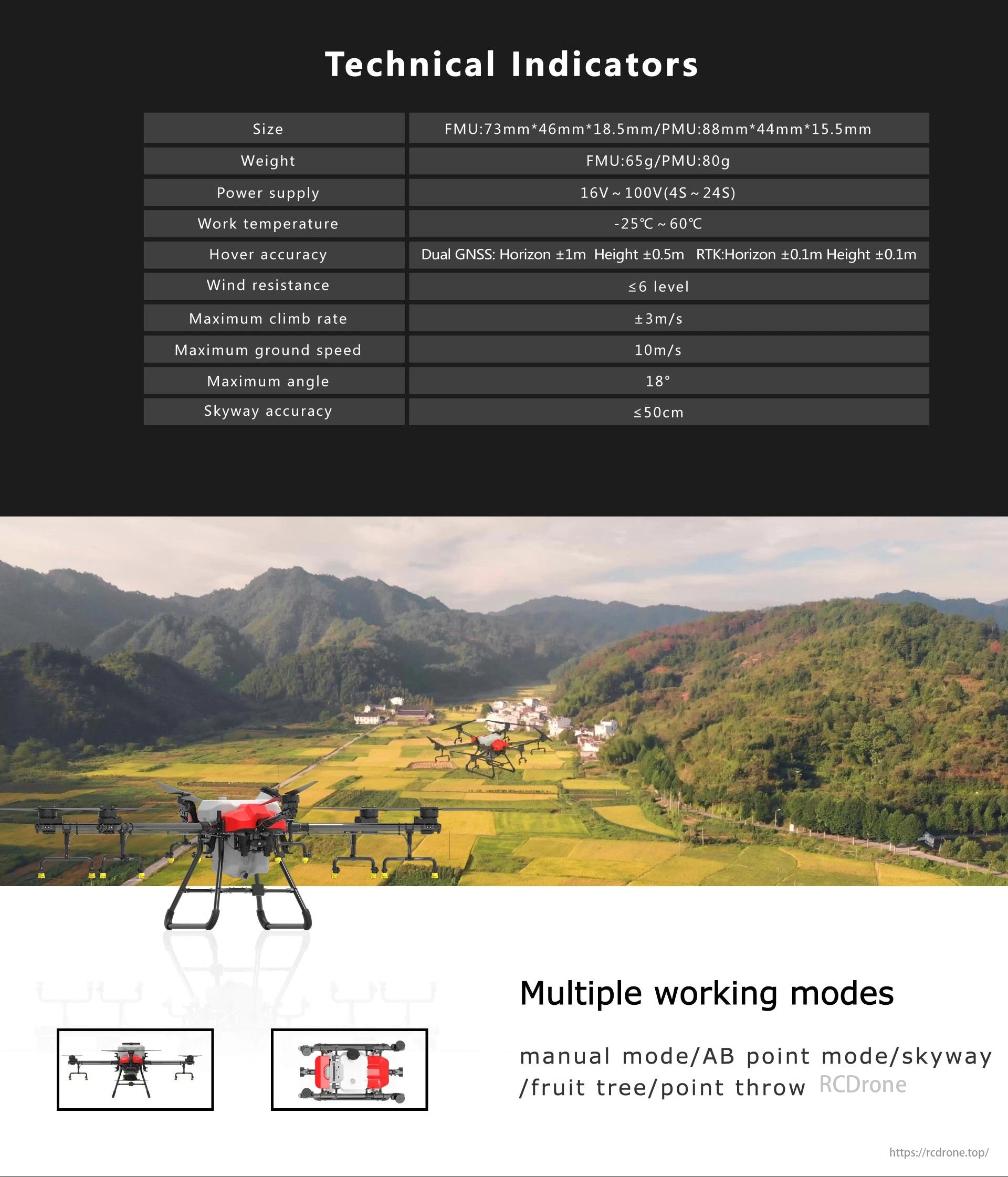

Technical indicators include size, weight, power supply, work temperature, hover accuracy, wind resistance, maximum climb rate, ground speed, angle, and skyway accuracy. Multiple working modes: manual, AB point, skyway, fruit tree, and point throw.

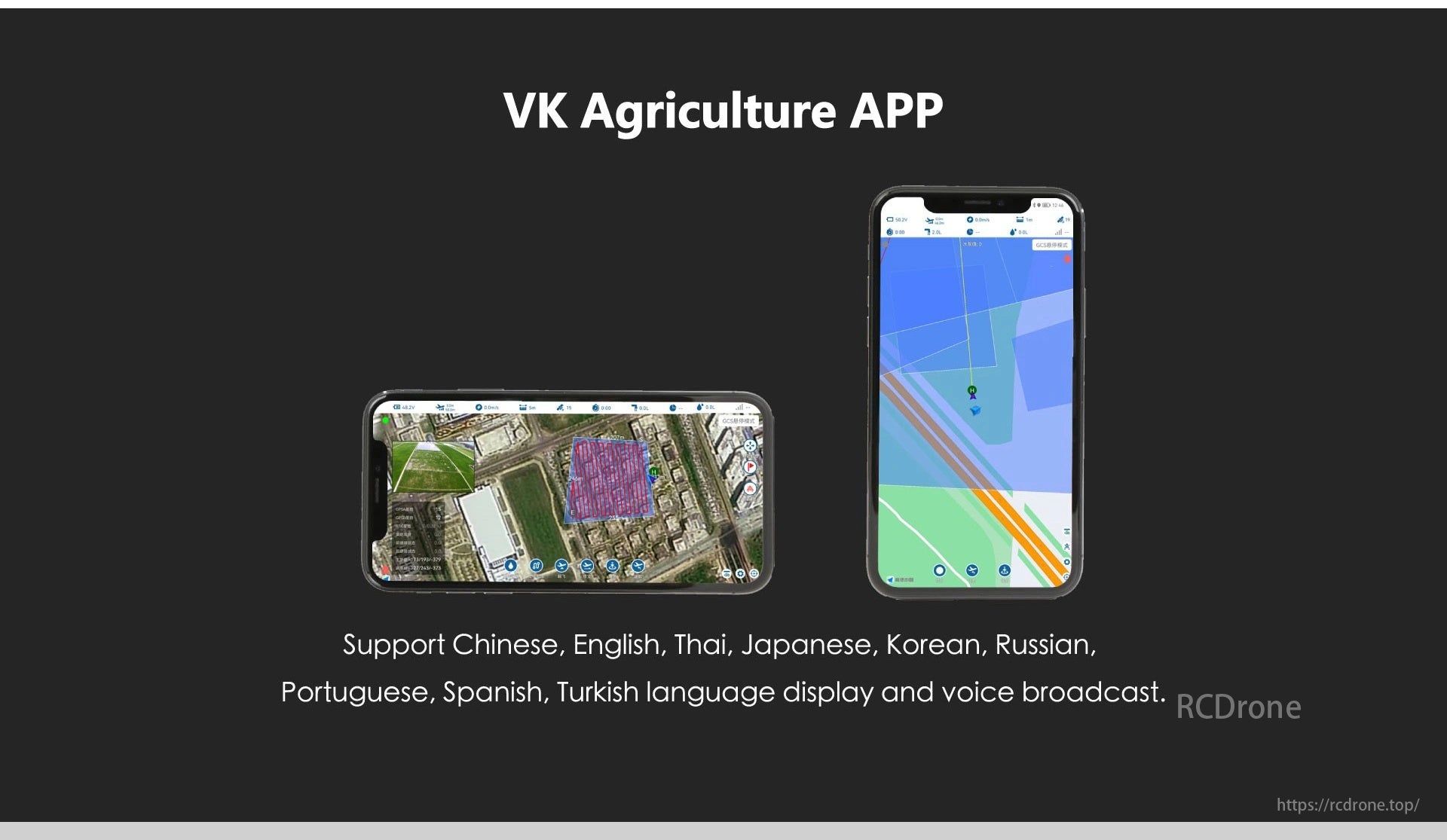

VK Agriculture APP supports Chinese, English, Thai, Japanese, Korean, Russian, Portuguese, Spanish, Turkish.

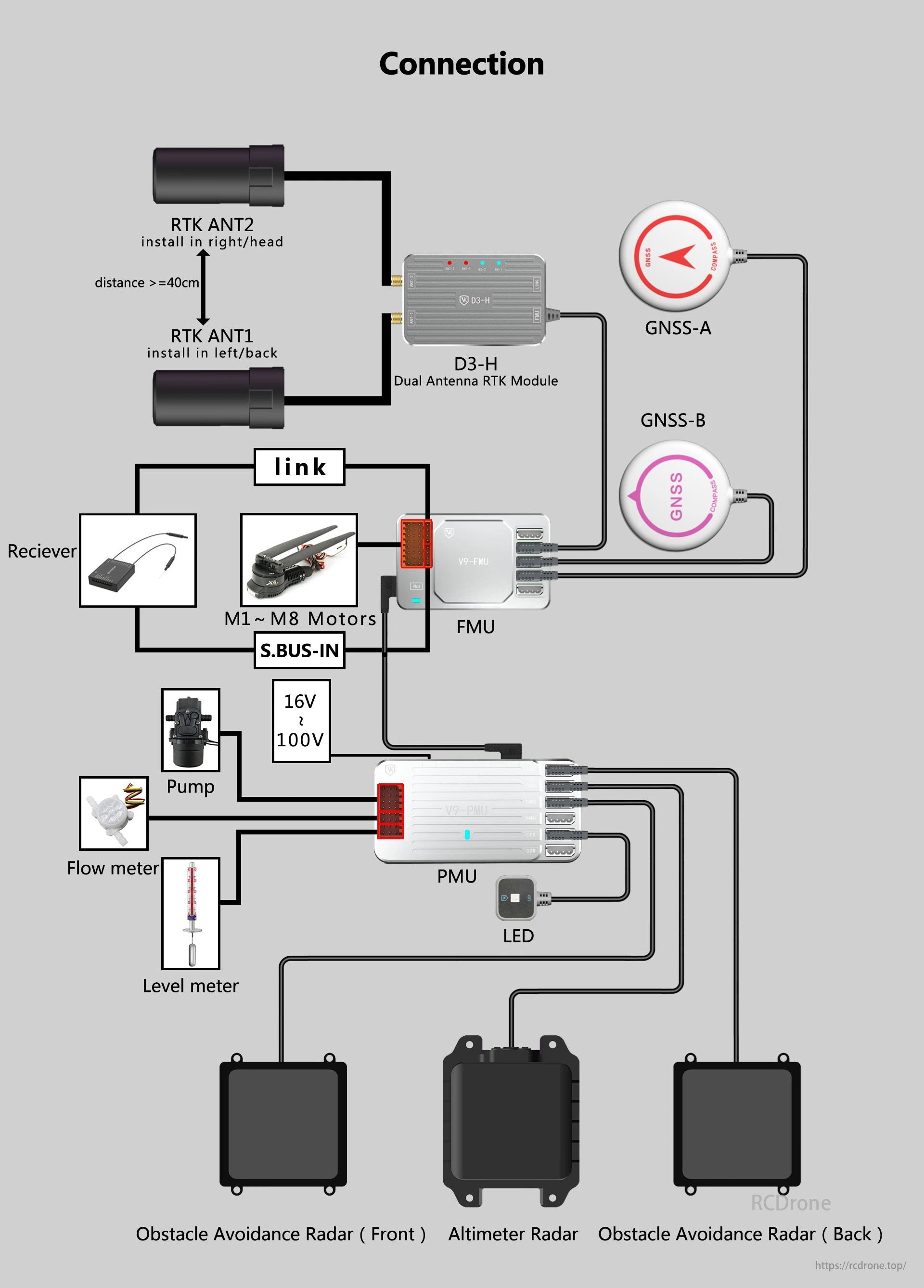

Connection diagram for a drone system including RTK antennas, GNSS modules, motors, FMU, PMU, pump, flow meter, level meter, and obstacle avoidance radars.

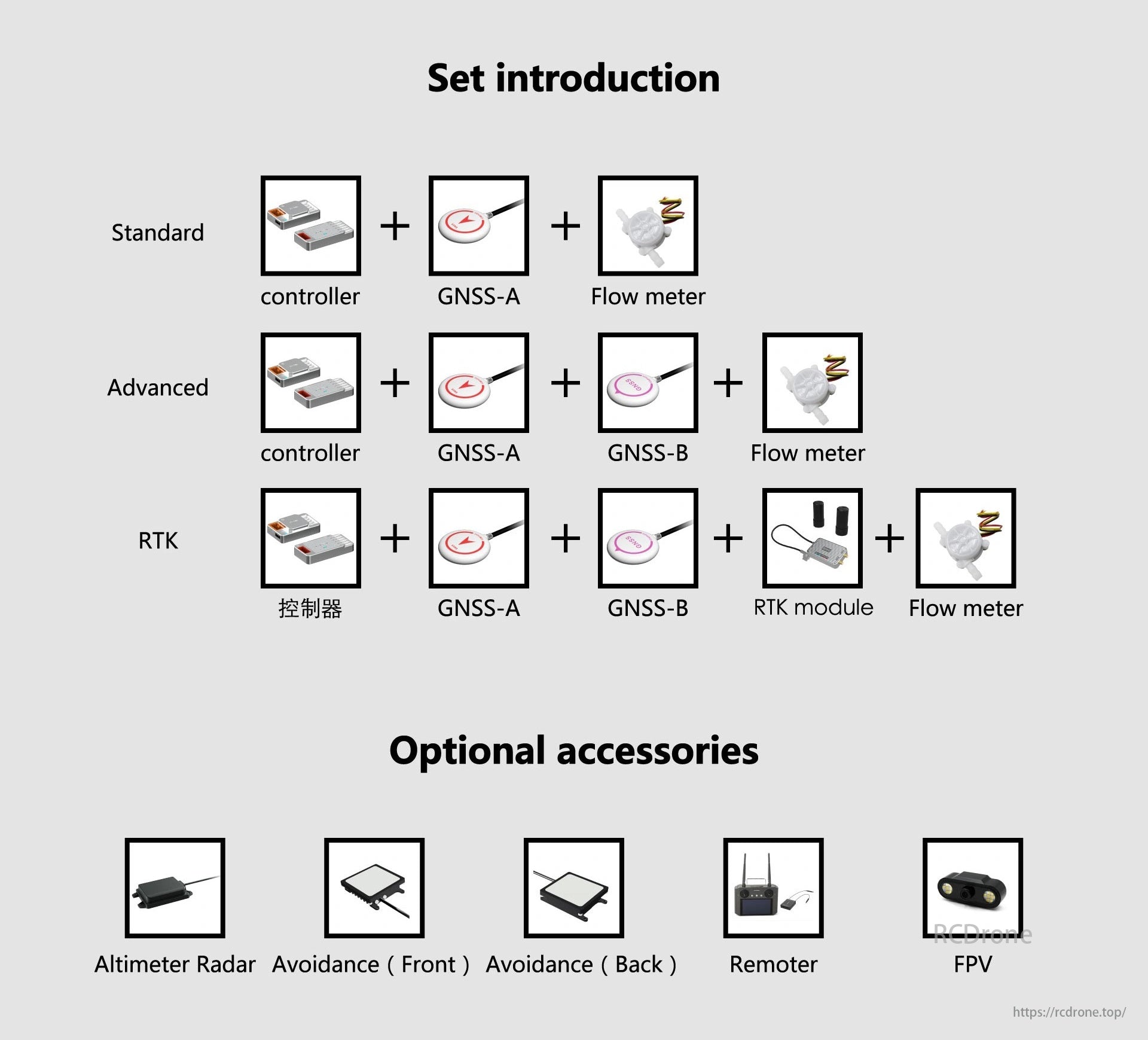

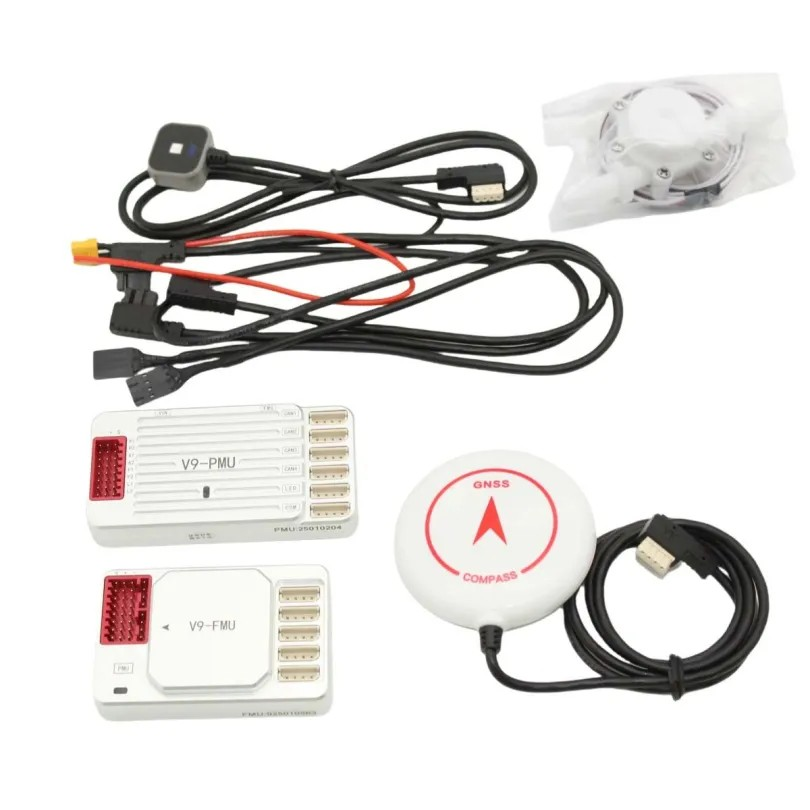

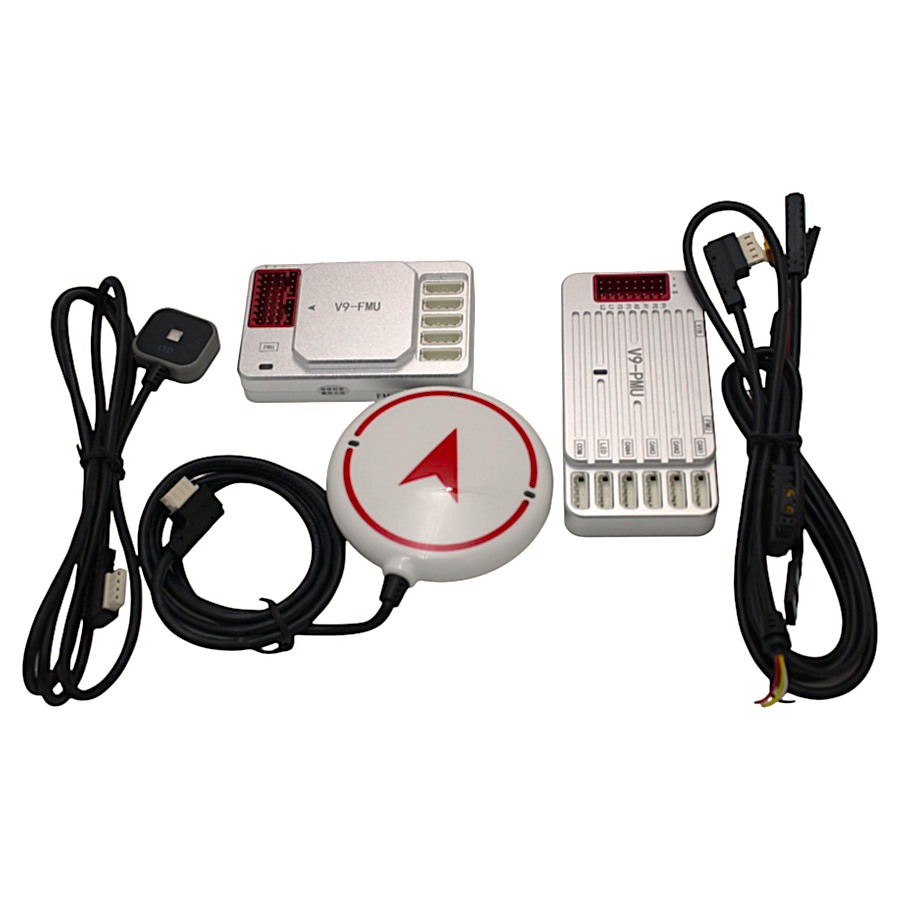

Set introduction: Standard, Advanced, RTK. Optional accessories: Altimeter Radar, Avoidance (Front), Avoidance (Back), Remoter, FPV.
Specifications – V9 Drone Flight Controller
🔧 Core Features
| Feature | Description |
|---|---|
| Industrial-Grade IMU Sensor | Excellent temperature drift suppression. Operates from -25ºC to 60ºC. |
| High-Voltage Compatibility | Supports up to 100V input. Equipped with protection against reverse polarity, ignition, over-voltage, and over-current. |
| Enhanced GNSS Positioning | Supports GPS, GLONASS, BEIDOU. Positioning accuracy up to 1 meter. |
| Dual Navigation System | Dual GNSS and dual magnetic compass. Supports RTK real-time differential positioning. |
| Pump & Sensor Support | Controls up to 4 pumps, 2 flow meters, and 2 level meters. |
| Advanced Vibration Management | New shock absorption system and filtering algorithm for improved adaptability and durability. |
| Comprehensive Data Recording | Records up to 50 flight logs for diagnostics and performance optimization. |
| Dual Signal Drive Support | Supports both PWM and CAN signal systems for enhanced anti-interference and data integrity. |
📏 Technical Specifications

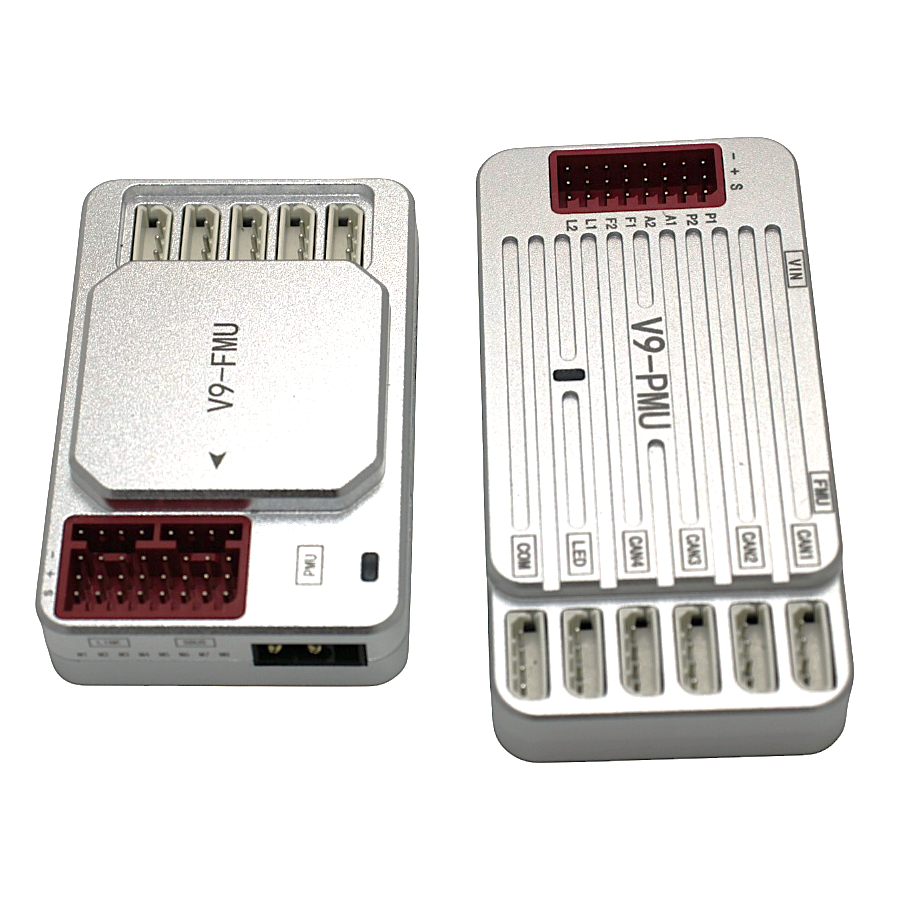

| Component | Dimensions | Weight |
|---|---|---|

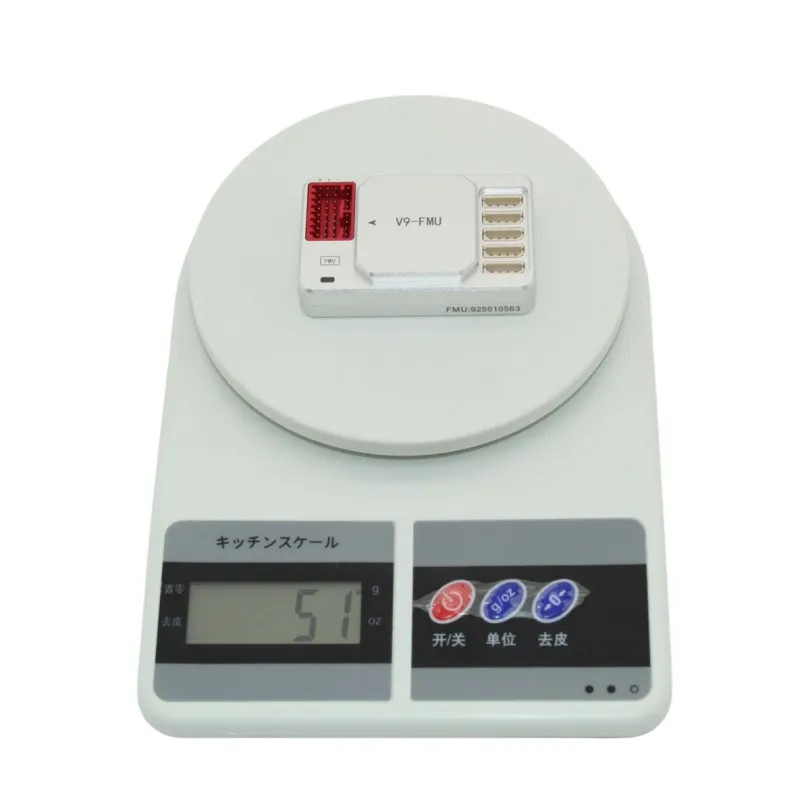

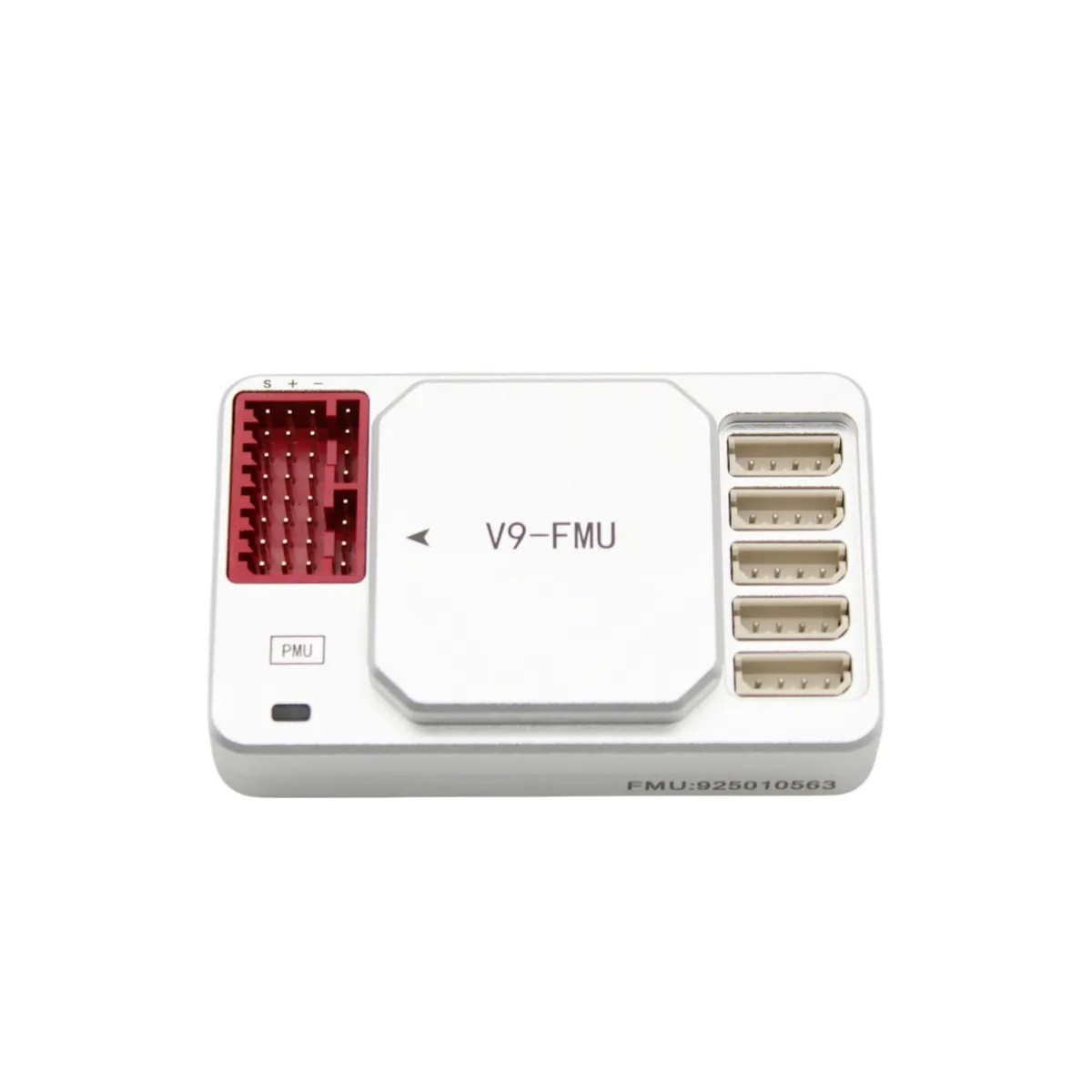

| FMU | 73mm × 46mm × 18.5mm | 65g |

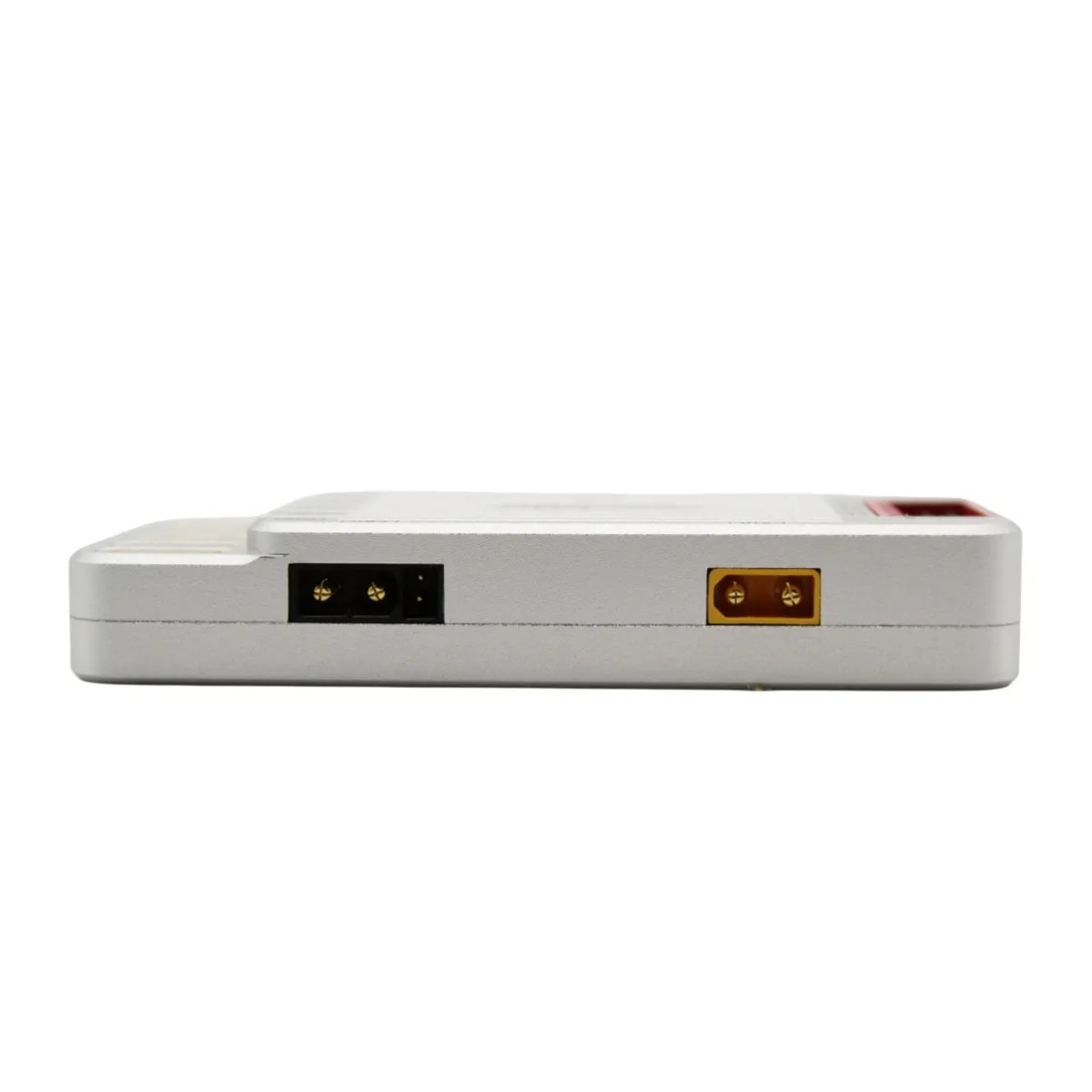

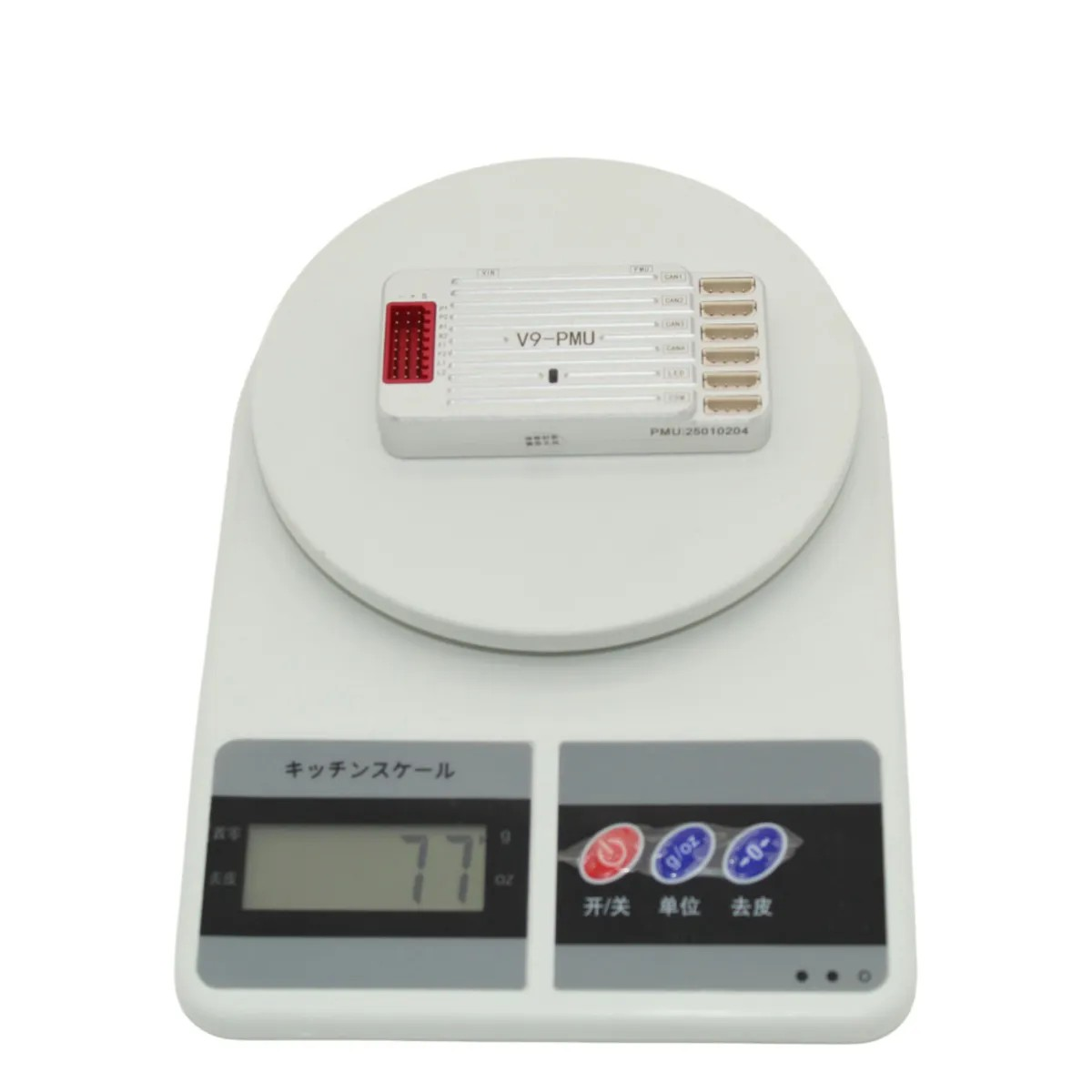

| PMU | 88mm × 44mm × 15.5mm | 80g |
⚡ Power & Environment
| Parameter | Specification |
|---|---|
| Power Supply Range | 16V – 100V (4S – 24S LiPo) |
| Operating Temperature | -25ºC to 60ºC |
📡 Flight Performance
| Feature | Performance |
|---|---|
| Hovering Accuracy (Dual GNSS) | Horizontal: ±1m Vertical: ±0.5m |
| Hovering Accuracy (RTK) | Horizontal: ±0.1m Vertical: ±0.1m |
| Wind Resistance Rating | ≤6 levels |
| Max Lifting Speed | ±3m/s |
| Max Horizontal Speed | 10m/s |
| Max Attitude Angle | 18° |
| Course Pressure Line Accuracy | ≤50cm |
🚜 Spraying System Interface
-
4-way pump outputs
-
Dual flow meter monitoring
-
Dual level meter monitoring
🚁 Drone Compatibility
-
Sprayers
-
Foggers
-
Seeders
-
Throwers
-
Strip-tillers

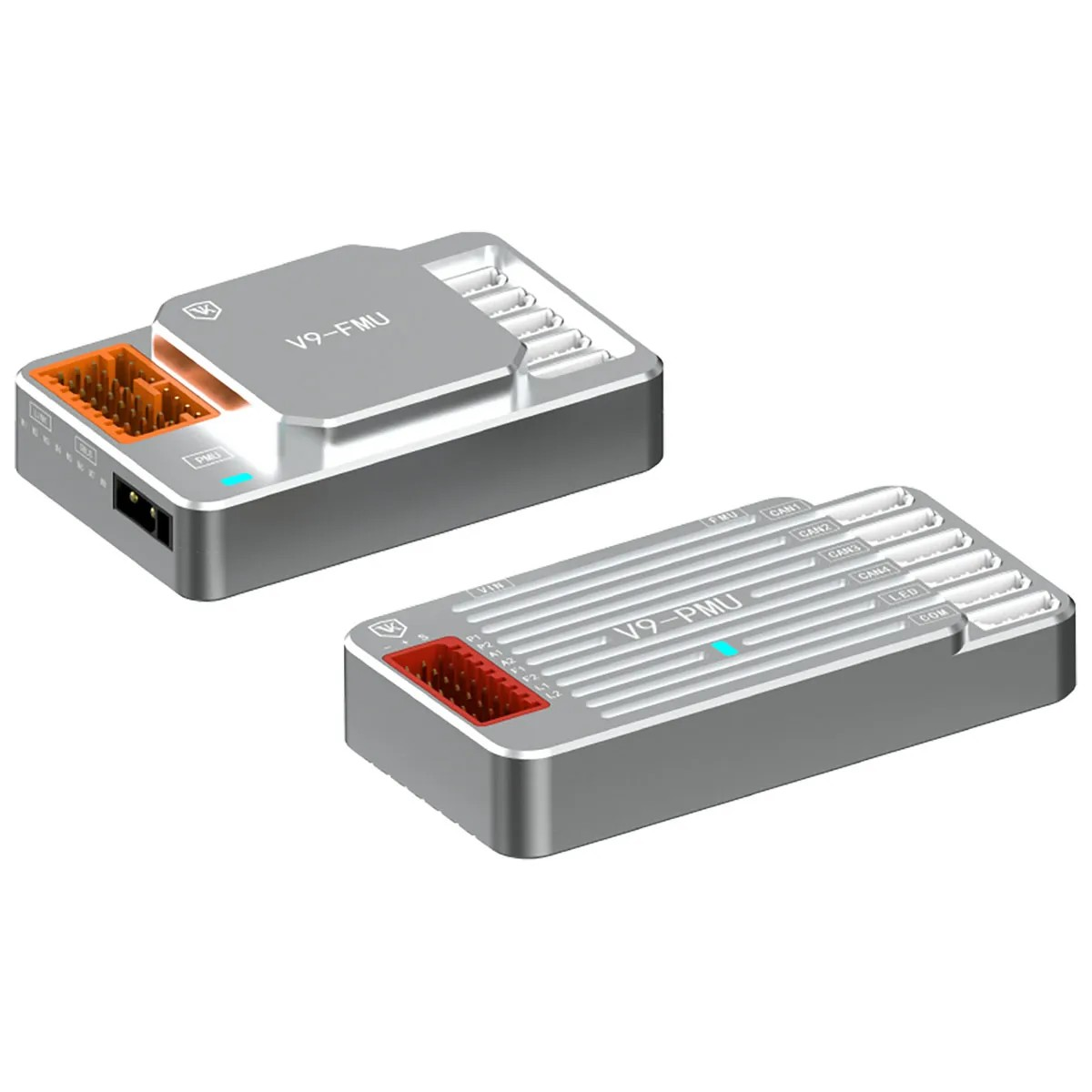

VK V9-AG Flight Controller Overview
The VK V9-AG Flight Controller is a next-generation UAV control system engineered for agricultural drones. It combines a high-speed processor, industrial-grade IMU sensor and advanced stability algorithms to deliver precise flight management and reliable performance in field operations.
Key Features of VK V9-AG Flight Controller
- High-Speed Processor: Ensures real-time control and fast data processing for smooth flight.
- Industrial IMU Sensor: Operates reliably from –25 °C to 60 °C for harsh agricultural environments.
- Multi-Constellation GNSS: GPS/BeiDou/GLONASS support with 1 m accuracy, plus RTK dual-location and dual compass for enhanced precision.
- Robust Power Handling: Accepts up to 100 V supply with built-in overvoltage and overcurrent protection.
- Agricultural Interfaces: Control up to 4 water pumps, dual flowmeters and dual level meters via PWM or CAN ports.
- Flight Log Storage: Records up to 50 mission logs for post-flight analysis and performance tuning.
- Fast Shipping from Zbotic: Genuine product dispatch within 24 hours with tracking information.
Applications and Use Cases
- Precision crop spraying with automated flow control and variable-rate application.
- Field mapping and terrain surveying for irrigation planning and soil analysis.
- Drone-based fertilization and pesticide distribution in orchards and large farms.
- Seed dispersal missions requiring stable altitude hold and precise waypoint navigation.
- Real-time monitoring of pump performance and liquid levels during aerial operations.
- Research UAVs in agro-technology trials, benefiting from high-accuracy GNSS and vibration resistance.
How to Use VK V9-AG Flight Controller
Mount the VK V9-AG Flight Controller securely on your drone frame and connect the power source (up to 100 V) ensuring proper polarity. Attach the GNSS antenna, dual compasses and IMU sensor modules. Wire the water pumps, flowmeters and level meters to the PWM or CAN ports. Use ground-station software to configure satellite systems (GPS/BeiDou/GLONASS), enable RTK mode, calibrate compasses and IMU, and upload flight missions. After setup, arm the system, run a pre-flight check, and begin your agricultural operation with real-time stability and data logging.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What voltage range does the VK V9-AG support?
The controller accepts a maximum supply of 100 V and includes built-in protection against voltage and current overflow to safeguard your drone’s electronics.
Which satellite navigation systems are compatible?
VK V9-AG supports GPS, BeiDou and GLONASS constellations, with RTK dual-location and dual compass functionality to achieve up to 1 m positioning accuracy.
How many pumps and sensors can I connect?
You can operate up to four water pumps simultaneously, plus two flowmeters and two level meters, all configurable via PWM or CAN interfaces for precise agricultural dosing.
