Looking for U12 Motor? T Motor U12 ll KV 60 is available at Zbotic with fast shipping across India.

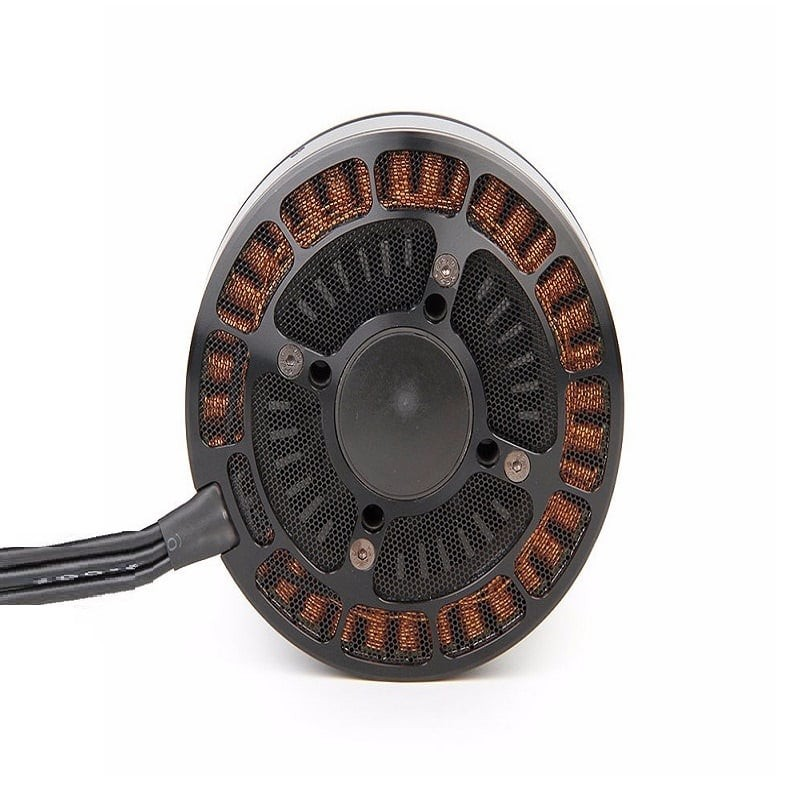

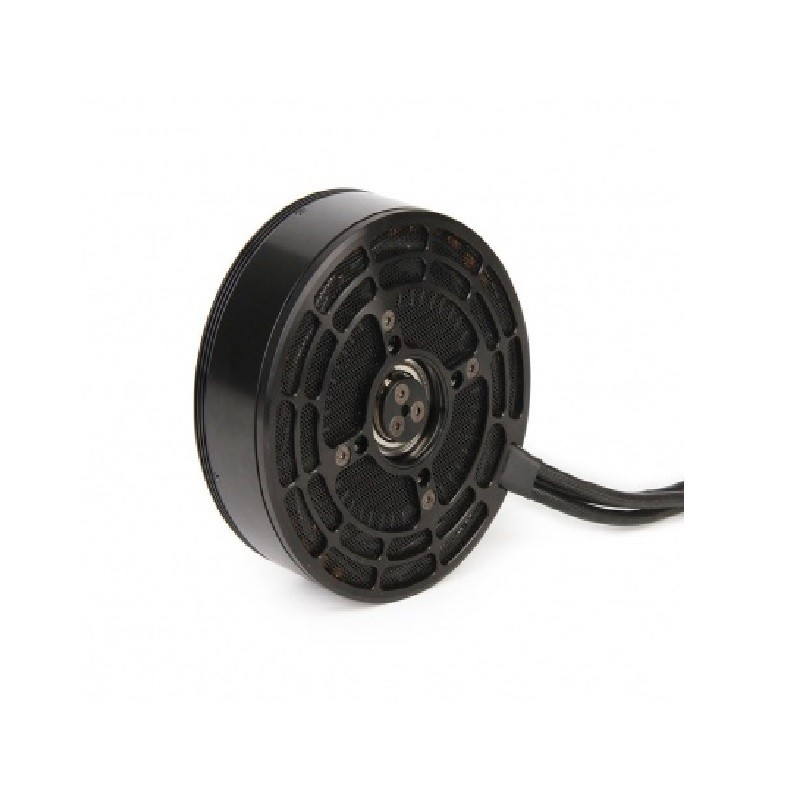

T Motor U12 ll KV 60
Crafted specifically for drones, the T Motors U12 II KV 60 motor boasts a KV rating of 60, ensuring heightened torque and stability. As a member of the esteemed U12 II series, it exemplifies T Motors’ dedication to impeccable construction and exacting engineering. Ideal for applications prioritizing both power and efficiency, this motor underscores T Motors’ unwavering commitment to excellence.
Features:
- 62% Payload increase
- Max. Thrust: 20kg
- Motor service life — 1500 flights(40mins/flight)
- N42 UH Arc Magnet
Specification:
| Motor Dimensions | Ф106.8*47.6 mm |
|---|---|
| Lead Enameled Wire | 90mm |
| Shaft Diameter (mm) | 15mm |
| Idle Current(18V) | 1.7A |
| Max. Power | 4000W |
| Weight (g): | 803 |
| Internal Resistance(mΩ) | 75 |
| Configuration | 36N42P |
| Rated Voltage(Lipo) | 22-255 |
| Peak Current(180s) | 41A |
Package Includes:
1 x T Motor U12 ll KV 60
T Motor U12 ll KV 60 Overview
The T Motor U12 II KV 60 is a high-torque brushless motor designed for heavy-lift multirotor drones. With a low 60 KV rating and reinforced construction, it delivers stable thrust for professional aerial tasks requiring substantial payload capacity.
Key Features of T Motor U12 ll KV 60
- 62% Payload Increase: Dramatically boosts lift capacity for cameras, sensors, or cargo
- Max Thrust 20 kg: Provides robust upward force for heavy-lift platforms
- 1500-Flight Service Life: Engineered for durability—up to 1500 flights of 40 minutes each
- 4000 W Maximum Power: Supports high-power endurance missions
- Precision Dimensions: Ф106.8 × 47.6 mm body with 15 mm shaft for large propellers
- Fast Shipping from Zbotic: Genuine stock dispatched across India within 24 hours
Applications and Use Cases
- Heavy-lift aerial cinematography carrying professional gimbals and cameras
- Cargo delivery drones transporting packages up to 20 kg
- Agricultural platforms for high-flow spray systems
- Industrial inspection UAVs with thermal or LiDAR payloads
- Survey and mapping drones handling large-format sensors
How to Use T Motor U12 ll KV 60
Mount the U12 II KV 60 onto a compatible drone arm using its mounting holes, attach a heavy-lift propeller sized to your frame, solder the motor leads to an ESC rated for at least 4000 W at 18 V, then calibrate throttle endpoints. Perform a static spin test to check balance and heating before conducting a controlled hover trial.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What propeller size is recommended for the U12 II KV 60?
The motor performs optimally with large-diameter props, typically in the 30–40 inch range, to leverage its high torque and deliver stable thrust up to 20 kg.
Which ESC should I pair with this motor?
Use a high-current ESC rated for at least 4000 W continuous output and compatible with an 18 V input to match the motor’s maximum power and ensure reliable operation.
How do I extend the service life of the U12 II KV 60?
Regularly inspect the N42 UH arc magnet assembly for debris, ensure proper cooling airflow, balance propellers before each flight, and avoid abrupt throttle changes to reach the rated 1500-flight lifespan.
Electromagnetic Brake for DC Motor: Holding Position Safely
Imagine you've built a motorised lift, a robotic arm, or an electric gate. The motor moves your load...
Read More →
MOSFET vs Relay for Motor Switching: Which Is Better?
Every motor project eventually faces the same question: should I switch the motor with a MOSFET or a...
Read More →
Long-Range FPV: ExpressLRS Setup Guide India
Setting up ExpressLRS for long-range FPV in India gives you a high-performance, open-source radio link that outperforms proprietary...
Read More →Technical Specifications
| Model | U12 |
|---|---|
| SKU | AI5598 |
| Availability | In Stock |
Applications & Use Cases
The T Motor U12 ll KV 60 is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
