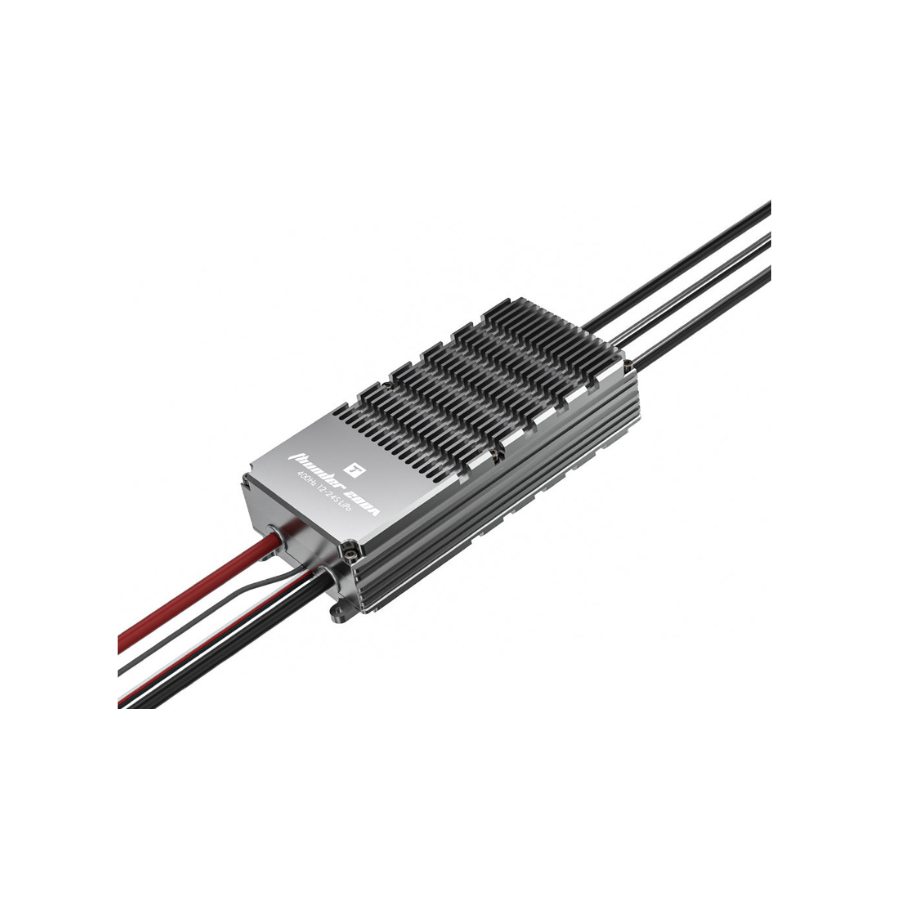

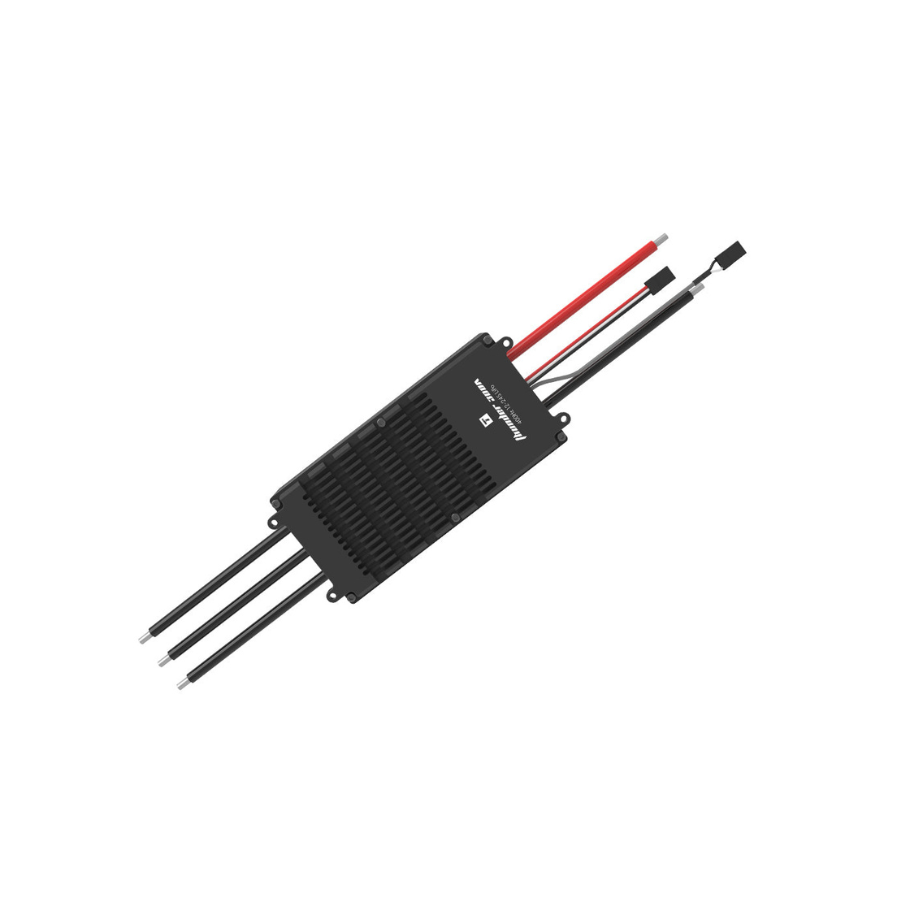

T-Motor Thunder 300A 24S ESC
Description:
The Thunder 300A 24S High-Voltage ESC is a heavy-duty electronic speed controller designed for large UAVs and manned aircraft propulsion systems. Built to handle extremely high voltage and current levels, it ensures smooth motor control, reliable power delivery, and safe operation in demanding heavy-lift and industrial aerial applications.
Key Features:
- Supports 14S–24S LiPo batteries
- Delivers 240 A continuous current
- Handles 300 A peak current for 10 seconds
- Designed for manned aircraft and eVTOL applications
- Full-metal industrial aluminum housing
- Multi-MOSFET parallel drive technology
- Excellent heat dissipation with stacked cooling structure
- Shielded signal cables for superior anti-interference performance
- Supports serial data feedback (voltage, RPM, current, temperature)
- Power-on self-test function
- Overvoltage protection
- Overcurrent protection
- Overtemperature protection
- Motor stall protection
- Start-up failure protection
- Signal loss protection
- High reliability for critical aviation applications.
Applications:
- eVTOL Aircraft
- Manned Multirotor Aircraft
- Heavy-Lift Cargo Drones
- Large Industrial UAVs
- Logistics and Transportation Drones
- Emergency Response UAVs
- Large VTOL Platforms
- Research and Development Aircraft.
Specifications:
| Parameter | Specification |
|---|---|
| Model | THUNDER 300A 24S |
| ESC Type | High-Power Industrial & Manned Aircraft UAV ESC |
| Input Voltage | 14S–24S LiPo (60–100 V, Max. 100 V) |
| Continuous Current | 240 A |
| Peak Current | 300 A (10 seconds) |
| Control Protocol | PWM, Serial Data Feedback, Optional CAN/UART |
| PWM Signal Frequency | 50–400 Hz |
| Operating Pulse Width | 1000–2000 μs |
| BEC | No |
| Standby Current | 6 mA @ 100 V, 9 mA @ 60 V |
| Weight (Including Cables) | 870 g |
| Dimensions (L × W × H) | 154.9 × 69.6 × 48.9 mm |
| Power Cable | 8 AWG Silicone Wire |
| Motor Cable | 8 AWG Silicone Wire |
| Housing Material | Industrial Aluminum Alloy |
| Application Type | Heavy-Lift UAVs, Manned Aircraft, eVTOL |
Packing Includes:
- 1 x Thunder 300A 24 UAV ESC
- 1 x Accessories kit
