Looking for Ak10 Motor? T Motor CubeMars AK10-9 V2.0 100KV Brushless DC Actuator Robot Joint Motor is available at Zbotic with fast shipping across India.

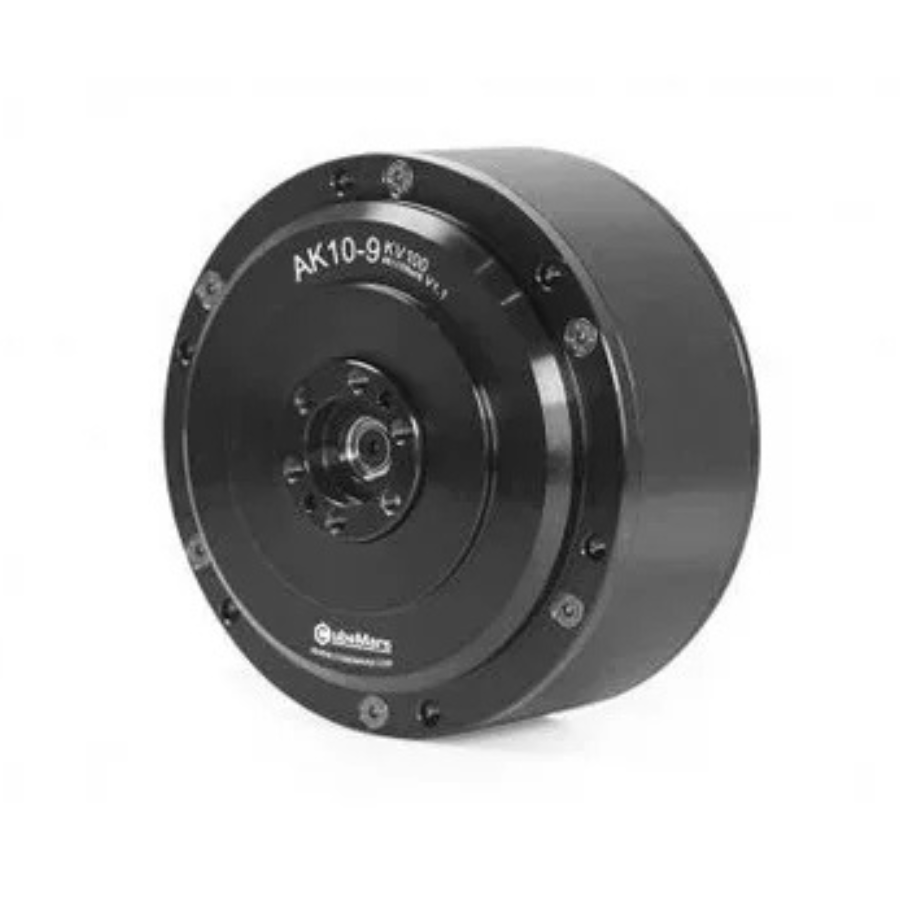

T Motor CubeMars AK10-9 V2.0 100KV Brushless DC Actuator Robot Joint Motor
Introducing the T-Motor Cube Mars AK10-9 V2.0 100KV Brushless DC Actuator, designed specifically for robot joint applications. This high-performance actuator offers exceptional precision and reliability, making it ideal for robotics. Engineered to meet the demanding requirements of robotic systems, it ensures smooth, precise control and dependable operation in various robotic movements.
Key features include:
– 100KV brushless DC motor: Provides efficient and smooth operation, ideal for robot joint movements.
– V2.0 version: Incorporates upgrades for enhanced performance and durability.
– Tailored for robot joints: Designed to meet the specific needs of robotic applications, ensuring seamless integration and operation.
– High-quality construction: Crafted with premium materials and precision engineering for long-lasting performance in demanding environments.
Whether used in industrial automation, research robotics, or educational projects, the T-Motor Cube Mars AK10-9 V2.0 100KV Brushless DC Actuator offers exceptional performance and reliability for your robotic needs.
Features:
- Highly Integrated & High Torque Module
- Reducer and Controller in One
- Large Torque
- Applied to Exoskeleton, Quadruped Robotic Dog
- Easy Configuration with RUBIK Link
- 12Bit Encoder & UART/CAN Interface
- Max Speed at Rated Torque(rpm): 222/445 (Output)
- Kt(Nmv/A): 0.095
- ky(RPM/V): 100
- Ke(virpm): 0.01
- Kmn(nm/vw): 0.3
- Number of Pole-Pair: 21
- Resistance Phase to Phase(mQ): 90±5
- Inductance Phase to Phase(uH): 331±10
- Op(mm): 098
- Max torque weight ratio(Nmn/kg): 65
Specification:
| Rated Torque(N-m) | 15 |
|---|---|
| Peak Torque (Nm) | 38 |
| Rated Current (A) | 185 |
| Peak Current (A) | 50 |
| Poles | 42 |
| Rated Speed (RPM) | 222/445 |
| Reduction ratio | 9:1 |
| Height (mm): | 625 |
| Weight (g): | 820 |
Packages Includes:
1 x T Motor AK10-9/V1.1
T Motor CubeMars AK10-9 V2.0 100KV Brushless DC Actuator Overview
The T Motor CubeMars AK10-9 V2.0 is a high-performance 100KV brushless DC actuator designed specifically for robotic joint applications. With a built-in 9:1 reduction gearbox and up to 15 Nm rated torque, it delivers precise, smooth motion control for advanced robotics projects.
Key Features of T Motor CubeMars AK10-9 V2.0 100KV Brushless DC Actuator
- 100KV brushless DC motor for efficient, smooth operation in robotic joints
- Integrated 9:1 reduction ratio gearbox delivering up to 15 Nm of continuous torque
- Dual-voltage support (24 V/48 V) compatible with standard robotics power systems
- Phase-to-phase inductance of 331 µH ±10 for responsive torque control
- Robust V2.0 upgrades for improved heat dissipation and longer operational life
- Genuine product with fast shipping from Zbotic across India
Applications and Use Cases
- Humanoid robot elbow and shoulder joint actuation
- Robotic arm segments for pick-and-place or assembly tasks
- Leg joints of quadruped or hexapod walking robots
- Research and educational robotic platforms requiring high torque density
- Precision animatronics and motion control in entertainment robots
How to Use T Motor CubeMars AK10-9 V2.0 100KV Brushless DC Actuator
Mount the AK10-9 V2.0 actuator securely to your robot’s joint bracket, connect its power leads to a 24 V or 48 V brushless motor controller, and configure your controller’s KV and current limits (up to 185 A) to match the actuator’s specifications. Calibrate position feedback in your control software, perform incremental load tests, and adjust PID parameters for smooth motion before full operation.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the rated torque of the AK10-9 V2.0 actuator?
The AK10-9 V2.0 delivers a continuous rated torque of 15 Nm through its integrated 9:1 reduction gearbox.
Which voltage supply is required for this actuator?
This brushless DC actuator supports both 24 V and 48 V power systems, allowing flexibility in your robot’s power architecture.
How do I control the speed and position of this actuator?
Use a compatible brushless motor controller (ESC) configured for 100KV and up to 185 A current limit, then send PWM or CAN commands through your robot’s motion control software to manage speed and position.
