This is the CCW rotation variant of the T-MOTOR A8 -CCW Modular Propulsion System in Drone Motor. Available at ₹37,170.00 (₹31,500.00 + GST) with free shipping across India.

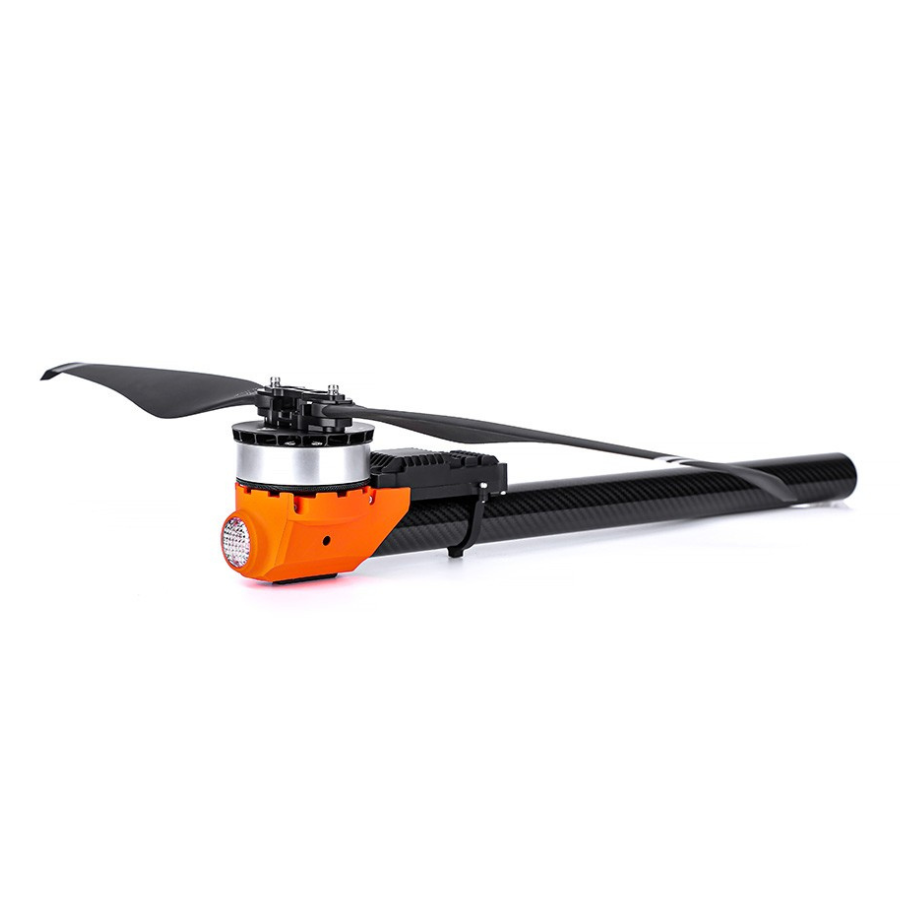

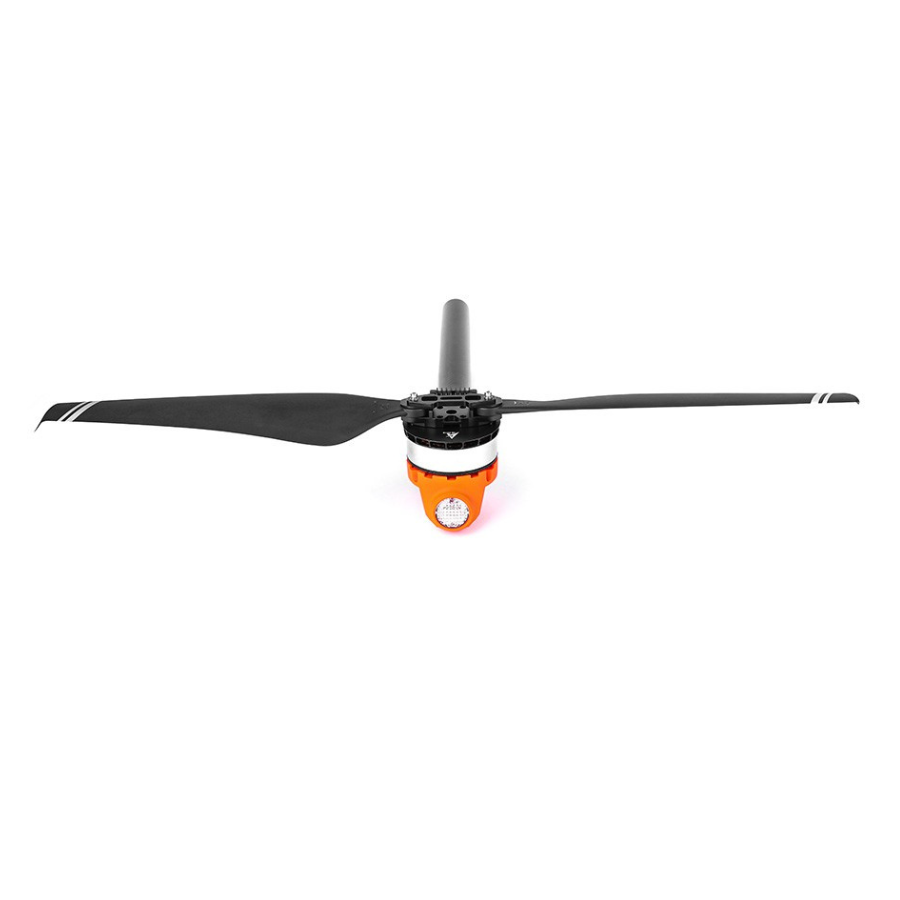

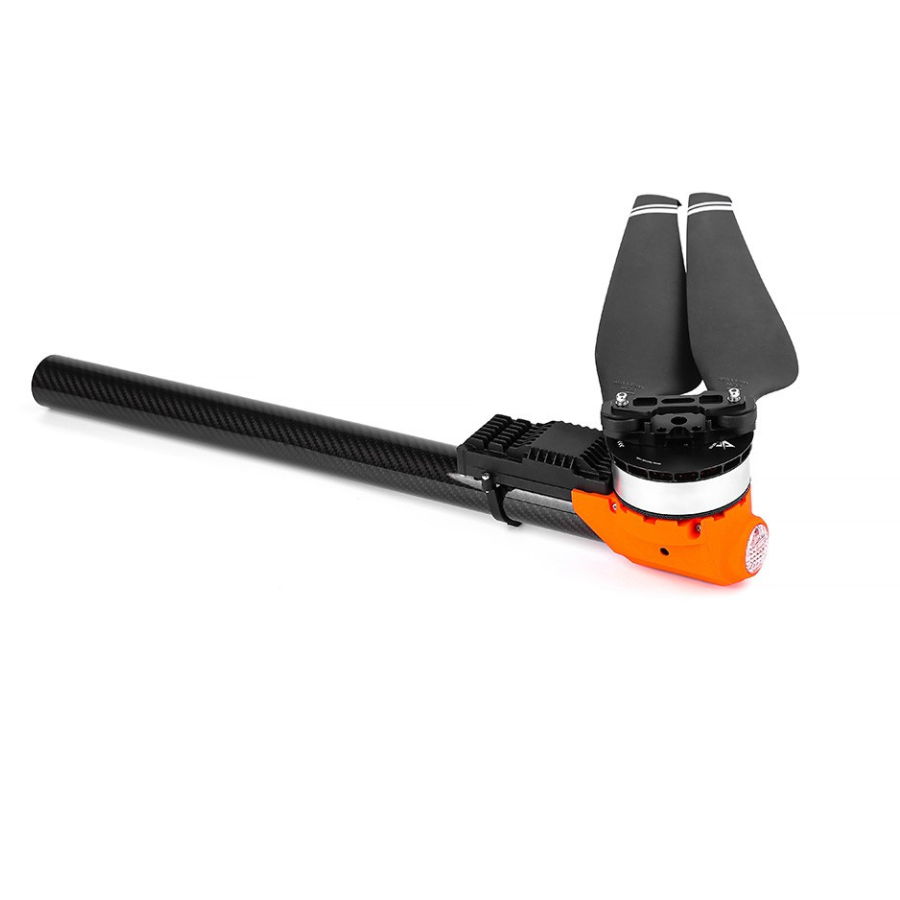

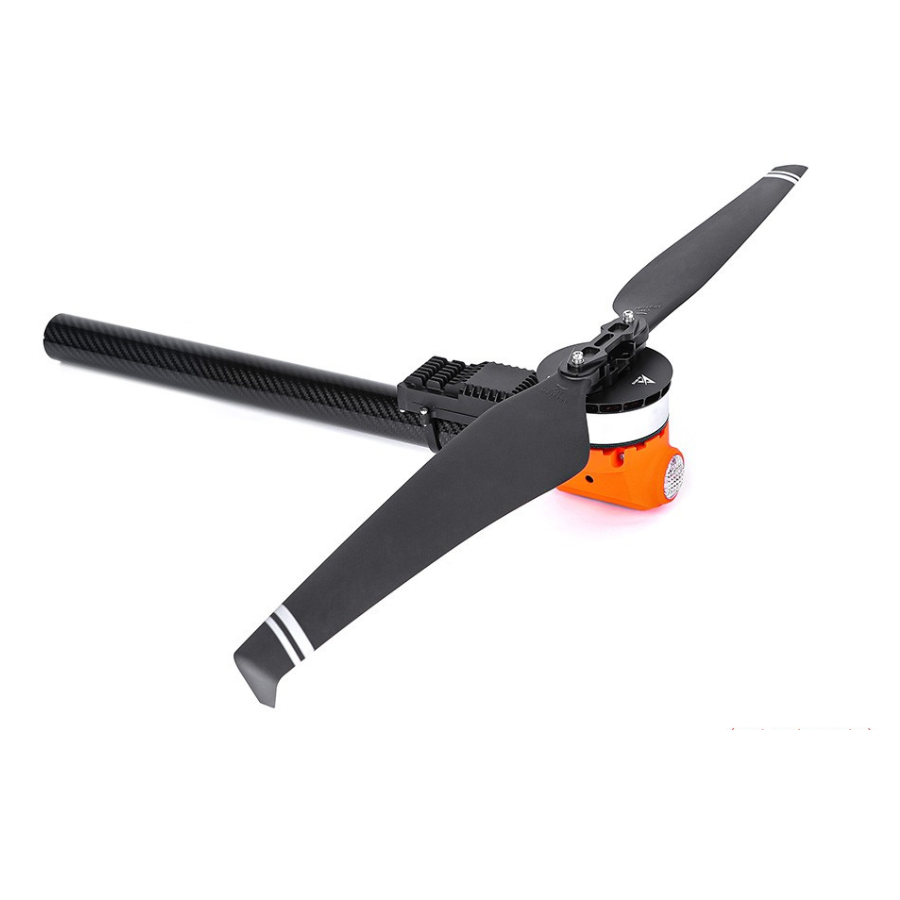

T-MOTOR A8 -CCW Modular Propulsion System
Description:
The T-Motor A8 is an integrated propulsion module designed for medium-sized agricultural multirotor drones. It combines the motor, ESC (Electronic Speed Controller), and propeller into a single ready-to-install unit, simplifying UAV assembly and improving reliability.
The A8 is part of T-Motor’s A-Series modular propulsion systems, built using MPET (Modular Electric Propulsion Technology). This approach integrates all propulsion components into one module for plug-and-play installation.
Note: Carbon tubes are not included
Specification:
| Section | Specification | Details |
|---|---|---|
| General | Model No. | A8 -CCW KV115 |
| Tube Size | 40 mm | |
| Setup | A8 Motor + 14S FOC 100A ESC + MF3119P Prop | |
| Weight | 1290 ±2% g (incl. wires & prop) | |
| IP Rating | IPX6 | |
| Operating Temperature | -20°C to 55°C | |
| Rated Thrust | 5 ~ 7 kg | |
| Max Thrust | 18 kg | |
| Efficiency | 8.9 g/W (at 6 kg thrust) | |
| Battery & Wiring | Recommended Battery | 12 ~ 14S LiPo |
| Power Wire | 12# AWG (Red & Black) | |
| Signal Wire | 5P Teflon | |
| Wire Length | 1100 ±10 mm | |
| Motor Specs | Stator Size | 81 × 20 mm |
| KV Rating | 115 KV | |
| ESC Specs | Throttle Range | 1100 ~ 1940 µs (fixed) |
| Max Voltage | 61 V | |
| Peak Current | 100A (short duration, ≤60°C) | |
| Protocol | DRONE CAN / UAV CAN / CUBE CAN | |
| Control Method | PWM / CAN | |
| BEC | No | |
| Propeller Specs | Model | MF3119P (Polymer Folding) |
| Size | 31 inch (784 mm) |
Features:
- High-performance A8 motor with 115KV for efficient heavy-lift drone applications
- Integrated 14S FOC 100A ESC for smooth, precise, and reliable control
- Supports 12–14S LiPo batteries for high power output
- Delivers up to 18kg maximum thrust, ideal for industrial UAVs
- High efficiency of 8.9 g/W at rated thrust for longer flight time
- Equipped with 31-inch MF3119P polymer folding propeller
- Durable IPX6-rated design for water and dust resistance
- Supports advanced communication protocols: DroneCAN, UAVCAN, CubeCAN
- Flexible control options with PWM and CAN compatibility
- High-quality 12AWG power wires and Teflon signal wires
- Wide operating temperature range (-20°C to 55°C) for harsh environments
- Optimized for stability, durability, and long service life
Package Include:
1x T-MOTOR A8 -CCW Modular Propulsion System (Excl.carbon tube)
1x Parts Bag
Brushless vs Brushed DC Motor: Which Is Better for Your Project?
The choice between a brushless and a brushed DC motor is one that makers, engineers, and hobbyists face...
Read More →
Drone Motor KV Rating Calculator and Selection Guide
Understanding the drone motor KV rating and how to calculate the right motor for your build is fundamental...
Read More →
Drone Swarm Basics: Coordinate Multiple UAVs with ArduPilot
Table of Contents What Is a Drone Swarm? ArduPilot Swarm Architecture Hardware Requirements for Each UAV Telemetry &...
Read More →Technical Specifications
| Brand | T -Motor |
|---|---|
| SKU | AI8008 |
| Weight | 0.0 kg |
| Availability | In Stock |
Applications & Use Cases
The T-MOTOR A8 -CCW Modular Propulsion System is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
