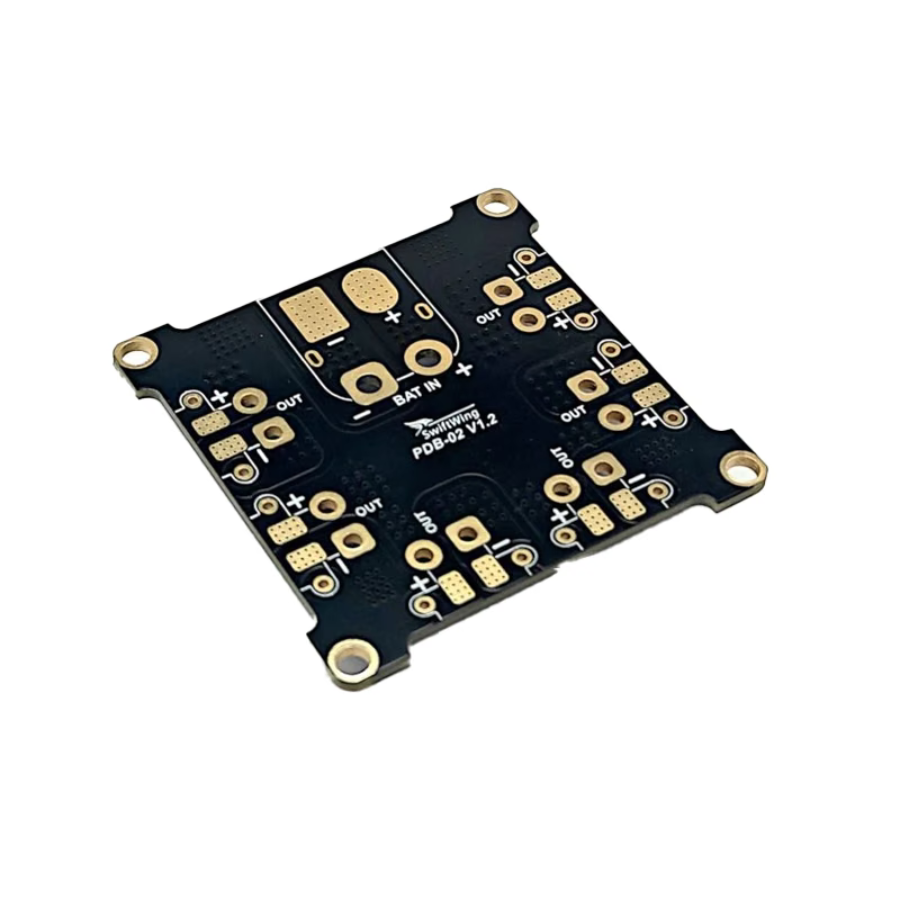

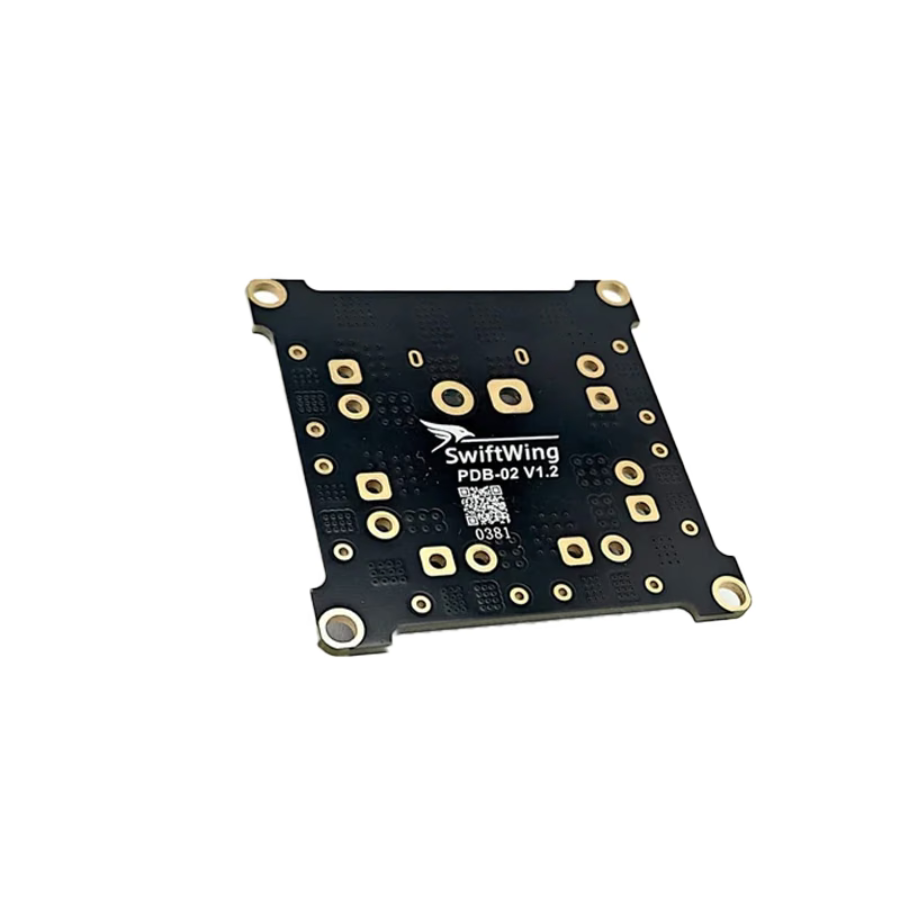

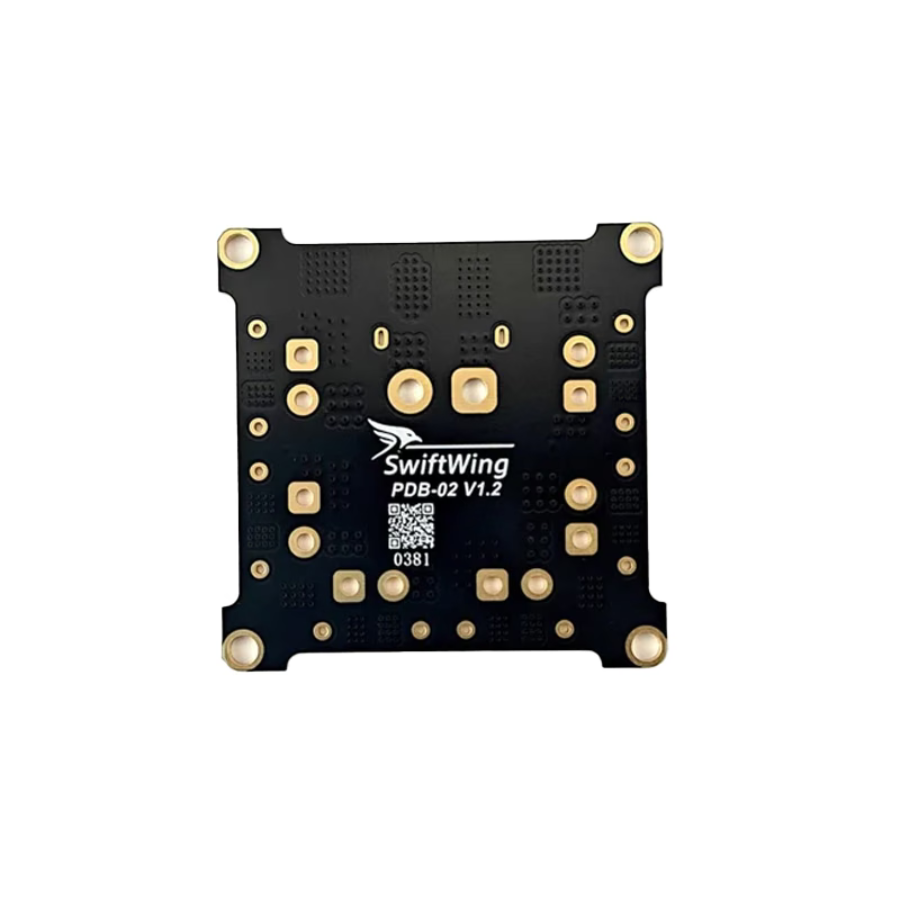

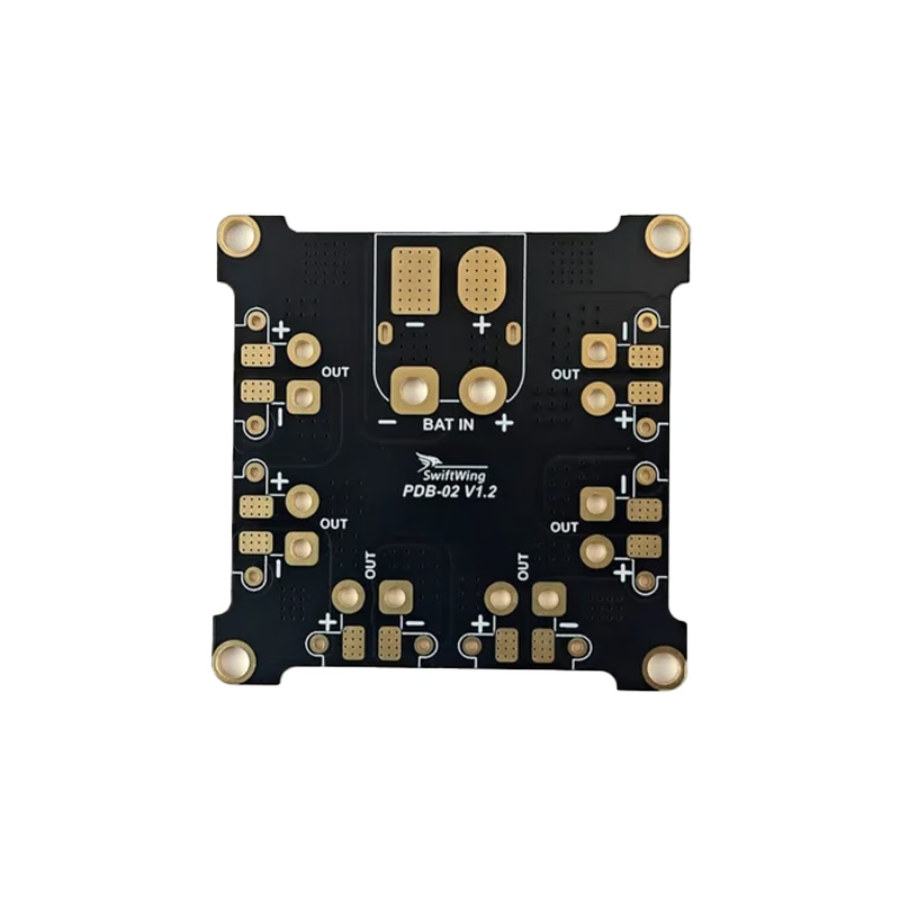

SwiftWing PDB02 3S–6S Direct Power Distribution Board
Description:
The SwiftWing PDB02 is a compact and robust power distribution board designed for high-current UAV and multirotor applications. Supporting 3S to 6S LiPo input, it efficiently distributes power to multiple ESCs and components without voltage regulation. Its 4-layer PCB with 2 oz copper ensures excellent current handling and thermal performance, supporting up to 200A continuous current. The board features solder pad footprints for XT30 and XT60 connectors, allowing flexible assembly based on project requirements. With a lightweight design and strong build quality, it is ideal for racing drones, long-range UAVs, and industrial multirotor systems.
Features:
- Supports 3S–6S LiPo input (11.1V–25.2V)
- Handles up to 200A continuous current
- Durable 4-layer PCB with 2 oz copper
- XT30 & XT60 solder pad footprints
- Compact 50 × 50 mm form factor
- Lightweight design (approx. 9g)
- Reliable performance for high-current systems
- Ideal for UAVs, drones, and robotics power distribution
Specifications:
| Model No. / Name: | PDB02 |
| Input Voltage | 26 V DC |
| PCB layers | 4-layer, 2 oz copper |
| Board Type: | Power Distribution Board (PDB) |
| Battery Input Voltage (V): | Recommended : 3S–6S LiPo (11.1–25.2 V) |
| Finish | ENIG |
| Mounting Hole Diameter (mm) | 4 × M3 (45 mm spacing) |
| Operating Temperature (°C): | -10 to 60 |
| Storage Temperature (°C): | –20 to +85 |
| Length (mm): | 50 |
| Width (mm): | 50 |
| Weight (g): | 10 |
| Shipping Weight | 0.013 kg |
Package Includes:
1 x SwiftWing PDB02 – 3S–6S Direct Power Distribution Board
ExpressLRS vs ELRS vs FrSky: Best RC Link System 2026
ExpressLRS vs FrSky vs Other RC Link Systems: Best Choice for Indian Drone Pilots in 2026 Choosing the...
Read More →
Best Drone Frames: F450, S500 & Custom Builds
The drone frame is the backbone of every build. It determines your quad’s flight characteristics, payload capacity, crash...
Read More →
Drone PDB vs AIO: Power Distribution Board Guide
Table of Contents Understanding Drone PDB vs AIO Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation...
Read More →Technical Specifications
| Brand | SwiftWing |
|---|---|
| Model | PDB02 |
| Cell Configuration | 3S |
| SKU | AI5069 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The SwiftWing PDB02 3S–6S Direct Power Distribution Board is a versatile flight controller & accessories used across a wide range of applications including autonomous drones, FPV racing quadcopters, agricultural drones, and surveying and mapping platforms.
Common use cases:
- Central brain for drone stabilization and navigation
- GPS waypoint missions for surveying
- Acro mode flying for FPV freestyle
This product is ideal for drone builders requiring precise flight control.
Technical Tip: F4 processors are good for basic builds; F7 or H7 recommended for advanced features. Ensure firmware compatibility (Betaflight, ArduPilot, iNAV).
