This is the XT60 connector variant of the SwiftWing PDB-02-XT60-6XT30 3S–6S Power Distribution Board with XT60 & 6 XT30 Connectors in GPS Modules. Available at ₹1,048.95 (₹999.00 + GST) with free shipping across India.
SwiftWing PDB-02-XT60-6XT30 3S–6S Power Distribution Board with XT60 & 6 XT30 Connectors
Description:

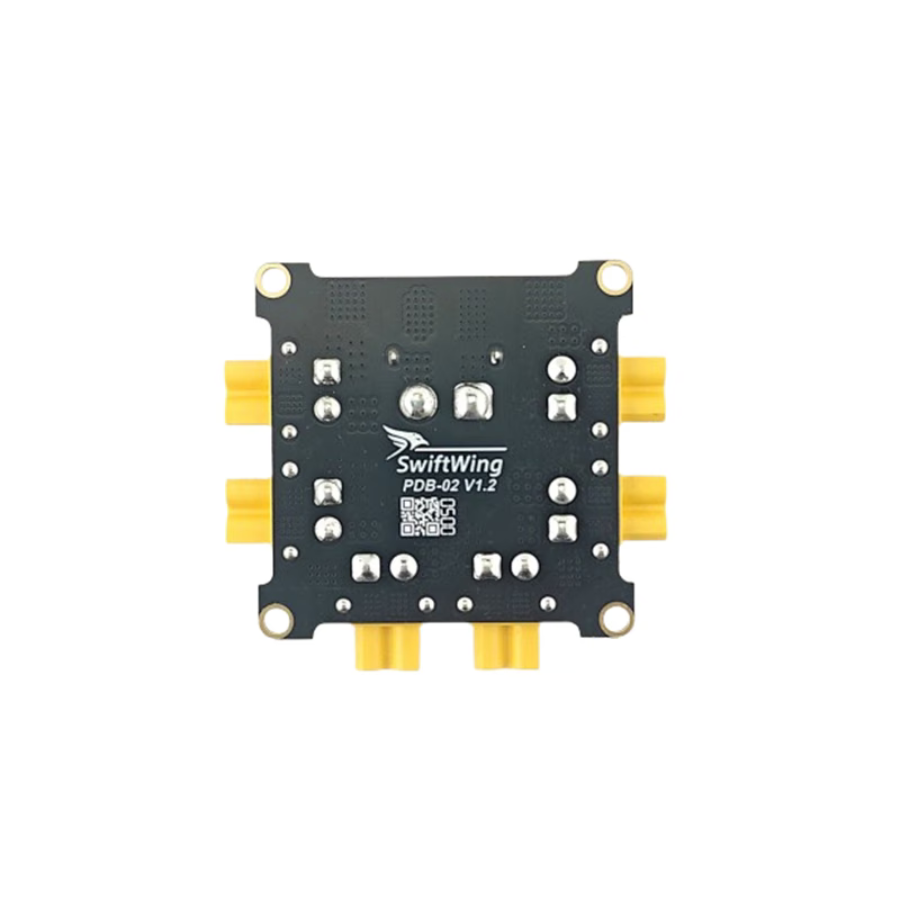

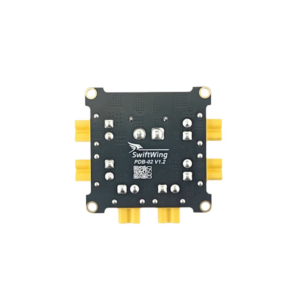

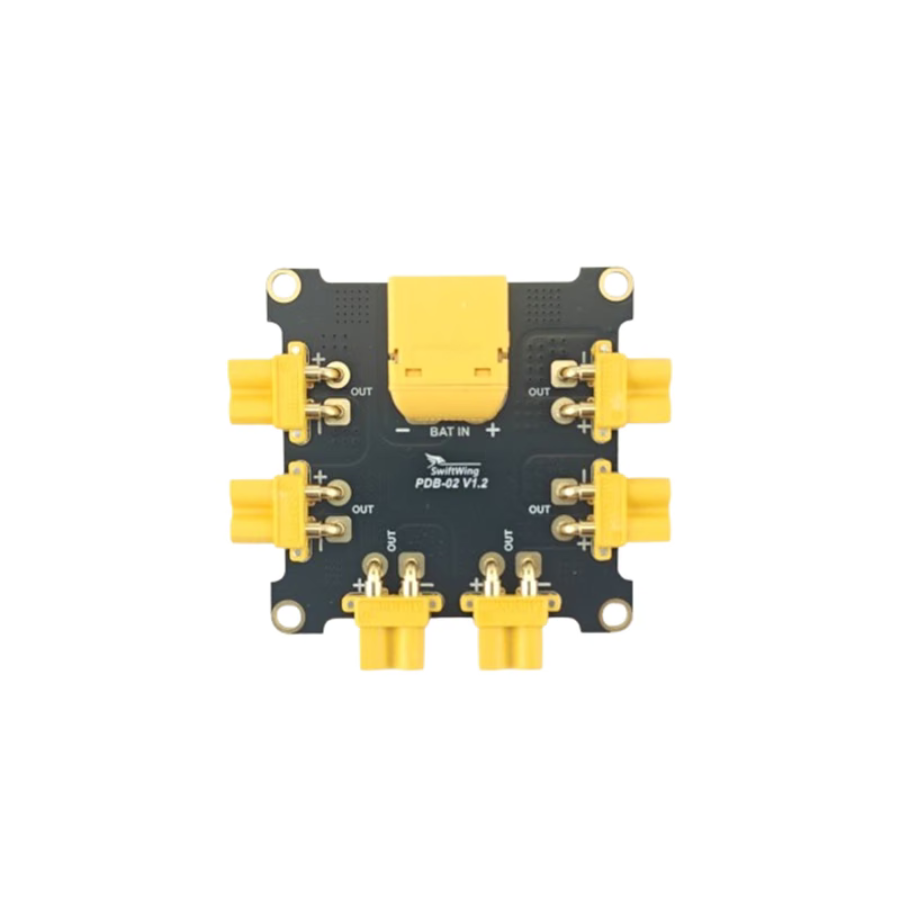

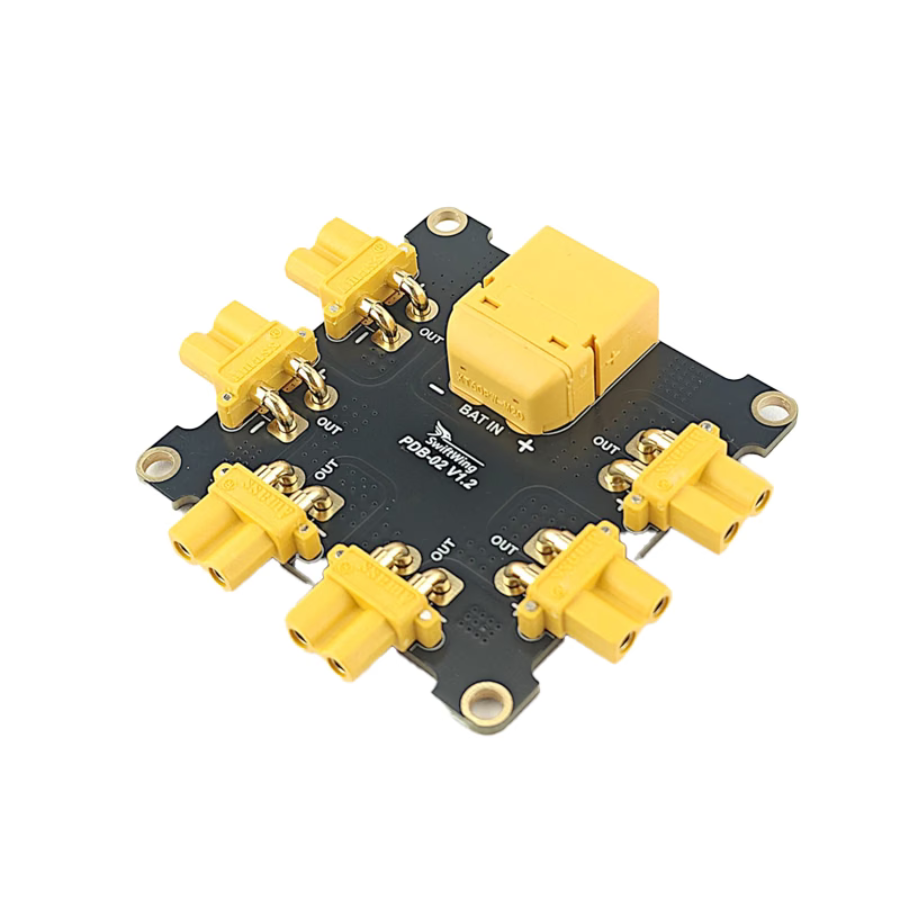

The SwiftWing PDB-02-XT60-6XT30 is a high-performance 4-layer power distribution board (PDB) designed for multirotor drones. Supporting 3S–6S LiPo batteries, it features a factory-installed XT60 battery input and six XT30 ESC output connectors, eliminating the need for soldering and simplifying wiring. Built with 2 oz copper layers and an ENIG finish, this compact 50 mm × 50 mm board delivers reliable direct battery bus distribution, ensuring clean, organized integration for quad and hex configurations. Ideal for hobbyists and professional drone builders, it supports high-current applications with robust construction while maintaining a neat, efficient setup for safe and precise flight operations.
Features:
- Supports 3S–6S LiPo batteries (11.1–25.2 V)
- Factory-installed XT60 battery input connector
- Six factory-installed XT30 ESC output connectors
- Eliminates need for soldered battery and ESC wiring
- Direct battery bus distribution for high-current efficiency
- Compact 50 mm × 50 mm footprint
- 4-layer PCB with 2 oz copper and ENIG finish
- Designed for clean and organized multirotor integration
Specifications:
| Battery Input Voltage (V): | Recommended : 3S–6S LiPo (11.1–25.2 V) |
| Battery Connector Type | XT60 (factory-installed, ~60 A rating) |
| ESC Output | 6 × XT30 (factory-installed, ~30 A each) |
| Input Voltage | 26 V DC Max. |
| Continuous Discharge Current (A) | ~60 A Max. (limited by XT60 connector rating), ~30 Max. (Per XT30 Output) |

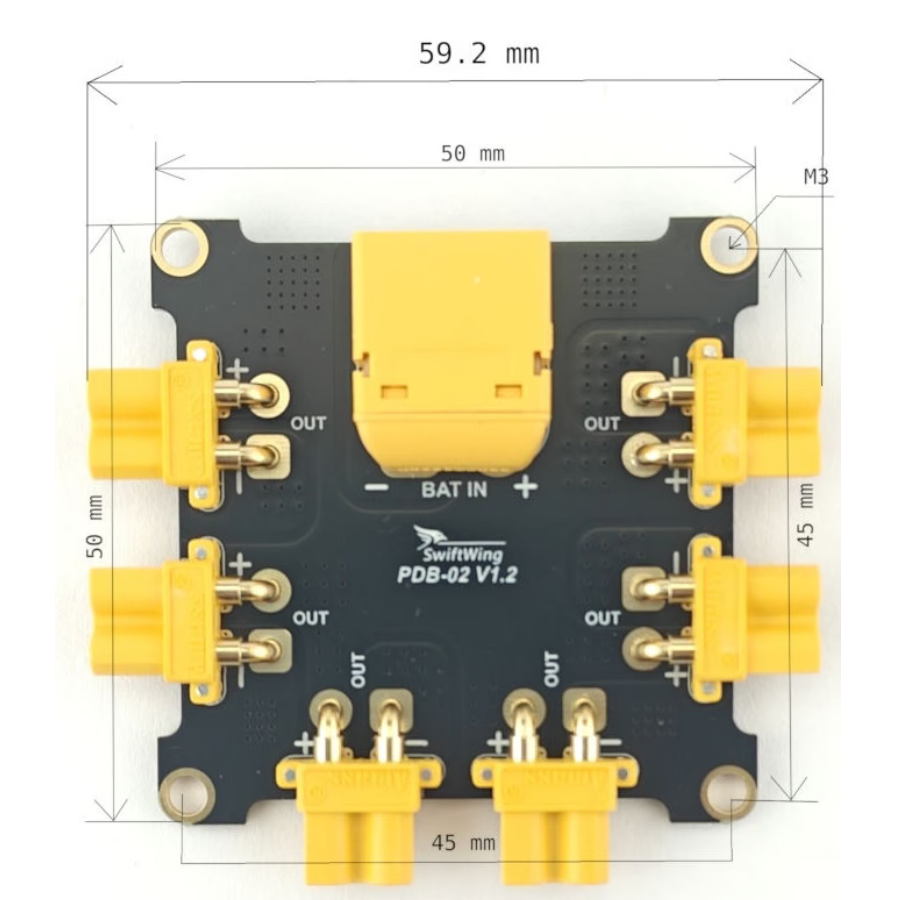

| Mounting Hole Diameter (mm) | 4 × M3 (45 mm spacing) |
| PCB layers | 4-layer, 2 oz copper |
| Board Size (mm) | 50 × 50 × 1.6 ±0.15 mm |
| Weight (g): | 21 |
Package Includes:
1 x SwiftWing PDB-02-XT60-6XT30 3S–6S Power Distribution Board
