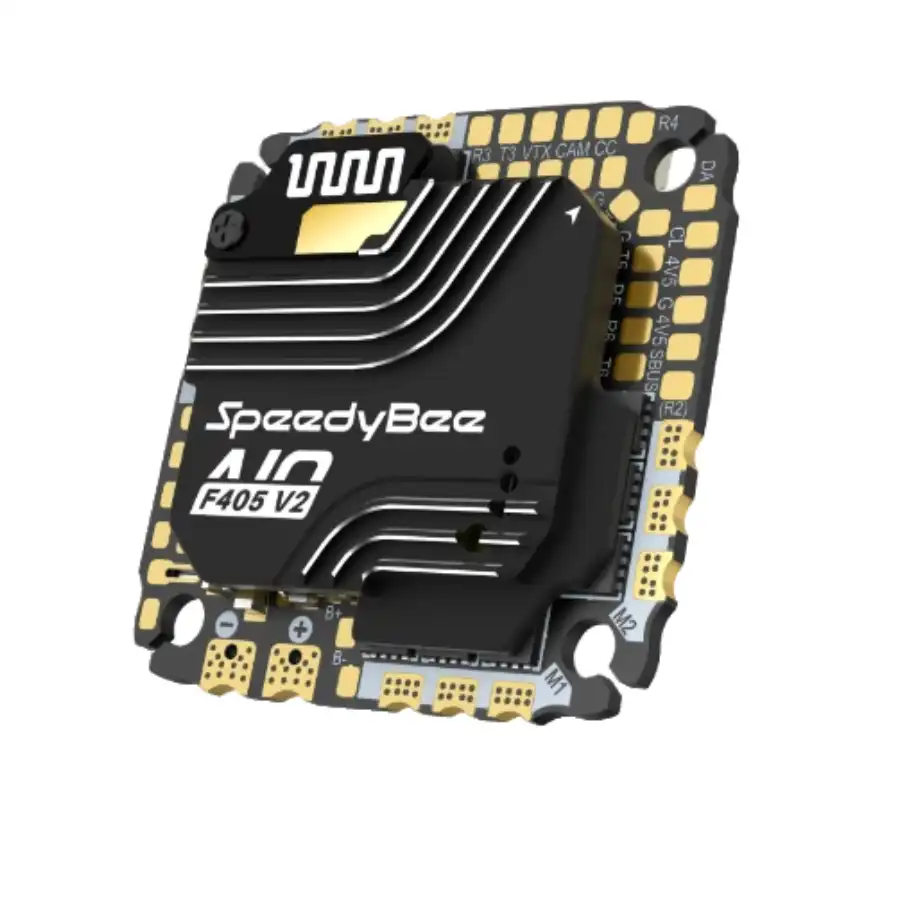

Speedybee F405 AIO V2 All-In-One Flight Controller
Description:
The Speedybee F405 AIO V2 All-In-One Flight Controller is a compact and lightweight flight controller designed for FPV racing, freestyle, cinewhoop, and long-range drones. It combines an STM32F405 flight controller and a 40A 4-in-1 ESC on a single board, reducing wiring complexity while delivering reliable performance. Built-in Bluetooth allows wireless configuration through the SpeedyBee App, making setup and tuning quick and convenient
SpeedyBee F405 AIO V2 Standard – Specifications
| Specification | Details |
|---|---|
| Product Name | SpeedyBee F405 AIO V2 Standard |
| Bluetooth Configuration | Supported |
| APP Firmware Update for FC | Supported |
| Input Voltage | 3–6S LiPo |

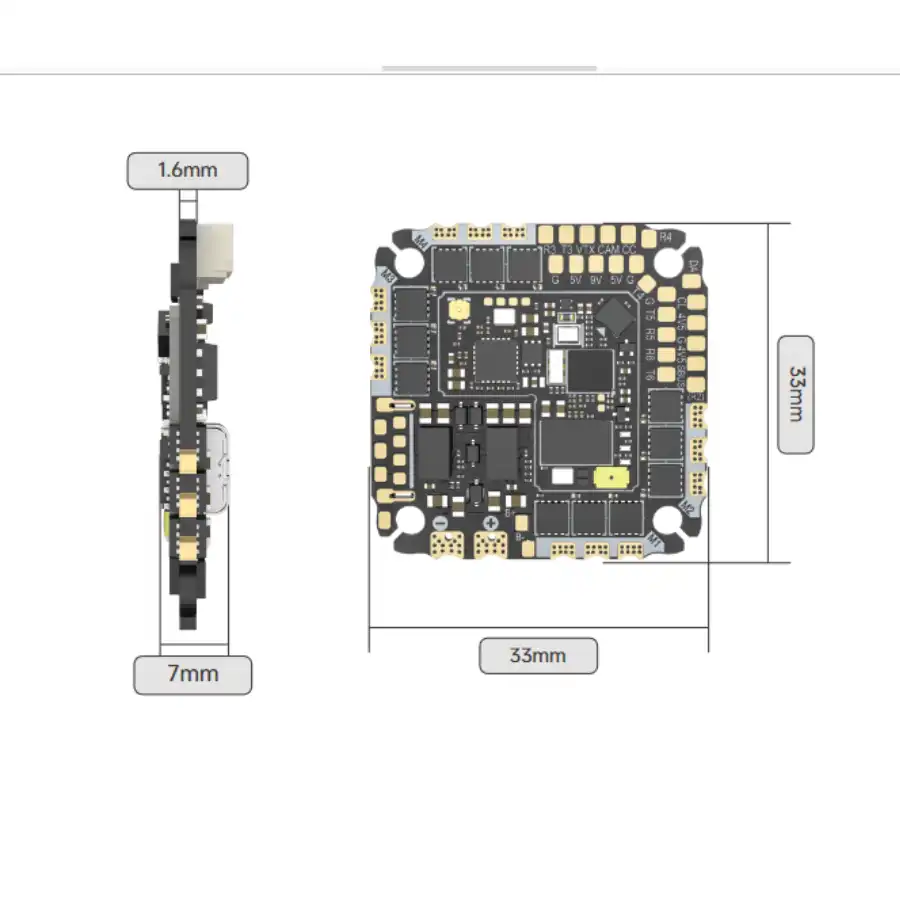

| Mounting Hole Pattern | 25.5 × 25.5 mm |
| Dimensions | 33.0 × 33.0 × 7.0 mm |
| Weight | 8.9 g |
| Continuous Current | 35A per channel (140A total) |
| Peak Current | 40A per channel (160A total) |
| MCU | STM32F405 |
| Gyroscope | ICM-42688P |
| ESC Firmware | Bluejay JH-40 48kHz |
| USB Port | USB Type-C |
| Blackbox Memory | 8MB Flash |
| UART Ports | 4 Full UARTs |
| OSD | Supported |
| Barometer | SPA06-003 |
| Flight Controller Firmware | Betaflight |
| DJI Air Unit Support | DJI O3 / Vista / RunCam Link Compatible |
Features:
SpeedyBee F405 AIO V2 Standard – Features
- STM32F405 high-performance flight controller
- Integrated 4-in-1 ESC design
- Supports 3S–6S LiPo batteries
- Built-in Bluetooth for wireless configuration
- SpeedyBee App firmware update support
- 35A continuous current per channel
- 40A peak current per channel
- Compact 25.5 × 25.5 mm mounting pattern
- USB Type-C connectivity
- 8MB Blackbox data storage
- 4 full UART ports for peripherals
- Built-in OSD support
- Integrated barometer for altitude sensing
- Compatible with DJI O3, Vista, and RunCam Link
- Lightweight design at only 8.9 g
- Ideal for FPV racing, freestyle, and cinewhoop drones
Datasheet:
Package Include:
1x Speedybee F405 AIO V2 All-In-One Flight Controller
Drone Propeller Guard Design: 3D Print Safety Frames
Table of ContentsWhy Propeller Guards Matter for Indian Drone BuildersPropeller Guard Design BasicsBest 3D Printing Materials for Propeller...
Read More →
Build an Autonomous Delivery Drone with ArduPilot
Table of Contents Why Build an Autonomous Delivery Drone? How ArduPilot Enables Autonomy Complete Parts List for Your...
Read More →
FPV LiDAR Mapping Drone: Build a Surveying Quadcopter in India (2026 Guide)
LiDAR-equipped drones are transforming how India conducts land surveys, infrastructure inspections, and agricultural mapping. Whether you are a...
Read More →Technical Specifications
| Brand | SpeedyBee |
|---|---|
| Model | F405 |
| SKU | AI8271 |
| Weight | 0.1170 kg |
| Availability | In Stock |
Applications & Use Cases
The Speedybee F405 AIO V2 All-In-One Flight Controller is a versatile flight controller & accessories used across a wide range of applications including autonomous drones, FPV racing quadcopters, agricultural drones, and surveying and mapping platforms.
Common use cases:
- Central brain for drone stabilization and navigation
- GPS waypoint missions for surveying
- Acro mode flying for FPV freestyle
This product is ideal for drone builders requiring precise flight control.
Technical Tip: F4 processors are good for basic builds; F7 or H7 recommended for advanced features. Ensure firmware compatibility (Betaflight, ArduPilot, iNAV).
