Looking for E4q Quad Channel 2-4s? Original SKYRC E4Q Quad Channel 2-4S LiPo Battery Balance Charge is available at Zbotic with fast shipping across India.
Tired of the constant need to charge LiPo batteries? The SKYRC E4Q 50W 5A multi-charger is here to streamline the process, capable of charging up to four 2S/3S/4S LiPo batteries simultaneously. Its user-friendly LED program settings make it an ideal charger for those who prefer more driving time over charging time.

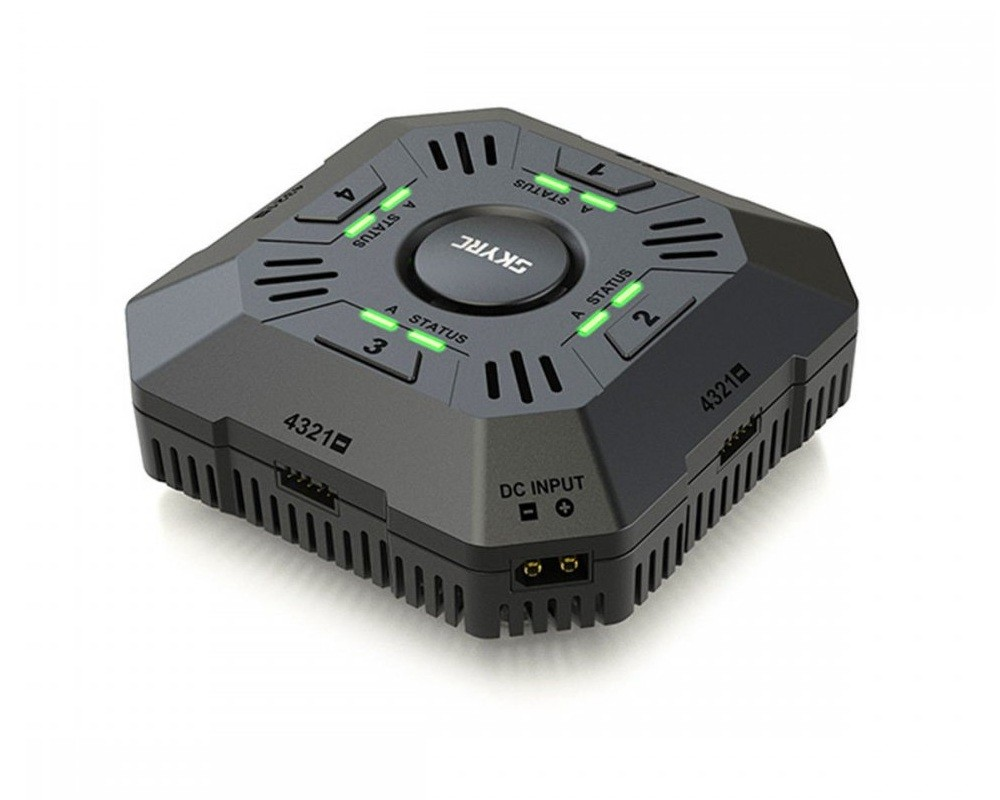

The SKYRC E4Q 50W 5A Multi Charger features a circuit with four completely independent yet identical power outputs, each providing 50W of power. It’s specifically designed to charge 2-4 cell LiPo batteries. Simply connect the battery lead to the appropriate connector in each port, and the charger will efficiently charge four batteries concurrently. Moreover, the charging current is adjustable from 2A/3A/5A via a push button, and both the charging capacity and current are conveniently indicated by the LED indicators’ color changes.
Important Notice :
To take advantage of SKYRC E4Q 50W 5A full power capability, the power source should be 11-26.1V DC, and output power should be capable of 240W or higher. Low-quality DC power source may damage your e4Q charger.
Features :
1. Four independent ports can be used at the same time.
2. Adjustable charging current 2A/3A/5A.
3. LED and audible sound indicate charging status.
4. DC power input.
5. Efficient ventilation and compact size.
6. The LED will blink when the E4Q detects low and high voltage input.
7. Powered by the most popular XT60 connector which can handle over 60A current.
8. Maximum protection: short circuit protection; overcurrent protection; battery reverse polarity protection and DC input voltage protection.

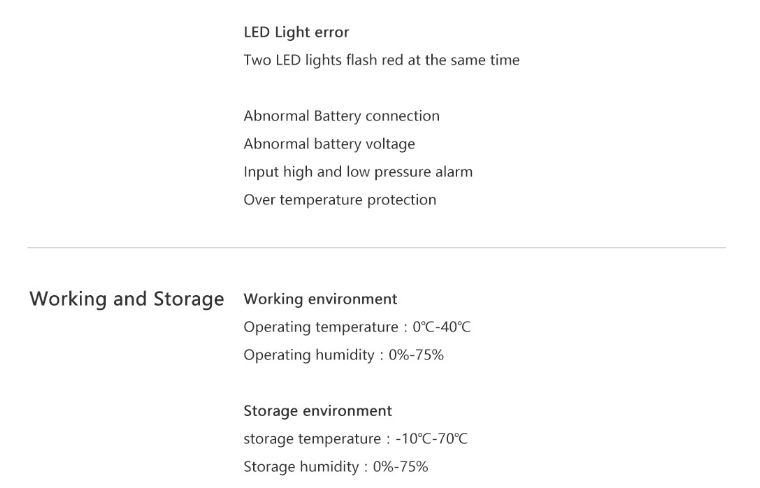

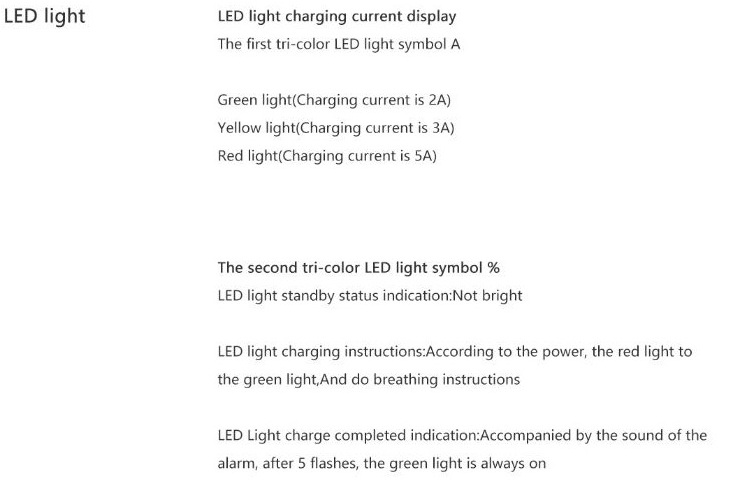

LED light status :
Specification-
| DC Input Voltage Range (V) | 11 ~ 26 |
|---|---|
| Output Power(Watt) | 4 x 50W ± 10% |
| Charge Current Range (A) | 2 ~ 5 |
| Battery Type | 2 ~ 4S LiPo. |
| Battery Connector Type | XH Connector. |
| Working Temperature | 5 ~ 40˚C. |

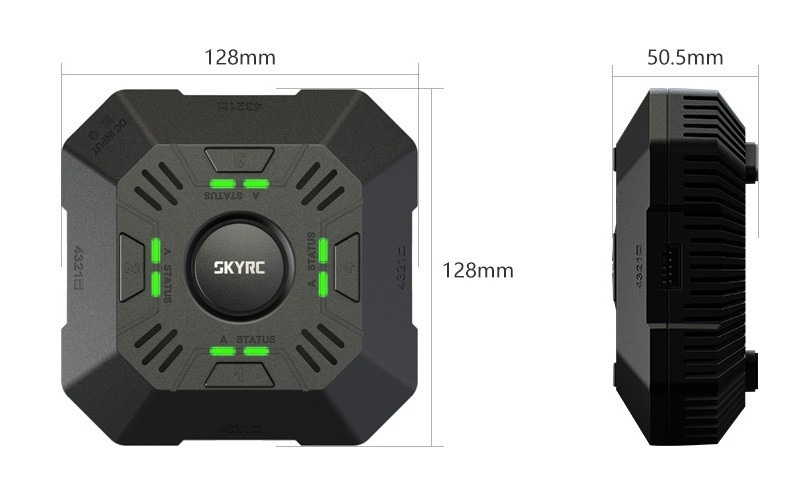

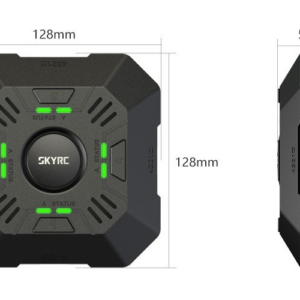

| Dimensions (LxWxH) mm | 128 x 128 x 50.5 |
| Weight (g): | 300 |
| Shipping Weight | 0.35 kg |
| Shipping Dimensions | 14 × 14.5 × 5.8 cm |

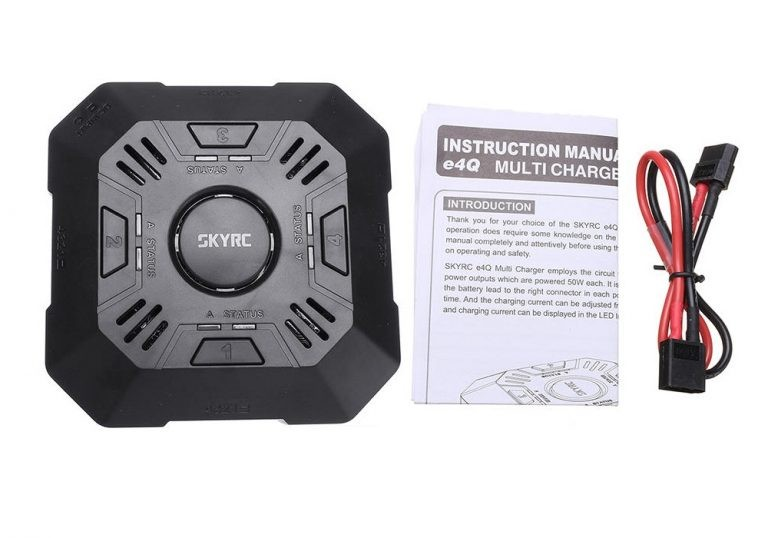

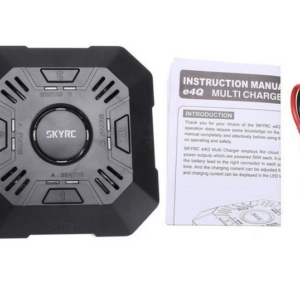

Package Includes :
1 x SKYRC E4Q Quad Channel 2-4S LiPo Battery Balance Charger
1 x Charging cable with XT60 connector. (280 mm long).
1 x Instruction Manual.
Original SKYRC E4Q Quad Channel 2-4S LiPo Battery Balance Overview
The Original SKYRC E4Q Quad Channel 2-4S LiPo Battery Balance is a four-port balance charger designed for simultaneous charging of multiple 2S–4S LiPo battery packs. It ensures precise cell balancing and delivers efficient power distribution to each connected battery, reducing downtime and extending pack lifespan.
Key Features of Original SKYRC E4Q Quad Channel 2-4S LiPo Battery Balance
- Four independent charging channels, each delivering up to 50W of power
- Adjustable charge current settings: 2A, 3A, or 5A per channel
- Supports balance charging for 2S, 3S, and 4S LiPo batteries
- Wide DC input range from 11V to 26.1V for versatile power sources
- LED indicators and audible alerts to show charging status and completion
- Genuine product with fast shipping across India from Zbotic
Applications and Use Cases
- Charging multiple LiPo packs for RC cars, boats, and aircraft
- Simultaneous preparation of drone batteries before flight sessions
- Balancing cells for FPV racing to maintain peak performance
- Prepping battery sets for robotics competitions or research projects
- Storing LiPo packs long-term with balanced cell voltage
How to Use Original SKYRC E4Q Quad Channel 2-4S LiPo Battery Balance

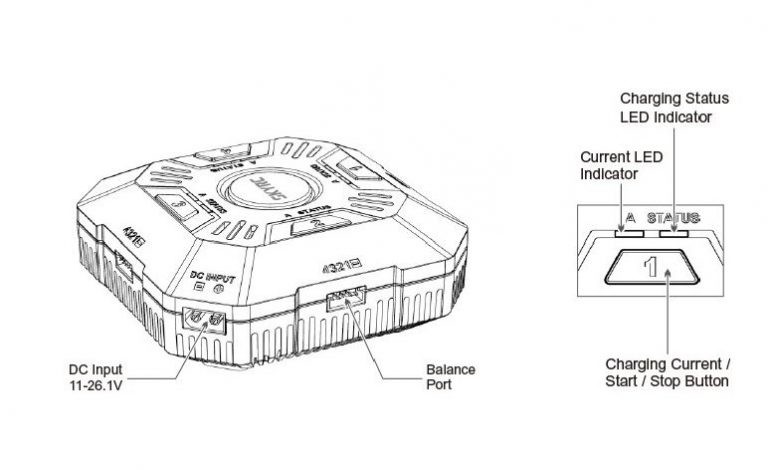

Connect a compatible DC power source (11–26.1V) to the charger’s input, then plug each LiPo battery pack lead into one of the four output ports. Use the front-panel buttons to select 2A, 3A, or 5A charge current per channel. The E4Q will automatically perform cell balancing and display status via LEDs, while audible beeps notify you when charging is complete or if any error occurs.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I charge four batteries simultaneously?
Yes, each of the four channels operates independently at up to 50W, allowing you to charge four 2S–4S LiPo batteries at the same time.
What power supply voltage does the E4Q require?
The charger accepts a DC input between 11V and 26.1V. Use a compatible power adapter or a battery bank within this voltage range to power the E4Q.
How does the E4Q indicate charging progress?
Each channel has its own LED indicator that shows charging stages, and the unit emits audible beeps to signal the start, end, or any error conditions during the charging cycle.
