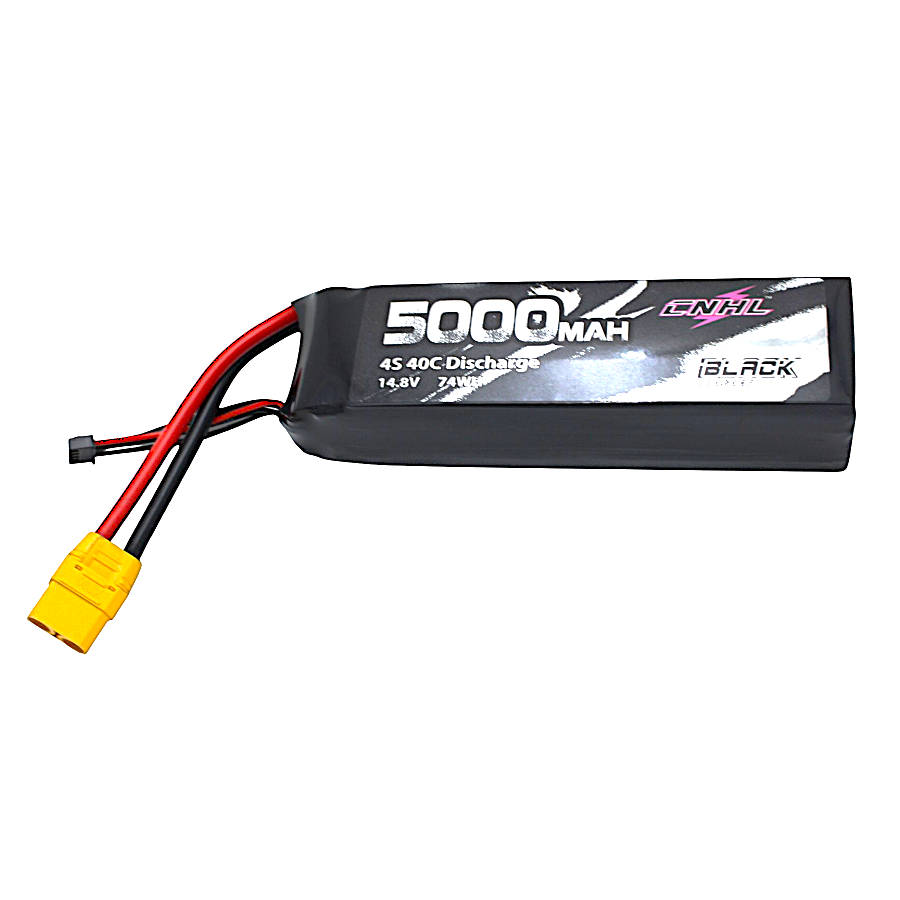

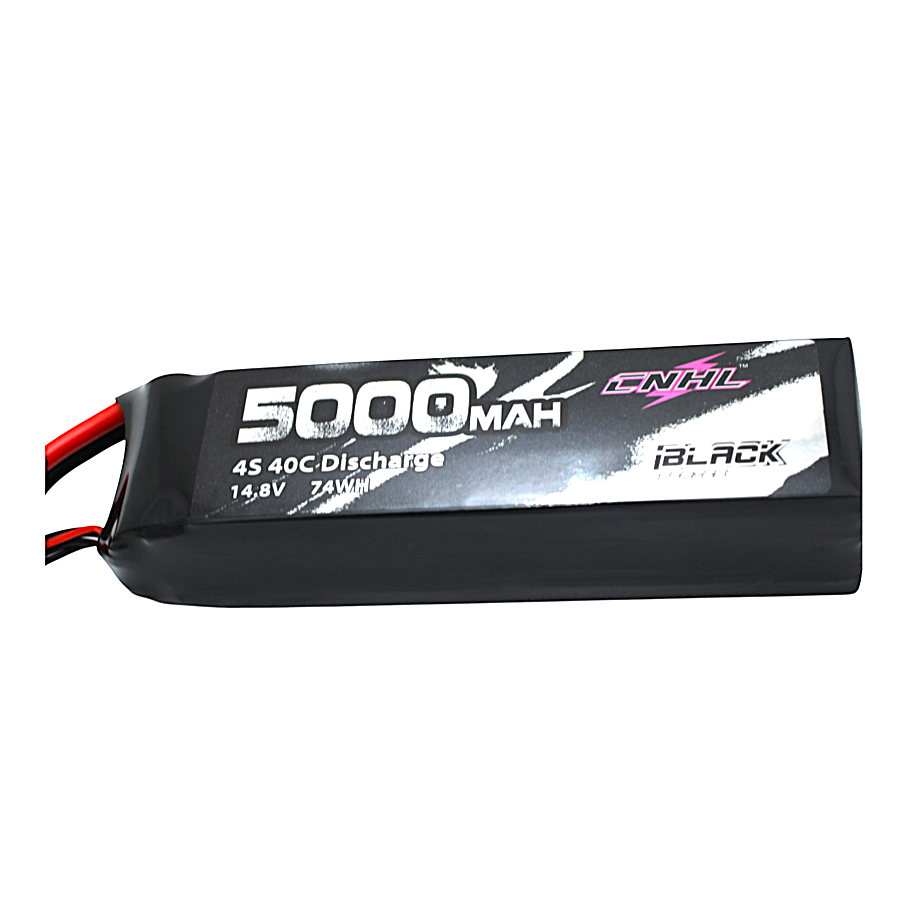

CNHL Black Series 5000mAh 14.8V 4S 40C Lipo Battery with XT90 Plug

This is the Black variant of the CNHL Black Series 5000mAh 14.8V 4S 40C Lipo Battery with XT90 Plug in 4 cell Lipo (14.8V ~ 16.8V), Batteries, Chargers and Accessories, LiPo Battery. Available at ₹7,850.54 (₹6,653.00 + GST) with free shipping across India.

The CNHL Black Series 5000mAh 14.8V 4S 40C LiPo battery with XT90 plug is a popular choice among RC hobbyists, particularly in applications such as drones, RC airplanes, RC cars, and other electric-powered vehicles. Here’s some information about it:

1. Capacity: 5000mAh (milliampere-hour) indicates the amount of charge the battery can store. In simpler terms, it suggests the runtime of the device it powers. A higher capacity generally means longer runtime.
2. Voltage: 14.8V (volts) is the nominal voltage of this battery. It’s a 4-cell LiPo battery pack, with each cell providing approximately 3.7V. When connected in series, the voltages add up, resulting in 14.8V.
3. Cell Count: 4S indicates that it consists of 4 cells in series. This arrangement provides a higher voltage suitable for many RC applications.
4. Discharge Rate (C-rating): 40C is the discharge rating of the battery. It indicates the maximum safe continuous discharge rate, which in this case is 40 times the capacity of the battery. Higher C-ratings mean the battery can deliver more current to the motor or other components without damage.

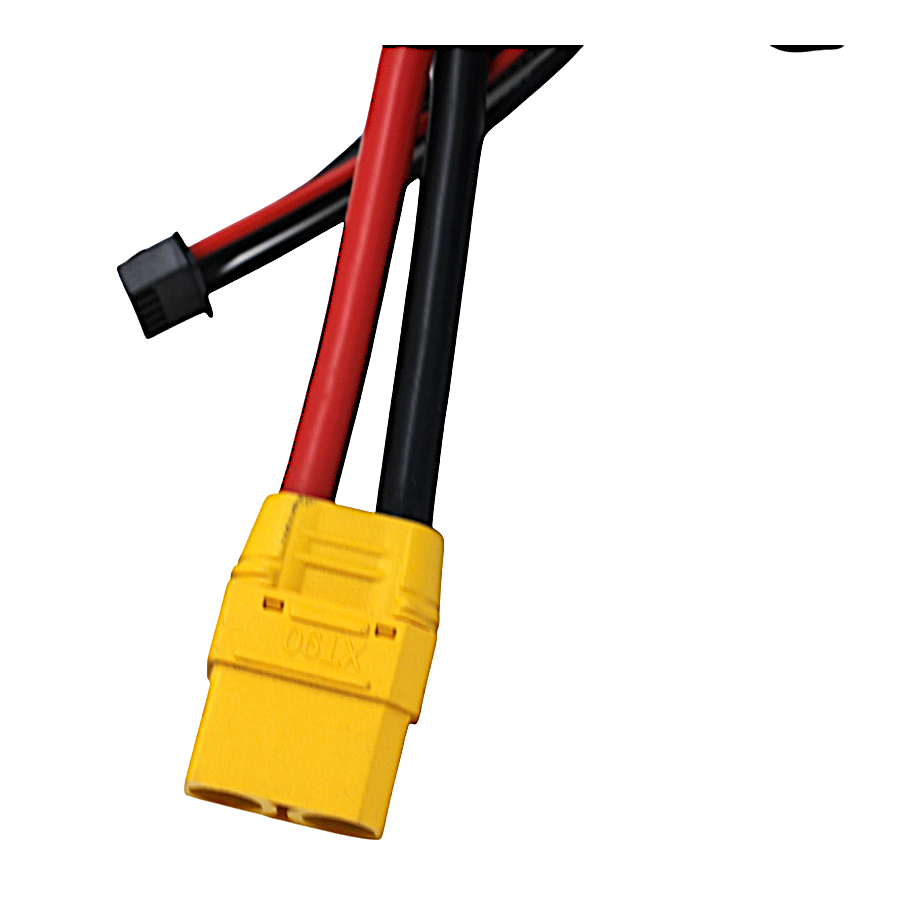

5. Connector Type: XT90 plug is a type of connector used to connect the battery to the device. XT90 plugs are known for their high current handling capabilities and are commonly used in RC applications.
6. Brand: CNHL (China Hobby Line) is a well-known brand in the RC community, known for producing high-quality LiPo batteries.
7. Black Series: This likely refers to a product line within CNHL, which may signify certain features or characteristics of the battery, such as improved performance or durability.

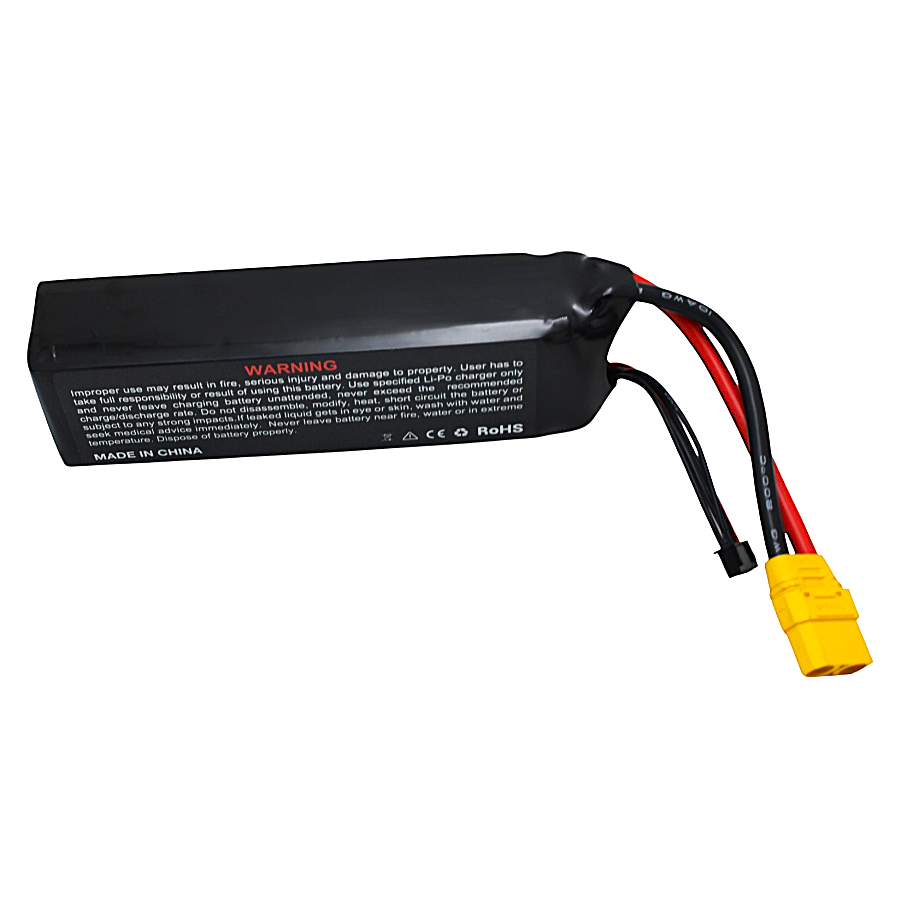

When using LiPo batteries, it’s important to follow proper handling and charging procedures to ensure safety and longevity. Overcharging, over-discharging, or puncturing LiPo batteries can result in fire or explosion hazards. Always use a LiPo-compatible charger set to the correct voltage, and never leave batteries unattended while charging. Additionally, it’s advisable to store LiPo batteries in a fireproof container or bag when not in use.

Package Include-

1 X CNHL Black Series 5000mAh 14.8V 4S 40C Lipo Battery with XT90 Plug

CNHL Black Series 5000mAh 14.8V 4S 40C Lipo Battery with Overview

The CNHL Black Series 5000mAh 14.8V 4S 40C LiPo battery with XT90 plug is a high-performance power pack designed for serious RC enthusiasts. It delivers sustained high-current output for drones, RC airplanes, cars and other electric models.

Key Features of CNHL Black Series 5000mAh 14.8V 4S 40C Lipo Battery with

• 5000mAh capacity for extended runtime during long flight or drive sessions
• Nominal voltage of 14.8V from four cells in series (4S configuration)
• 40C continuous discharge rate supports high-power brushless setups
• XT90 plug ensures a secure, low-resistance connection to your ESC or power distribution board
• Robust heat-shrink cell wrapping adds durability and vibration resistance
• Fast shipping from Zbotic with dispatch within 24 hours*

Applications and Use Cases

• 4-rotor and hexacopter drones needing reliable high-current bursts
• Fixed-wing RC airplanes that demand steady voltage under load
• 1/10 scale RC cars, buggies and truggies for longer race sessions
• RC boats and watercraft requiring consistent power delivery
• Custom robotics or electric skateboard projects using 14.8V power
• FPV racing setups where weight-to-performance ratio is critical

How to Use CNHL Black Series 5000mAh 14.8V 4S 40C Lipo Battery with

Begin by balance-charging the pack at the 4S setting on a LiPo charger, ensuring each cell reaches full voltage. Connect the XT90 plug to your ESC or battery connector, observing correct polarity. During operation, monitor cell voltages and land or power down your model when any cell approaches its minimum safe voltage to protect battery lifespan.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

What charging rate is recommended for this 4S battery?

We recommend charging at 1C (5A) for regular use to balance speed and cell health. You may charge up to 5C (25A) if you need faster charging, but always use the XT90 balance lead for accurate cell monitoring.

Is this pack compatible with my 4S ESC?

Yes. This 14.8V 4S LiPo battery with XT90 connector is fully compatible with any ESC or power distribution board designed for 4-cell LiPo packs.

How should I store the LiPo when not in use?

Store at a storage voltage of around 3.85V per cell in a cool, dry environment. Ideally keep it in a LiPo-safe bag or fire-resistant container to minimize risk.
