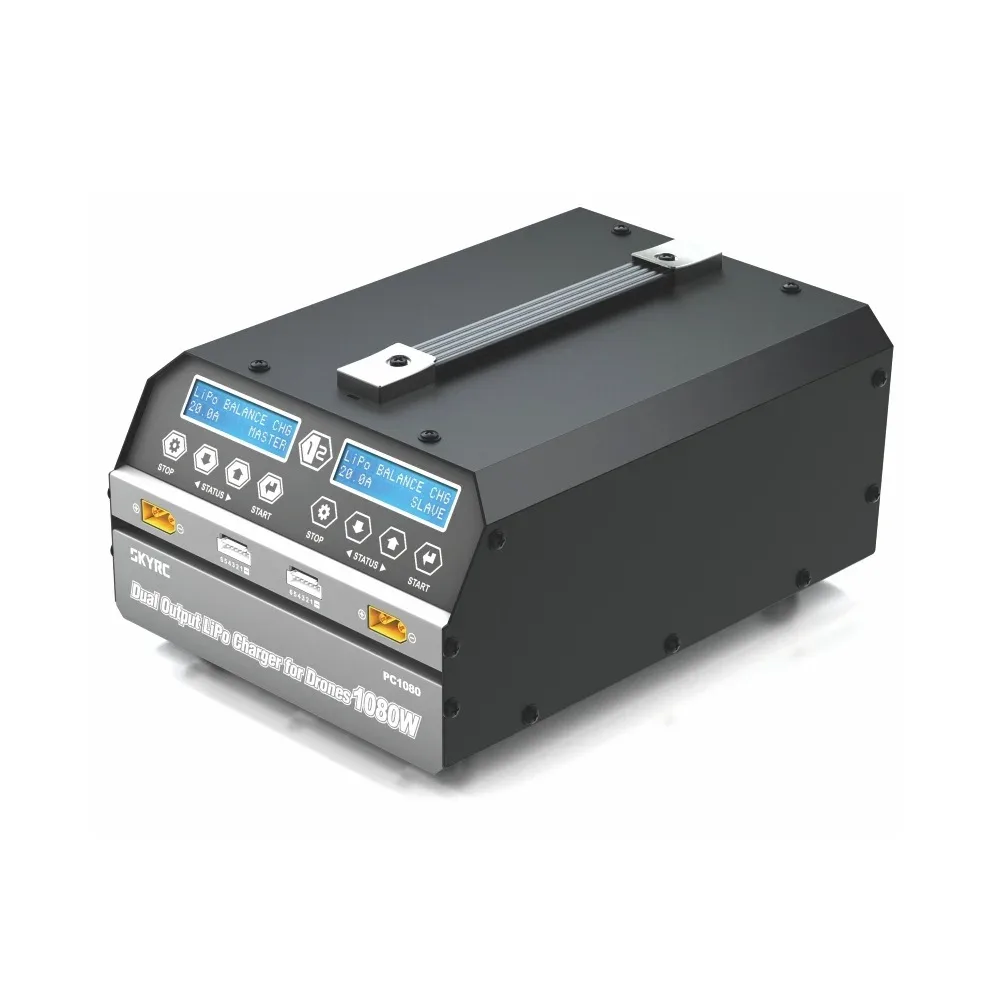

Original SKYRC PC1080 Dual Channel LiPo Battery Charger

Looking for Pc1080 Battery? Original SKYRC PC1080 Dual Channel LiPo Battery Charger is available at Zbotic with fast shipping across India.

SKYRC PC1080 Dual Channel LiPo Battery Charger

This is a dual-channel 6S LiPo charger for industrial drones. It has reliable, safe and easy-to-use features, such as battery voltage meter, internal resistance meter, LiHV charging mode and synchronization mode.

You can use this charger to balance charge two 6-cell battery packs at the same time. It is designed for large battery packs. It also has a master-slave control mode that lets you sync more than one charger for the same batteries. It uses a 32-bit high-speed CPU from STMicroelectronics that boosts its processing speed by 20 times.

Key characteristic SkyRC PC1080 Charger:

1. High-Frequency Capacitor: Using high spec large capacitor ensures the charger can work properly for a longer period of time.
2. Active PFC: Active PFC uses circuitry to correct the amount of power drawn to obtain the best ratio of power factor, achieving high efficiency, 93%. Which makes the product more stable and reduces the interference to the power grid.
3. Switched-mode Power Supply: Accepts power from mains supplies throughout the world.
4. Conformal Coating: Conformal coating helps electronics withstanding harsh environments, and protects them against moisture, dust, chemicals, corrosive attack and temperature extremes etc. It also ensures PC1080 has stable performance in the field.
5. Automatically Charging 12 Packs of Batteries in Sequence: PC1080 pairing with G630 charging hubs, an automatic charging management system, can charge 12 packs of LiPo batteries in sequence, according to its remaining capacity (percentage), the one with the highest capacity will be charged first.

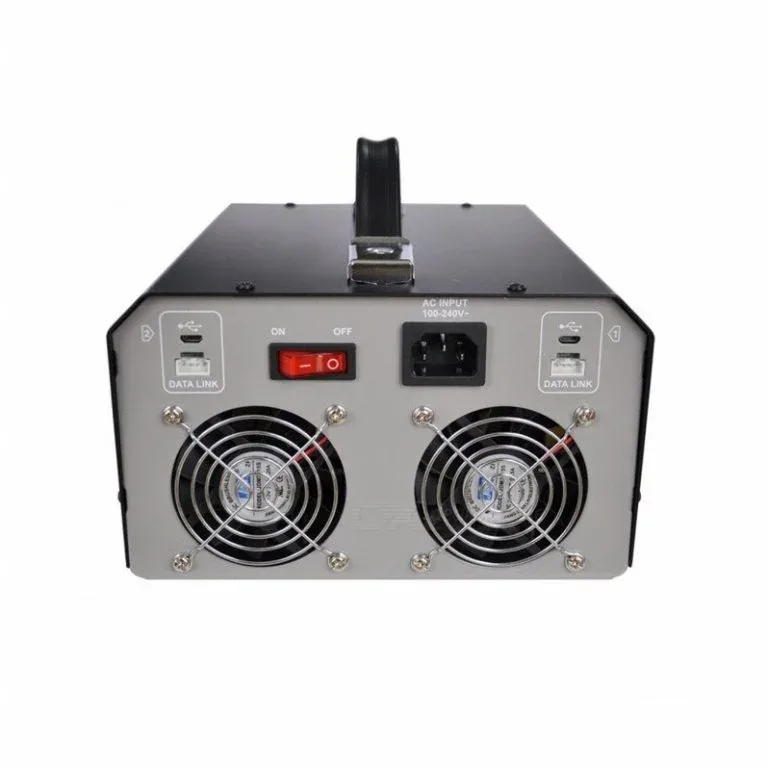

6. Dual Ball Bearing High-Speed Cooling Fans: Dual ball bearing high-speed cooling fans with wing type blades design, provides good ventilation and a cool working condition.
7. High-Density Fin-type Aluminum Heatsink: Fin-type design, large surface, greatly improved heat dissipation, ensures long-time stable working performance.
8. Maximized Safety Protection: It has short circuit protection, reverse polarity protection and over-temperature protection. And it complies with required regulations of CE, RoHS, FCC, proving to be safe and reliable for the designed usage.
9. Battery Internal Resistance Meter: With this function, the internal resistance of each cell will be displayed on the screen. Internal resistance is a key feature which reflects the health status of the battery, the lower internal resistance indicates the higher battery quality. Also, this value can help you pair your batteries.

Features:

1. ONE-KEY to start charging(20A Current in default)
2. Unique synchronization function, one can control multiple chargers.
3. With battery voltage detection, battery internal resistance detection, real-time understanding of battery working status.
4. Short circuit maintenance, reverse protection, over-temperature protection and other maintenance functions.
5. Built-in anti-fire protection circuit to avoid sparking when connecting battery.

Original SKYRC PC1080 Dual Channel LiPo Battery Charger Overview

The Original SKYRC PC1080 Dual Channel LiPo Battery Charger is a high-performance charging station designed for 6-cell LiPo and LiHV battery packs used in industrial drones and RC applications. Its dual-channel design allows simultaneous balance charging of two 6S packs, while onboard meters display voltage, internal resistance and charge status in real time.

Key Features of Original SKYRC PC1080 Dual Channel LiPo Battery Charger

• Dual-channel output supports two 6-cell LiPo/LiHV packs at once
• Three working modes: balance charge, fast charge and storage charge
• Adjustable current settings up to the charger’s maximum per channel
• 2×16-character LCD shows voltage, current, capacity and internal resistance
• Master-slave sync port lets you link multiple units for higher throughput
• Genuine product, fast shipping from Zbotic across India

Applications and Use Cases

• Charging 6S LiPo packs for industrial and commercial drone fleets
• Maintaining battery health for high-performance RC models and FPV racing
• Simultaneous recharge of multiple battery packs in workshop environments
• Storing LiPo packs at safe voltage levels for seasonal equipment storage
• Testing battery internal resistance as part of regular maintenance

How to Use Original SKYRC PC1080 Dual Channel LiPo Battery Charger

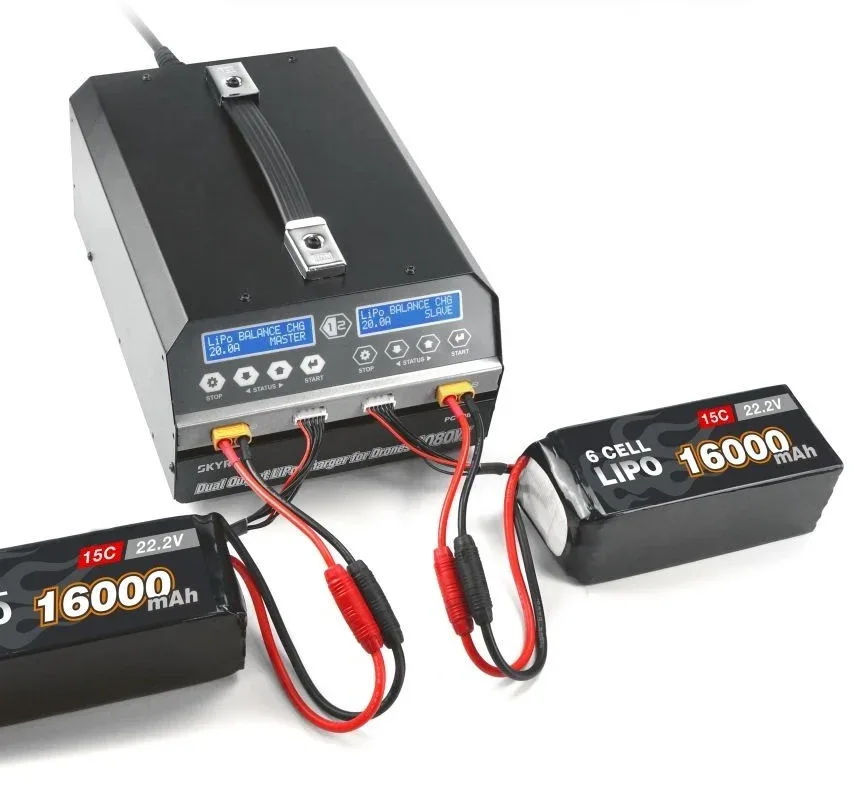

Connect the PC1080 to AC mains, then plug your 6S LiPo or LiHV battery packs into Channel A and B balance ports. Use the front-panel buttons to select balance, fast or storage mode, adjust the charge current, and start charging. Monitor voltage, capacity and internal resistance on the dual 2×16 LCD screen until the cycle completes.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

What battery chemistries and cell counts are supported?

The PC1080 supports 6-cell LiPo and high-voltage LiHV battery packs on each channel. It provides balance charging specifically for 6S configurations.

How do I enable LiHV charging mode?

From the main menu, navigate to the battery type selection, choose “LiHV,” then confirm the cell count (6S). The charger will adjust the end voltage accordingly.

Can I link multiple PC1080 units for higher charging capacity?

Yes. Use the master-slave sync ports to connect two or more PC1080 chargers. One unit acts as master, syncing charge parameters across all connected units.
