Powerful, Robust, Simple
The SkyRC BD250 is a robust discharging unit that enables users to discharge batteries at up to 35 amps or 250 watts, while also measuring and comparing battery performance. The BD250 facilitates accurate battery capacity measurements, eliminating the uncertainty in selecting the best battery for specific needs.
More than just a basic battery discharger or load tester, the BD250 can test almost any battery type or size, any chemistry, and any number of cells, up to 35 volts.
Compact in design, it features an efficient cooling system and utilizes MOSFETs from the renowned brand IXYS, ensuring it can sustain a continuous 250-watt discharge.
Big Breakthrough Fan System
A single, larger fan pushes air downward through an extruded aluminum heat sink. As air passes vertically through the heat sink, it absorbs heat and carries it out. This makes the BD250 discharge rate at 250 watts continuous possible.
Features:
- It displays real-time battery voltage, discharged capacity, and discharge current.
- It can test battery capacity that helps select batteries with desired capacity.
- It saves time when the user wishes to store their large-capacity batteries.
- It helps activate the best performance of your batteries during racing competitions.
Specification-
| Discharge Voltage Range (V) | 5.40 – 35.00 |
|---|---|
| Low Voltage Alert: | <5.2V |
| High Voltage Alert: | >35V |
| Maximum Discharge Power (W) | 250 |
| Dischage Current Range (A) | 0.01 – 35.00 |
| Current Consumption in Sleep Mode: | <100uA |
| Current Display Accuracy: | 0.01-10.00A ±60mA 10.00-35.00A ±3% |
| Voltage Display Accuracy: | 5.4-10V <80mV 10-20V <120mV 20-35V <160mV |
| Capacity Display Accuracy: | ±3% |
| Dimensions (LxWxH) mm | 136.6 x 104.8 x 107 |
| Weight (g): | 879 |
| Shipping Weight | 0.98 kg |
| Shipping Dimensions | 17 × 13 × 13 cm |

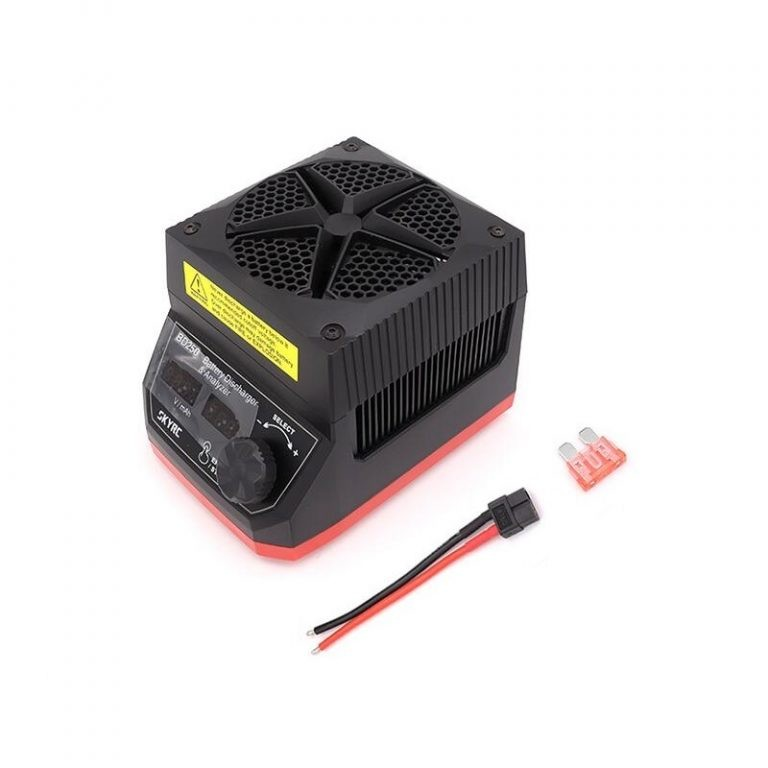

Package Includes:
1 x SKYRC BD250 2-8S LiPo/LiFe Battery Discharger / Analyzer

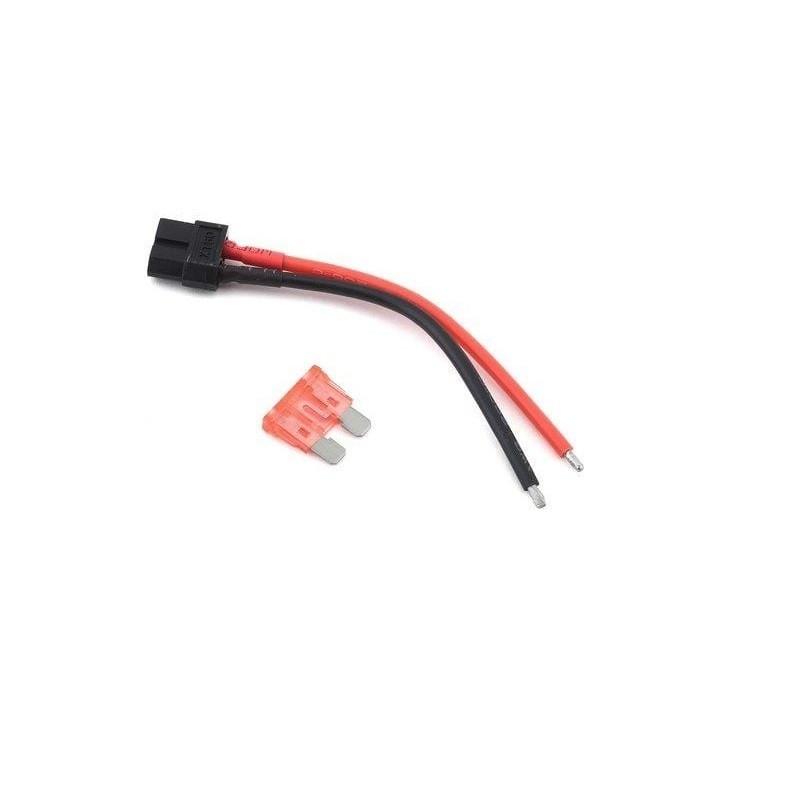

1 x XT60 Discharge Cable
1 x Replacement Fuse
Original SKYRC BD250 2-8S LiPo/LiFe Battery Discharger / Overview
The SKYRC BD250 is a robust battery discharger and analyzer designed for 2-8S LiPo and LiFe packs. It delivers up to 35 A (250 W) continuous discharge while accurately measuring capacity, current, and voltage for reliable battery performance comparisons.
Key Features of Original SKYRC BD250 2-8S LiPo/LiFe Battery Discharger /
- Compatible with 2-8S LiPo/LiFe packs up to 35 V
- Max discharge current 35 A and power 250 W for fast capacity testing

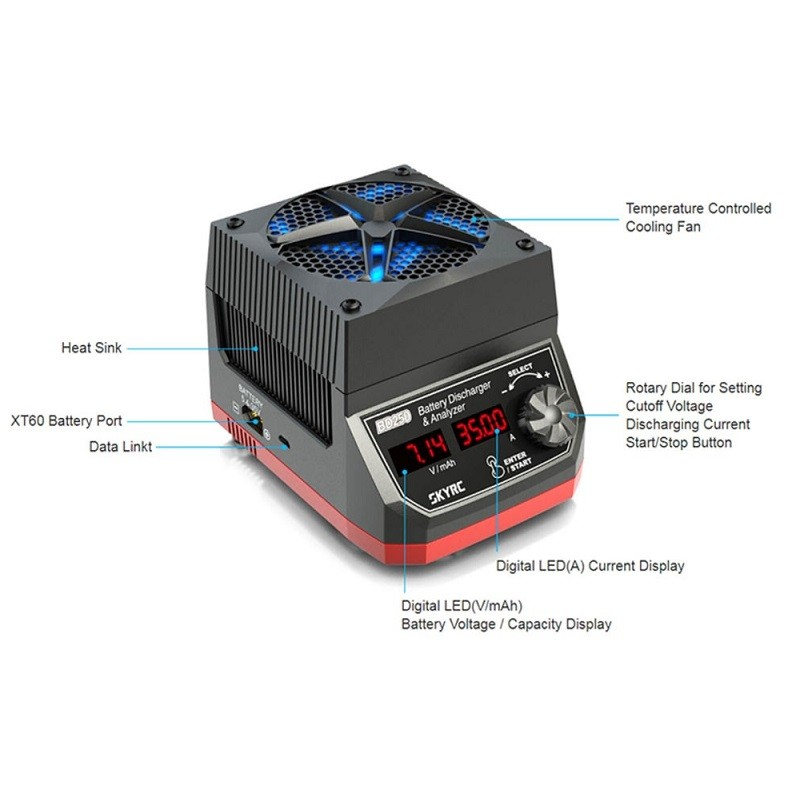

- Real-time LCD displays voltage, discharge current, and capacity
- Advanced IXYS MOSFETs and single large fan with extruded aluminum heatsink for sustained loads
- Intuitive front-panel controls plus easy-to-use PC software for data logging
- Genuine SKYRC unit, fast shipping from Zbotic
Applications and Use Cases
- Capacity testing for RC drone and model aircraft battery packs
- Quality control in battery pack assembly and repair workshops
- Storage discharge to maintain LiFe battery health over long periods
- Bench testing of power sources for robotics and electronics projects
- Evaluation of backup bank performance for solar or UPS systems
How to Use Original SKYRC BD250 2-8S LiPo/LiFe Battery Discharger /
Connect your charged battery pack to the BD250’s discharge terminals, select the desired current and cutoff voltage using the front-panel knob or PC software, then press “Start.” Monitor live readings on the LCD as the unit discharges. The BD250 will automatically stop when the programmed capacity is reached or the cutoff voltage is hit, ensuring safe and repeatable tests.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can the BD250 handle NiMH or NiCd batteries?
Yes, the SKYRC BD250 supports virtually any battery chemistry, including NiMH and NiCd packs, by setting the correct voltage cutoff and discharge current up to 35 V.
How does the cooling system prevent overheating during long discharge cycles?
The BD250 features a large axial fan that pushes air through an extruded aluminum heatsink and utilizes high-quality IXYS MOSFETs, allowing continuous 250 W operation without thermal shutdown.
Is data logging available with the BD250?
Absolutely. Connect the BD250 to your PC via USB and use the included SKYRC software to record discharge curves, export test results, and compare multiple battery profiles.
