Description:
The SG 90 9G Mini Micro Servo plastic gear 180 degrees can rotate approximately 180 degrees (90 in each direction) and works just like the standard kinds you’re used to but smaller. You can use any servo code, hardware, or library to control these servos. Good for beginners who want to make stuff move without building a motor controller with a feedback gearbox, especially since it will fit in small places. Of course, it is not nearly as strong as a standard servo. Works great with the Motor Shield for Arduino or by just wiring up with the Servo library.
To control with an Arduino, we suggest connecting the orange control wire to pin 9 or 10 and using the Servo library included with the Arduino IDE. Position “0” (1.5ms pulse) is middle, “90” (~2ms pulse) is all the way to the right, and “-90” (~1ms pulse) is all the way to the left.
Unlimited Power for Precise Control:
Introducing the SG90 New Style Servo Motor, equipped with unlimited power within a 0-180° range. Experience the ultimate control and precision with this cutting-edge servo motor. Whether you’re an electronics enthusiast, hobbyist, or robotics expert, our servo motor provides you with unrivaled performance. The new style design ensures smooth and efficient movement, enabling you to execute complex motions with ease. From small-scale projects to advanced robotics, this servo motor’s limitless power opens up a world of possibilities for your creations.
Enhanced Durability with Plastic Accessories:
We understand the importance of reliability in your projects, and that’s why our SG90 Servo Motor comes with top-quality plastic accessories. These accessories enhance the motor’s durability and ensure consistent performance over time. The sturdy construction guarantees resistance to wear and tear, making it ideal for prolonged use in various applications. No matter the intensity of your projects, our servo motor with plastic accessories remains steadfast, providing you with the reliability you need for all your endeavors.
Versatile Applications and Easy Integration:
Versatility is key, and the SG90 Servo Motor delivers just that. With its wide range of applications, this servo motor is perfect for robotics, automation, RC vehicles, and DIY electronics projects. Seamlessly integrate it into your existing setups or use it as a central component for your new creations. Its compact size and lightweight design ensure easy installation, saving you valuable time and effort. Unleash your creativity and explore the endless possibilities that our SG90 Servo Motor offers.
Wire Description:
- RED – Positive
- Brown – Negative
- Orange – Signal
Specifications:
| Model | SG90 Micro Servo |
|---|---|
| Operating Voltage (VDC) | 3.0 ~ 7.2 |
| Operating Speed @4.8V | 0.10sec/60° |
| Stall Torque @ 4.8V (Kg-Cm) | 1.2 |
| Stall Torque @6.6V (Kg-Cm) | 1.6 |
| Operating Temperature (°C) | -30 to 60 |
| Dead Band Width ( μs) | 7 |
| Gear Type | Glass Fiber |
| Rotational Degree | 180º |
| Servo Plug | JR |
| Cable Length (cm) | 25 |
| Length (mm) | 22.8 |
| Width (mm) | 12.6 |
| Height (mm) | 34.5 |
Product Parameter:
Applications:
- Used as actuators in many robots like Biped Robot, Hexapod, robotic arm, etc.
- Commonly used for steering systems in RC toys
- Robots where position control is required without feedback
- Less weight hence used in multi-DOF robots like humanoid robots

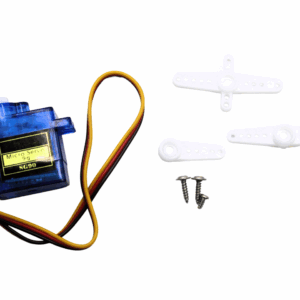

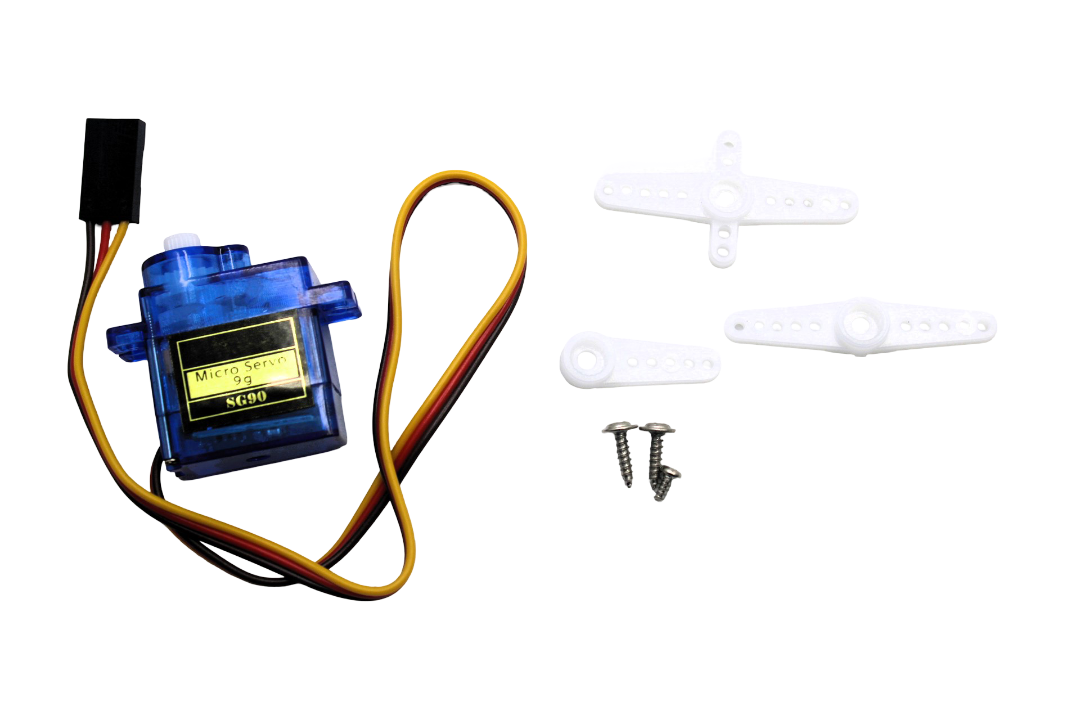

Package Includes:
- 1 x SG90 9g Mini Servo Motor with Cable
- 1 x Set of Horns
- One Point
- Two Point
- Four Point
- 1 x Set of Screws
