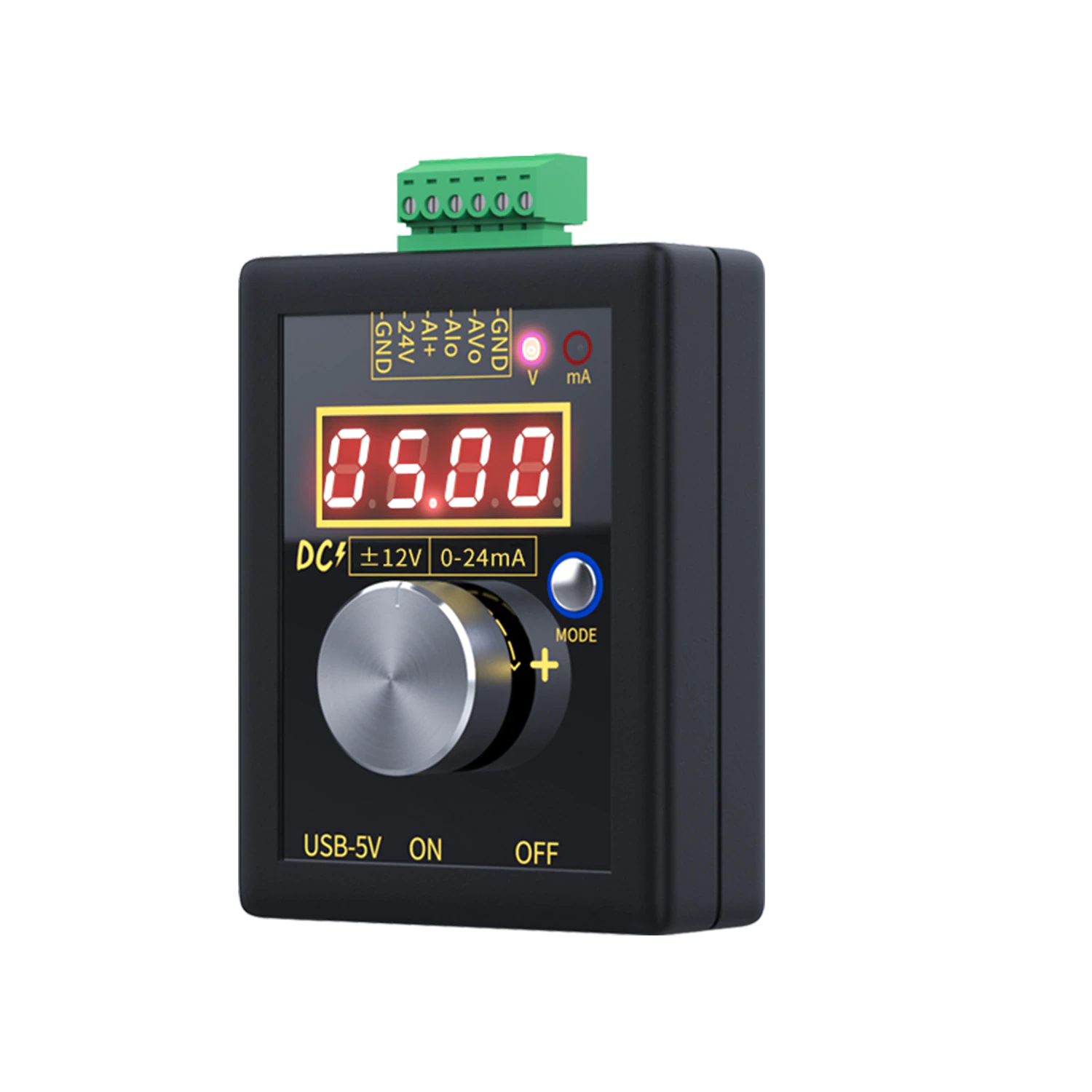

SG-002 Handheld Analog ±12V/0-24mA Signal Generator and Rechargeable Battery Pocket Voltage Current Simulator Calibrator With Battery
The SG-002 Analog Signal Generator is specifically engineered to simulate voltage and current signals, making it an indispensable tool for PLC and panel debugging, as well as device testing across various applications including Frequency Converters and Flow Valves. Its versatility allows for the generation of signals ranging from 0-12V voltage and 0-24mA current, providing precise and reliable output for electronics testing.
This signal generator offers user-friendly operation, requiring only a micro-USB 5V power supply for connection. Additionally, it features a clear display capable of showing four different types of digits: 0-12V voltage, 0-24mA current, 0-100 percent, and 0-50Hz frequency. With its ease of use and comprehensive display capabilities, the SG-002 plays a pivotal role in facilitating efficient and accurate electronic work.
Features:
- Power Supply: external micro-USB-5V.
- Voltage Output: 0-12V, precision is 0.01V, rotate the encoder knob to adjust the output voltage, can be calibrated.
- Current Output: 0-24mA, precision is 0.01mA, rotate the encoder knob to adjust output current, can be calibrated.
- Multiple Display: just push the small button to switch the display mode between voltage and current, you can also follow the instructions to switch 0-100 percent or 0-50HZ display.
Package Includes:
1 x SG-002 Handheld Analog ±12V/0-24mA Signal Generator and Rechargeable Battery Pocket Voltage Current Simulator Calibrator With Battery
SG-002 Handheld Analog ±12V/0-24mA Signal Generator and Overview
The SG-002 is a compact, battery-powered handheld analog signal generator designed to simulate voltage and current loops for calibration and testing. It outputs adjustable ±12 V and 0–24 mA signals, making it ideal for PLC debugging, field device simulation, and panel commissioning.
Key Features of SG-002 Handheld Analog ±12V/0-24mA Signal Generator and
- Adjustable output voltage range of ±12 V and current range of 0–24 mA
- Rechargeable internal battery powered via external micro USB 5 V input
- Multiple display modes (voltage, current, percentage) easily toggled with a push button
- High-precision potentiometer for fine signal adjustment
- Compact pocket-sized design for field and workshop portability
- Genuine product with fast shipping across India from Zbotic
Applications and Use Cases
- Simulating 4–20 mA transmitter signals for PLC input module testing
- Calibrating flow meters, level sensors, and pressure transducers
- Debugging frequency converters and inverter drive analog inputs
- Verifying panel-mounted indicator gauges and chart recorders
- Testing control valves and actuators under simulated process conditions
- Routine maintenance checks on analog I/O channels in industrial systems
How to Use SG-002 Handheld Analog ±12V/0-24mA Signal Generator and
Charge the SG-002 via the micro USB port using a 5 V supply, then connect the output leads to your device’s input terminals. Use the display-mode button to select voltage or current view, and adjust the front-panel knob to generate the required signal. Monitor the readout as you fine-tune to the exact value needed for calibration or simulation.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What output ranges can the SG-002 generate?
The SG-002 provides an adjustable voltage output of ±12 V and a current output from 0 to 24 mA. You can smoothly vary the signal within these limits for precise calibration.
How do I switch between voltage and current display modes?
Press the small push button beneath the LCD to cycle through voltage, current, and percentage readouts. Each press changes the displayed parameter without altering the output setting.
How is the SG-002 powered and how long does it run per charge?
The unit charges via a standard micro USB (5 V) connection. A full battery charge typically provides several hours of continuous output testing—ideal for extended field use.
Technical Specifications
| Model | SG-002 |
|---|---|
| Voltage Range | 12V - 112V |
| Current Rating | 24mA |
| Interface / Protocol | BLE |
| SKU | AI4211 |
| Weight | 0.12 kg |
| Availability | In Stock |
Applications & Use Cases
The SG-002 Handheld Analog ±12V/0-24mA Signal Generator and Rechargeable Battery Pocket Voltage Current Simulator Calibrator With Battery is a versatile signal generator module & oscilloscopes used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
