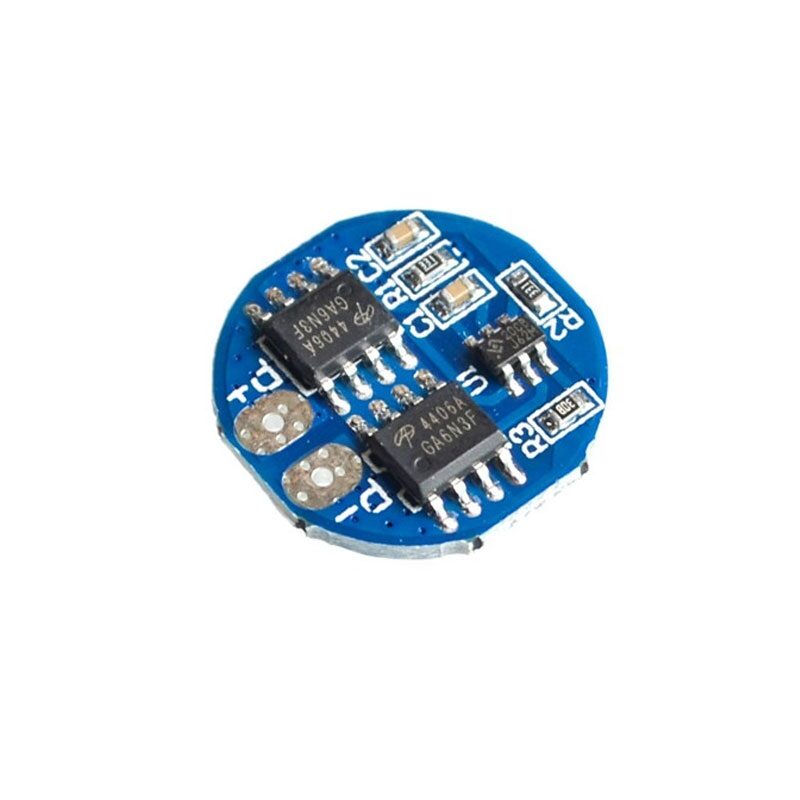

This is the 4V variant of the HX-2S-A2 Circular 2S 8.4V BMS 18650 Lithium Battery Protection Plate in Battery Protection Board. Available at ₹41.42 (₹35.10 + GST) with free shipping across India.
This is an HX-2S-A2 Circular 2S 8.4V BMS 18650 Lithium Battery Protection Plate With short circuit protection, overload, discharge and overcharge protection. Due to its small size, excellent performance and low cost, the product is suitable to meet a wide range of requirements.
Note:
- The battery will heat when using it, it means the battery does not apply, please don’t keep using because the battery will be damaged soon.
- The protection board cannot be used for lithium iron phosphate battery, hernia lamp, hand drill battery pack, electric fish machine battery pack, electric bicycle battery pack, children’s car battery, 775 (4A)motor, 1W fish eye LED light!

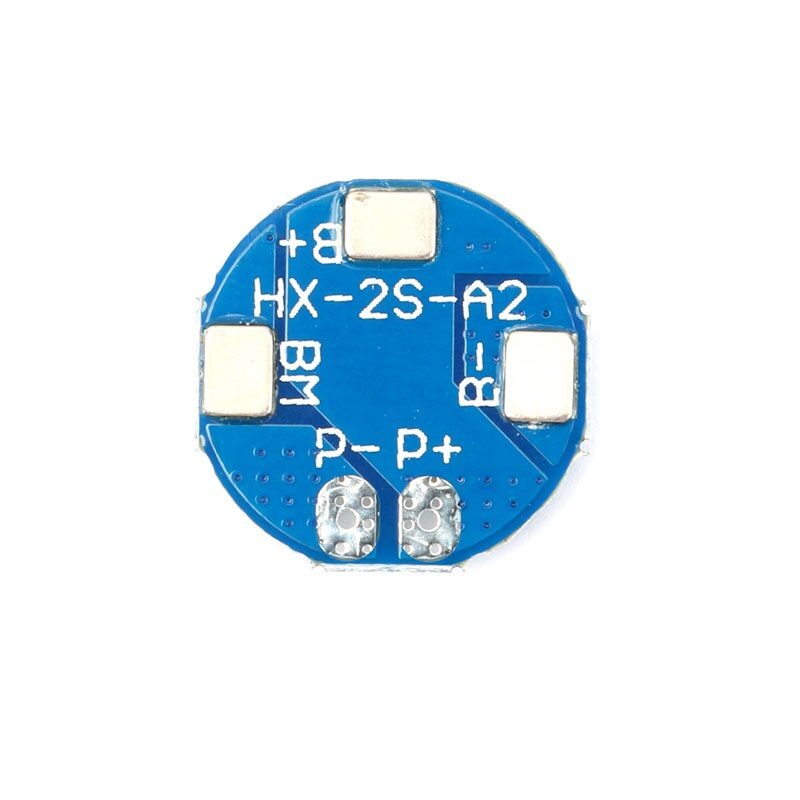

Connector :
- B +: Connected to the battery positive
- B-: Connected battery negative
- MB: Connect the battery 1 to the connection point before battery 2
- P + : Charge / discharge side positive (shared charge / discharge side)
- P- : Connection / discharge terminal negative (charge / discharge side shared)
Features :
- It is safe and reliable to use.
- Small and compact.
- Easy connections.
Package Includes :
1 x HX-2S-A2 Circular 2S 8.4V BMS 18650 Lithium Battery Protection Plate
How to Read Battery State of Charge: Voltage vs Actual Capacity
How to Read Battery State of Charge: Voltage vs Actual Capacity Understanding battery state of charge voltage SOC...
Read More →
Solar Panel IV Curve: Understanding Open Circuit Voltage
Solar Panel IV Curve: Understanding Open Circuit Voltage If you have ever picked up a solar panel for...
Read More →
Power Bank Build: Custom Capacity 18650 Power Pack
Table of ContentsDesigning Your Power Bank Components List Circuit Assembly Charging Circuit with TP4056 Boost Converter for 5V...
Read More →Technical Specifications
| Model | HX-2S-A2 |
|---|---|
| Operating Voltage | 8.4V |
| Cell Configuration | 2S |
| SKU | AI2083 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The HX-2S-A2 Circular 2S 8.4V BMS 18650 Lithium Battery Protection Plate is a versatile battery protection board used across a wide range of applications including lithium battery pack protection, power bank builds, e-bike battery management, solar energy storage, and UPS systems.
Common use cases:
- Building a custom lithium battery pack
- Adding overcharge/overdischarge protection
- Creating a DIY power bank
This product is ideal for battery pack builders and power electronics engineers.
Technical Tip: BMS boards prevent overcharge, overdischarge, overcurrent, and short circuit. Match cell count (S) and max current rating to your battery pack.
