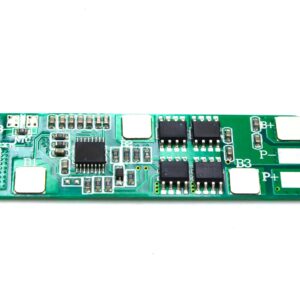

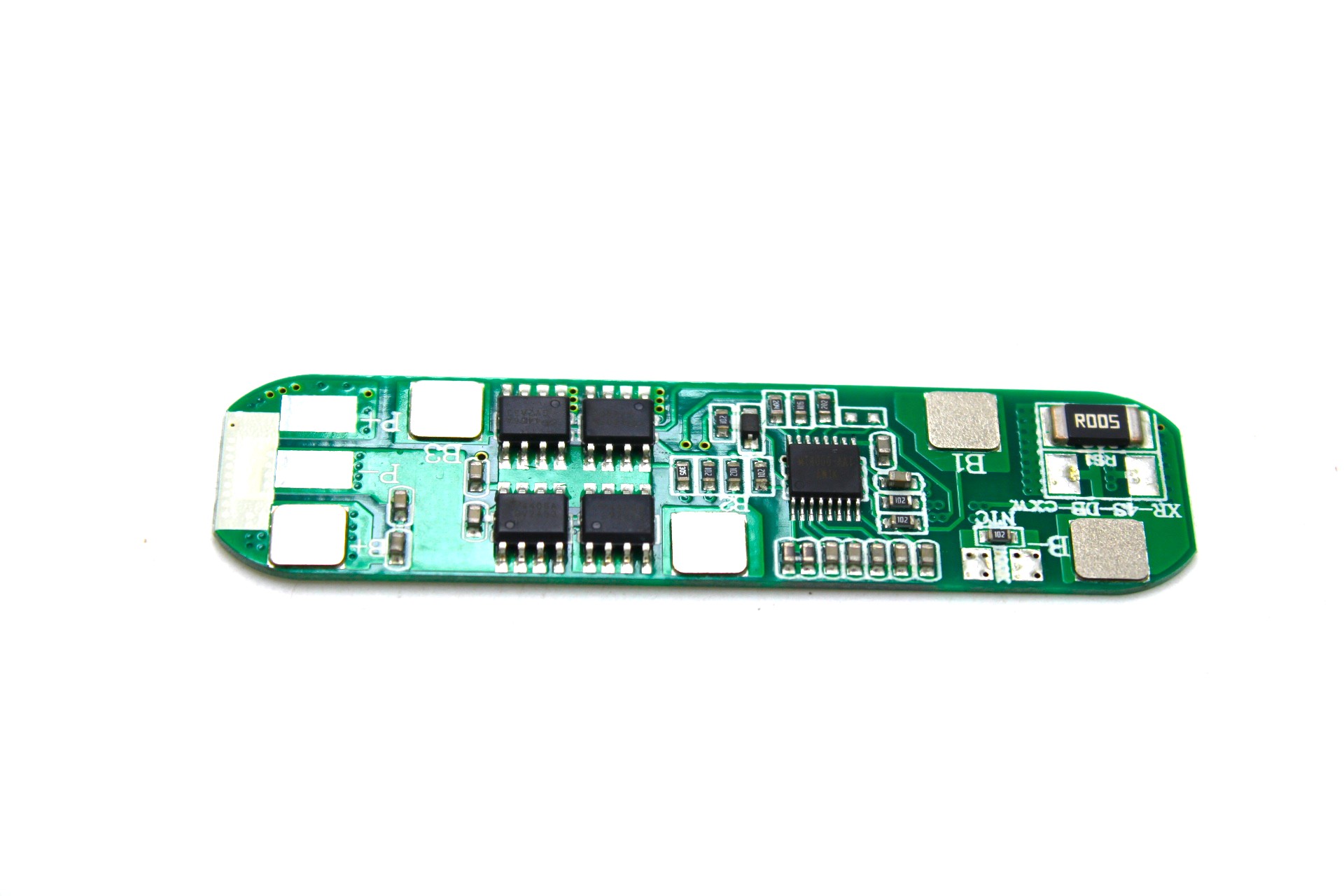

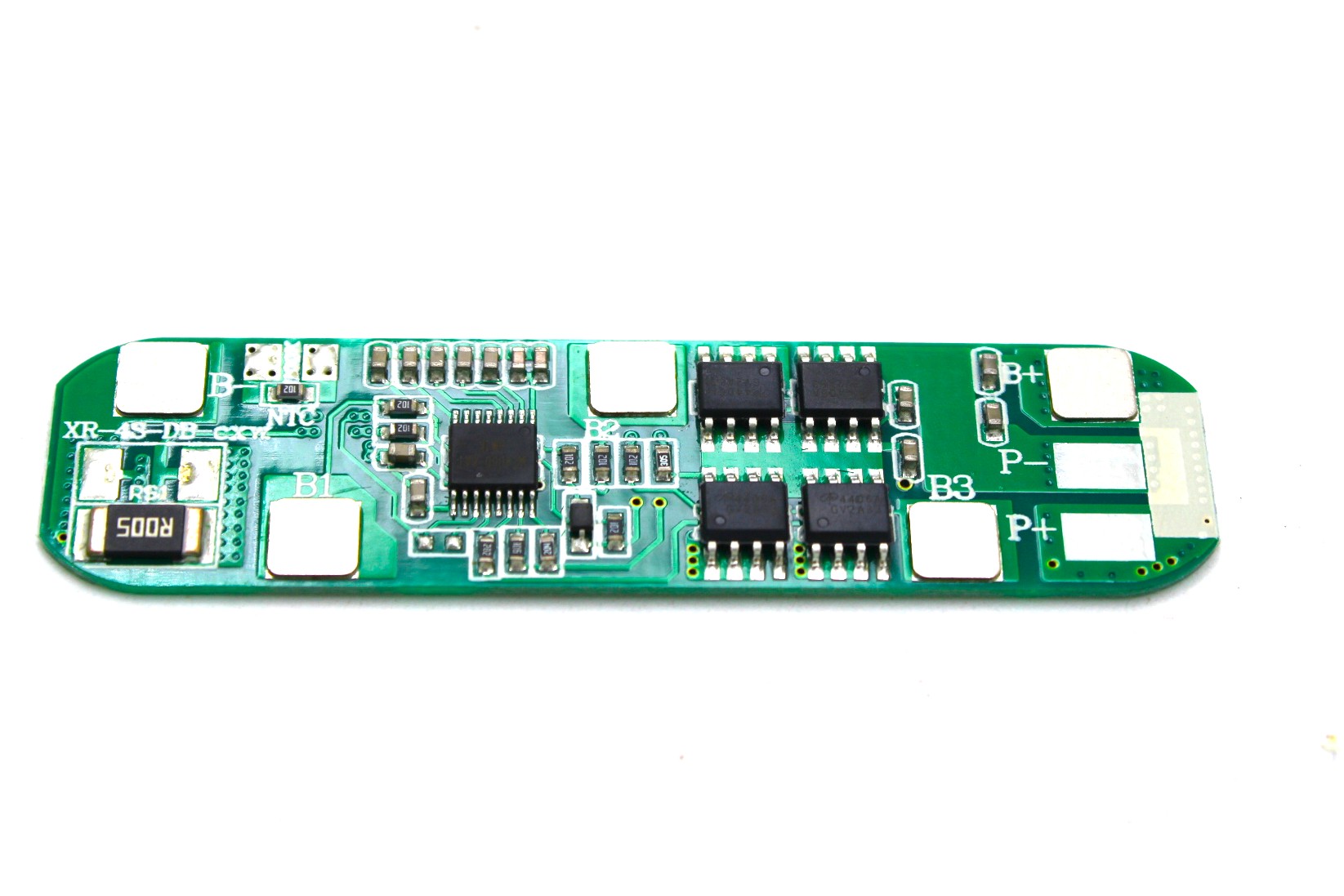

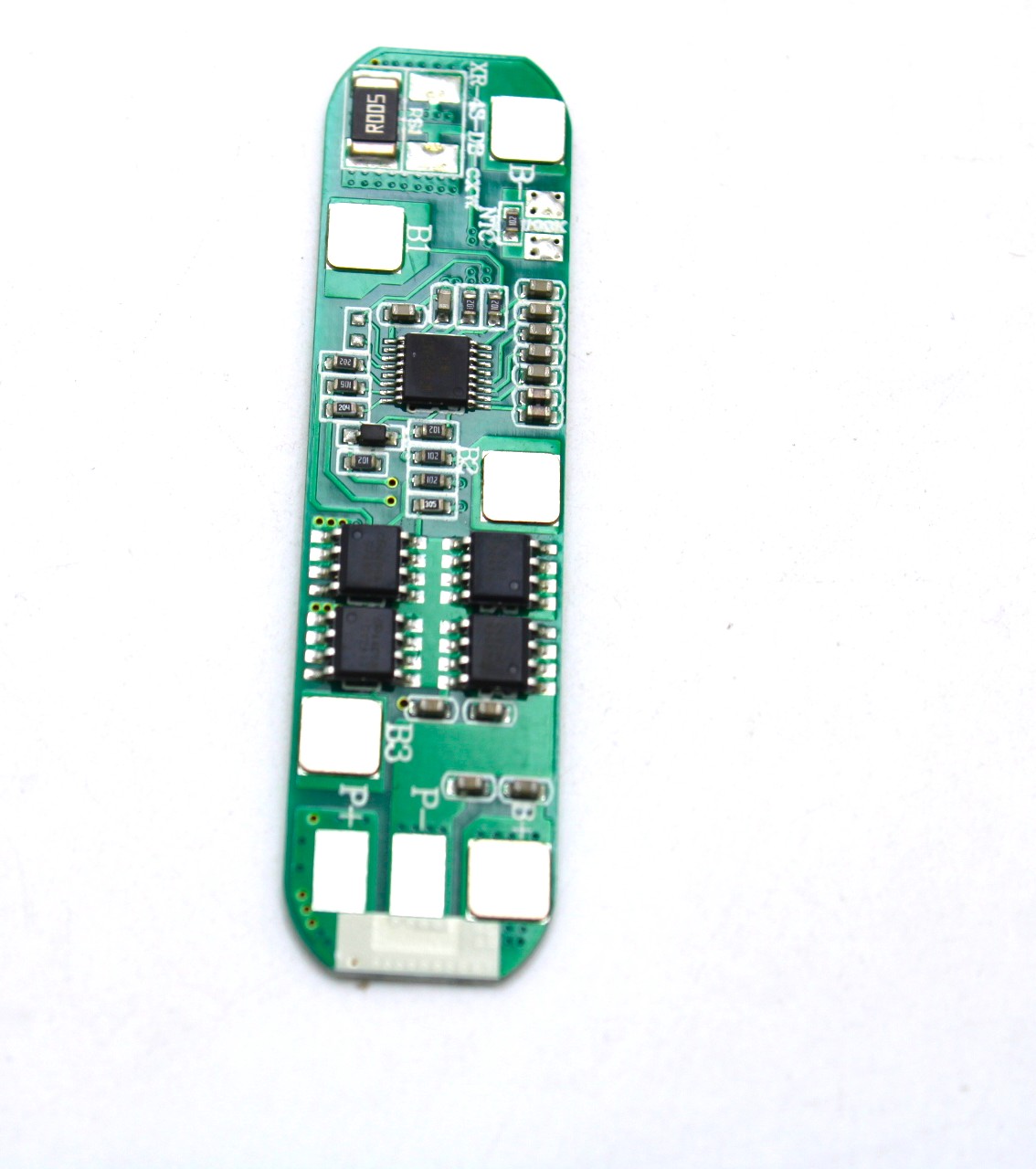

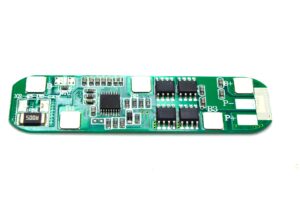

4S 10A 18650 Lithium Battery Protection Board
The 4S 14.8V 10A Lithium Battery Protection Board is equipped with over-charge, over-discharge, over-current, and short circuit protection, suitable for a variety of 3.7V lithium-ion batteries of different shapes. The HX-4S-A10 model is compact, meeting the needs for high integration and low-cost applications, ensuring a wide range of performance requirements to guarantee the absolute safety and reliability of the battery pack.

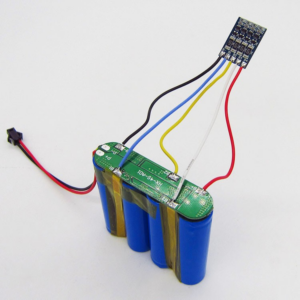

Connect four lithium batteries at B+, B3, B2, B1, B-, with P+ and P- serving as the output or input, as illustrated in the subsequent connection diagram.
Applications:
- Small power inverter
- Massager battery pack
- LED lamp backup power
- Electronic products
- Solar street lamp battery pack
- Monitoring standby power supply.
Specifications:
| Model | HX-4S-A01 |
|---|---|
| Charging voltage | 16.8V-17V |
| Under Discharge | 2.5~3.0V±0.05V |
| Upper working current | 8 to 10A |
| Internal resistance | less than 100mΩ |
| Effective life | more than 50,000 hours |
| Length (mm): | 72 |
| Height (mm): | 17.8 |
| Weight (g): | 3 |
Package Includes:
1 x 4S 10A 18650 Lithium Battery Protection Board
4S 10A 18650 Lithium Battery Protection Board Overview
The 4S 10A 18650 Lithium Battery Protection Board is a compact PCB module designed to safeguard a four-cell (4S) lithium-ion battery pack. Ideal for 3.7 V cells such as 18650s, it provides precise over-charge, over-discharge, over-current and short-circuit protection to ensure reliable and safe operation.
Key Features of 4S 10A 18650 Lithium Battery Protection Board
- Supports up to 4 series Li-ion cells with a nominal voltage of 14.8 V
- 10 A continuous charge and discharge current rating for moderate-power applications
- Built-in precision IC delivers fast, stable charging and accurate cell monitoring
- Comprehensive protection: over-charge cutoff, over-discharge cutoff, over-current limit and short-circuit trip
- Compact HX-4S-A10 design fits tight enclosures and high-integration battery packs
- All boards undergo load and ageing tests to guarantee performance and longevity
- Genuine product with fast shipping from Zbotic across India
Applications and Use Cases
- Portable power banks built from 4×18650 cells for outdoor gear
- DIY battery packs for LED strip lighting and emergency lamps
- Battery management in small electric scooters, e-boards or kick scooters
- Backup energy storage modules for solar or off-grid microcontrollers
- RC vehicles, drones or robotics projects requiring a 14.8 V power source
How to Use 4S 10A 18650 Lithium Battery Protection Board
Mount the board securely in your battery enclosure, then connect the negative lead of cell 1 to B-, the intercell taps to B1, B2 and B3, and the positive lead of cell 4 to B+. Link your charger or load to P+ (positive) and P− (negative). Ensure correct polarity and tight soldering or spot-welding for reliable contacts. After wiring, test the pack under light load and verify that the board cuts off at the specified over-charge and over-discharge voltages.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What voltage range does this board support?
This protection board is designed for a 4S lithium-ion pack with a nominal voltage of 14.8 V, a maximum charge cutoff around 16.8 V and a minimum discharge cutoff near 12 V.
Can it handle high-current discharge loads?
Yes, the HX-4S-A10 board supports up to 10 A continuous discharge current. It will trigger over-current protection if the load exceeds this threshold or in the event of a short circuit.
Is it compatible with other 3.7 V cell formats besides 18650?
Absolutely. While optimized for 18650 cells, the board works with any cylindrical or prismatic Li-ion cells rated at 3.7 V, provided you connect four cells in series.
