Rc Mini Micro 9g 1.6KG Servo SG90 for RC 250 450 Helicopter Airplane Car Boat
A servo is a specialized geared motor designed to rotate up to 180 degrees. Its position is controlled by electrical pulses sent from your UNO R3 board. These pulses determine the angle to which the servo should move. Typically, the servo has three wires: the brown wire is the ground (GND), which connects to the GND port on the UNO; the red wire is the power (5V), which connects to the 5V port; and the orange wire is the signal, which should be connected to digital pin #9 on the board.
Specification:
Universal for JR and FP connector § Cable length : 25cm
No load; Operating speed: 0.12 sec / 60 degree (4.8V), 0.10 sec / 60 degree (6.0V) § Stall torque (4.8V): 1.6kg/cm
Temperature : -30~60’C
Dead band width: 5us
Working voltage: 3.5~6V
PACKAGE INCLUDES

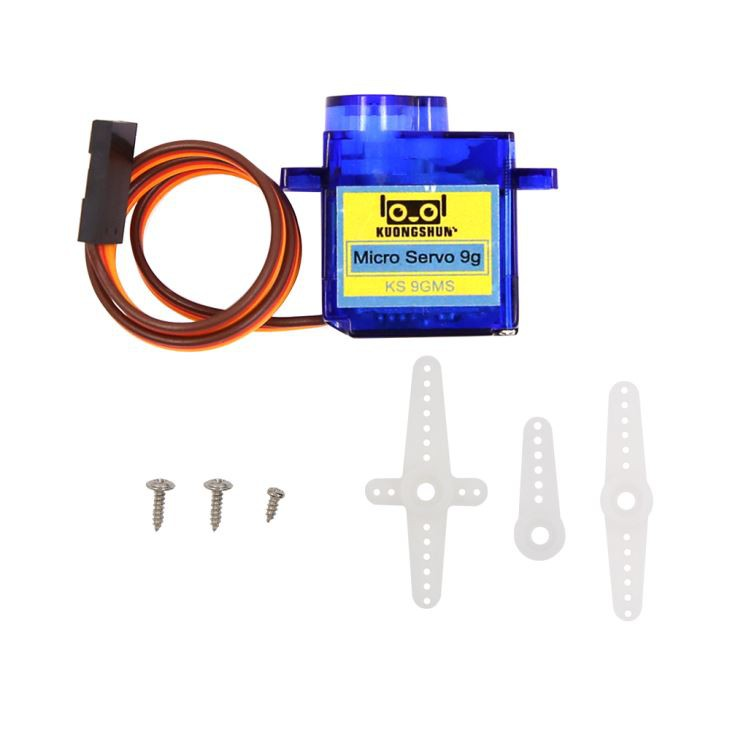

1 X KUONGSHUN Servo SG90 9g 180 Degree (china chip)
VNH5019 Motor Driver Shield: Pololu High Current Arduino Guide
Table of ContentsWhat Is the VNH5019 Motor Driver Shield?Key Specifications and FeaturesHardware Setup and WiringInstalling the Pololu LibraryBasic...
Read More →
Stepper Motor Power Supply: Choosing Voltage & Amperage
Table of ContentsIntroductionStepper Motor Electrical BasicsUnderstanding Rated Voltage vs Operating VoltageCurrent Rating and Why It MattersThe Driver's Role...
Read More →
High Torque Servo Motors for Robotics: MG996R to DS3225
Servo motors are the muscles of modern robots. Whether you are building a robotic arm, a hexapod walker,...
Read More →Technical Specifications
| Model | SG90 |
|---|---|
| Max Temperature | 180°C |
| SKU | AI3621 |
| Weight | 0.02 kg |
| Availability | In Stock |
Applications & Use Cases
The Servo SG90 9g 180 Degree (china chip) is a versatile towerpro and other servo motors used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
