This is the Red variant of the Red DS-316 10MM Lock- Free Momentary Self- Reset Small Push Button Switch in Plastic Push Button Switch. Available at ₹18.41 (₹15.60 + GST) with free shipping across India.

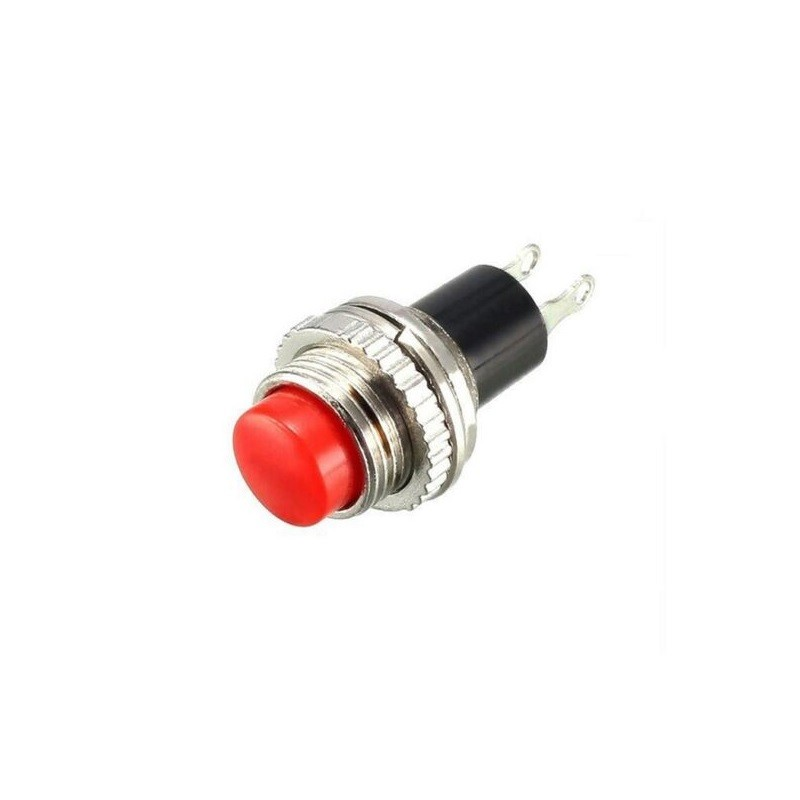

Red DS-316 10MM Lock- Free Momentary Self- Reset Small Push Button Switch
These momentary switch are ordinarily used in Controller panels, push-button telephones, kitchen appliances, magnetic locks, and several other mechanical and electronic devices used across homes or industries.
Push buttons can be explained as simple power controlling switches of a machine or appliance. These are generally metal or thermoplastic switches that are intended to grant easy access to the user. The idea of electric circuits is that the electricity should be able to flow uninterrupted through multiple wires and components. However, circuits that are always complete aren’t as useful as the ones that work only when required.
The Push-button switch is widely used as an operational unit in various electrical circuits, electrical devices, and machines in the home and industry. The switch can operate circuits, turning on and offloads such as contractors, engines, relays, and so on. It is a push ON release OFF type switch.
Note: Image may vary from actual product in terms of design, color and brand printed
Features:
- Easy to use
- Best for your DIY projects
- Self-locking/Latching Self-reset
- Good electrical conductivity
- This is Momentary type push-button switch
Specifications:
| Function | Momentary |
|---|---|
| Model No. | DS-316 |
| Operating Voltage (V) | 250V 1.5A, 125V 3A |
| Material: | Metal, Plastic |
| Color: | Red |
| Terminals | 2 Pin |
| Temperature | -25°C to 85°C |
| Dimensional Accuracy (mm): | 10mm |
Packages Includes:
1 x Red DS-316 10MM Lock- Free Momentary Self- Reset Small Push Button Switch
Technical Specifications
| Model | DS-316 |
|---|---|
| Size | 10mm |
| Color | Red |
| SKU | AI5957 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Red DS-316 10MM Lock- Free Momentary Self- Reset Small Push Button Switch is a versatile plastic push button switch used across a wide range of applications including breadboard prototyping, control panels, toys and gadgets, appliance interfaces, and PCB mounting.
Common use cases:
- Adding user input to an Arduino project
- Building a game controller
- Prototyping a product interface on a breadboard
This product is ideal for electronics students, hobbyists, and prototype builders.
Technical Tip: Use a 10K pull-down resistor with push buttons connected to microcontroller inputs to prevent floating pin issues.
