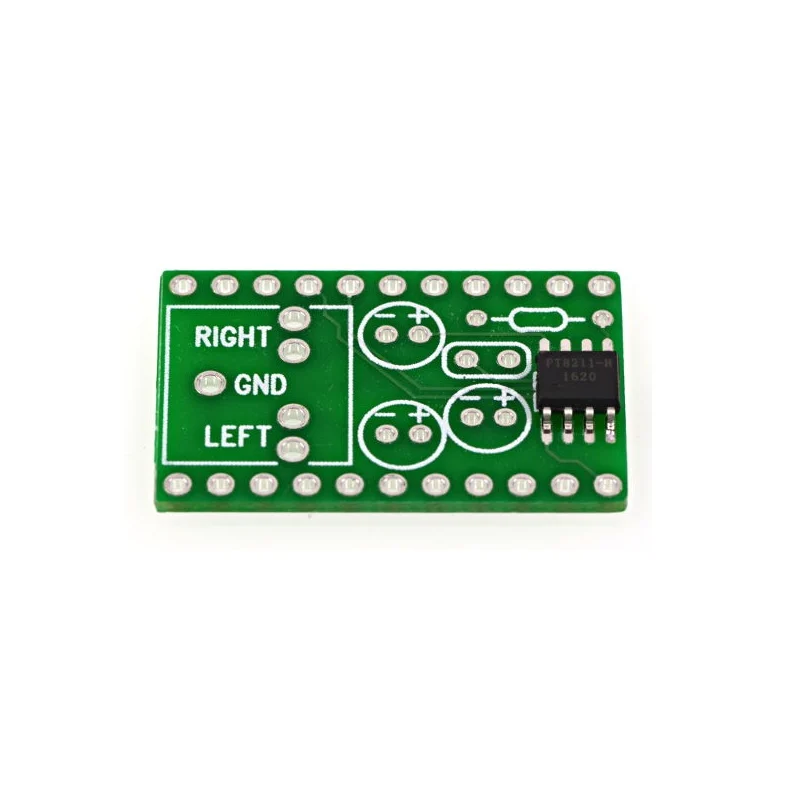

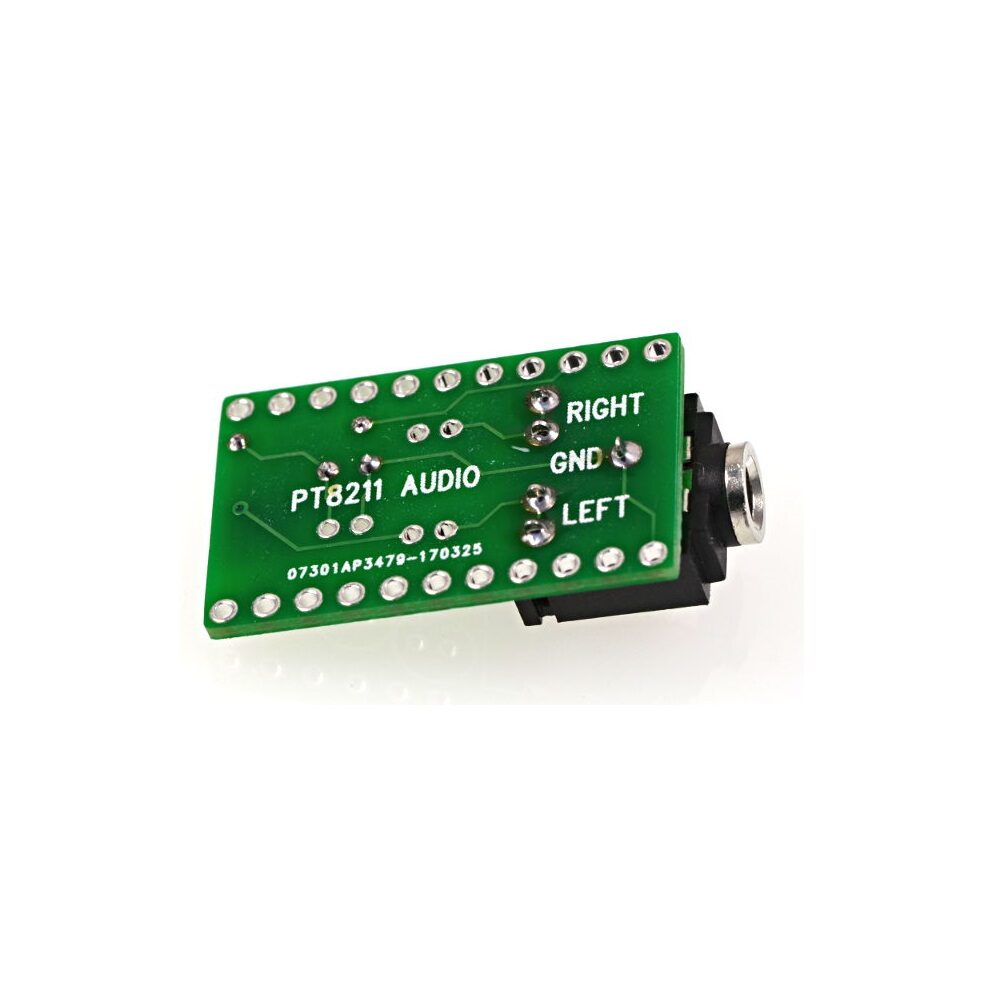

PT8211 Unassembled Audio Kit for Teensy 3.x

Looking for Pt8211 Led? PT8211 Unassembled Audio Kit for Teensy 3.x is available at Zbotic with fast shipping across India.

PT8211 is a dual channel, 16 bit Digital-to-Analog Converter IC utilizing CMOS technology specially designed for the digital audio applications. The internal conversion architecture is based on an R-2R resister ladder network, an internal circuit is well matched and a 16 bit dynamic range is achieved even in whole supply voltage range.

PT8211 also enhanced the performance of timing responsibility in a digital serial bus, in a company with the fast switching R-2R network that makes 8X oversampling audio signal is also supported. PT8211 can be supported by a wide range of sample frequency, it is compatible with TDA1311 by functionally. Its digital input timing format is Least Significant Bit Justified(LSBJ), or so-called Japanese input format. Digital code format is two’s complement and MSB first. PT8211 is available in 8-pin SO or DIP package.

Application:

1. Digital Audio Equipment
2. CD ROM/VCD
3. Multimedia Sound Card
4. MPEG Decoder Card

Pin Configuration:

Features:

1. CMOS technology.
2. Support 3.3V bus input level
3. Low power consumption.
4. Two audio channel output in the same chip.
5. 16-bit dynamic range.
6. Low total harmonic distortion.
7. No phase shift between both output channel.
8. Available in 8 pins, SO or DIP package.

Package Includes:

1 x PT8211 Unassembled Audio Kit for Teensy 3.x

Manual:

PT8211 Unassembled Audio Kit for Teensy 3.x Overview

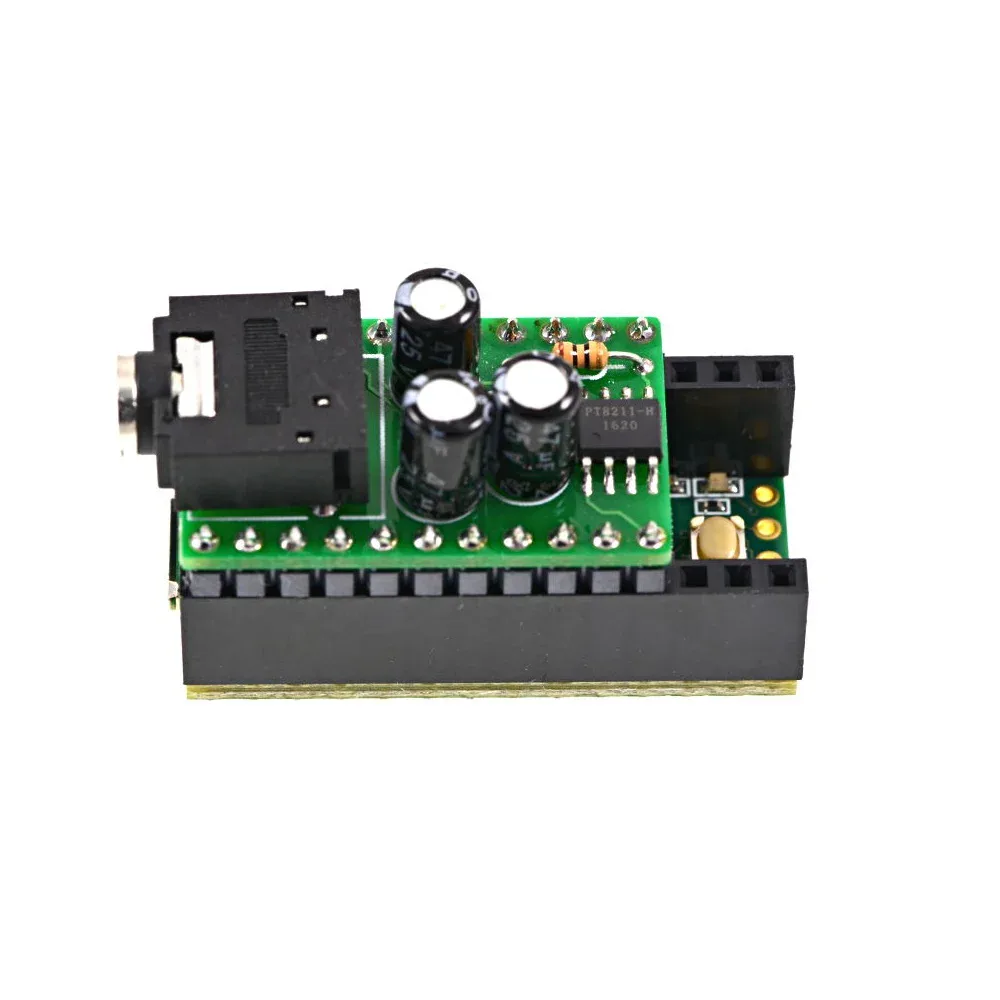

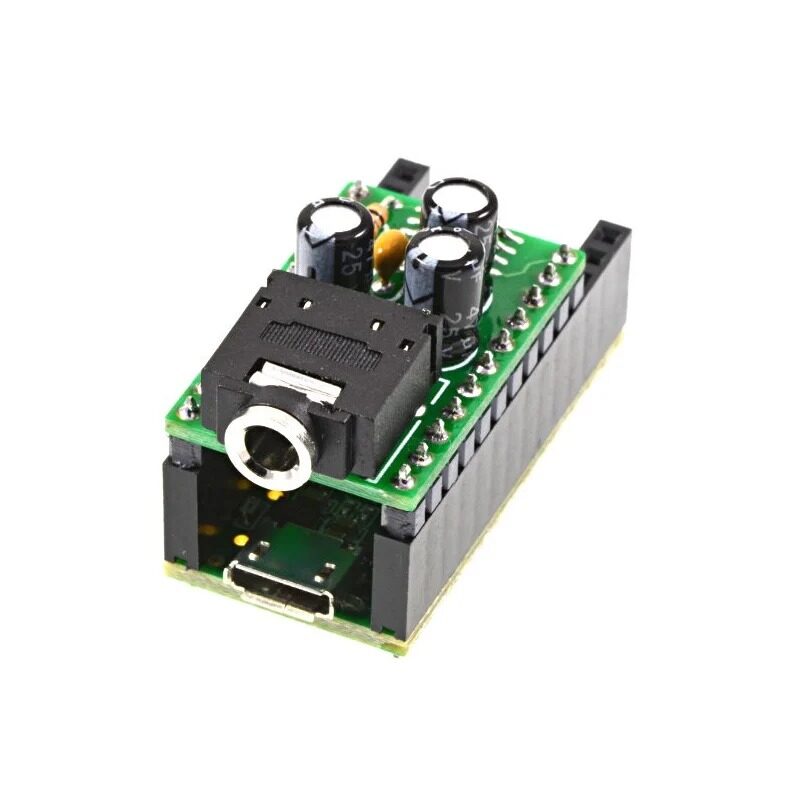

The PT8211 Unassembled Audio Kit for Teensy 3.x is a DIY stereo DAC module that pairs directly with Teensy 3.x boards. Using CMOS R-2R ladder architecture, it delivers 16-bit dynamic range and low power audio output for embedded sound projects.

Key Features of PT8211 Unassembled Audio Kit for Teensy 3.x

• Dual‐channel audio output in one chip for stereo sound
• 16-bit dynamic range with low total harmonic distortion
• CMOS technology ensures low power consumption
• 3.3 V logic input compatible with all Teensy 3.x models
• 8× oversampling support and wide sample rate compatibility
• Genuine product with fast shipping from Zbotic across India

Applications and Use Cases

• Custom MP3 and WAV player projects on Teensy 3.x
• DIY synthesizer or electronic keyboard circuits
• Embedded audio alerts and voice prompts in robotics
• Portable gaming console audio output
• Audio test rigs and signal-processing experiments
• Interactive art installations with stereo sound effects

How to Use PT8211 Unassembled Audio Kit for Teensy 3.x

Solder the included components onto the PCB, align and plug the module into your Teensy 3.x header pins, then connect the digital audio data lines (clock, word-select, data) from your Teensy sketch. Stream PCM audio from your code and the PT8211’s R-2R ladder will convert it to left and right analog outputs.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

Is the PT8211 kit compatible with all Teensy 3.x versions?

Yes. The PCB and pinout match Teensy 3.0, 3.1, 3.2, 3.5 and 3.6 boards, all of which operate at a 3.3 V logic level required by the PT8211.

Do I need any external libraries to drive the PT8211?

No extra hardware drivers are needed. Simply use your Teensy code to generate a digital serial audio stream (I²S/PCM format) on GPIO pins and feed it into the PT8211’s input pins.

What sample rates and audio formats does it support?

The PT8211 supports a wide range of sample frequencies—from standard CD rates (44.1 kHz, 48 kHz) to higher rates—thanks to its internal 8× oversampling and flexible digital serial bus timing.
