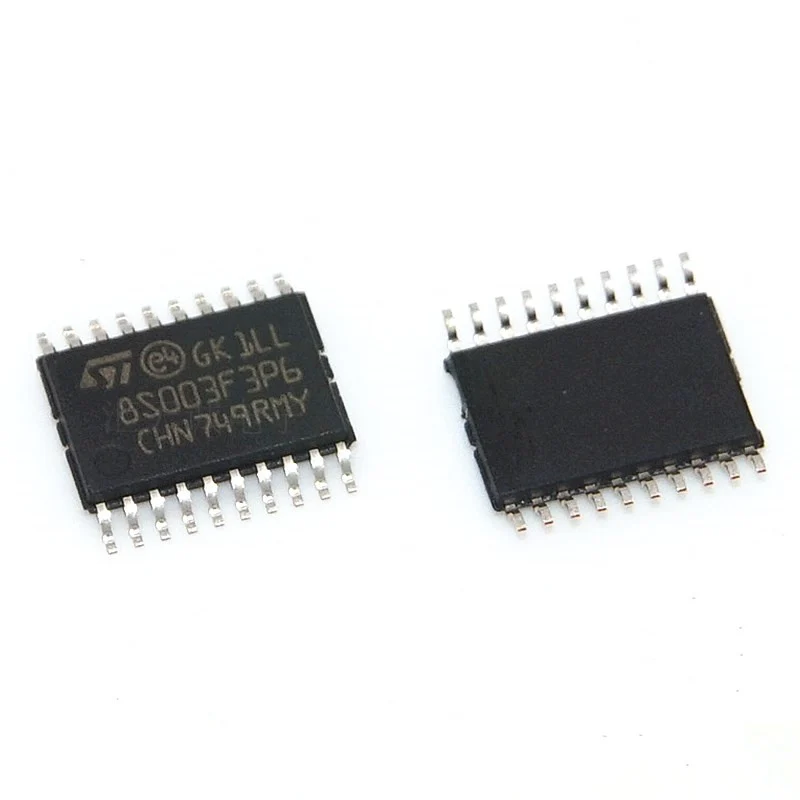

Product Description
The STM8S003F3 value line 8-bit microcontrollers feature 8 Kbytes of Flash program memory and integrated true data EEPROM. Classified as low-density devices within the STM8S microcontroller family (referenced in RM0016), the STM8S003F3 offers a blend of performance, reliability, and cost-efficiency.
These microcontrollers are both powerful and resilient, equipped with a true data EEPROM capable of enduring up to 100,000 write/erase cycles. With an advanced core and peripherals running at a 16 MHz clock frequency, robust I/O pins, and features such as independent watchdogs with separate clock sources and a clock security system, the STM8S003F3 ensures reliable operation. Additionally, system costs are minimized thanks to its high level of integration, which includes internal clock oscillators, watchdogs, and brown-out reset functionality.
Features
- Pin count: 20
- Max. number of GPIOs (I/O):16
- External interrupt pins: 16
- Timer CAPCOM channels: 7
- Timer complementary outputs: 2
- A/D converter channels: 5
- High-sink I/Os: 12
- Low-density Flash program memory (byte): 8K
- RAM (byte): 1K
- True data EEPROM (byte): 128
- Peripheral set: Multi purpose timer (TIM1), SPI, I2C, UART, Window WDG, independent WDG, ADC, PWM timer (TIM2), 8-bit timer (TIM4)
Package Includes
- 1 x STM8S003F3P6 IC
Technical Specifications
| Model | STM8S003F3P6 |
|---|---|
| SKU | AI0490 |
| Weight | 0.0 kg |
| Availability | In Stock |
Applications & Use Cases
The STM8S003F3P6 IC is a versatile microcontroller ics used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
