This is the 5V variant of the Pro Mini ATMEGA328P 5V/16M (Official Version) in Boards Compatible with Arduino. Available at ₹248.98 (₹211.00 + GST) with free shipping across India.
Product Description:

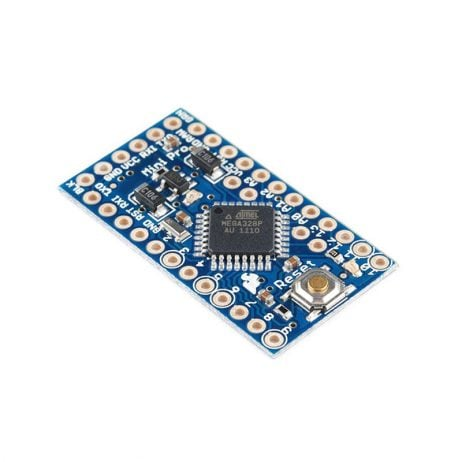

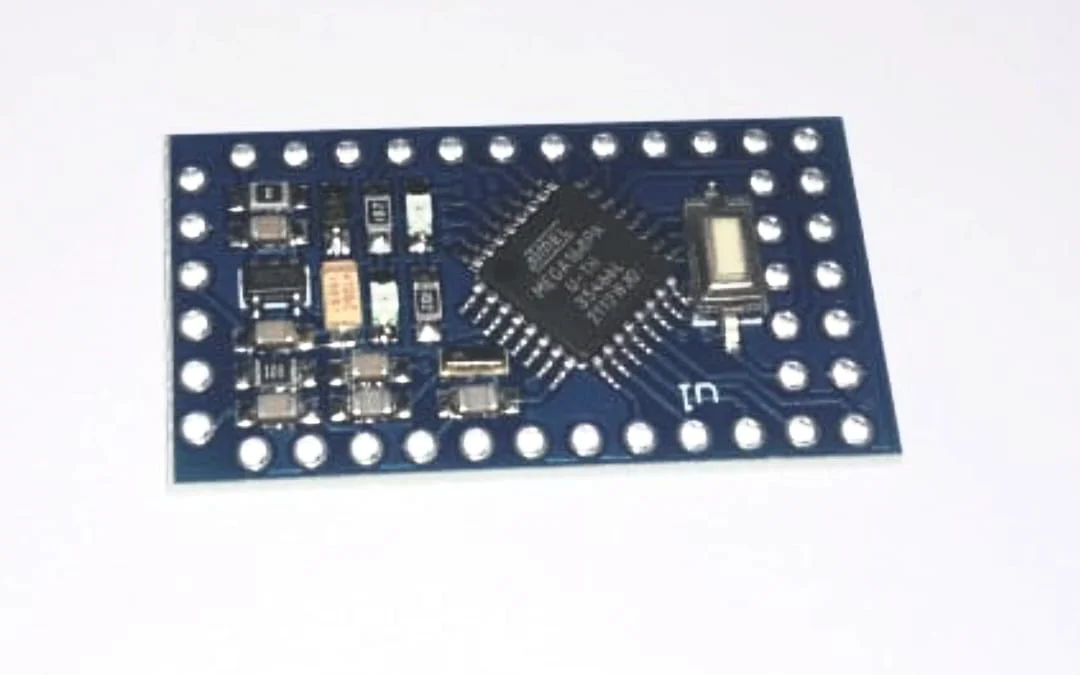

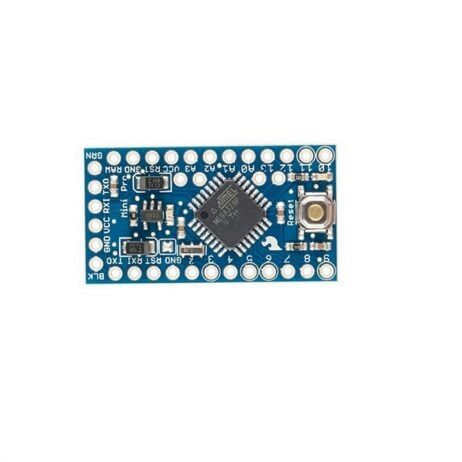

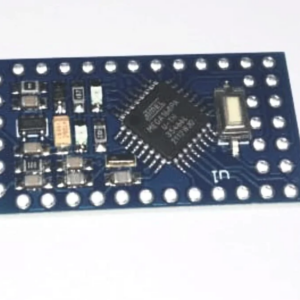

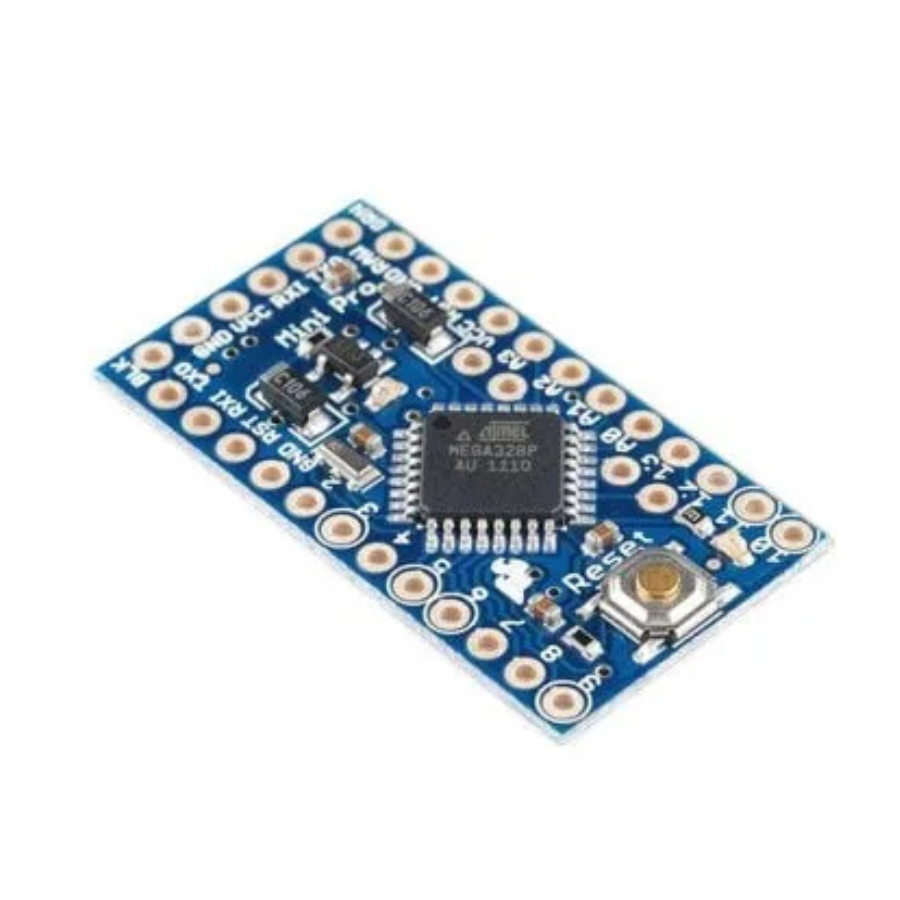

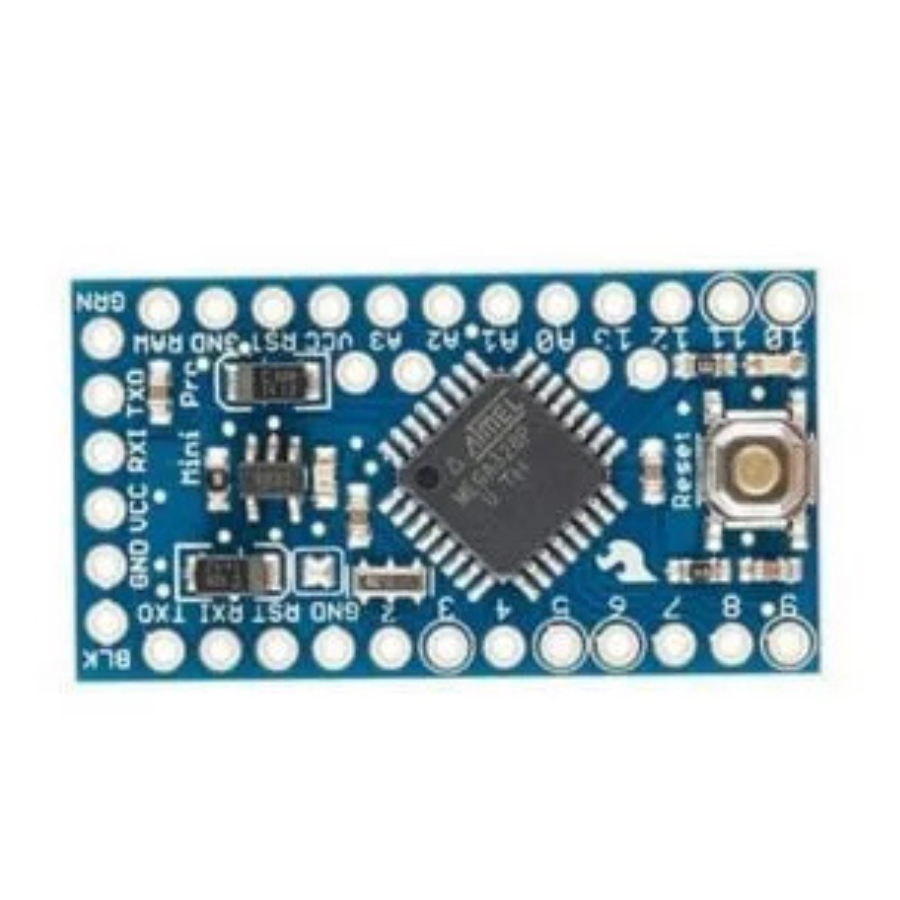

This text describes the Pro Mini 5V Arduino, a micro-controller board based on the ATmega328 chip. It runs on the 16MHz bootloader and does not have any connectors. For beginners, we suggest using the Uno R3 board, which is easier to set up and use. The Pro Mini Arduino is designed for advanced users who are aware of the system voltage (5V), the need for external connectors, and the absence of USB on-board.
The board has 14 digital pins that can be used as inputs or outputs, and 6 of them can also produce PWM signals. It also has 6 analog pins, a resonator, a reset button, and holes for attaching pin headers.
To connect the board to a computer, you need an FTDI cable that provides USB power and communication. The Pro Mini Arduino is suitable for projects that require a permanent or semi-permanent installation. The pin layout is compatible with the Mini Arduino.
There is two versions of the Pro Mini. One runs at 3.3V and 8 MHz, the other at 5V and 16 MHz. To buy 3.3V/8MHz Pro Mini click on the name below
Pro Mini ATMEGA328P 3.3V/8MHz with Connector
Pro Mini ATMEGA328P 5V/16M without Connector
Features:
- ATmega328 running at 16MHz with external resonator (0.5% tolerance)
- 0.8mm Thin PCB
- USB connection off board
- Supports auto-reset
- 5V regulator
- Max 150mA output
- Over-current protected
- Weighs less than 2 grams!
- DC input 5V up to 12V
- Onboard Power and Status LEDs
- Analog Pins: 8
- Digital I/Os: 14
- 0.7×1.3″ (18x33mm)
Useful Links :
Getting Started with Arduino Pro Mini
Specification:
| Clock Frequency (MHz) | 16 |
|---|---|
| Analog I/O Pins | 8 |
| Digital I/O Pins | 14 |
| PCB Size ( L x W ) mm | 33 x 18 |
| Shipping Weight | 0.08 kg |
| Shipping Dimensions | 10 × 5 × 5 cm |
Package Includes :
1 x Pro Mini ATMEGA328P 5V/16M (Official Version)
Arduino Timer Tutorial: millis(), micros() & Hardware Timers
Timing is at the heart of almost every Arduino project. Blinking an LED, debouncing a button, reading sensors...
Read More →
ESP32 Matter Protocol: Future-Proof Smart Home Devices
Esp32 Matter Protocol Smart Home — this DIY project gives you smartphone control over real-world devices at a...
Read More →
Arduino Waveform Generator: Build a Function Generator with DDS
An Arduino function generator using DDS (Direct Digital Synthesis) is one of the most rewarding electronics projects you...
Read More →Technical Specifications
| Model | ATMEGA328P |
|---|---|
| Operating Voltage | 5V |
| SKU | AI2735 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The Pro Mini ATMEGA328P 5V/16M (Official Version) is a versatile boards compatible with arduino used across a wide range of applications including electronics learning, robotics, home automation, sensor interfacing, and motor control.
Common use cases:
- Learning programming and electronics
- Building a line-following robot
- Creating a home automation hub
This product is ideal for students, hobbyists, and electronics beginners.
Technical Tip: Arduino Uno is the standard learning board. Mega offers more pins for complex projects. Nano suits breadboard prototyping.
