Product Description

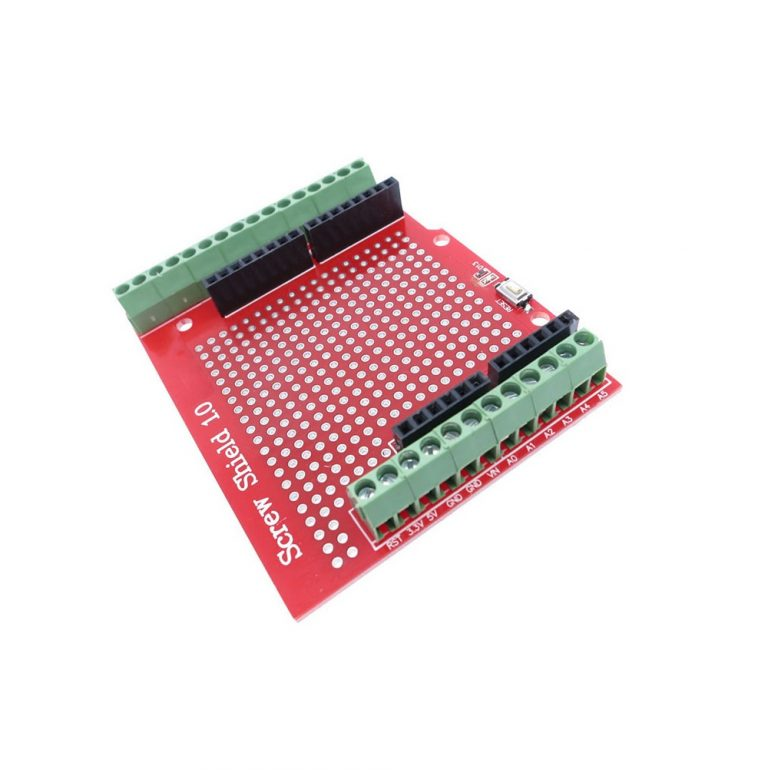

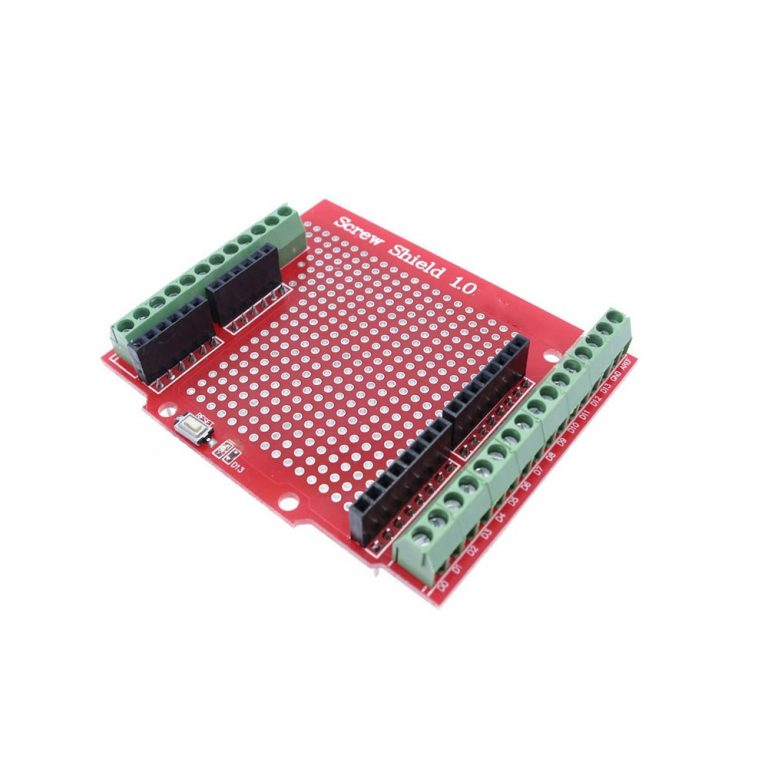

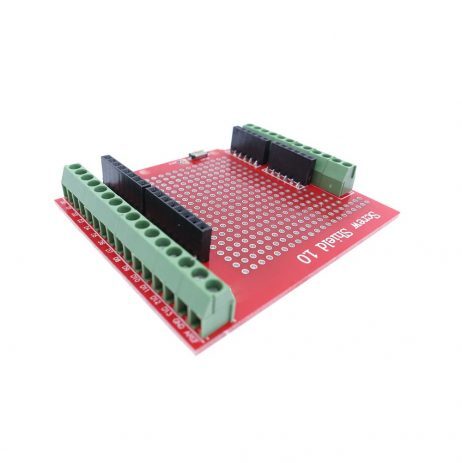

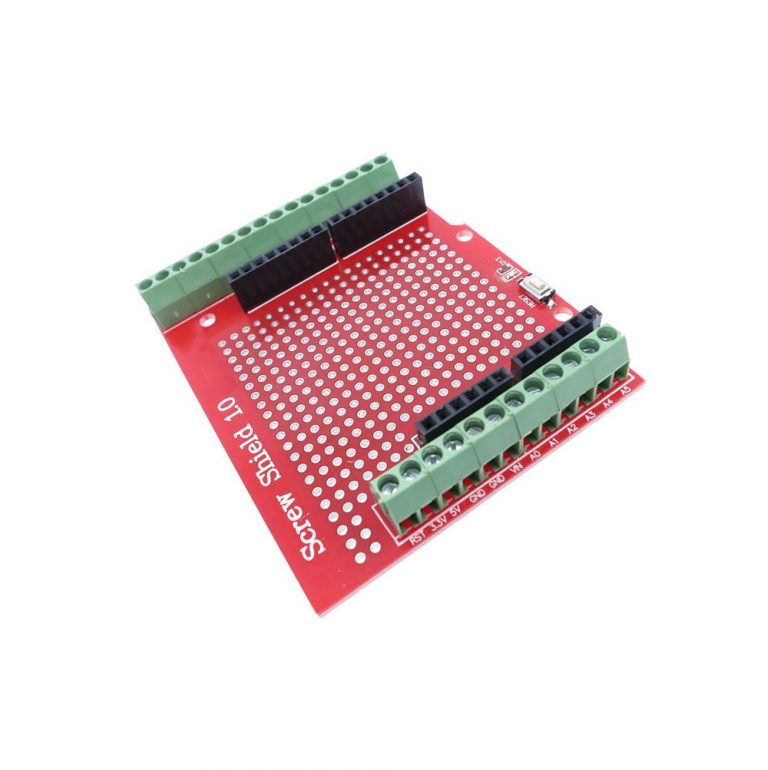

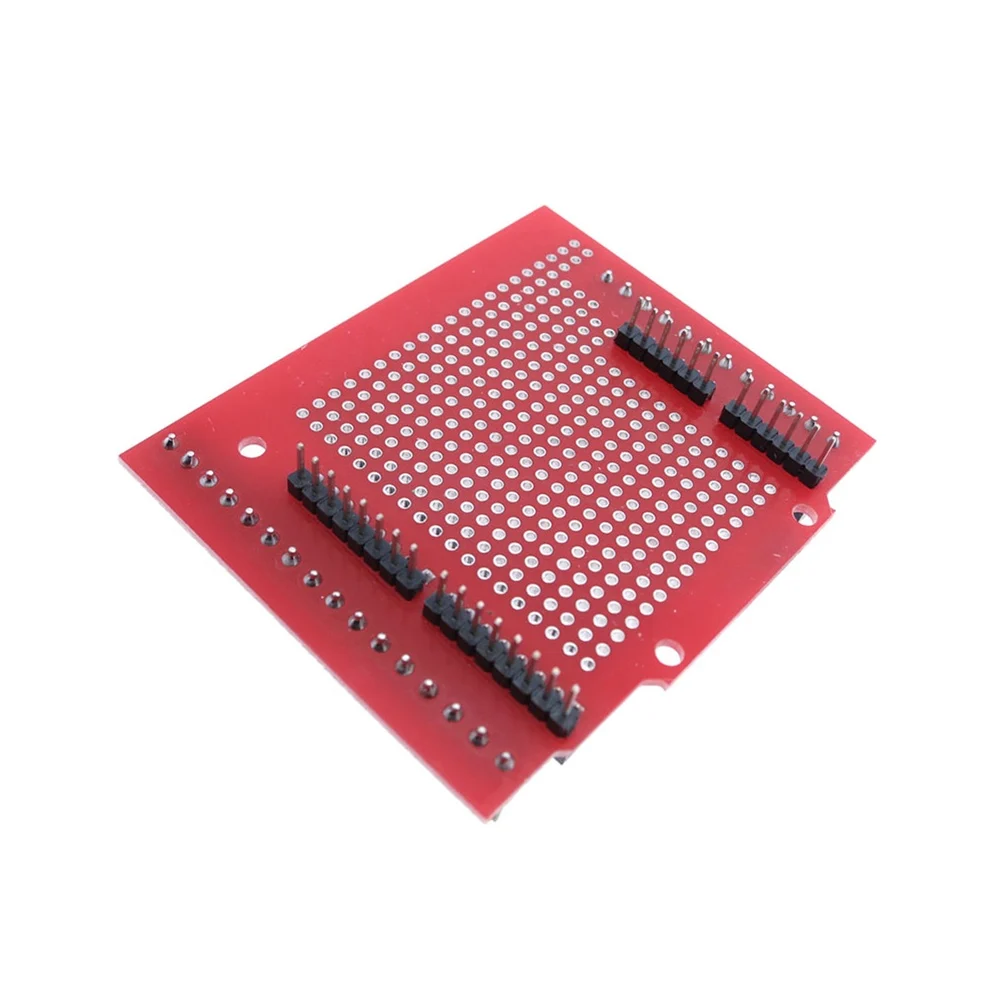

This is the Proto Screw Shield 1.0, a breakout board for Arduino Uno.
The Proto Screw Shield combines a prototyping shield with screw terminal blocks of 3.5 mm pitch. This allows you to build custom circuits on the shield and then connect wires and sensors securely to the terminals. It is ideal for panel mounts, buttons, sensors, enclosures, and other applications.
The Proto Screw Shield comes pre-assembled and ready to be attached to the Arduino Uno. It is reliable and convenient.
The Proto Screw Shield extends all the Arduino pins to the screw terminals. It also has some features of the Arduino Protoshield, such as a large prototyping area with both connected and unconnected through-holes of 0.1″ spacing, a reset button, and an LED for the D13 pin.
Features :
- Arduino terminal to provide the IO, port connection.
- 3.81 posts quality, reliable, convenient, durable.
- Combined with the Proto Shield, the middle can be used as a prototype expansion board.
- Double-sided PCB Prototyping extended area vias connecting the front sides can be welded components.
- The middle section can be placed small bread plate, convenient test extend
Package Includes :
1 x Proto Screw Shield Assemble.
ESP32 OTA Update: Wireless Firmware Upload Guide
Esp32 Ota Update Wireless — this detailed tutorial covers everything from hardware selection to complete working code, designed...
Read More →
Arduino Function Generator: Create Waveforms with DAC
Table of ContentsWhat Is a Function Generator?PWM-Based Approach: Simple but LimitedR-2R Ladder DAC: 8-Bit Output from Digital PinsMCP4725...
Read More →
Arduino Finite State Machine: Writing Cleaner Code for Complex Projects
As your Arduino projects grow beyond a few if statements, keeping your code maintainable becomes a real challenge....
Read More →Technical Specifications
| Brand | Arduino |
|---|---|
| SKU | AI2581 |
| Weight | 0.04 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Proto Screw Shield 1.0 For Arduino Uno is a versatile shield for arduino used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
