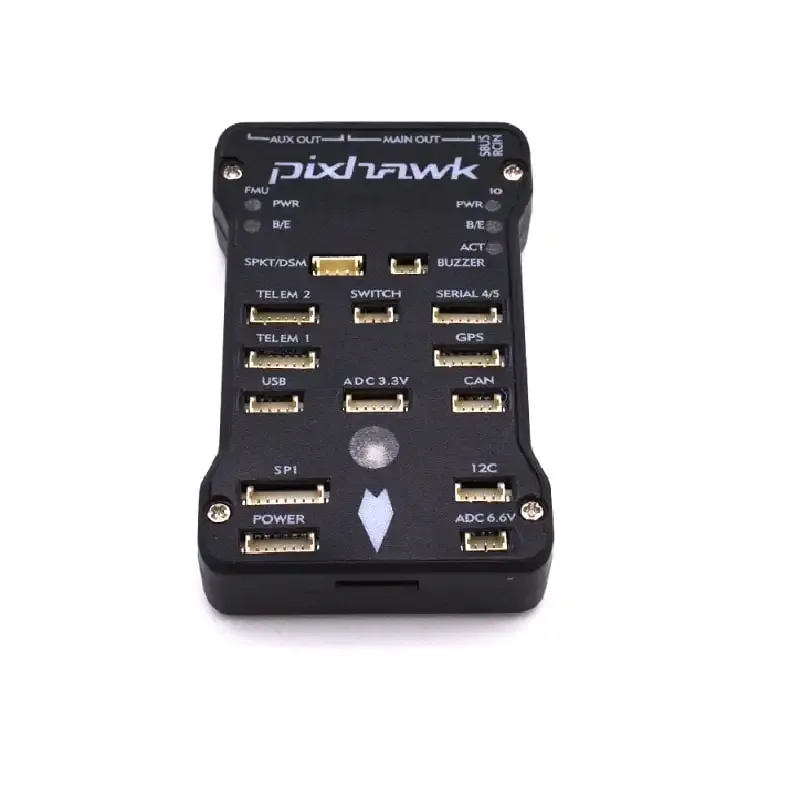

Pixhawk 2.4.8 Drone Flight Controller PX4 32 Bit Autopilot – Good Quality
Description:
Choosing the right flight controller for your needs can be challenging, but zbotic.in is here to assist you in finding a high-quality option. Consider the Pixhawk 2.4.8 32-bit PX4 Autopilot flight controller for your drone application; simply check its specifications to see if it meets your requirements.
A common question in our community is, “What is a flight controller?” The answer is straightforward: the flight controller (FC) acts as the brain of the drone (quadcopter). It is a circuit board equipped with various sensors that monitor the drone’s movement and user commands, much like the Pixhawk 2.4.8. It processes this data to control motor speeds, guiding the drone’s movement as directed.
The Pixhawk 2.4.8 supports 8 RC channels and 4 serial ports, offering multiple user interfaces for programming, log review, and even mobile apps for smartphones and tablets. It automatically detects and configures all connected peripherals.
Key advantages of the Pixhawk system include a Unix/Linux-like programming environment, advanced autopilot capabilities, sophisticated scripting for missions and flight behaviors, and a custom PX4 driver layer that ensures precise timing across all processes.

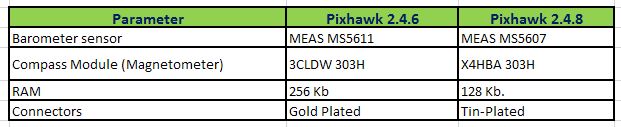

Difference between Pixhawk 2.4.8 & 2.4.6:
Features of Pixhawk 2.4.8:
- The advanced 32-bit ARM CortexM4 high-performance processors; can run NuttX RTOS real-time operating system.
- 14 PWM / servo output.
Bus interface (UART, I2C, SPI, CAN).
- The integrated backup power and backup controller fails; the primary controller fails over to the backup control is safe.
- Provide automatic and manual modes.
- Provide redundant power input and failover.
- Multicolor LED lights.

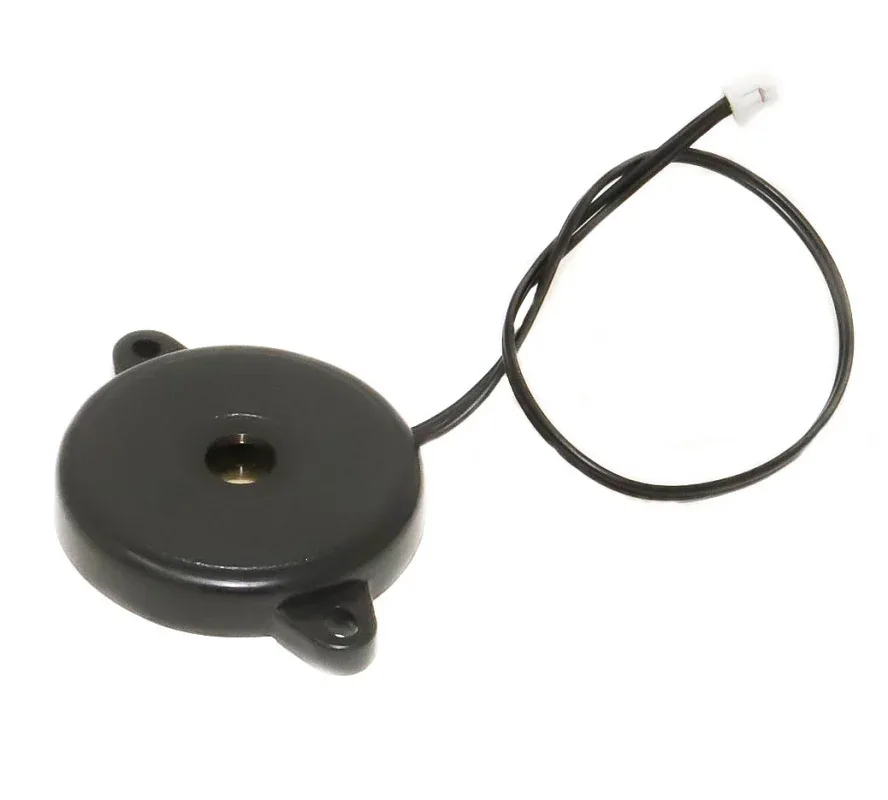

- Provide a multi-tone buzzer Interface.
- Micro SD card to record flight data.
Specifications:
Processor:
-
32bit STM32F427 Cortex M4 core with FPU.
-
32-bit STM32F103 failsafe co-processor.
-
168 MHz.
-
128 KB RAM.
-
2 MB Flash.
Sensors:
-
ST Micro L3GD20H 16 bit gyroscope.
-
ST Micro X4HBA 303H 14-bit accelerometer/magnetometer.
-
Invensense MPU 6000 3-axis accelerometer/gyroscope.
-
MEAS MS5607 barometer.
Interfaces:
-
5x UART (serial ports), one high-power capable, 2x with HW flow control.
-
2x CAN (one with an internal 3.3V transceiver, one on expansion connector).
-
Spektrum DSM / DSM2 / DSM-X® Satellite compatible input.
-
Futaba S.BUS® compatible input and output.
-
PPM sum signal input.
-
RSSI (PWM or voltage) input.
-
I2C.
-
SPI.
-
3.3 and 6.6V ADC inputs.
-
Internal micro USB port and external micro USB port extension.

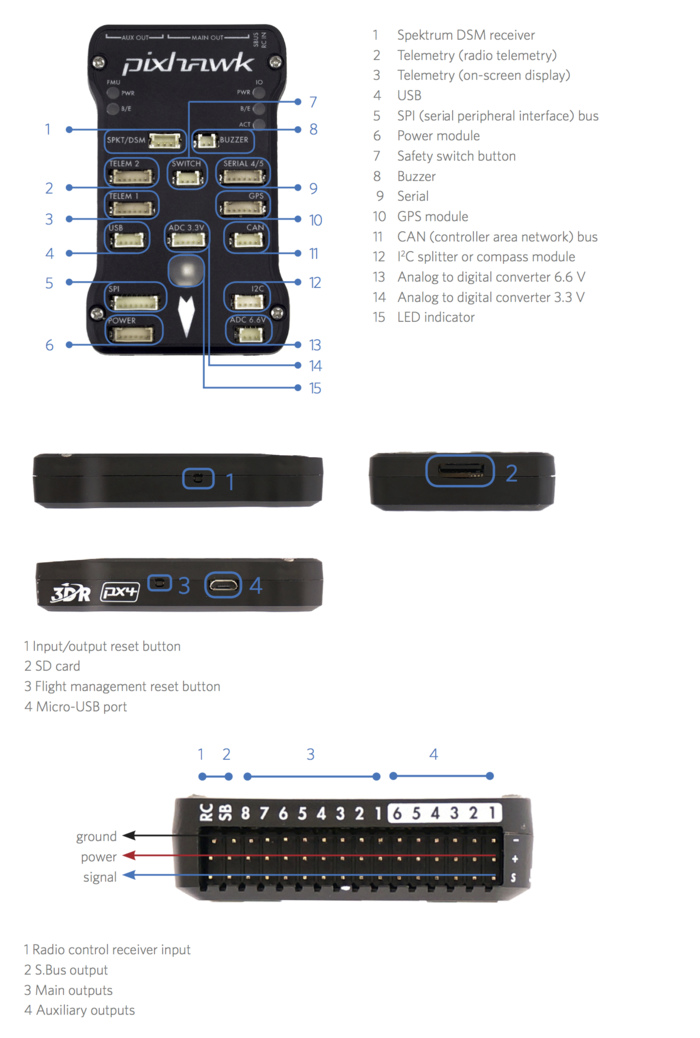

Pixhawk Pinout Connections Ports :

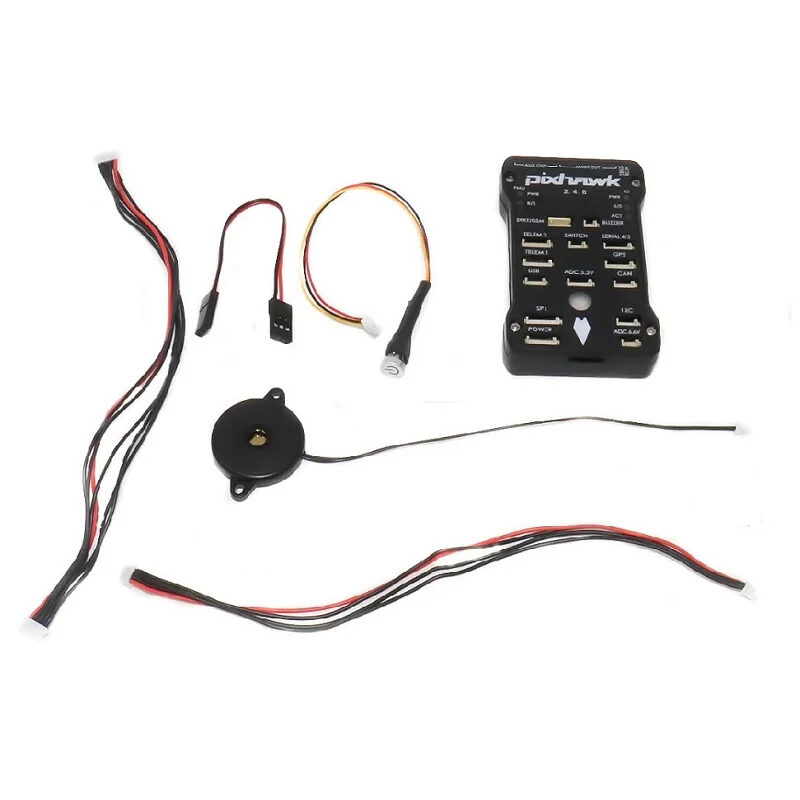

Package Includes :
1 x Pixhawk 2.4.8 32 Bit Autopilot PX4 Drone Flight Controller.

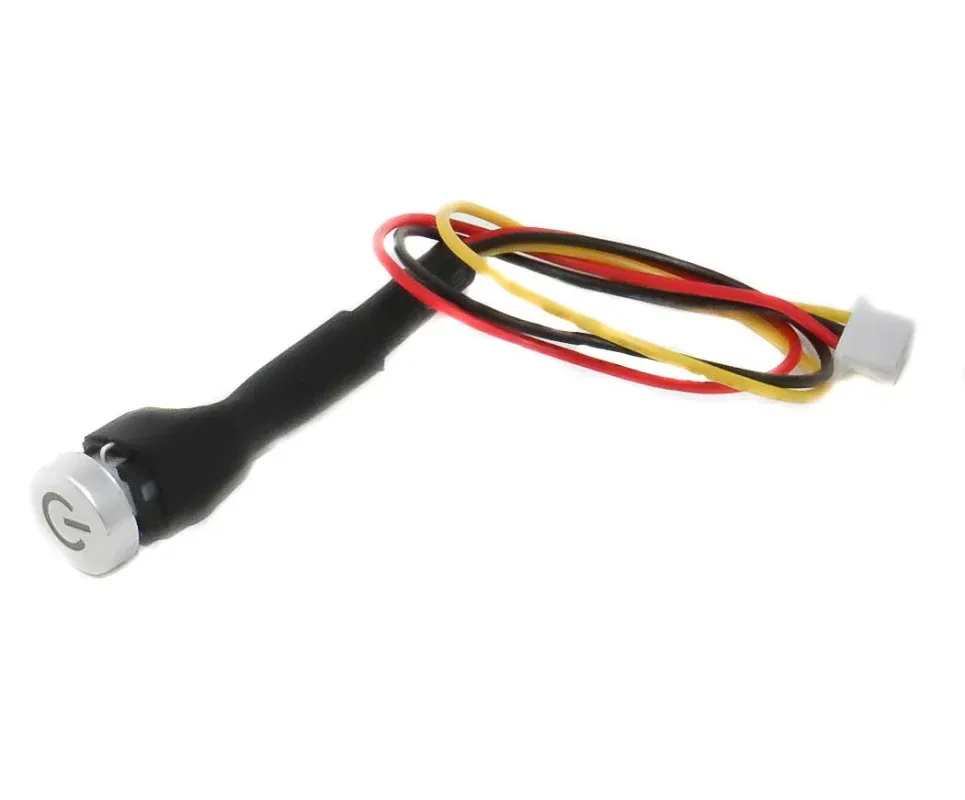

3 x Connecting Cables.
Pixhawk 2.4.8 Drone Flight Controller PX4 32 Bit Autopilot Overview
The Pixhawk 2.4.8 is a high-quality 32-bit PX4 autopilot board designed as the central brain for multirotor and fixed-wing UAVs. Equipped with onboard gyrometer, accelerometer, barometer and magnetometer sensors, it delivers stable flight control and precise navigation.
Key Features of Pixhawk 2.4.8 Drone Flight Controller PX4 32 Bit Autopilot
- 32-Bit Cortex M4 Processor: Fast flight computations and real-time control.
- Supply Voltage 7V: Compatible with standard drone power systems.
- Multiple Bus Interfaces: UART, I2C, SPI and CAN ports for peripherals and telemetry.
- Onboard Sensors: Integrated gyroscope, accelerometer, barometer and magnetometer for attitude and altitude sensing.
- Mission Planner Firmware: Configurable flight parameters, waypoint planning and live monitoring.
- Micro SD Logging: Record detailed flight data for analysis and troubleshooting.
- Fast Shipping from Zbotic: Dispatched within 24 hours to most Indian locations.
Applications and Use Cases
- DIY multirotor projects: quadcopters, hexacopters and octocopters.
- Aerial photography and videography platforms requiring stable autopilot.
- Research and development in drone navigation and sensor fusion.
- Precision agriculture UAVs for crop monitoring and spraying.
- Fixed-wing mapping drones with waypoint missions.
- Educational platforms teaching flight control and robotics.
How to Use Pixhawk 2.4.8 Drone Flight Controller PX4 32 Bit Autopilot
Begin by mounting the Pixhawk on anti-vibration foam, connect a regulated 7V power module, attach GPS, RC receiver and motors via the provided I/O ports. Insert a FAT32-formatted micro SD card, then use Mission Planner software on your PC to calibrate sensors, configure flight modes and upload waypoints before your first test flight.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What power supply does the Pixhawk 2.4.8 require?
The Pixhawk 2.4.8 operates on a regulated 7V input, typically provided by a dedicated power module connected to your drone’s battery.
Can I connect additional peripherals to this flight controller?
Yes, the board offers UART, I2C, SPI and CAN ports for adding telemetry radios, companion computers, range finders and other sensors.
How do I record and access flight logs?
Insert a FAT32-formatted micro SD card into the onboard slot. Flight data such as attitude, GPS and battery status are automatically logged and can be retrieved by removing the card after landing.
Drone Mapping with Photogrammetry in India: DroneDeploy vs WebODM Complete Guide 2025
Drone photogrammetry has transformed how Indian industries approach land surveying, construction monitoring, agricultural planning, and infrastructure inspection. Where...
Read More →
Drone Insurance Requirements in India 2026
Understanding drone insurance requirements in India for 2026 is essential for every commercial drone operator. With DGCA mandating...
Read More →
3-Inch Toothpick FPV Drone Build: Ultra-Light Indoor Flier
3-Inch Toothpick FPV Drone Build: Ultra-Light Indoor Flier The 3-inch toothpick FPV drone is one of the most...
Read More →Technical Specifications
| Brand | Pixhawk |
|---|---|
| Model | PX4 |
| Package Quantity | 4 pcs |
| SKU | AI1213 |
| Weight | 0.0741 kg |
| Availability | In Stock |
Applications & Use Cases
The Pixhawk 2.4.8 Drone Flight Controller PX4 32 Bit Autopilot – Good Quality is a versatile flight controller & accessories used across a wide range of applications including autonomous drones, FPV racing quadcopters, agricultural drones, and surveying and mapping platforms.
Common use cases:
- Central brain for drone stabilization and navigation
- GPS waypoint missions for surveying
- Acro mode flying for FPV freestyle
This product is ideal for drone builders requiring precise flight control.
Technical Tip: F4 processors are good for basic builds; F7 or H7 recommended for advanced features. Ensure firmware compatibility (Betaflight, ArduPilot, iNAV).
