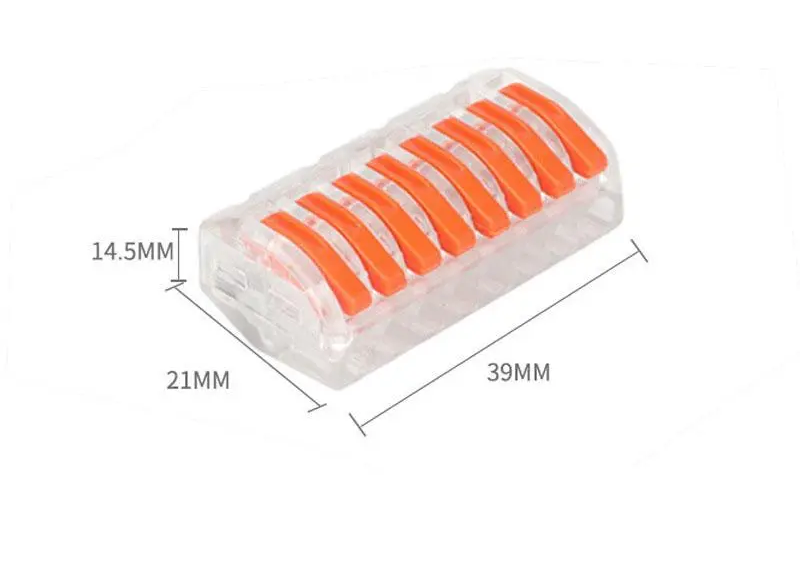

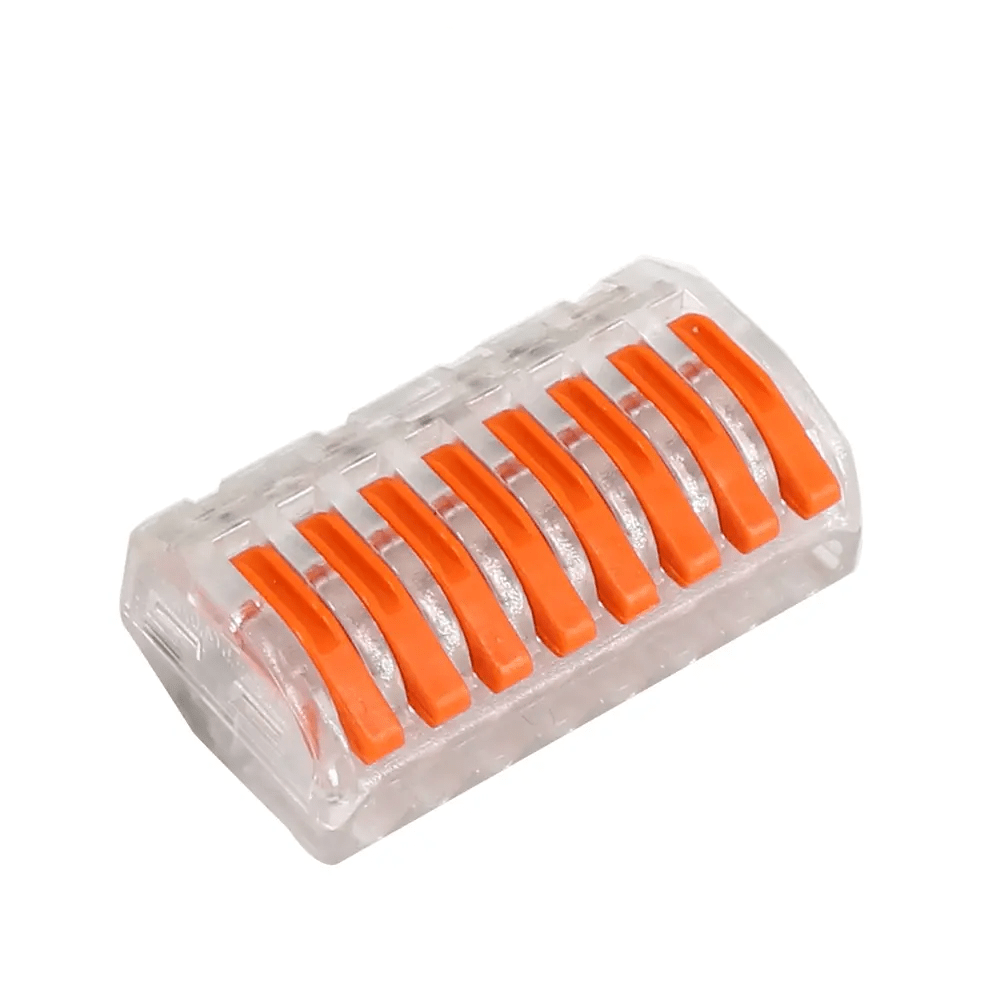

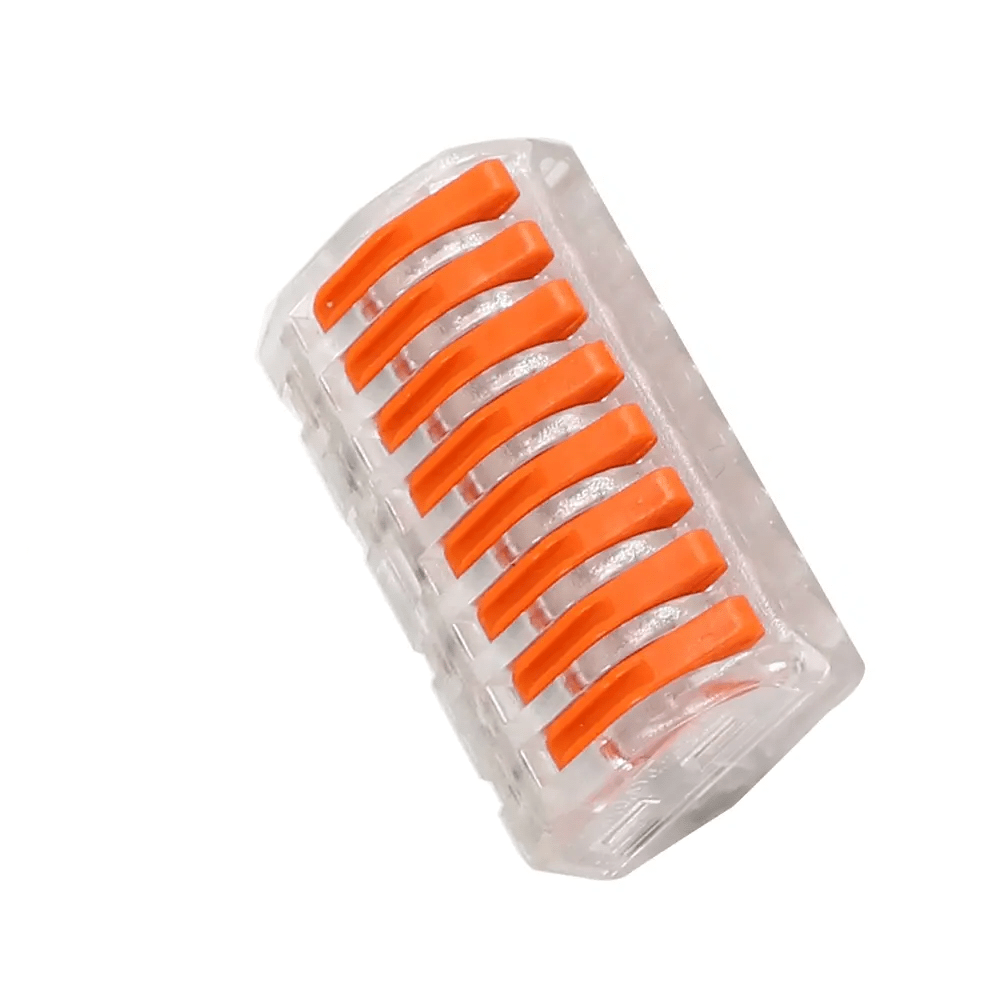

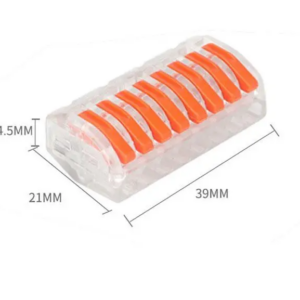

PCT-218T Transparent Quick Connection Terminal

PRODUCT DESCRIPTION

The PCT-218T Universal Terminal is a compact wire connector that uses a spring lever to lock single-strand hardwire (0.08mm to 2.5mm2) or soft wire (0.08mm to 4.0mm2) for cable connection. It is compatible with PCT Spring Lever Connector models PCT-212, 213, 215, 218 and CH-812, 813, 2-4, 2-6, etc. It can handle a rated voltage of up to 400V and a peak electric current of 32A, delivering a maximum power of 7KW.

Features:

1. This product is a compact splicing connector with four conductors and operating levers.
2. It is made of high-grade insulative nylon material with a strong spring locking lever.
3. The metal point inside is nickel plated for better conductivity. I
4. t can withstand high temperatures up to 85°C.
5. Each unit weighs 3.21 grams.

Specification:

• Model: PCT-218T
• Rated Voltage: 220V
• Rated Impulse Voltage: 4KV
• Material of Insulation: Modified Nylon(PA66)
• Color: Grey+Orange
• Rated Current:32A
• Rated power: 7KW
• Gauge:28~12AWG

Package Includes:

1 x PCT-218T Transparent Quick Connection Terminal
