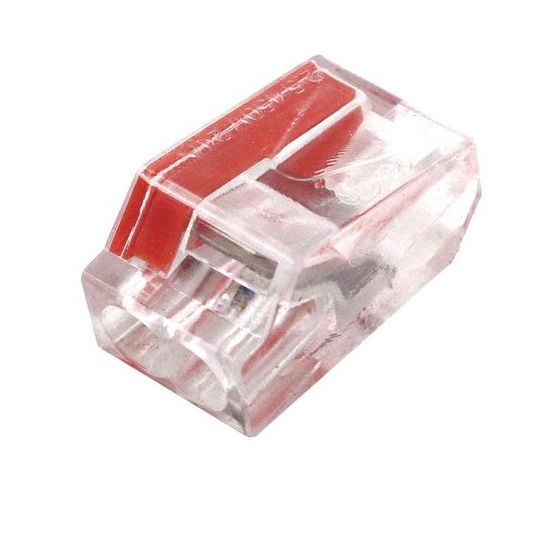

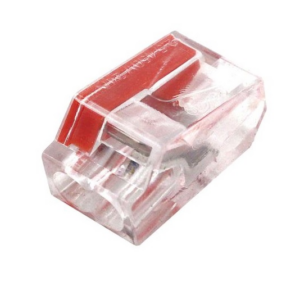

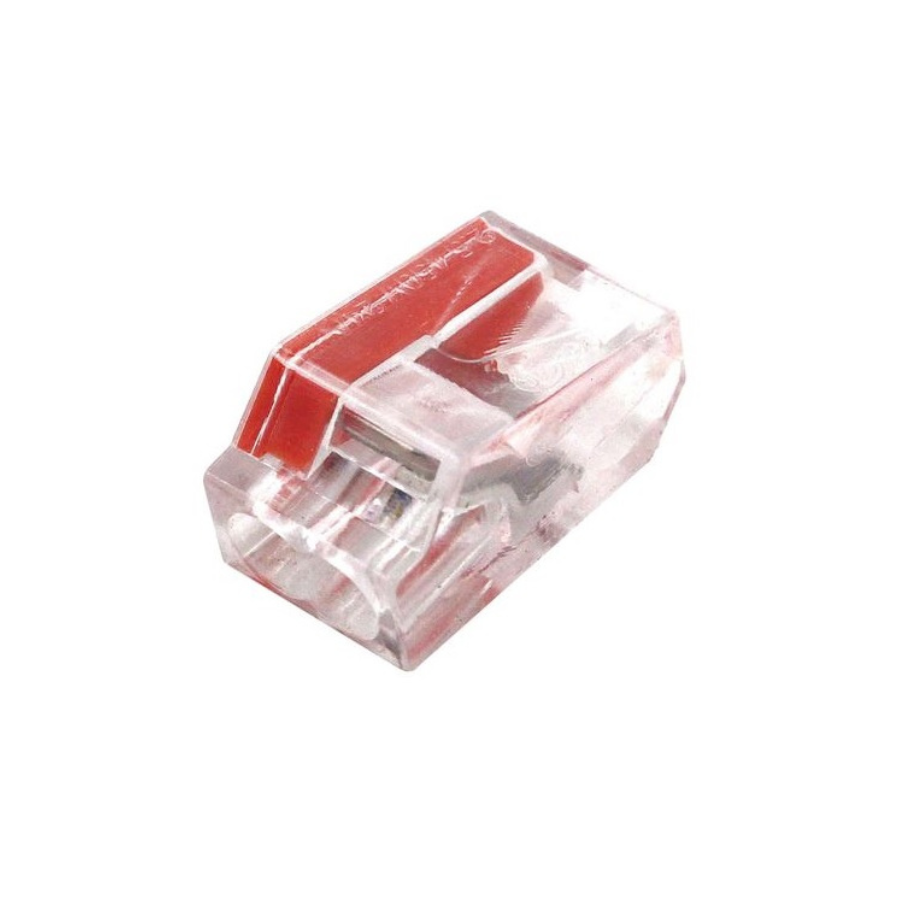

PCT-252 Quick Connection Terminal (Pack of 5)
Introducing the PCT-252 2-Port Push-in Wire Connector, a compact and efficient solution for your electrical installations. Part of the PCT Series, this innovative connector is designed to save space in junction boxes while providing versatile functionality and ease of use.
Features:
- Space-saving Design: The compact size of the PCT-252 ensures efficient use of space in junction boxes, ideal for installations where space is limited.

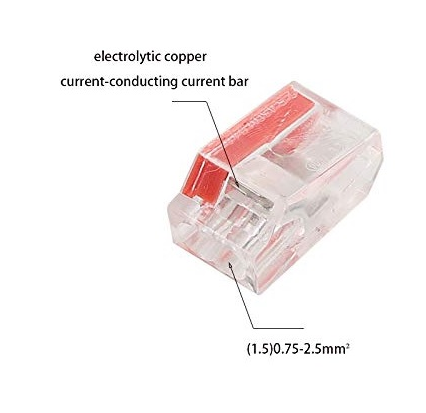

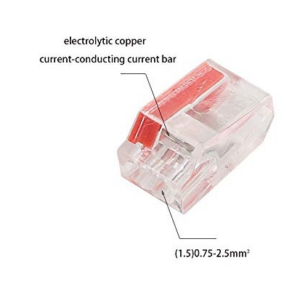

- Wide Compatibility: With individually combinable connection cross sections ranging from 0.5 to 2.5 mm² and a nominal current of up to 24A, this connector accommodates various wire sizes and electrical requirements.
- Visual Inspection: The transparent enclosure allows for visual inspection of correct wiring, ensuring ease of installation and safety.
- Clear Port: The clear port enables easy inspection to verify proper stripping of conductors, providing protection against accidental contact.
- Convenient Installation: Simply strip the wire and push it into the connector—no twisting, taping, or crimping required. This user-friendly design makes installation quick and hassle-free.
- Wide Application: These fast connectors find extensive use in HVAC control circuits, mains voltage ring-main installations, domestic lighting, and as an alternative to conventional junction boxes.
Specifications:
| Specification | Details |
|---|---|
| Housing Material | PA66 UL94 V-0 |
| Model No | PCT-252 |
| Voltage Rating | 450V |
| Current Rating | 24A |
| Wire Range | 0.5 to 2.5mm² |
| Support Wire Gauge | 18 ~ 12 AWG |
| Number of Poles | 2 Poles |
| Wire Strip Length | 8 ~ 10mm |
| Color | Transparent + Red |
| Operating Temperature Range | -40 to 105°C |
| Approximate Weight | 5 gm |
Enhance your electrical installations with the PCT-252 – 2 Port Push-in Wire Connector, offering reliability, efficiency, and ease of use for your projects.
For more high-power connectors and electrical solutions, explore our wide range of products.
PACKAGE INCLUDES:
- 1 X PCT-252 Quick Connection Terminal (Pack of 5)
PCT-252 Quick Connection Terminal Overview
The PCT-252 Quick Connection Terminal is a 2-port push-in wire connector designed for reliable electrical connections in tight spaces. This pack of 5 terminals supports up to 450 V and 24 A, making it ideal for secure and efficient junction box installations.
Key Features of PCT-252 Quick Connection Terminal
- 2-port push-in design for tool-free, time-saving wire terminations
- Voltage rating up to 450 V and nominal current up to 24 A

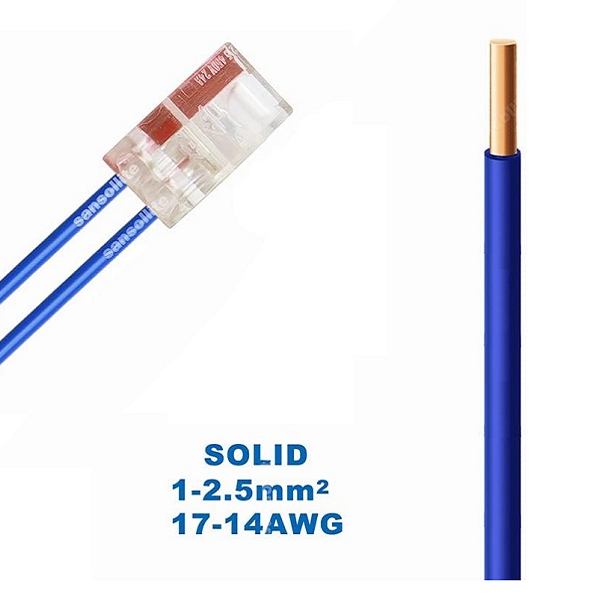

- Accepts wire sizes from 0.5 mm² to 2.5 mm² (18 – 12 AWG)
- Transparent housing allows visual inspection of proper wire insertion
- Space-saving, compact footprint ideal for crowded junction boxes
- Pack of 5 genuine connectors, with fast shipping from Zbotic
Applications and Use Cases
- Joining live, neutral, or ground conductors in residential junction boxes
- Wiring LED lighting strips and under-cabinet lighting circuits
- Connecting wires in control panels, HVAC systems, and security systems
- Prototyping power distribution in small-scale electronics projects
- Quick splicing for appliance repairs and equipment maintenance
How to Use PCT-252 Quick Connection Terminal
Strip the insulation from each conductor to the recommended length, then simply push each wire into one of the two ports until it clicks. The spring mechanism clamps the conductor securely, and the transparent housing lets you confirm a correct insertion. To remove, use a small flat tool to depress the release slot and withdraw the wire.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What wire sizes can the PCT-252 connector accommodate?
It supports solid and stranded conductors from 0.5 mm² to 2.5 mm² (18 – 12 AWG), covering most common building and control wiring.
What are the maximum voltage and current ratings?
The PCT-252 is rated for up to 450 V and a continuous current of 24 A, suitable for typical residential and light commercial circuits.
Can multiple connectors be joined together?
Yes, PCT-252 terminals feature side-by-side clipping, allowing you to snap multiple units together for organized multi-connection assemblies.
Technical Specifications
| Model | PCT-252 |
|---|---|
| Package Quantity | 5 pcs |
| SKU | AI3044 |
| Weight | 0.0 kg |
| Availability | In Stock |
Applications & Use Cases
The PCT-252 Quick Connection Terminal (Pack of 5) is a versatile pct and dc power connectors used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
